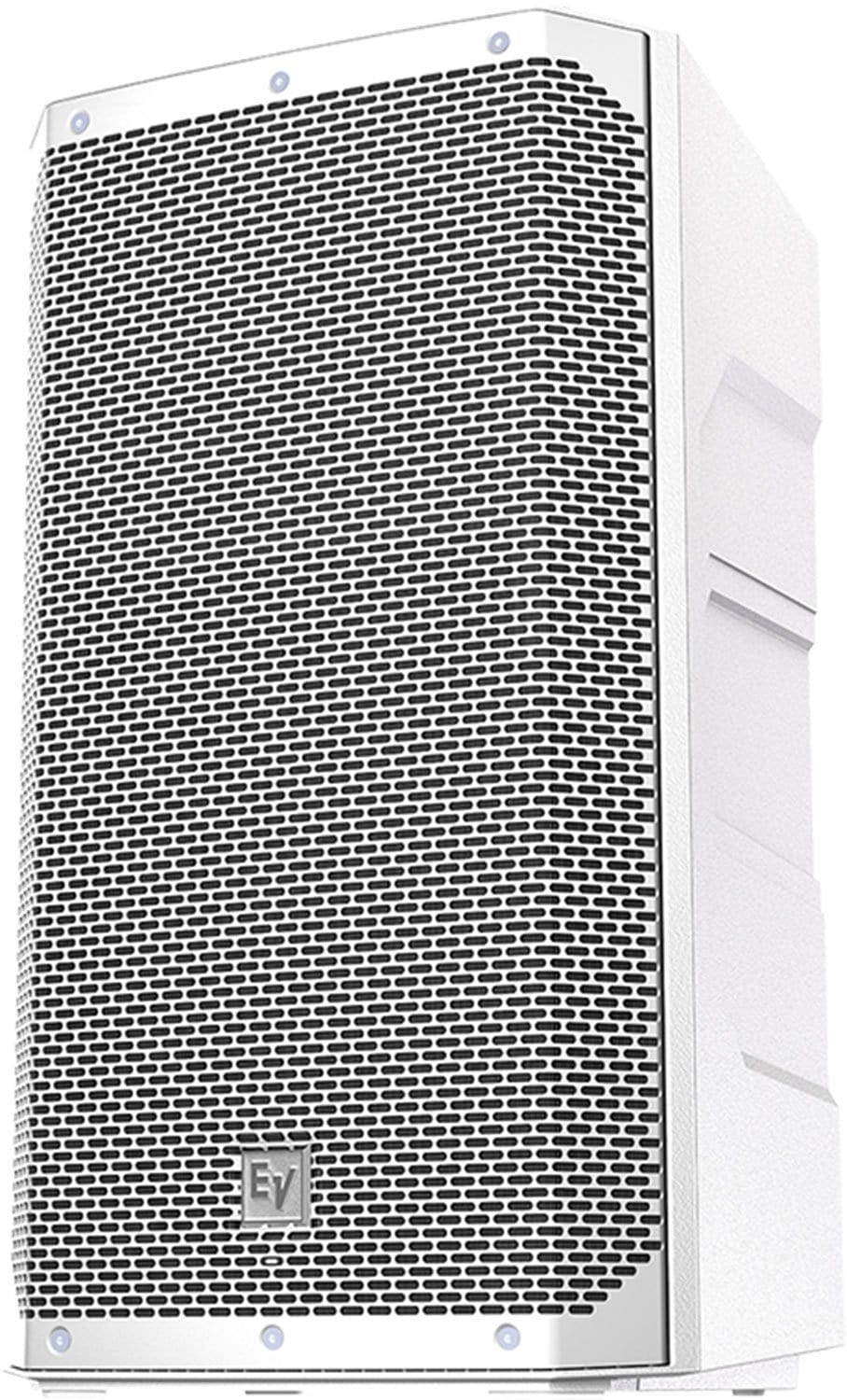

Electro-Voice ELX200-10 Loudspeaker

Model ELX200-10-W

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Authorized Electro Voice Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

Electro-Voice ELX200-10 10" Passive Loudspeaker

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

Why this product

Key Benefits

  • 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices

  • 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response

  • High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction

  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading

  • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting

Technical details

Technical Specifications

System

Crossover Frequency
2 kHz
HF Transducer
DH-1C 1-inch titanium compression driver
LF Transducer
EVS-10M 254 mm (10 in)
Woofer Size
10inch

Frequency

Frequency Range (-10 dB)
49 Hz - 22 kHz
Frequency Response (-3 dB)
65 Hz - 20 kHz
Recommended High-Pass Frequency
55Hz

Performance & Coverage

Coverage (Nominal -6 dB) H
90°
Coverage (Nominal -6 dB) V
60°
Max. SPL/1m (calc)
127dB

Power

Minimum Impedance
7.2Ω
Nominal Impedance
8Ω
Power Handling (Continuous / Peak)
300 W/1200W
Power Rating
1200W

Connectivity

Connector Type
Dual NL4

Physical

Enclosure Material
Polypropylene Composite
Grille
18 AWG steel with powdercoat
Suspension
(3) M10 suspension points
Weight Net
29.54 lbs.(13.4kg)
Depth
12.56" (319mm)
Width
12.99" (330mm)

General

Family
ELX200
Speaker Type
Full-Range

More details

Additional Information

Specifications:

  • Axial Sensitivity (SPL, 1 W @ 1 m): 90dB
