Electro-Voice ELX200-12SP Subwoofer
Model ELX200-12SP
Price on Request
Availability: In Stock
- Authorized Electro Voice Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

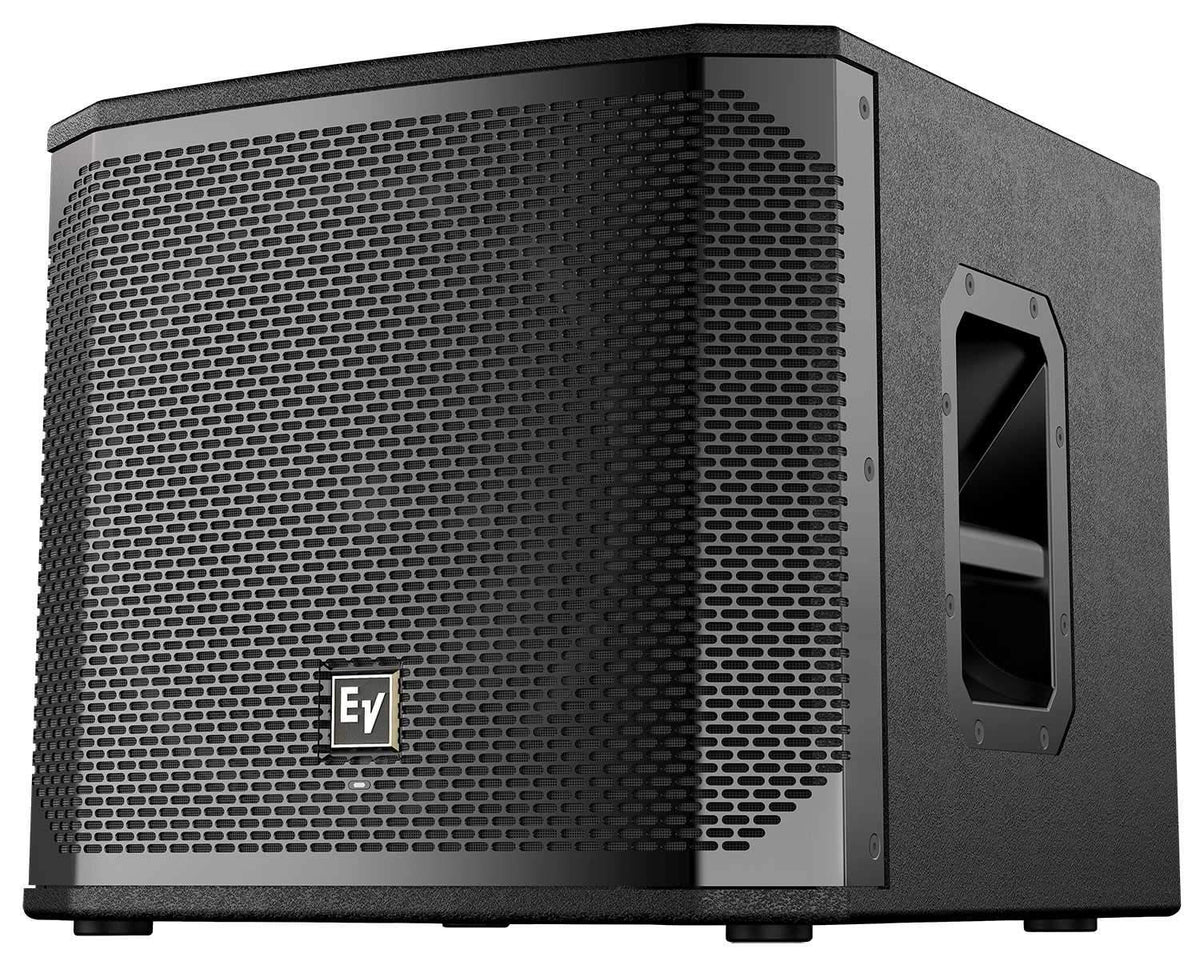

Electro-Voice ELX200-12SP 12" Powered Subwoofer
ELX200-12SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth® is available in select countries.
The Electro-Voice ELX200-12SP Subwoofer is available in black or white.
See it in detail
Product Video
Why this product
Key Benefits
-
Connector Type: (2) XLR/TRS combo jacks and (2) XLR link outputs
-
Frequency Range (-10 dB): 41 Hz – 165 Hz
-
Frequency Response (-3 dB): 49 Hz – 135Hz
-
LF Transducer: EVS-12L 300 mm (12 in)
-
Low Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120Hz, 150 Hz
-
Max. SPL/1m (calc): 129dB
Technical details
Technical Specifications
Power
- Power Consumption
- 100 - 240 V~, 50 - 60 Hz, 1.8A
- Power Rating
- 1200W
Physical
- Depth
- 17.99" (457mm)
- Enclosure Material
- 15 mm plywood with EVCoat
- Grill
- 18 AWG steel with powdercoat
- Height
- 15.63" (397mm)
- Weight Net
- 42.11lbs (19.1kg)
- Width
- 17.52" (445mm)
Shipping & Packaging
- Shipping Weight
- 49.16lbs (22.3kg)
