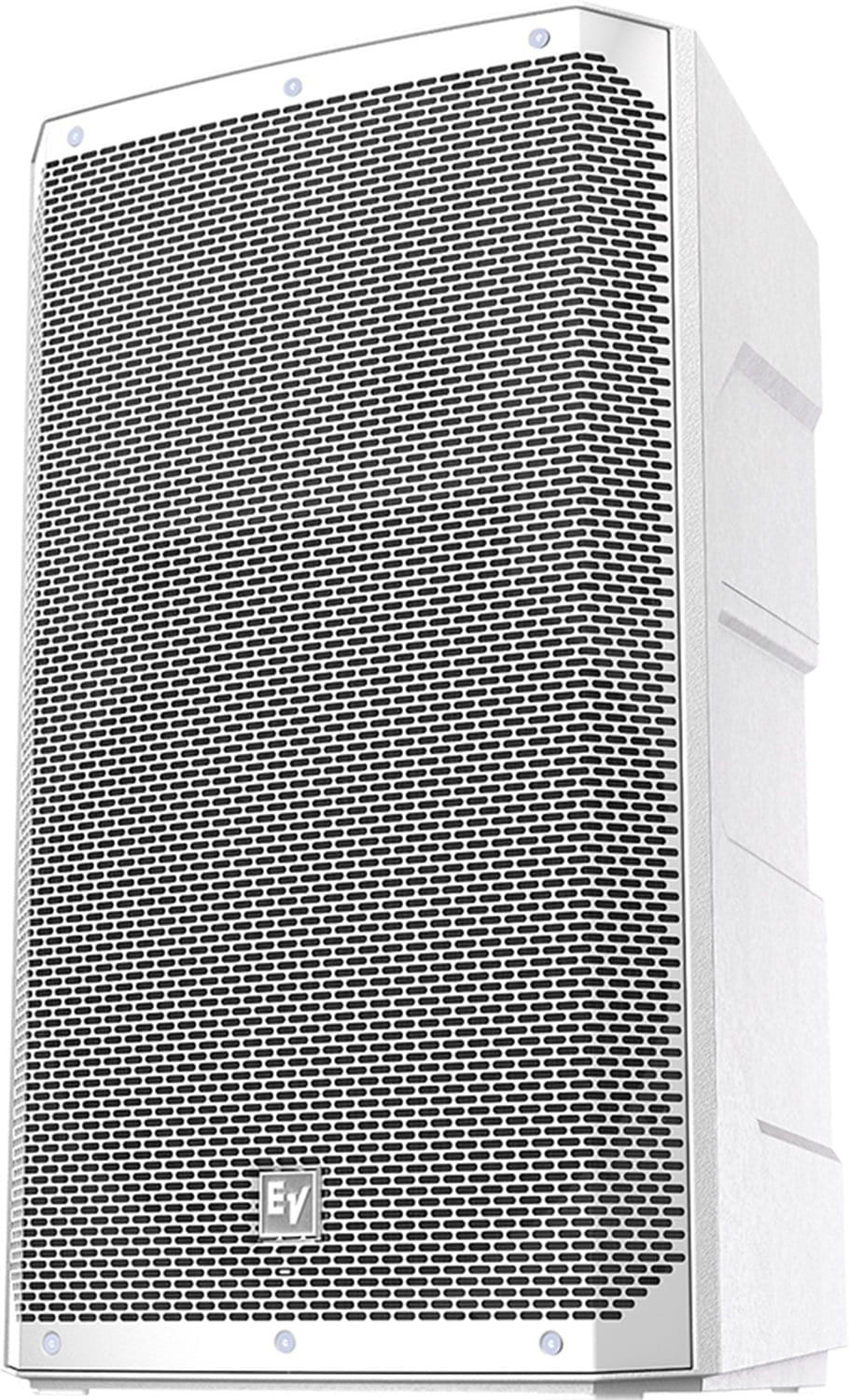

Electro-Voice ELX200-15P 15" Powered Loudspeaker
Model ELX200-15P-W
Price on Request
Availability: In Stock
- Authorized Electro Voice Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Electro-Voice ELX200-15P 15" Powered Loudspeaker
ELX200-15P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by EV (15-inch EVS-15M woofer coupled with a DH-1C 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth® is available in select countries.
Why this product
Key Benefits
-
EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth® is available in select countries
-
QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD
-
High-efficiency 1200 W Class-D power amplifier delivers up to 130 dB peak SPL utilizing transducers designed and engineered by EV
-
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading
-
Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting
Technical details
Technical Specifications
System
- LF transducer
- EVS-15M 381 mm (15 in)
- HF transducer
- DH-1C 1-inch titanium compression driver
- Crossover frequency
- 1600 Hz
Frequency
- Frequency response (-3 dB)
- 55 Hz - 16 kHz¹
- Frequency range (-10 dB)
- 48 Hz - 19 kHz¹
Performance & Coverage
- Maximum SPL
- 132 dB2
- Coverage (H x V)
- 90° x 60°
Power
- Power rating
- 1200 W
- Power consumption
- 100 - 240 V~, 50 - 60 Hz, 1.8A³
Connectivity
- Connectors
- (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Physical
- Enclosure
- Polypropylene
- Grille
- 18 AWG steel with powdercoat
- Suspension
- (3) M10 suspension points
- Dimensions (H x W x D)
- 710 mm x 423 mm x 384 mm (28.0 in x 16.7 in x 15.2 in)
- Net weight
- 18.9 kg (41.7 lb)
