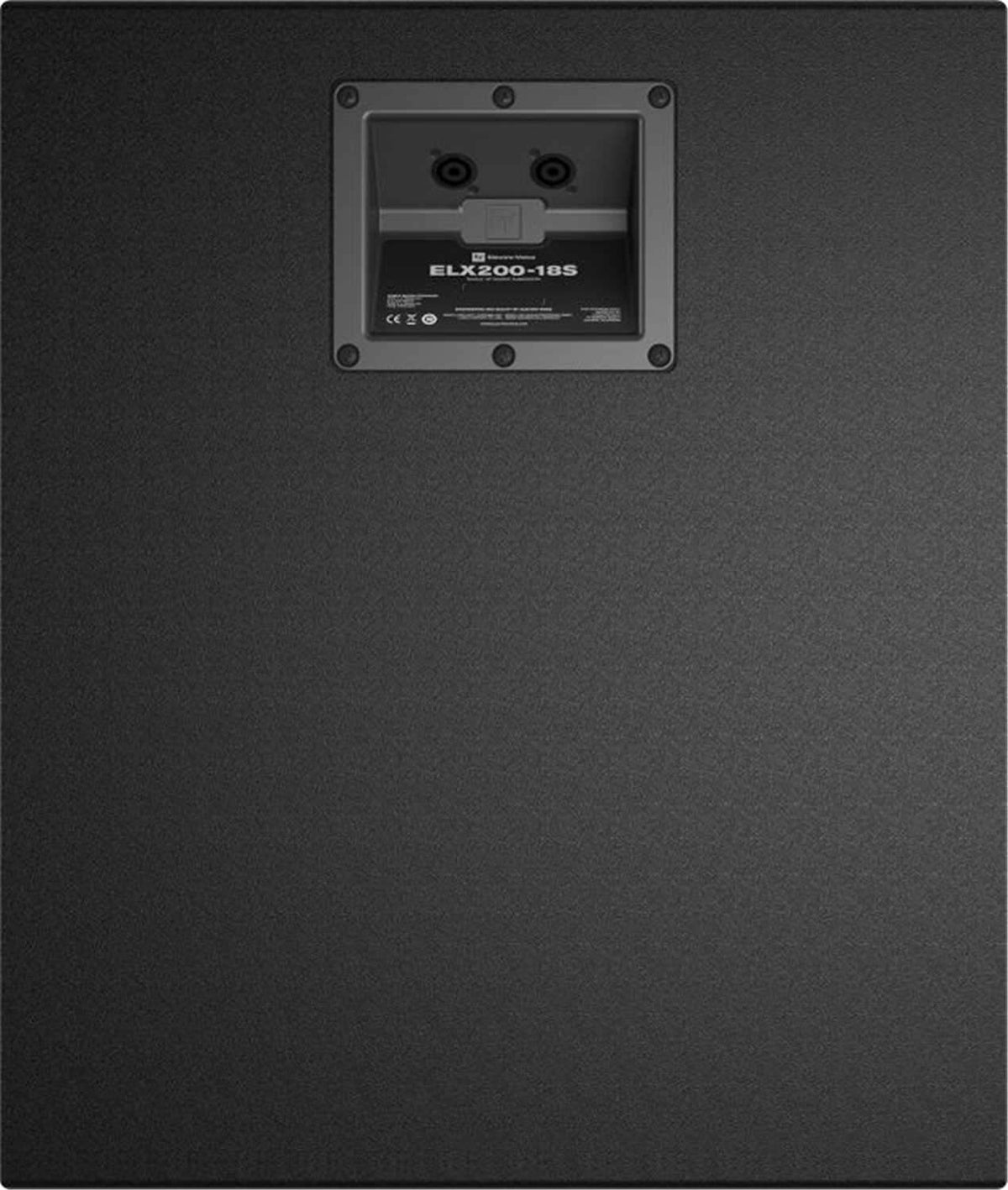

Electro-Voice ELX200-18S 18" Passive Subwoofer
Model ELX200-18S
Price on Request
Availability: In Stock
- Authorized Electro Voice Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Electro-Voice ELX200-18S 18" Passive Subwoofer
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present.
EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.
Why this product
Key Benefits
-
1600 W (peak), 133 dB peak SPL utilizing high sensitivity transducer designed and engineered by EV for maximum punch.
-
High-output EVS-18L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
-
System reliability verified with over 500 hours of abuse testing and endurance testing.
-
Ideal for portable and installed applications.
-
Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish.
-
Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
Technical details
Technical Specifications
System
- LF Transducer
- EVS-18L 457 mm (18 in)
- Woofer Size
- 18inch
Frequency
- Frequency Range (-10 dB)
- 28 Hz - 300 Hz
- Frequency Response (-3 dB)
- 45 Hz - 200Hz
- Recommended High-Pass Frequency
- 35 HzHz
Performance & Coverage
- Max. SPL/1m (calc)
- 133 HzdB
Power
- Minimum Impedance
- 7.2 ??
- Nominal Impedance
- 8?
- Power Handling (Continuous / Peak)
- 400W/1600W
- Power Rating
- 1600W
Connectivity
- Connector Type
- Dual NL4
Physical
- Available Color
- Black
- Depth
- 22.6" (574mm)
- Enclosure Material
- 15 mm plywood with durable polyurea top-coat finish
- Grill
- 18 AWG steel with powdercoat
- Height
- 23.62" (600mm)
- Weight Net
- 58.64lbs (26.6kg)
- Width
- 19.96" (507mm)
Shipping & Packaging
- Shipping Weight
- 67.24lbs (30.5kg)
General
- Family
- ELX200
- Speaker Type
- Subwoofer
More details
Additional Information
Specifications:
- Axial Sensitivity (SPL, 1 W @ 1 m): 94dB
