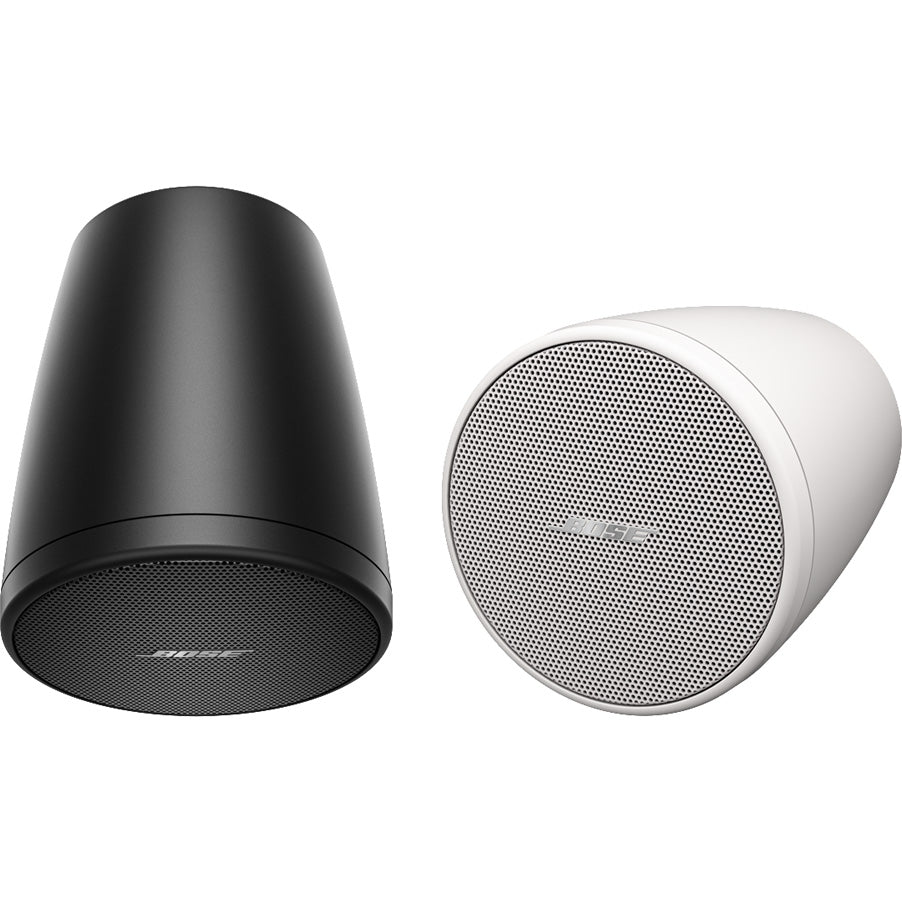

Bose FreeSpace FS2P 2.25" 16W Pendant Loudspeaker, Black (Pair)
Model 841153-0320
Price on Request
Availability: In Stock
Call an Expert: +971 56 498 8088 info@corporateav.ae
- 2.25" (57 mm) full-range driver, 83 Hz to 19 kHz
- 16 W continuous, 64 W peak, 87 dB sensitivity
- 70 V taps 1 to 16 W, 100 V taps 2 to 16 W, 16 Ω bypass
- 140° coverage, 15 ft suspension cables included, EN 54-24 certified
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose FreeSpace FS2P?
The Bose FreeSpace FS2P is a compact pendant loudspeaker with a 2.25 inch (57 mm) driver, 16 W continuous power handling and 70 V / 100 V transformer taps, sold as a pair in black. It hangs from a single suspension point with 140° coverage, for background music and announcements under open or high ceilings in retail stores, restaurants and atriums across the UAE. It is certified to EN 54-24:2008 for voice alarm systems in buildings.
The Bose FreeSpace FS2P is the compact pendant model of the Bose Professional FreeSpace FS loudspeaker line, for open-ceiling spaces or any room where a pendant design suits the interior. It has a 2.25 inch full-range driver, a frequency range of 83 Hz to 19 kHz and 140° coverage, and it connects to 70 V / 100 V distributed systems or directly at 16 Ω.
Why this product
Key Benefits
-
Shared FreeSpace FS voicing
The FS2P shares its voicing with every FreeSpace FS model, so it sounds consistent next to FS in-ceiling and surface-mount speakers in the same system.
-
Clear voice and smooth music
The 2.25 inch full-range transducer is tuned for intelligible announcements and smooth background music response.
-

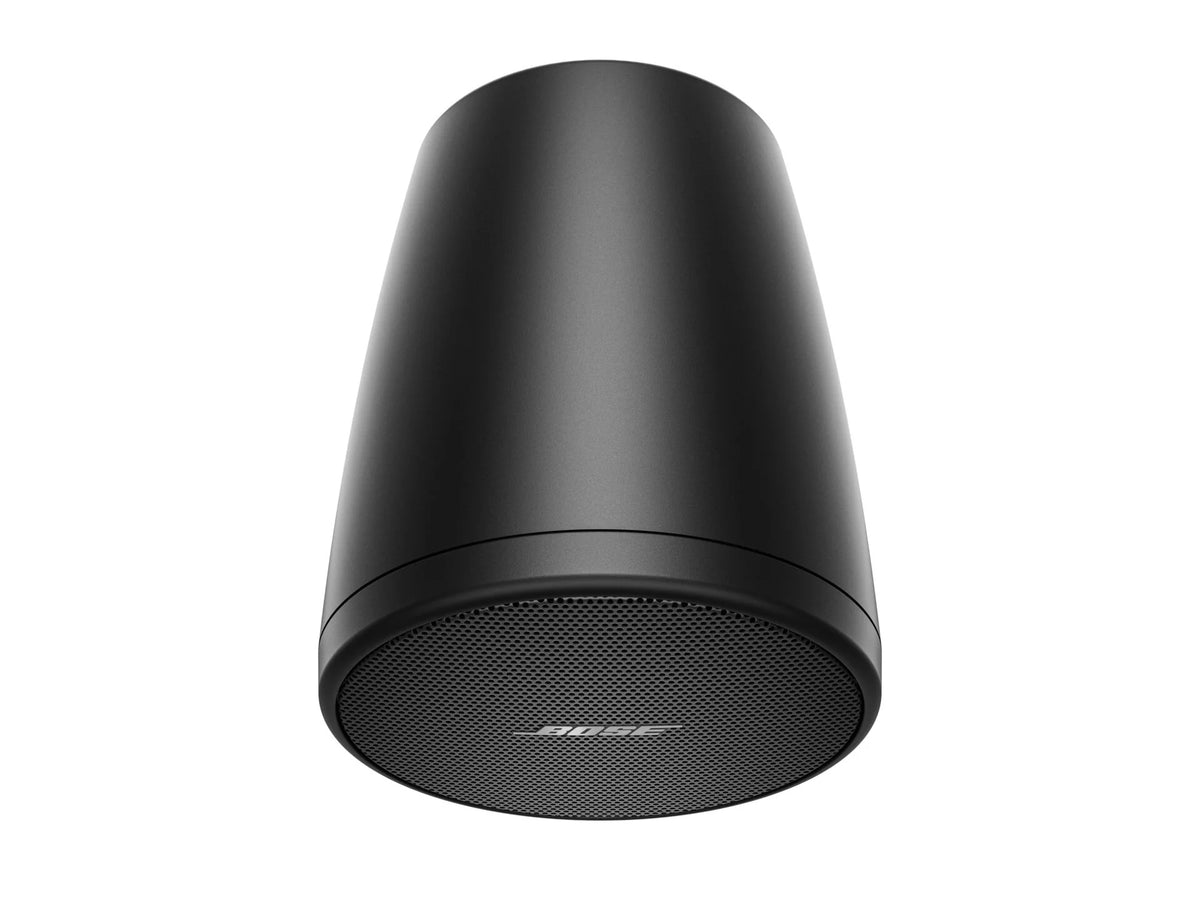

Single-point pendant suspension
Each speaker hangs from one suspension point with a separate safety cable point, and two 15 ft suspension cables come in the box.
-
Flexible transformer taps
Taps at 1, 2, 4, 8 and 16 W on 70 V lines and 2, 4, 8 and 16 W on 100 V lines, plus a 16 Ω bypass, let each speaker be set to the level its area needs.
-
Even 140° coverage
A 140° horizontal and vertical coverage pattern spreads sound evenly downward from the pendant height.
-
Modern pendant enclosure
The engineered-plastics enclosure with a powder-coated perforated steel grille and removable logo suits exposed ceilings and modern interiors.
-
Voice alarm certified
The FS2P is certified to EN 54-24:2008 for voice alarm systems for fire detection and fire alarm systems in buildings.
Use cases
Applications
-
Retail stores and showrooms
Pendant speakers bring sound down to shoppers under high or open ceilings.
-
Restaurants and cafes
A compact black pendant blends with exposed, dark ceilings in dining areas.
-
Atriums and lobbies
Single-point suspension places speakers closer to listeners in tall spaces.
-
Voice alarm systems
EN 54-24 certification allows use in voice alarm systems for fire detection in buildings.
Technical details
Technical Specifications
System
- System Type
- Passive pendant loudspeaker
- Driver
- 1 × 2.25 in (57 mm) full-range
- Recommended Crossover
- 85 Hz high-pass, 24 dB per octave minimum
Frequency
- Frequency Range
- 83 Hz to 19,000 Hz (-10 dB)
Performance & Coverage
- Sensitivity
- 87 dB SPL (1 W at 1 m)
- Maximum SPL
- 99 dB at 1 m (calculated)
- Coverage
- 140° horizontal, 140° vertical
Power
- Power Handling
- 16 W continuous, 64 W peak
- Nominal Impedance
- 16 Ω (transformer bypass)
- Transformer Taps 70V
- 1, 2, 4, 8, 16 W, bypass
- Transformer Taps 100V
- 2, 4, 8, 16 W, bypass
Connectivity
- Input Connector
- Euroblock
Physical
- Dimensions
- 149 mm diameter × 183 mm depth
- Suspension Cable
- 15.0 ft (4.6 m) length, 2 mm diameter
- Weight
- 1.5 kg per loudspeaker with grille; 4.1 kg shipping weight per pair
- Colour
- Black (similar to RAL 9005)
- Enclosure
- Engineered plastics
- Grille
- Perforated steel, powder-coated
- Mounting
- 1 suspension attachment point, 1 safety cable attachment point
Environmental
- Indoor or Outdoor Use
- Indoor only
- Operating Temperature
- 0 °C to 50 °C
Certifications & Warranty
- Certifications
- EN 54-24:2008, UL 1480A
In the box
What's Included
-
2 × Bose FreeSpace FS2P pendant loudspeakers, black (1 pair)
-
2 × suspension cables, 15.0 ft each
-
2 × input covers
-
4 × cable ties
Installation
Installation & Mounting
Recommended Amplifiers
For a single zone, the Bose Veritas 1100BH delivers 1 × 100 W at 70 V or 100 V and has built-in EQ presets for FreeSpace FS loudspeakers. Bose recommends it for FreeSpace loudspeakers up to 6 inch models.
For two zones or more speakers, the Bose Veritas 2160BH delivers 2 × 160 W at 70 V or 100 V and the same FreeSpace FS preset. Both Veritas models have a Bluetooth 5.0 input and are available in 230 V UK versions. Select the preset for the exact FS2C loudspeaker model during commissioning.
Ownership and support
Ownership & Support
Expandability
The FS2P can be mixed with FreeSpace FS in-ceiling and surface-mount models on the same distributed line, and DesignMax subwoofers can be added for extra low-frequency output. Shared FS voicing keeps the sound consistent across models.
Support
For a UAE project quotation, provide the exact model, quantity, installation location and associated equipment. Corporate AV can review the proposed system scope; confirm delivery timing, regional warranty and any separately supplied accessories on the quotation.
