Bose FreeSpace FS2SE 2.25" 16W IP55 Surface-Mount Loudspeaker, White (Pair)
Model 841151-0420
Price on Request
Availability: In Stock
Call an Expert: +971 56 498 8088 info@corporateav.ae
- 2.25" (57 mm) full-range driver, 83 Hz to 19 kHz
- 16 W continuous, 64 W peak, 87 dB sensitivity
- 70 V taps 1 to 16 W, 100 V taps 2 to 16 W, 16 Ω bypass
- IP55 rated, -25 °C to 70 °C, EN 54-24 certified
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose FreeSpace FS2SE?

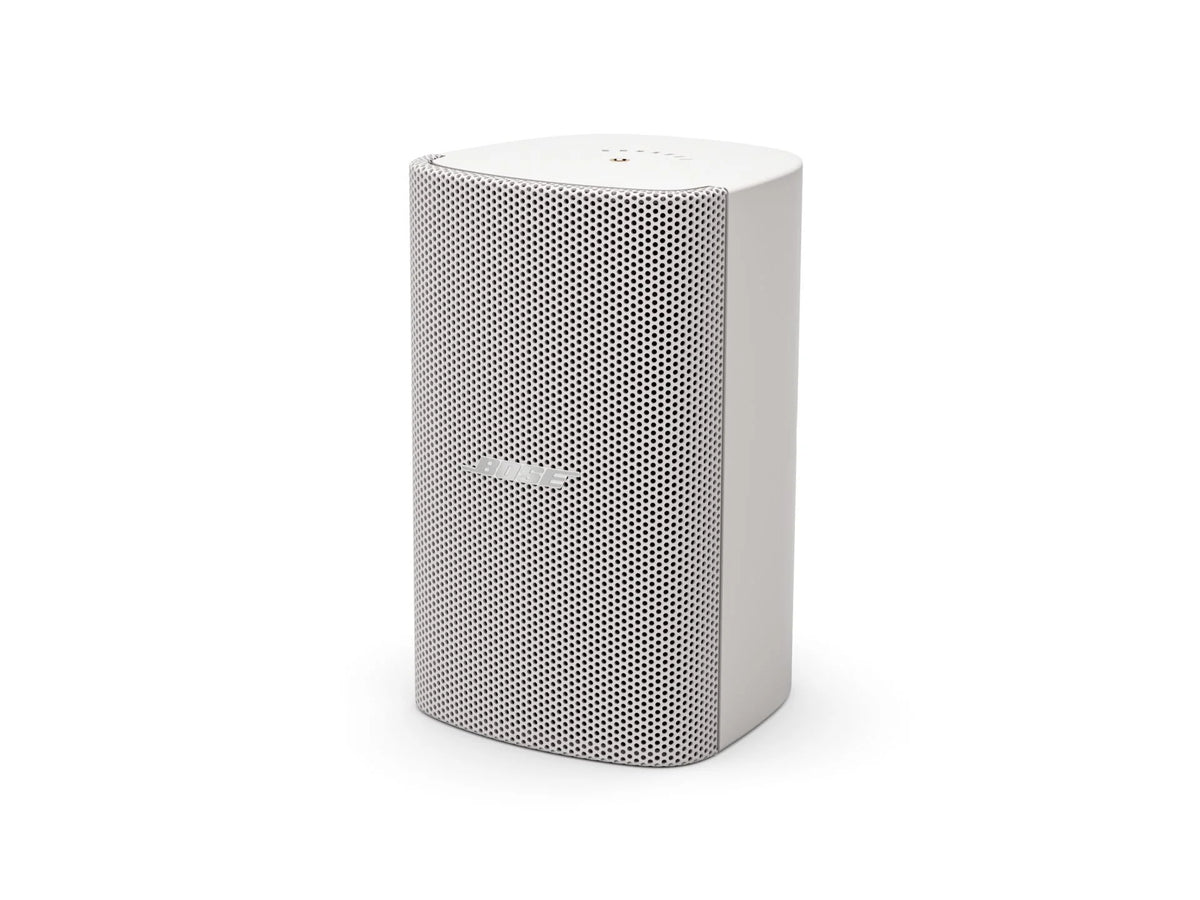

The Bose FreeSpace FS2SE is a compact surface-mount loudspeaker with a 2.25 inch (57 mm) driver, 16 W continuous power handling and 70 V / 100 V transformer taps, sold as a pair in white. It is IP55 rated for indoor and outdoor wet locations and covers 145° horizontally, for background music and announcements in shops, restaurants, terraces and offices across the UAE. It is certified to EN 54-24:2008 for voice alarm systems in buildings.
The Bose FreeSpace FS2SE is the compact surface-mount model of the Bose Professional FreeSpace FS loudspeaker line, for background music and paging where there is no ceiling void. It has a 2.25 inch full-range driver, a frequency range of 83 Hz to 19 kHz, an IP55 enclosure and a U-bracket, and it connects to 70 V / 100 V distributed systems or directly at 16 Ω.
Why this product
Key Benefits
-
Shared FreeSpace FS voicing
The FS2SE shares its voicing with every FreeSpace FS model, so it sounds consistent next to FS in-ceiling and pendant speakers in the same system.
-
Clear voice and smooth music
The 2.25 inch full-range transducer is tuned for intelligible announcements and smooth background music response.
-
Rated for outdoor and wet locations
An IP55 enclosure in UV fade-resistant engineered plastics and an operating range of -25 °C to 70 °C let the FS2SE work outdoors and in wet installations.
-
Flexible transformer taps
Taps at 1, 2, 4, 8 and 16 W on 70 V lines and 2, 4, 8 and 16 W on 100 V lines, plus a 16 Ω bypass, let each speaker be set to the level its area needs.
-
Wide coverage
A 145° horizontal and 140° vertical coverage pattern spreads sound evenly from a wall or ceiling surface.
-
Bracket-based mounting
The included U-bracket carries the threaded attachment points for optional Bose mounts such as the pan-tilt bracket, and inputs use Euroblock connectors with weather-resistant covers.
-
Voice alarm certified
The FS2SE is certified to EN 54-24:2008 for voice alarm systems for fire detection and fire alarm systems in buildings.
Use cases
Applications
-
Retail stores and malls
Surface mounting on walls or hard ceilings where in-ceiling speakers cannot be fitted.
-
Restaurants, cafes and terraces
IP55 protection and a tamper-resistant grille suit covered outdoor seating and busy dining areas.
-
Offices and corridors
Background music and paging from a compact white enclosure that blends into light walls and ceilings.
-
Voice alarm systems
EN 54-24 certification allows use in voice alarm systems for fire detection in buildings.
Technical details
Technical Specifications
System
- System Type
- Passive surface-mount loudspeaker
- Driver
- 1 × 2.25 in (57 mm) full-range
- Recommended Crossover
- 85 Hz high-pass, 24 dB per octave minimum
Frequency
- Frequency Range
- 83 Hz to 19,000 Hz (-10 dB)
Performance & Coverage
- Sensitivity
- 87 dB SPL (1 W at 1 m)
- Maximum SPL
- 99 dB at 1 m (calculated)
- Coverage
- 145° horizontal, 140° vertical
Power
- Power Handling
- 16 W continuous, 64 W peak
- Nominal Impedance
- 16 Ω (transformer bypass)
- Transformer Taps 70V
- 1, 2, 4, 8, 16 W, bypass
- Transformer Taps 100V
- 2, 4, 8, 16 W, bypass
Connectivity
- Input Connector
- Euroblock with weather-resistant cover
Physical
- Mounting
- Included U-bracket
- Dimensions
- 182 × 113 × 114 mm (loudspeaker); 196 × 113 × 135 mm (with bracket)
- Weight
- 1.4 kg per loudspeaker with grille and bracket; 4.2 kg shipping weight per pair
- Colour
- White (similar to RAL 9003)
- Enclosure
- Engineered plastics, UV fade-resistant
- Grille
- Perforated steel, powder-coated, tamper-resistant
Environmental
- IP Rating
- IP55
- Outdoor Rating
- Indoor and outdoor, rated for wet installations
- Operating Temperature
- -25 °C to 70 °C
Certifications & Warranty
- Certifications
- EN 54-24:2008, UL 1480A, NFPA 70 and NFPA 72
In the box
What's Included
-
2 × Bose FreeSpace FS2SE surface-mount loudspeakers with U-brackets, white (1 pair)
-
2 × logos
-
2 × weather-resistant input covers
Installation
Installation & Mounting
Recommended Amplifiers
For a single zone, the Bose Veritas 1100BH delivers 1 × 100 W at 70 V or 100 V and has built-in EQ presets for FreeSpace FS loudspeakers. Bose recommends it for FreeSpace loudspeakers up to 6 inch models.
For two zones or more speakers, the Bose Veritas 2160BH delivers 2 × 160 W at 70 V or 100 V and the same FreeSpace FS preset. Both Veritas models have a Bluetooth 5.0 input and are available in 230 V UK versions. Select the preset for the exact FS2C loudspeaker model during commissioning.
Recommended Bracket
The FS2SE ships with a U-bracket for wall or ceiling surface mounting. For an adjustable aiming angle, Bose lists the Bose Surface-Mount Pan and Tilt Bracket, White as an optional accessory; on the current FS2SE it threads into the included U-bracket.

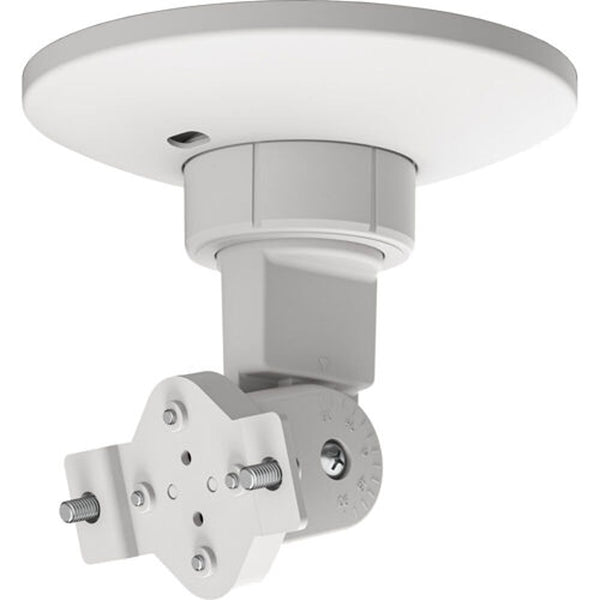

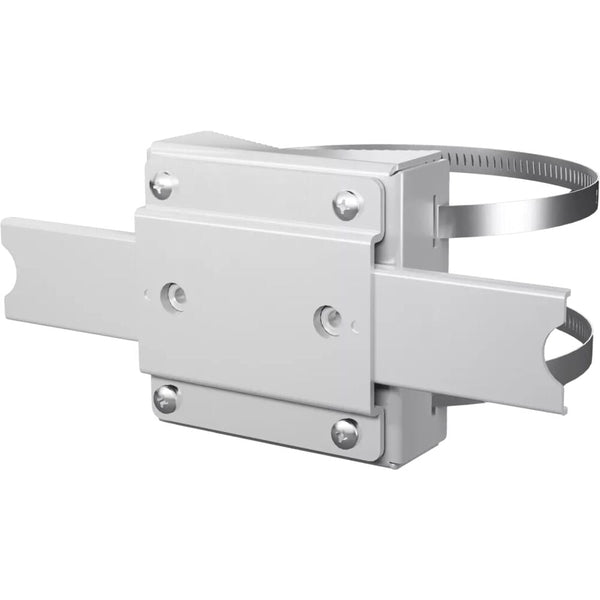

For poles, Bose lists the Bose Pole Mount Bracket, White, and for hanging from a ceiling, the Bose CMB S2 Ceiling Mount Bracket, White.
Recommended Grille

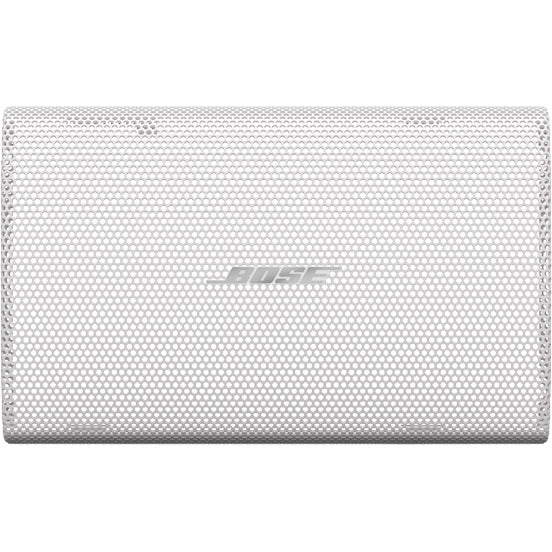

Bose lists the Bose FreeSpace FS2SE Aluminum Grille (1 pair), White as an optional accessory for the FS2SE. It is not included with the speakers; the standard grille is perforated, powder-coated steel.
Installation
On the current FS2SE version, the threaded attachment points for optional mounts such as the Bose pan-tilt bracket are on the included U-bracket, so the U-bracket must be used with those mounts. Fit the weather-resistant input covers for outdoor or wet locations.
Ownership and support
Ownership & Support
Expandability
The FS2SE can be mixed with FreeSpace FS in-ceiling and pendant models on the same distributed line, and DesignMax subwoofers or the Bose MB210-WR outdoor subwoofer can be added for extra low-frequency output. Shared FS voicing keeps the sound consistent across models.
Support
For a UAE project quotation, provide the exact model, quantity, installation location and associated equipment. Corporate AV can review the proposed system scope; confirm delivery timing, regional warranty and any separately supplied accessories on the quotation.
