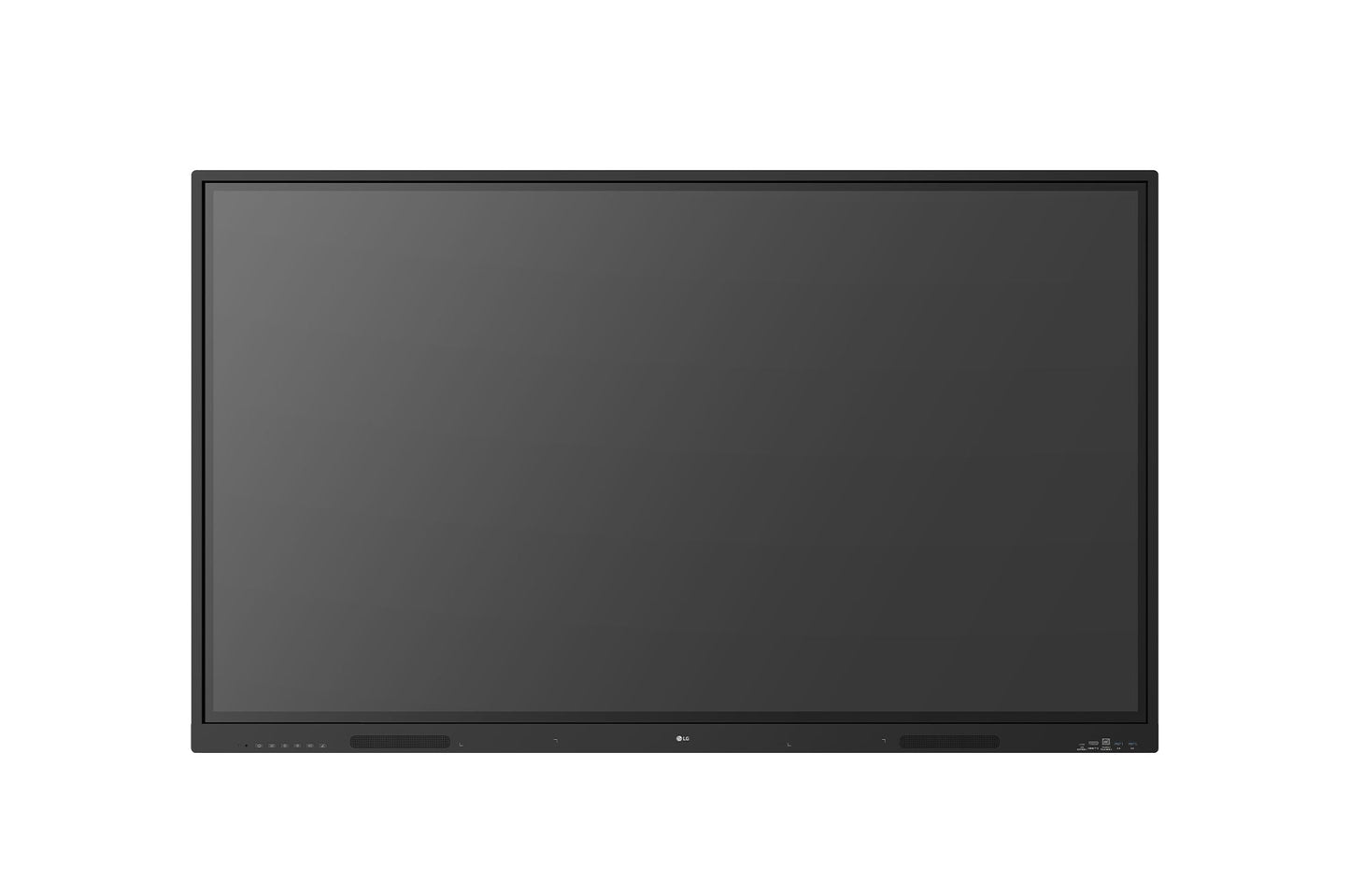

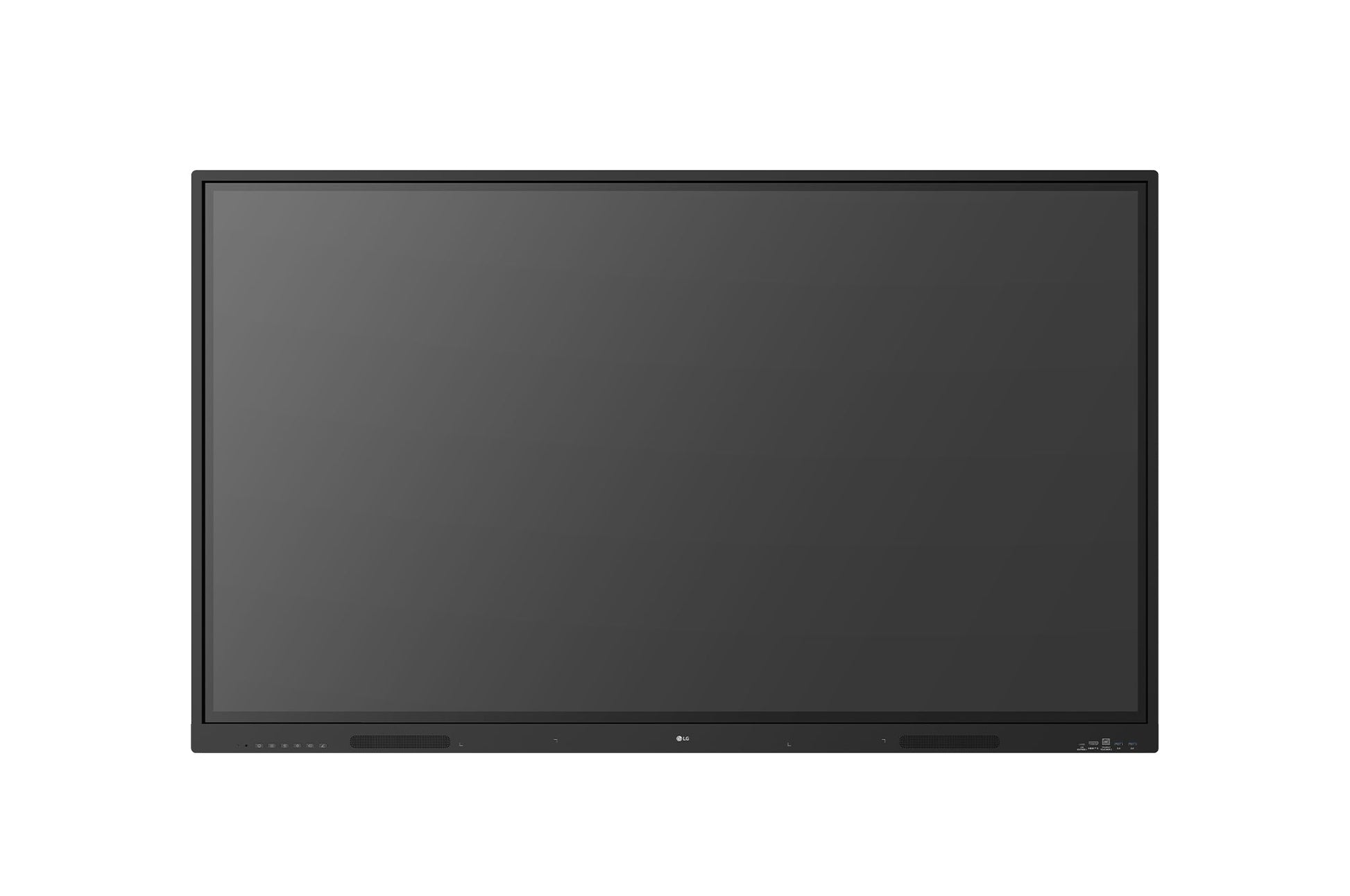

LG 86TR3DQ 86-inch 4K Interactive CreateBoard Standard
Model 86TR3DQ
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Screen: 86-inch interactive display, 16:9
- Native resolution: 3840 × 2160 (4K UHD)
- Typical brightness without glass: 400 cd/m² in referenced global specification
- Touch technology: Infrared, up to 50 points; operating-system and application limits vary
- Authorized LG Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the LG 86TR3DQ?
The LG 86TR3DQ is a 86-inch 4K CreateBoard Standard for collaborative lessons, shared presentations and workshop annotation. Android 14 EDLA, 8 GB of RAM and 64 GB of storage provide an embedded platform for supported applications, while infrared touch supports up to 50 points with compatible operating systems and software. Front-access connections and a built-in audio system help simplify room use; confirm the regional app environment and any separately required conferencing equipment. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A professional 86-inch interactive display with 3840 × 2160 resolution, writing tools and an embedded Android environment. It can also work with a separately specified laptop or OPS computer when the project needs Windows or other desktop applications.
Why this product
Key Benefits
-
Typical brightness without glass
400 cd/m² in referenced global specification.
-
Touch technology
Infrared, up to 50 points; operating-system and application limits vary.
-
Platform
Android 14 EDLA; confirm supplied build and regional app availability.
Use cases
Applications
-
86-inch classroom and training-room whiteboarding
-
Corporate workshops and collaborative presentations
-
Shared teaching spaces with separately specified conferencing equipment
Technical details
Technical Specifications
Display
- Screen
- 86-inch interactive display, 16:9
- Native resolution
- 3840 × 2160 (4K UHD)
- Typical brightness without glass
- 400 cd/m² in referenced global specification
- Screen
- 86-inch interactive display, 16:9.
- Native resolution
- 3840 × 2160 (4K UHD).
Touch
- Touch technology
- Infrared, up to 50 points; operating-system and application limits vary
System & Software
- Platform
- Android 14 EDLA; confirm supplied build and regional app availability
- Memory and storage
- 8 GB RAM, 64 GB storage
Audio & Camera
- Audio
- Built-in front speakers and subwoofer
Connectivity
- Video inputs
- HDMI × 3, DisplayPort, VGA
- USB-C
- Two ports; front port supports up to 65 W Power Delivery without OPS, subject to source/cable compatibility
- Network and control
- Gigabit LAN, Wi-Fi, Bluetooth, RS-232C
- OPS
- Optional computer; slot and power supported
Physical & Mounting
- Orientation
- Landscape
- VESA mounting
- 800 × 600 mm
- Display weight without stand
- 54.1 kg
- Dimensions (W × H × D)
- 1957 × 1170.8 × 99.7 mm
Certifications & Warranty
- Operating rating
- 16/7
Model & Identification
- Model
- 86TR3DQ
- Manufacturer part number
- 86TR3DQ
In the box
What's Included
-
One LG 86TR3DQ interactive display
-
Power cord, 3 m
-
USB Type-A-to-Type-B cable, 5 m
-
USB-C-to-USB-C cable, 1.8 m
-
HDMI cable, 3 m
-
Two writing pens
-
Remote control with two batteries
-
Wi-Fi module
-
User manual
-
Quick start guide
Installation
Installation & Mounting
Recommended Compatible Equipment
VSYS VS01XL-810T Tilting TV Mount. Optional VSYS wall-mount candidate: its published screen and load ranges accommodate this 86-inch, 54.1 kg display and 800 × 600 mm fixing range. Confirm exact rear clearances, touch-use stability, screw length and the supporting wall structure.
VSYS VTLX16-69FW TV Cart. Optional VSYS mobile floor stand: its 55–100-inch range, 120 kg capacity and listed 800×600 mm VESA pattern accommodate this display. Check all attached loads and interactive-use stability; lock the casters for use and plan cable slack and movement routes.
Installation
Match the 800 × 600 mm VESA pattern and 54.1 kg display weight to the support, adding all attached loads. Confirm wall structure, lifting arrangements, fasteners, ventilation and touch-use stability. Use landscape orientation and verify the installed Android build, app/account requirements and source-device connections before commissioning. The USB-C charging specification depends on the selected port and OPS configuration.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your 86TR3DQ quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
