MAXHUB 75 inch XBoard V7 Series Interactive Display Model V7550

Maxhub

75" 4K UHD Windows-based interactive display built for larger meeting rooms and boardrooms
Trident Lens 3x 50MP camera system with optical/digital zoom and speaker tracking
16-microphone array with 180 degree pickup and AI noise cancellation
One-click Zoom and Teams join with MAXHUB OS 7.0 and MAXHUB Share
Supplied and installed across Dubai, Abu Dhabi, and the wider UAE by Corporate AV

Details
More Information

📞 Call or WhatsApp Corporate AV for Best Price: +971 56 498 8088 | 💬 WhatsApp Us Now | Email Us

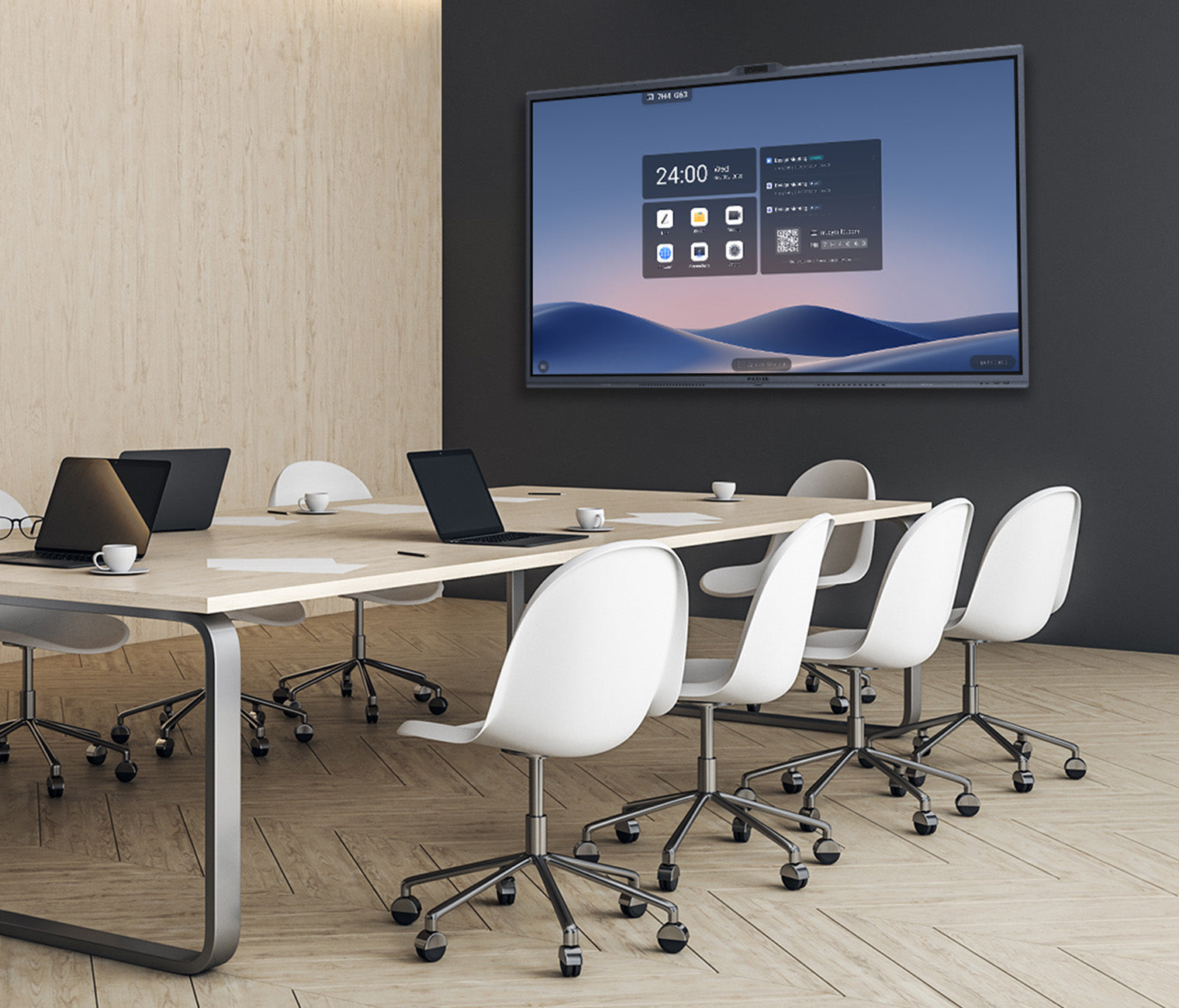

MAXHUB XBoard V7550: 75" Windows-Based Interactive Display for UAE Meeting Rooms

The MAXHUB XBoard V7550 is a 75" all-in-one interactive display running MAXHUB OS 7.0 powered by Windows, built for larger meeting rooms and boardrooms. Corporate AV supplies and installs the V7550 across Dubai, Abu Dhabi, and the wider UAE, bringing premium video conferencing, an AI-powered Trident Lens camera system, and enterprise-grade audio to a single display.

What Is the MAXHUB XBoard V7550?

It's a Windows-based all-in-one interactive display combining a 4K touchscreen, triple 50MP camera system, and 16-mic array, designed to run instant meetings across Zoom, Teams, and other major platforms without extra hardware.

Key Features

4K UHD Resolution with 90% NTSC color gamut and non-glare 9H tempered glass
Trident Lens Camera System: 3x 50MP cameras (panorama + 2x telephoto) with 2x optical/5x digital zoom, auto framing, and speaker tracking
16-Microphone Array: 180° pickup angle, 0-15m range, with AI noise cancellation and audio fence
50-Point IR Touch: supports Windows, Android, Linux, macOS, and Chrome OS touch return
One-Click Meeting Access: instant join for Zoom, Teams, and other leading platforms
MAXHUB OS 7.0: BYOM support, Sonic Share ultrasonic screen sharing, and MAXHUB Pivot device management
Energy Star Certified: sustainable design without compromising performance

Technical Specifications

Screen Size	75"
Panel Type	VA
Resolution	3840 × 2160 (4K UHD)
Brightness	350 nits (typ.)
Contrast Ratio	5000:1 (typ.)
Response Time (Display / Touch)	6.5 ms / ≤2.5 ms
Touch	IR, 50 touch points, ±0.5mm accuracy
Camera	3x 50MP (panorama + 2x telephoto), 2x optical/5x digital zoom, 99° DFOV
Microphones	16-mic array, 180° pickup, 0-15m range
Speakers	2.1 channel, 2×10W + 20W
Connectivity	HDMI In x2, USB 2.0/3.0/Type-C, RS232, RJ45, Wi-Fi 6, Bluetooth 5.2
Wall Mount	VESA 400 x 200mm (M8x25mm screws)
Software	MAXHUB OS 7.0 (Windows), MAXHUB Share, MAXHUB Pivot
Certifications	IEC 62368-1, EMC Class B, Energy Star, IP5X
Warranty	3-Year Advanced Replacement Warranty

Note: A separate MT71 Series Windows PC module is required to power MAXHUB OS 7.0 and is sold separately.

Ideal Applications

Larger meeting rooms and boardrooms: 8-12 person spaces with full video conferencing
Executive conference rooms: professional-grade camera and audio for hybrid meetings
Training and presentation rooms: quick BYOM and wireless screen sharing

Why Buy the MAXHUB XBoard V7550 from Corporate AV?

Genuine MaxHub stock with the full 3-year advanced replacement warranty
Expert guidance on PC module selection and room integration
Volume pricing for multi-room office rollouts
Professional installation across Dubai, Abu Dhabi, and the wider UAE
Local after-sales support: a real team you can call or WhatsApp, not a call centre

📞 Contact us: +971 56 498 8088, WhatsApp us or email info@corporateav.ae.

Package Contents

V7550 display unit, touch pens, power cord. Requires a separate MT71 Series Windows PC module, sold separately.

Recommended Wall Mount (Fixed)

This display uses a 400 x 200mm VESA pattern. The VSYS VS01E-44F Low-Profile Fixed Mount supports displays up to 75 inches and 45kg with matching VESA range. Available as an optional add-on.

Recommended Wall Mount (Swivel / Full-Motion)

For adjustable viewing angles, the VSYS VS02US-464 Ultra-Slim Full-Motion Mount supports displays up to 75 inches and 50kg with full tilt and swivel range. Available as an optional add-on.

Recommended Floor Stand

For a mobile installation, the VSYS VTLX17-610TW Telescopic Cart supports 60-100 inch displays up to 100kg. Available as an optional add-on.

Warranty

3-Year Advanced Replacement Warranty from MaxHub.

Sustainability

Energy Star certified for efficient power use across daily meeting room operation.

Expandability

PC module slot and Wi-Fi slot allow compute and connectivity upgrades without replacing the display.

Distribution

Corporate AV supplies and installs the V7550 across Dubai, Abu Dhabi, and the wider UAE and GCC.

Best Price

WhatsApp us for the best price

Expert FAQs

Does the V7550 include a PC, or do I need to buy one separately?

The V7550 requires a separate MT71 Series Windows PC module, sold separately, to run MAXHUB OS 7.0. Corporate AV can supply this as part of your order.

Can the V7550 join Zoom and Microsoft Teams meetings directly?

Yes. MAXHUB OS 7.0 supports one-click join for Zoom, Microsoft Teams, and other major video conferencing platforms directly from the display.

How does the Trident Lens camera system work?

It combines three 50MP cameras, a wide panorama lens and two telephoto lenses, giving 2x optical and 5x digital zoom with auto framing and speaker tracking for clear video during meetings.

Can guests connect their laptops without installing any software?

Yes. The V7550 supports BYOM (Bring Your Own Meeting) and Sonic Share ultrasonic screen sharing, letting guests connect and present without installing software or cables.

What certifications does the V7550 carry?

The V7550 is IEC 62368-1 and EMC Class B certified, Energy Star rated, and IP5X rated for dust resistance.
