Bose

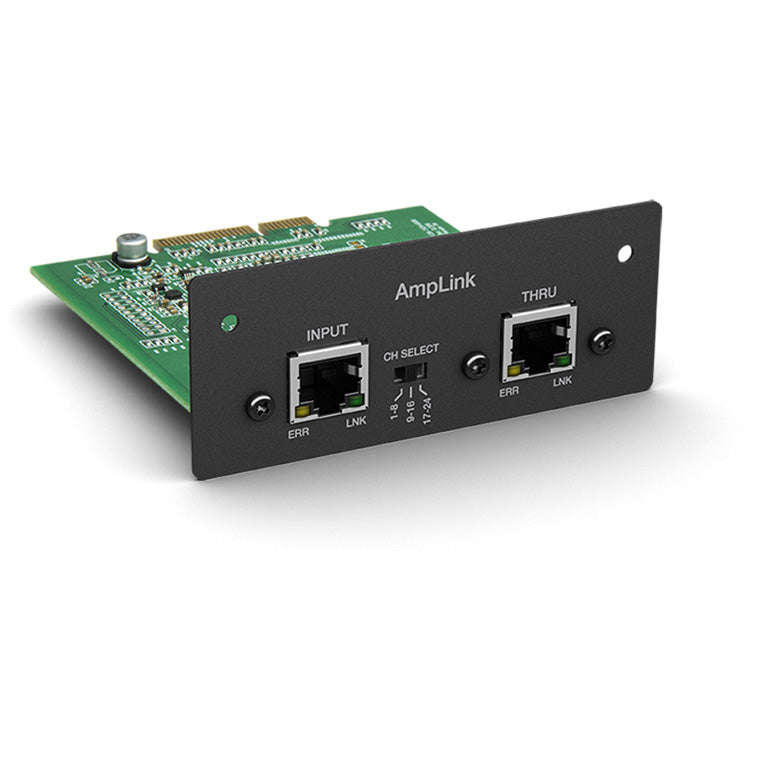

Bose PowerMatch AmpLink 24-Channel Card

Model 772238-0110

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Input audio: 24 AmpLink channels
  • Connections: RJ-45 AmpLink input and thru
  • Cable requirement: Shielded Cat 5, straight TIA/EIA 568B, or equivalent
  • Maximum cable length: 10 m (32 ft)
  • Audio format: 48 kHz / 24-bit
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose PowerMatch AmpLink 24-Channel Card
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose PowerMatch AmpLink 24-Channel Card?

The Bose PowerMatch AmpLink input card receives digital audio from a compatible Bose DSP through an amplifier's expansion slot. It is intended for a local AmpLink connection and gives the amplifier access to a 24-channel digital audio feed. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

The Bose PowerMatch AmpLink input card receives digital audio from a compatible Bose DSP through an amplifier's expansion slot.

  • Connections: RJ-45 AmpLink input and thru.
  • Cable requirement: Shielded Cat 5, straight TIA/EIA 568B, or equivalent.

Use cases

Applications

  • Bose DSP-to-PowerMatch digital feeds

  • Local amplifier-rack signal distribution

Technical details

Technical Specifications

Connectivity

Input audio
24 AmpLink channels
Connections
RJ-45 AmpLink input and thru
Cable requirement
Shielded Cat 5, straight TIA/EIA 568B, or equivalent
Maximum cable length
10 m (32 ft)
Input audio
24 AmpLink channels.
Maximum cable length
10 m (32 ft).

Model & Identification

Model
PowerMatch AmpLink 24-Channel Card
Manufacturer part number
772238-0110

General

Audio format
48 kHz / 24-bit
Audio format
48 kHz / 24-bit.

In the box

What's Included

  • One PowerMatch AmpLink expansion card

  • Installation guide

Installation

Installation & Mounting

Recommended Compatible Equipment

Bose PowerMatch PM8500N 8-Channel DSP Amplifier. Confirm the connection, power and installation arrangement for your system.

Bose PowerMatch PM4500N 4-Channel DSP Amplifier. Confirm the connection, power and installation arrangement for your system.

Installation

Use the specified shielded direct AmpLink connection and confirm the DSP output/channel bank. AmpLink is not Dante or ordinary Ethernet audio; do not route it through a network switch.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your PowerMatch AmpLink 24-Channel Card quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Bose PowerMatch AmpLink 24-Channel Card used for?

The Bose PowerMatch AmpLink input card receives digital audio from a compatible Bose DSP through an amplifier's expansion slot. It is intended for a local AmpLink connection and gives the amplifier access to a 24-channel digital audio feed.

Is AmpLink the same as Dante?

No. This card receives Bose AmpLink audio through a specified direct cable arrangement. It does not provide a Dante network interface.

Can I put the AmpLink cable through an Ethernet switch?

No. Treat AmpLink as its own direct audio connection and follow the documented cabling and maximum-distance requirements.

Which equipment should I consider with PowerMatch AmpLink 24-Channel Card?

Bose PowerMatch PM8500N 8-Channel DSP Amplifier. Confirm the precise connection and required accessories with the complete system specification.

Bose PowerMatch PM4500N 4-Channel DSP Amplifier. Confirm the precise connection and required accessories with the complete system specification.

What is included with PowerMatch AmpLink 24-Channel Card?

One PowerMatch AmpLink expansion card; Installation guide. Confirm the exact regional pack on the quotation.

What should I check before installing PowerMatch AmpLink 24-Channel Card?

Use the specified shielded direct AmpLink connection and confirm the DSP output/channel bank. AmpLink is not Dante or ordinary Ethernet audio; do not route it through a network switch.

Can Corporate AV help specify PowerMatch AmpLink 24-Channel Card for a UAE project?

Share your PowerMatch AmpLink 24-Channel Card quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Bose PowerMatch AmpLink 24-Channel Card quotation in the UAE?

Contact Corporate AV about PowerMatch AmpLink 24-Channel Card (772238-0110). Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
