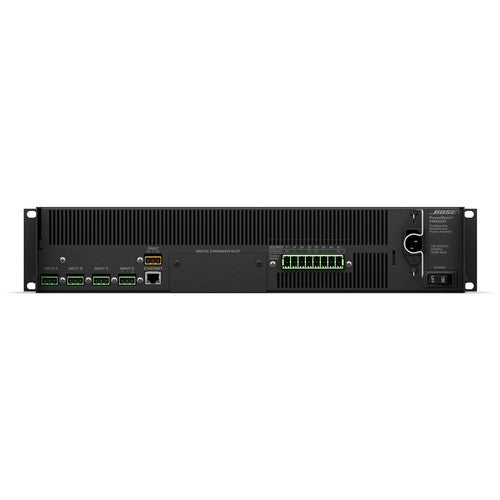

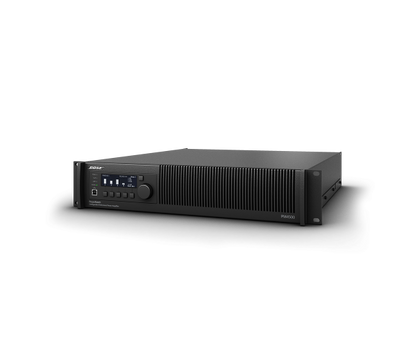

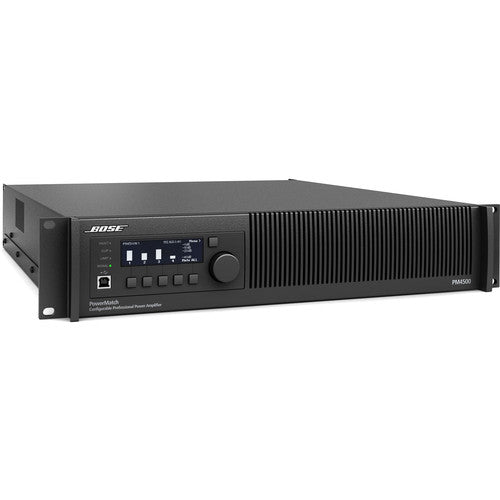

Bose PowerMatch PM4500N 4-Channel DSP Amplifier

Model 361813-4110

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 4 amplified output channels; Configurable low-impedance and high-impedance modes
  • 2000 W total, all channels
  • Onboard processing; configure the speaker protection
  • 100–240 VAC, 50/60 Hz
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose PowerMatch PM4500N 4-Channel DSP Amplifier
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose PowerMatch PM4500N?

The Bose PowerMatch PM4500N is a configurable multichannel amplifier for installed sound systems that need defined channel allocation, networked control and loudspeaker processing. Its output-power specification is 2000 w total, all channels. Bose includes this model in its discontinued PowerMatch resources, so confirm remaining stock or a current alternative before ordering. Corporate AV can specify the speaker circuits, source equipment and installation scope for your UAE project.

This amplifier drives compatible passive loudspeakers as part of an installed sound system. It does not include the speakers, source devices or complete site wiring. Configure the amplifier in the supported ControlSpace Designer workflow. Verify the channel routing, speaker presets, output mode, protection and network setup for the actual system.

Why this product

Key Benefits

  • Loudspeaker connection

    Configurable low-impedance and high-impedance modes; calculate each speaker circuit before connection.

  • System setup

    Configure the amplifier in the supported ControlSpace Designer workflow. Verify the channel routing, speaker presets, output mode, protection and network setup for the actual system.

  • System integration

    Specify the source, amplification, speaker load and room controls as one complete system.

Use cases

Applications

  • Commercial music and paging

    Plan speaker loads and operating levels around the required zones.

  • Corporate and hospitality spaces

    Specify sources, room controls and cabling alongside the amplifier.

  • Installed audio upgrades

    Check the existing speaker type, line voltage and processing before substituting an amplifier.

Technical details

Technical Specifications

System

Output Configuration
Configurable low-impedance and high-impedance modes
DSP / Processing
Onboard processing; configure for the connected speakers
Configuration Software
ControlSpace Designer; confirm current compatibility and firmware

Power

Power Budget
2000 W total, all channels

Connectivity

Amplified Output Channels
4
Rated Output
500 W per channel at 4 Ω / 300 W per channel at 8 Ω, mono mode
Digital Audio Input
Optional expansion card required for network audio
Mains Input
100–240 VAC, 50/60 Hz
Output design
2000 W total, all channels

General

Model
PowerMatch PM4500N
Manufacturer Part Number
361813-4110

In the box

What's Included

  • One PowerMatch PM4500N amplifier

Installation

Installation & Mounting

Recommended Compatible Loudspeaker

Bose DesignMax DM3C In-Ceiling Loudspeaker - White (Pair) is a compatible passive-speaker option in the supported low-impedance configuration. Calculate the combined circuit impedance, required power and speaker protection for the actual quantity.

Installation

Check speaker type, output mode, load, signal routing, protection settings, ventilation and the available electrical supply before commissioning. Configure the amplifier in the supported ControlSpace Designer workflow. Verify the channel routing, speaker presets, output mode, protection and network setup for the actual system.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty and service arrangements for the supplied SKU. For this legacy PowerMatch model, confirm stock condition, support and available alternatives explicitly.

Support

Provide the PowerMatch PM4500N quantity, speaker schedule, source equipment and site location for an itemised Corporate AV proposal in Dubai, Abu Dhabi or another UAE emirate.

More details

Additional Information

Optional Network Audio

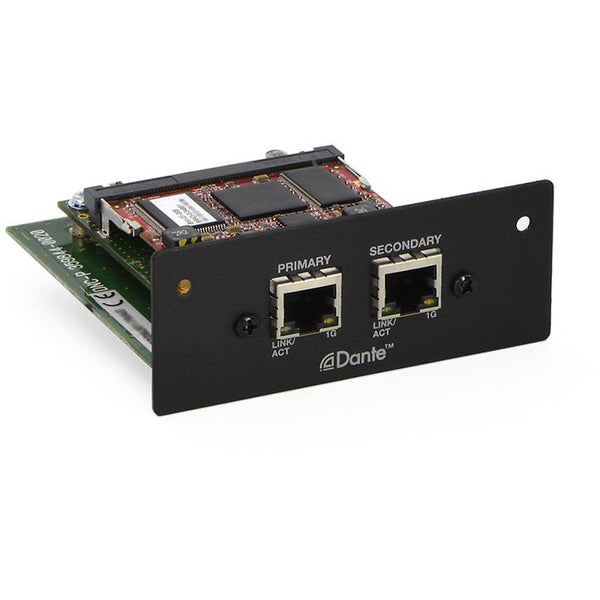

PowerMatch Dante Network Card adds the documented Dante audio interface. It is a separate accessory; Ethernet control on an N-model amplifier does not establish that the audio card is fitted. Confirm the exact card and firmware before ordering.

Complete your solution

Recommended Accessories

Expert FAQs

What output power does the Bose PM4500N provide?

500 W per channel at 4 Ω / 300 W per channel at 8 Ω, mono mode. The power budget is 2000 W total, all channels. Output depends on the documented load and operating mode; do not treat a shared total as the power available independently on every channel.

What type of loudspeaker wiring can I use with PM4500N?

Configurable low-impedance and high-impedance modes. Match the amplifier setting to the speaker circuit, calculate the complete load and apply the manufacturer's protection settings. Do not assume HZ and LZ models are interchangeable.

Does PM4500N include DSP or require separate processing?

Configure the amplifier in the supported ControlSpace Designer workflow. Verify the channel routing, speaker presets, output mode, protection and network setup for the actual system.

Does PM4500N include network or wireless audio?

Network audio requires the appropriate optional expansion card. The N-model's Ethernet control connection does not mean a Dante card is included.

Which speakers can I consider with PM4500N?

Bose DesignMax DM3C In-Ceiling Loudspeaker - White (Pair). is a compatible passive-speaker option in the supported low-impedance configuration. Calculate the combined circuit impedance, required power and speaker protection for the actual quantity.

How many speakers can PM4500N support?

For 70/100 V systems, total each speaker's selected transformer tap per channel and allow the required headroom. For low-impedance systems, calculate the combined impedance and power requirements. Quantity depends on the complete design rather than the number of output terminals.

What is included with PM4500N?

The supplied pack lists One PowerMatch PM4500N amplifier. Confirm the exact regional cord and connectors. This is a legacy model; confirm remaining stock and support before ordering.

How can I request a Bose PowerMatch PM4500N quotation in the UAE?

Ask Corporate AV for PowerMatch PM4500N, the quantity and your speaker-circuit requirements. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Confirm availability, warranty, lead time and installation scope on the quotation.
