Bose

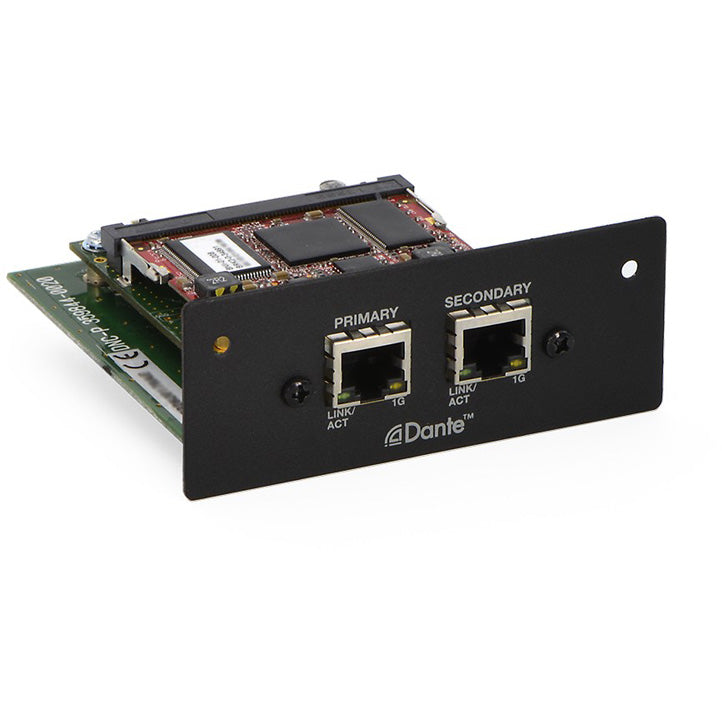

Bose PowerMatch Dante Network Card

Model 359844-0020

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Dante audio: 8 inputs / 8 diagnostic-monitoring outputs
  • Network connections: Primary and secondary Gigabit Ethernet ports
  • Audio format: 48 kHz / 24-bit
  • Installation: PowerMatch digital expansion slot
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose PowerMatch Dante Network Card
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose PowerMatch Dante Network Card?

The Bose PowerMatch Dante network card adds a Dante audio interface to a compatible PowerMatch amplifier. It receives eight network audio channels and offers eight output channels for diagnostic monitoring, so an existing amplifier can join a designed Dante system. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

The Bose PowerMatch Dante network card adds a Dante audio interface to a compatible PowerMatch amplifier.

  • Network connections: Primary and secondary Gigabit Ethernet ports.
  • Installation: PowerMatch digital expansion slot.

Use cases

Applications

  • PowerMatch network-audio upgrades

  • Dante-equipped installed PA systems

Technical details

Technical Specifications

Connectivity

Dante audio
8 inputs / 8 diagnostic-monitoring outputs
Network connections
Primary and secondary Gigabit Ethernet ports
Dante audio
8 inputs / 8 diagnostic-monitoring outputs.

Model & Identification

Model
PowerMatch Dante Network Card
Manufacturer part number
359844-0020

General

Audio format
48 kHz / 24-bit
Installation
PowerMatch digital expansion slot
Audio format
48 kHz / 24-bit.

In the box

What's Included

  • One PowerMatch Dante expansion card

  • Installation guide

Installation

Installation & Mounting

Recommended Compatible Equipment

Bose PowerMatch PM8500N 8-Channel DSP Amplifier. Confirm the connection, power and installation arrangement for your system.

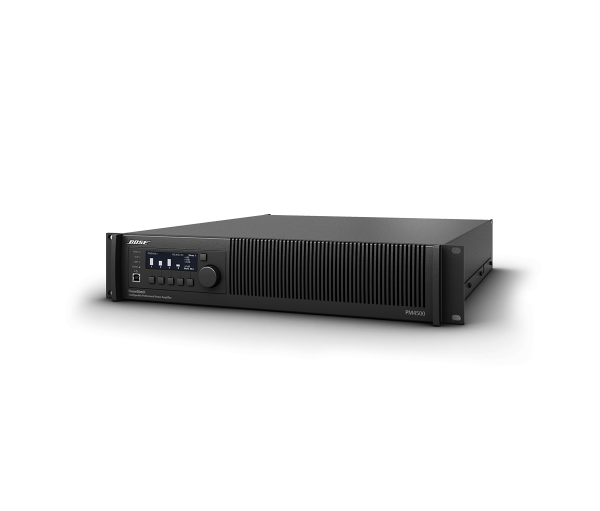

Bose PowerMatch PM4500N 4-Channel DSP Amplifier. Confirm the connection, power and installation arrangement for your system.

Installation

Check the amplifier model, firmware and expansion-slot compatibility. Configure the network port mode and Dante routes for the installation; diagnostic outputs are not additional powered speaker channels.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your PowerMatch Dante Network Card quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Bose PowerMatch Dante Network Card used for?

The Bose PowerMatch Dante network card adds a Dante audio interface to a compatible PowerMatch amplifier. It receives eight network audio channels and offers eight output channels for diagnostic monitoring, so an existing amplifier can join a designed Dante system.

Does the card add more powered amplifier channels?

No. It adds digital audio connectivity. Its eight output channels are for diagnostic audio monitoring, not additional loudspeaker outputs.

Can I connect redundant Dante network paths?

The primary/secondary arrangement supports a redundant mode. Select and configure the appropriate port mode for the planned network; the secondary port also has switched and legacy-filtered options.

Which equipment should I consider with PowerMatch Dante Network Card?

Bose PowerMatch PM8500N 8-Channel DSP Amplifier. Confirm the precise connection and required accessories with the complete system specification.

Bose PowerMatch PM4500N 4-Channel DSP Amplifier. Confirm the precise connection and required accessories with the complete system specification.

What is included with PowerMatch Dante Network Card?

One PowerMatch Dante expansion card; Installation guide. Confirm the exact regional pack on the quotation.

What should I check before installing PowerMatch Dante Network Card?

Check the amplifier model, firmware and expansion-slot compatibility. Configure the network port mode and Dante routes for the installation; diagnostic outputs are not additional powered speaker channels.

Can Corporate AV help specify PowerMatch Dante Network Card for a UAE project?

Share your PowerMatch Dante Network Card quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Bose PowerMatch Dante Network Card quotation in the UAE?

Contact Corporate AV about PowerMatch Dante Network Card (359844-0020). Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
