Sennheiser EW-DX 835-S SET Dual Digital Wireless Handheld Microphone System

Model EW-DX 835-S SET (Q1-9)

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.aeDatasheet: Download PDF

  • 2 EW-DX SKM-S handheld transmitters with MMD 835 cardioid dynamic capsules
  • 2-channel EW-DX EM 2 half-rack receiver with Ethernet and PoE
  • 1.9 ms system latency and 134 dB dynamic range
  • Up to 12 hours per transmitter on a BA 70 lithium-ion pack

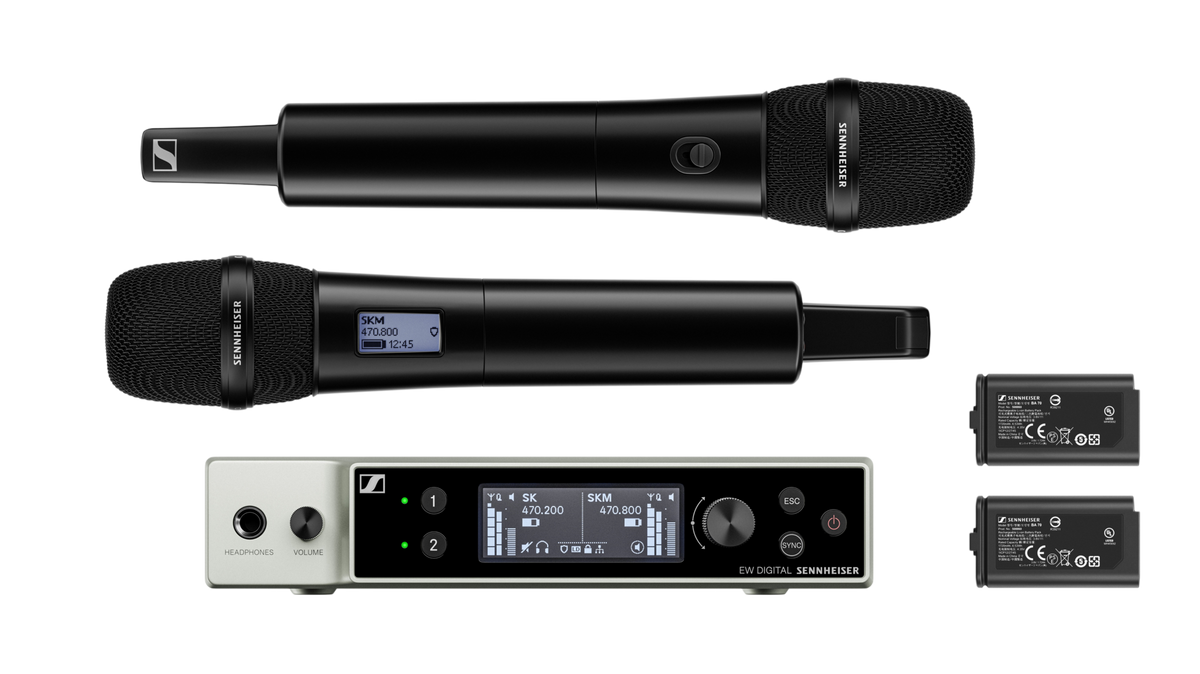

Sennheiser EW-DX 835-S SET with two SKM-S handheld microphones, EM 2 receiver and BA 70 batteries
  • Authorized Sennheiser Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Sennheiser EW-DX 835-S SET?

The Sennheiser EW-DX 835-S SET is a two-channel digital wireless handheld microphone system with two EW-DX SKM-S transmitters, two MMD 835 cardioid dynamic capsules and one EW-DX EM 2 receiver. It delivers 1.9 ms latency, a 134 dB dynamic range and up to 12 hours per transmitter on the included BA 70 packs, which suits presenters, panel hosts and singers in UAE conference venues, ballrooms and places of worship.

The Sennheiser EW-DX 835-S SET is a ready-to-use Evolution Wireless Digital kit for two voices at the same time. Each EW-DX SKM-S handheld has a programmable mute switch and the Sennheiser standard capsule interface, so the head can be swapped for other Sennheiser or Neumann capsules. The half-rack EW-DX EM 2 receiver fits a 19 inch rack with the included GA 3 kit and can be managed over the network.

Why this product

Key Benefits

  • Two channels in one half-rack receiver

    The EW-DX EM 2 receives both handhelds, shows each link on an OLED display and runs on its 12 V adapter or on PoE (IEEE 802.3af).

  • Low-latency digital audio

    The Sennheiser Performance Audio Codec (SePAC) gives 1.9 ms system latency and a 134 dB dynamic range, so transmitter gain does not have to be set for each voice.

  • Dense, intermodulation-free frequency planning

    Up to 88 MHz switching bandwidth with equidistant spacing allows up to 146 channels at 600 kHz in Standard Mode, or 293 channels at 300 kHz in Link Density Mode.

  • Encrypted wireless link

    AES-256 encryption protects the audio link against eavesdropping in boardrooms and confidential meetings.

  • Rechargeable transmitters with an always-on display

    BA 70 lithium-ion packs run each handheld for up to 12 hours, the transmitters charge in the optional CHG 70N-C charger, and the E-Ink display keeps the settings visible even with the battery removed.

  • App and network control

    The Smart Assist App connects over Bluetooth Low Energy at up to 25 m, and Sennheiser Control Cockpit, Wireless System Manager or third-party control system plug-ins manage the receiver over Ethernet.

Use cases

Applications

  • Conferences and panel discussions

    Two handhelds let a moderator and a panellist, or a presenter and an audience microphone, run side by side on one receiver.

  • Hotel ballrooms and corporate events

    Each SKM-S transmits at 10 mW with a working range of up to 100 m, enough for large function rooms.

  • Places of worship and live vocals

    The cardioid MMD 835 capsule handles up to 154 dB SPL, so it works for speech and for singing close to the grille.

  • Training rooms and auditoriums

    Network control lets the AV team monitor battery and signal status from a control room instead of at the rack.

Technical details

Technical Specifications

Microphone

Microphone Type
Digital wireless handheld system, 2 channels
Microphone Capsule
MMD 835, dynamic
Polar Pattern
Cardioid
Sensitivity
2.1 mV/Pa
Maximum SPL
154 dB SPL
Frequency Response
20 Hz to 20 kHz (-3 dB)
Dynamic Range
134 dB

Wireless

Transmitters
2 × EW-DX SKM-S handheld with mute switch
Receiver
1 × EW-DX EM 2, 2-channel half rack (9.5 inch)
Latency
1.9 ms
Wireless Frequency Band
Q1-9: 470.2 to 550 MHz; R1-9: 520 to 607.8 MHz
Switching Bandwidth
Up to 88 MHz
Channels
Up to 146 (Standard Mode, 600 kHz spacing) or 293 (Link Density Mode, 300 kHz spacing)
RF Output Power
10 mW ERP
Wireless Range
Up to 100 m (328 ft)
Encryption
AES-256

Battery

Battery Type
BA 70 lithium-ion pack (2 included) or 2 × AA 1.5 V per transmitter
Battery Life
Up to 12 hours with BA 70

Connectivity

Audio Output
18 dBu max.
Headphone Output
2 × 70 mW at 32 Ω
Ethernet
RJ-45, 100Base-TX and 10Base-T, CAT5e or higher

Power

Power Supply
Receiver: 11 to 13 V DC or PoE IEEE 802.3af

Physical

Dimensions
Receiver 212 × 44 × 189 mm; handheld 50 × 268 mm with MMD 835
Weight
Receiver approx. 1000 g; handheld approx. 304 g with MMD 835, without batteries

Environmental

Operating Temperature
-10 °C to 55 °C (14 °F to 131 °F)

Certifications & Warranty

Warranty
2 years (manufacturer)

In the box

What's Included

  • 1 × EW-DX EM 2 rack receiver

  • 2 × EW-DX SKM-S handheld transmitters

  • 2 × MMD 835 microphone modules

  • 2 × BA 70 rechargeable battery packs

  • 2 × MZQ 1 microphone clamps

  • 2 × rod antennas

  • 1 × power supply with country adapters

  • 1 × GA 3 rackmount set

  • 4 × rubber feet

  • Quick guide, safety guide and manufacturer declaration sheet

Installation

Installation & Mounting

Recommended Receiver

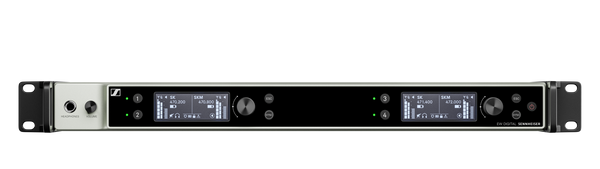

For rooms that need more than two wireless channels or Dante network audio, the Sennheiser EW-DX EM 4 DANTE 4-Channel Wireless Receiver receives four EW-DX handheld, bodypack or table stand transmitters in one 19 inch unit, and up to 4 units can be cascaded through its built-in antenna splitter. Choose the same frequency range (Q1-9 or R1-9) as the transmitters.

Ownership and support

Ownership & Support

Warranty

Sennheiser lists a 2-year manufacturer warranty for the EW-DX 835-S SET.

Complete your solution

Recommended Accessories

Expert FAQs

What pickup pattern does the Sennheiser EW-DX 835-S SET use?

The Sennheiser EW-DX 835-S SET uses the MMD 835, a dynamic capsule with a cardioid pickup pattern. It picks up the voice in front of the grille and rejects sound from behind, which helps against feedback from stage monitors. The capsule handles up to 154 dB SPL and has a sensitivity of 2.1 mV/Pa.

Which frequency range of this Sennheiser set should I order for the UAE?

The Sennheiser EW-DX 835-S SET is sold here in two frequency ranges: Q1-9 (470.2 to 550 MHz, article no. 509300) and R1-9 (520 to 607.8 MHz, article no. 509301). Sennheiser states that specific frequencies are subject to local RF regulations, and its International Frequency Advisor (SIFA) lists the ranges allowed per country, so confirm the range for your venue and match it with any receivers, boosters or splitters you already use.

How long does the handheld battery last?

Each SKM-S handheld in the Sennheiser EW-DX 835-S SET runs for up to 12 hours on a BA 70 lithium-ion pack, and two BA 70 packs are included. The handheld also accepts 2 AA 1.5 V batteries. It can charge inside the transmitter with the CHG 70N-C network-enabled charger, or the packs can charge on the L 70 USB charger, both sold separately.

What is the wireless range of the Sennheiser EW-DX 835-S SET?

The Sennheiser EW-DX 835-S SET has a working range of up to 100 m (328 ft), with each handheld transmitting at 10 mW ERP. For longer antenna runs Sennheiser offers the EW-D AB antenna boosters, for example EW-D AB (Q) for 470 to 550 MHz and EW-D AB (R) for 520 to 608 MHz. The Smart Assist App reaches the receiver over Bluetooth Low Energy at up to 25 m.

How many of these wireless channels can run in the same room?

Up to 146 Sennheiser EW-DX channels can run within the 88 MHz switching bandwidth in Standard Mode with 600 kHz spacing, or up to 293 channels in Link Density Mode with 300 kHz spacing. Each EW-DX EM 2 receiver handles 2 channels, and the AutoScan function assigns equidistant, intermodulation-free frequencies without manual RF planning.

What does the EM 2 receiver in this set connect to?

The Sennheiser EW-DX EM 2 receiver sends each wireless channel to a mixer, DSP or amplifier through its audio outputs, rated at 18 dBu max., and has a headphone output for monitoring. Its RJ-45 Ethernet port carries control for Sennheiser Control Cockpit and third-party systems such as Crestron and Q-SYS, and it can be powered over that cable with PoE (IEEE 802.3af) instead of the 11 to 13 V DC supply.

Can I change the capsule on the Sennheiser EW-DX 835-S SET handheld?

Yes, the handheld in the Sennheiser EW-DX 835-S SET takes other capsules. The SKM-S uses the Sennheiser standard capsule interface, so the MMD 835 can be replaced by modules such as the MMD 945-1 (supercardioid dynamic), MME 865-1 (supercardioid condenser), MMK 965-1 (switchable condenser) or the Neumann KK 204 and KK 205, sold separately.
