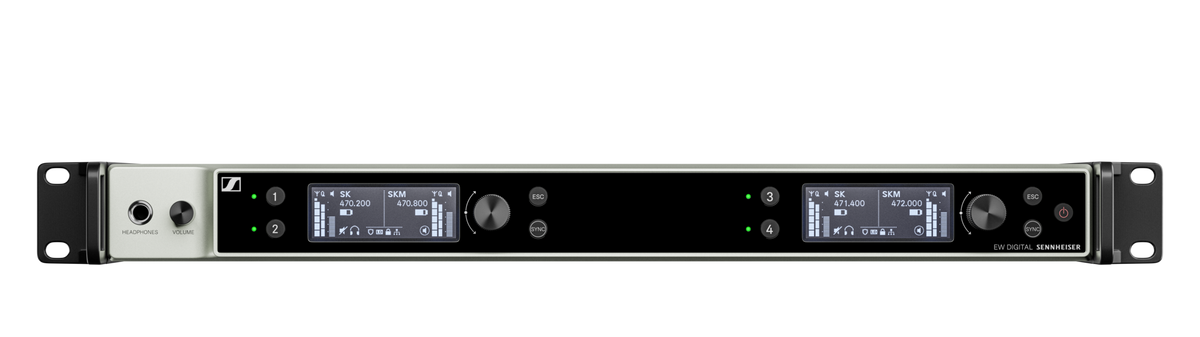

Sennheiser EW-DX EM 4 DANTE Four-Channel Digital Wireless Rack Receiver
Model EW-DX EM 4 DANTE (Q1-9)
Price on Request
Availability: In Stock
Call an Expert: +971 56 498 8088 info@corporateav.aeDatasheet: Download PDF
- 4 digital wireless channels in a 19 inch, 1U metal housing
- Dante digital audio output at 48 kHz or 96 kHz, 24 bit
- Built-in antenna splitter cascades up to 4 units (16 channels)
- Internal 90 to 265 V AC mains input, 37 W max.
- Authorized Sennheiser Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Sennheiser EW-DX EM 4 DANTE?
The Sennheiser EW-DX EM 4 DANTE is a four-channel digital wireless receiver in a 19 inch rack housing with Dante network audio output and an integrated antenna splitter. Up to 4 units cascade to 16 channels from one antenna pair, with 1.9 ms latency and up to 88 MHz switching bandwidth, which suits Dante-based conference centres, hotels and auditoriums in the UAE.
It is the multi-channel rack receiver of the Sennheiser Evolution Wireless Digital EW-DX range. It receives four EW-DX handheld, bodypack or table stand transmitters and sends all four channels to the audio network over Dante, so a DSP or mixer on the same network picks them up without analogue cabling. It has an internal auto-switching power supply with an IEC connection.
Why this product
Key Benefits
-
Four channels with Dante output
All four channels go onto the network as Dante audio at 48 kHz or 96 kHz, 24 bit, with Dante primary and secondary ports for redundant networks.
-
Integrated antenna splitter
Antenna power and two BNC loop-through outputs let up to 4 EW-DX EM 4 DANTE units share one antenna pair for 16 channels, with 0 dB ±0.5 dB gain relative to the antenna inputs.
-
Four configurable network ports
Each port can be set as Control, Control plus Dante primary or secondary, or Dante primary or secondary only, so control and audio can sit on separate networks.
-
Wide tuning and dense channel plans
Up to 88 MHz switching bandwidth gives up to 146 channels at 600 kHz spacing, or 293 channels at 300 kHz in Link Density Mode.
-
Low latency and secure links
The Sennheiser Performance Audio Codec gives 1.9 ms latency and 134 dB dynamic range, and AES-256 plus Dante media encryption protect the audio.
-
Managed from anywhere
Sennheiser Control Cockpit, Wireless System Manager, the Smart Assist App and third-party control system plug-ins manage every channel.
Use cases
Applications
-
Conference centres and hotel ballrooms
Sixteen channels from 4 cascaded units cover multi-room events with one antenna system.
-
Dante-based meeting and training rooms
Channels go straight to a networked DSP or mixer without analogue wiring.
-
Auditoriums and university lecture halls
Rack-mounted receivers with network monitoring suit a central control room.
-
Places of worship
Four handheld or bodypack channels in one rack unit, with headphone monitoring at the front.
Technical details
Technical Specifications
Microphone
- Microphone Type
- Digital wireless receiver, 4 channels
- Frequency Response
- 20 Hz to 20 kHz (-3 dB)
- Dynamic Range
- 134 dB
Wireless
- Wireless Frequency Band
- Q1-9: 470.2 to 550 MHz; R1-9: 520 to 607.8 MHz
- Switching Bandwidth
- Up to 88 MHz
- Channels
- 4 per unit; up to 146 (Standard Mode) or 293 (Link Density Mode) per system
- Latency
- 1.9 ms
- Antenna Cascade
- 2 × BNC (50 Ω) daisy-chain outputs, max. 4 units
- Encryption
- AES-256 and Dante media encryption
- Wireless Control
- Bluetooth Low Energy, 2402 to 2480 MHz, Smart Assist App up to 25 m
Connectivity
- Network Audio
- Dante, RJ-45, 48 kHz or 96 kHz, 24 bit
- Audio Output
- 18 dBu max.
- Headphone Output
- 2 × 70 mW at 32 Ω
- Ethernet
- 4 configurable RJ-45 network ports, IPv4
Power
- Power Supply
- Internal, 90 to 265 V AC, 47 to 63 Hz, IEC connection
- Power Consumption
- Max. 37 W
Physical
- Mounting
- 19 inch rack, 1U
- Dimensions
- 483 × 44 × 373 mm (19 × 1.73 × 14.66 in)
- Weight
- Approx. 4560 g without antennas
Environmental
- Operating Temperature
- -10 °C to 55 °C (14 °F to 131 °F)
- Relative Humidity
- 5 to 95 %, non-condensing
Certifications & Warranty
- Warranty
- 2 years (manufacturer)
In the box
What's Included
-
1 × EW-DX EM 4 DANTE rack receiver
-
2 × rod antennas
-
2 × BNC antenna cables (50 Ω) for daisy-chaining
-
Up to 3 mains cables (EU, UK or US plug) depending on frequency variant
-
Quick guide, safety guide and manufacturer declaration sheet
Installation
Installation & Mounting
Recommended Transmitter
The EW-DX EM 4 DANTE pairs with EW-DX transmitters in the same frequency range. The handhelds from the Sennheiser EW-DX 835-S SET and the bodypacks from the Sennheiser EW-DX MKE 2 SET both work with it; choose the matching Q1-9 or R1-9 range.
Ownership and support
Ownership & Support
Warranty
Sennheiser lists a 2-year manufacturer warranty for the EW-DX EM 4 DANTE.
