Sennheiser EW-DX MKE 2/835-S SET Digital Wireless Combo Microphone System

Model EW-DX MKE 2/835-S SET (Q1-9)

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 1 handheld with MMD 835 cardioid capsule and 1 bodypack with MKE 2 omnidirectional lavalier
  • 2-channel half-rack EW-DX EM 2 receiver with Ethernet and PoE
  • 1.9 ms latency and 134 dB dynamic range
  • Up to 12 hours per transmitter on a BA 70 lithium-ion pack

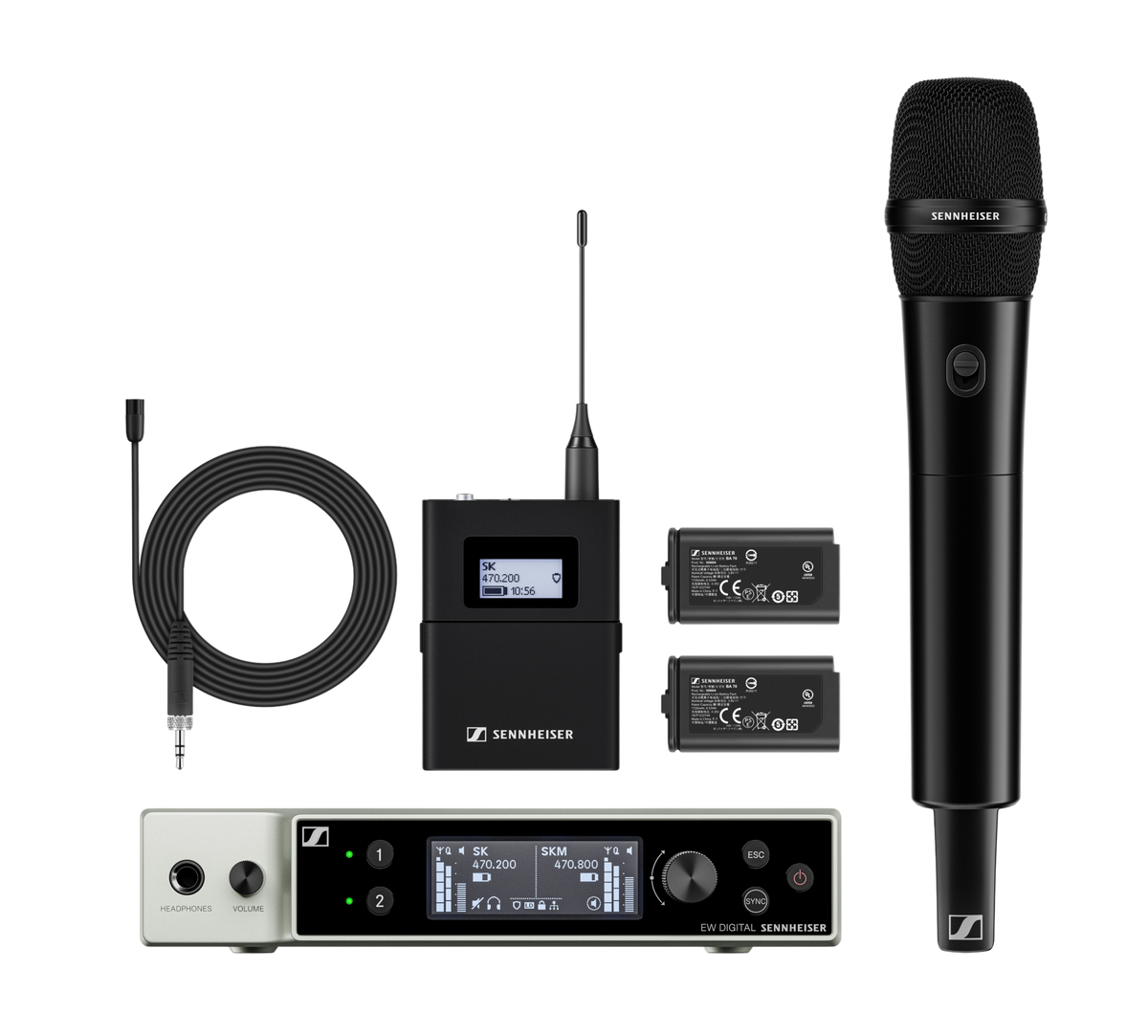

Sennheiser EW-DX MKE 2/835-S SET with handheld, bodypack, lavalier and EM 2 receiver
  • Authorized Sennheiser Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Sennheiser EW-DX MKE 2/835-S SET?

The Sennheiser EW-DX MKE 2/835-S SET is a two-channel digital wireless combo system with one handheld transmitter, one bodypack transmitter with a clip-on lavalier microphone and one EW-DX EM 2 receiver. It delivers 1.9 ms latency, a 134 dB dynamic range and up to 12 hours of operation per transmitter, which suits presenters, trainers and educators who switch between a handheld and a lavalier in UAE meeting rooms, classrooms and event halls.

The Sennheiser EW-DX MKE 2/835-S SET is an all-in-one Evolution Wireless Digital kit for two speakers at the same time. It combines an EW-DX SKM-S handheld with an MMD 835 cardioid dynamic capsule, an EW-DX SK bodypack with an MKE 2 omnidirectional clip-on lavalier, an EW-DX EM 2 half-rack receiver and two BA 70 rechargeable batteries. The receiver fits a 19 inch rack with the included GA 3 kit and can be managed over the network.

Why this product

Key Benefits

  • Handheld and lavalier in one set

    A presenter can hold the SKM-S with its MMD 835 capsule while a second speaker wears the SK bodypack with the MKE 2 lavalier, both received by one two-channel receiver.

  • Low-latency digital audio

    The Sennheiser Performance Audio Codec (SePAC) gives 1.9 ms system latency and a 134 dB dynamic range, so transmitter gain does not have to be set for each voice.

  • Equidistant, intermodulation-free channels

    Up to 88 MHz switching bandwidth and AutoScan allow up to 146 channels at 600 kHz spacing in Standard Mode, or 293 channels at 300 kHz spacing in Link Density Mode, without RF planning knowledge.

  • Encrypted wireless link

    AES-256 encryption protects the audio link in boardrooms and confidential meetings.

  • Rechargeable transmitters with an always-on display

    BA 70 lithium-ion packs run each transmitter for up to 12 hours, the transmitters charge in the optional CHG 70N-C charger, and the E-Ink display keeps the settings visible even with the battery removed.

  • App and network control

    The Smart Assist App connects over Bluetooth Low Energy at up to 25 m, and Sennheiser Control Cockpit, Wireless System Manager or third-party control plug-ins manage the receiver over Ethernet.

Use cases

Applications

  • Classrooms and training rooms

    A teacher can move between a handheld for questions and a lavalier for hands-free teaching without changing the receiver.

  • Corporate presentations

    The bodypack and lavalier leave both hands free for slides and demonstrations, while the handheld serves Q and A.

  • Conferences and panel discussions

    Two speakers run side by side on one half-rack receiver, with a programmable mute switch on each transmitter.

  • Houses of worship and small venues

    Each transmitter works at 10 mW with a range of up to 100 m, enough for halls and function rooms.

Technical details

Technical Specifications

Microphone

Microphone Type
Digital wireless combo system, 2 channels
Microphone Capsule
MMD 835, dynamic
Lavalier Microphone
MKE 2, pre-polarized condenser, 3.5 mm jack, cable approx. 1.60 m
Polar Pattern
Handheld: cardioid; lavalier: omnidirectional
Sensitivity
MMD 835: 2.1 mV/Pa; MKE 2: 5 mV/Pa ± 3 dB
Maximum SPL
MMD 835: 154 dB SPL; MKE 2: 142 dB SPL
Frequency Response
20 Hz to 20 kHz (-3 dB)
Dynamic Range
134 dB

Wireless

Transmitters
1 × EW-DX SKM-S handheld with mute switch; 1 × EW-DX SK bodypack
Receiver
1 × EW-DX EM 2, 2-channel half rack (9.5 inch)
Latency
1.9 ms
Wireless Frequency Band
Q1-9: 470.2 to 550 MHz; R1-9: 520 to 607.8 MHz
Switching Bandwidth
Up to 88 MHz
Channels
Up to 146 (Standard Mode, 600 kHz spacing) or 293 (Link Density Mode, 300 kHz spacing)
RF Output Power
10 mW ERP
Wireless Range
Up to 100 m (328 ft)
Encryption
AES-256

Battery

Battery Type
BA 70 lithium-ion pack (2 included) or 2 × AA 1.5 V per transmitter
Battery Life
Up to 12 hours with BA 70; up to 8 hours with AA batteries

Connectivity

Output Connector
Receiver per channel: balanced XLR-3M, 18 dBu max.; unbalanced 6.3 mm, 12 dBu max.
Headphone Output
2 × 70 mW at 32 Ω
Ethernet
RJ-45, 100Base-TX and 10Base-T, CAT5e or higher

Power

Power Supply
Receiver: 11 to 13 V DC or PoE IEEE 802.3af Class 0

Physical

Dimensions
Receiver 212 × 44 × 189 mm; handheld 50 × 268 mm with MMD 835; bodypack 63.5 × 85 × 20 mm without antenna
Weight
Receiver approx. 1000 g; handheld approx. 304 g with MMD 835; bodypack approx. 115 to 120 g, without batteries

Environmental

Operating Temperature
-10 °C to 55 °C (14 °F to 131 °F)

Certifications & Warranty

Warranty
2 years (manufacturer)

In the box

What's Included

  • 1 × EW-DX EM 2 rack receiver

  • 1 × EW-DX SKM-S handheld transmitter

  • 1 × MMD 835 microphone module

  • 1 × EW-DX SK bodypack transmitter

  • 1 × MKE 2 lavalier microphone

  • 2 × BA 70 rechargeable battery packs

  • 1 × MZQ 1 microphone clamp

  • 2 × rod antennas

  • 1 × power supply with country adapters

  • 1 × GA 3 rackmount set

  • 4 × rubber feet

  • Quick guide, safety guide and manufacturer declaration sheet

Installation

Installation & Mounting

Recommended Receiver

For rooms that need more than two wireless channels or Dante network audio, the Sennheiser EW-DX EM 4 DANTE 4-Channel Wireless Receiver receives four EW-DX handheld, bodypack or table stand transmitters in one 19 inch unit. Choose the same frequency range (Q1-9 or R1-9) as the transmitters in this set.

Ownership and support

Ownership & Support

Warranty

Sennheiser lists a 2-year manufacturer warranty for the EW-DX MKE 2/835-S SET.

Complete your solution

Recommended Accessories

Expert FAQs

What pickup patterns does the Sennheiser EW-DX MKE 2/835-S SET use?

The Sennheiser EW-DX MKE 2/835-S SET has two pickup patterns: the MMD 835 handheld capsule is a cardioid dynamic capsule with 2.1 mV/Pa sensitivity and 154 dB SPL, and the MKE 2 lavalier is an omnidirectional pre-polarized condenser with 5 mV/Pa and 142 dB SPL. The cardioid capsule rejects sound from behind, which helps against feedback, while the omnidirectional lavalier picks up the voice evenly from a clip-on position.

Which frequency range of this Sennheiser combo set should I order for the UAE?

The Sennheiser EW-DX MKE 2/835-S SET is listed here in two frequency ranges: Q1-9 (470.2 to 550 MHz, article no. 509328) and R1-9 (520 to 607.8 MHz, article no. 509329). Sennheiser states that specific frequencies are subject to local RF regulations, and its International Frequency Advisor (SIFA) lists the ranges allowed per country, so confirm the range for your venue before ordering and match it with every transmitter and receiver in the system.

How long does the battery last in the EW-DX MKE 2/835-S SET transmitters?

Each transmitter in the Sennheiser EW-DX MKE 2/835-S SET runs for up to 12 hours on a BA 70 lithium-ion pack, and two BA 70 packs are included. With two AA 1.5 V batteries the runtime is up to 8 hours. The transmitters charge in place in the CHG 70N-C network-enabled charger, sold separately.

What is the wireless range of the Sennheiser EW-DX MKE 2/835-S SET?

The Sennheiser EW-DX MKE 2/835-S SET has a working range of up to 100 m (328 ft), with each transmitter sending at 10 mW ERP. For longer antenna runs Sennheiser offers antenna boosters such as the EW-D AB (Q) for 470 to 550 MHz and the EW-D AB (R) for 520 to 608 MHz. The Smart Assist App reaches the receiver over Bluetooth Low Energy at up to 25 m.

How many wireless systems like this one can run in the same room?

Up to 146 Sennheiser EW-DX channels can run within the 88 MHz switching bandwidth in Standard Mode with 600 kHz spacing, or up to 293 channels in Link Density Mode with 300 kHz spacing. Each EW-DX EM 2 receiver handles 2 channels, and the AutoScan function assigns equidistant, intermodulation-free frequencies without manual RF planning.

What does the receiver in the EW-DX MKE 2/835-S SET connect to?

The EW-DX EM 2 receiver in the Sennheiser EW-DX MKE 2/835-S SET gives each channel a balanced XLR-3M output with 18 dBu maximum and an unbalanced 6.3 mm output with 12 dBu maximum, so it connects to a mixer, DSP or amplifier. It also has a 6.3 mm headphone output, an RJ-45 Ethernet port for control and PoE (IEEE 802.3af Class 0) as an alternative to the 11 to 13 V DC supply.

Can I use other lavalier microphones or capsules with the EW-DX MKE 2/835-S SET?

Yes, the Sennheiser EW-DX MKE 2/835-S SET accepts other microphones. The SKM-S handheld uses the Sennheiser standard capsule interface, so the MMD 835 can be replaced by modules such as the MMD 945-1, MME 865-1, MMK 965-1 or the Neumann KK 204 and KK 205. The SK bodypack takes Sennheiser lavalier and headset microphones with a 3.5 mm jack, such as the ME 2, ME 4, MKE Essential and HSP 2, sold separately.
