Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter with 3.5 mm Jack
Model EW-DX SK (Q1-9)
Price on Request
Availability: In Stock
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Bodypack transmitter with 3.5 mm jack for Sennheiser lavalier and headset microphones
- 1.9 ms latency and 134 dB dynamic range
- Up to 12 hours on a BA 70 lithium-ion pack, 8 hours on AA batteries
- 63.5 × 85 × 20 mm and approx. 115 to 120 g without batteries
- Authorized Sennheiser Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Sennheiser EW-DX SK?

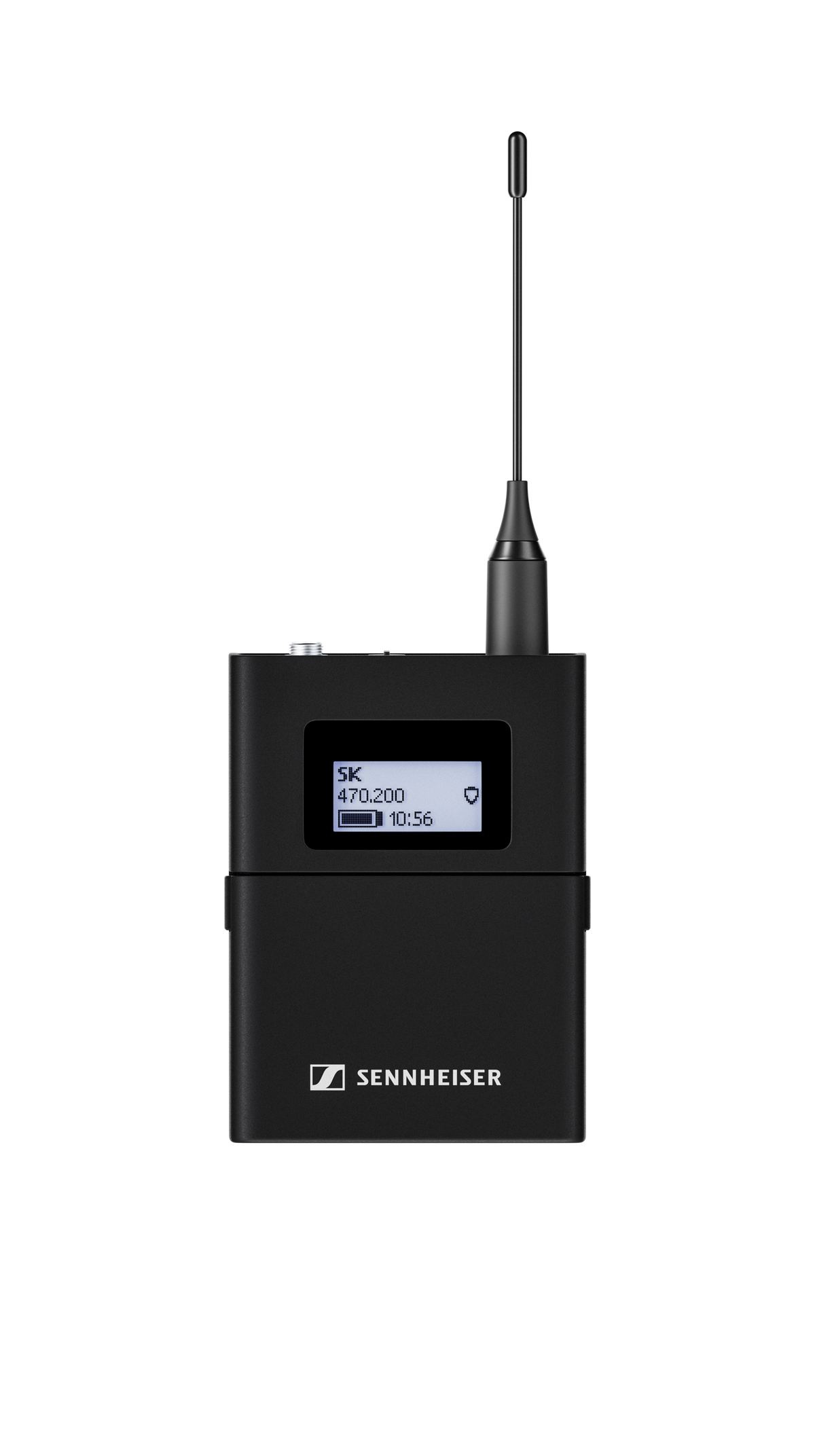

The Sennheiser EW-DX SK is a digital wireless bodypack transmitter with a 3.5 mm jack for Sennheiser lavalier and headset microphones, built for Evolution Wireless Digital receivers. It offers 1.9 ms latency, a 134 dB dynamic range and up to 12 hours of runtime in a 63.5 × 85 × 20 mm metal housing, which suits presenters, trainers and stage performers in UAE conference rooms, classrooms and theatres.
The Sennheiser EW-DX SK is the bodypack transmitter of the Evolution Wireless Digital EW-DX family. It is delivered without a microphone, so the buyer chooses a compatible lavalier or headset with a 3.5 mm jack. A programmable mute switch, an always-on E-Ink display and function buttons let the user set the transmitter directly. A separate EW-DX SK 3-PIN version exists for microphones with a 3-pin connector.
Why this product
Key Benefits
-
Works with many Sennheiser microphones
The 3.5 mm jack takes lavalier models such as the ME 2, ME 4, MKE Essential, MKE 2 and MKE 1, and headset models such as the ME 3, HSP Essential, HSP 2, HS 2 and Headmic 1.
-
Low-latency digital audio
The Sennheiser Performance Audio Codec (SePAC) gives 1.9 ms system latency and a 134 dB dynamic range, so the gain does not have to be set for each speaker.
-
Programmable mute switch
The switch can mute the radio signal or the audio signal, or it can be disabled to prevent accidental muting.
-
Instrument input with cable emulation
The input can simulate cable characteristics when a guitar or other instrument is connected.
-
Always-on E-Ink display
Frequency, battery and encryption status stay visible even when the batteries are removed, and the function buttons can be locked.
-
Rechargeable or AA power
A BA 70 pack gives up to 12 hours and charges in the transmitter through its charging contacts in the CHG 70N-C, while two AA batteries are included for up to 8 hours.
Use cases
Applications
-
Corporate presentations and training
A lavalier on the bodypack leaves both hands free for slides and demonstrations.
-
Theatre and stage performance
A headset microphone on the bodypack stays in place while the performer moves.
-
Lecture halls and classrooms
A bodypack with a lavalier lets teachers walk the room while the receiver stays in the rack.
-
Hotel ballrooms and events
The 10 mW transmitter works at up to 100 m, enough for large function rooms.
Technical details
Technical Specifications
Microphone
- Microphone Type
- Digital wireless bodypack transmitter, microphone not included
- Polar Pattern
- Depends on the lavalier or headset microphone fitted
- Frequency Response
- 20 Hz to 20 kHz (-3 dB)
- Dynamic Range
- 134 dB
Wireless
- Latency
- 1.9 ms
- Wireless Frequency Band
- Q1-9: 470.2 to 550 MHz; R1-9: 520 to 607.8 MHz
- Occupied Bandwidth
- 200 kHz
- RF Output Power
- 10 mW ERP
- Wireless Range
- Up to 100 m (328 ft)
Battery
- Battery Type
- BA 70 lithium-ion pack (sold separately) or 2 × AA 1.5 V (included)
- Battery Life
- Up to 12 hours with BA 70; up to 8 hours with AA batteries
Connectivity
- Input Connector
- 3.5 mm jack
Power
- Input Voltage
- 2.0 V to 4.35 V
Physical
- Dimensions
- 63.5 × 85 × 20 mm without antenna
- Weight
- Approx. 115 to 120 g without batteries
Environmental
- Operating Temperature
- -10 °C to 55 °C (14 °F to 131 °F)
Certifications & Warranty
- Warranty
- 2 years (manufacturer)
In the box
What's Included
-
1 × EW-DX SK bodypack transmitter
-
1 × belt clip
-
2 × AA batteries
-
Quick guide, safety guide and manufacturer declaration sheet
Installation
Installation & Mounting
Recommended Microphone
The Sennheiser ME 4 Cardioid Condenser Lavalier Microphone is on Sennheiser's compatibility list for the EW-DX SK (ME 4 models produced from 2021 onward with a gold-plated connector). It adds a cardioid pattern for noisier rooms; check the production year before using it with this transmitter.
Recommended Receiver
The EW-DX SK needs an Evolution Wireless Digital receiver on the same frequency range. See the Sennheiser EW-DX EM 2 2-Channel Wireless Receiver for two channels, or the Sennheiser EW-DX EM 4 DANTE 4-Channel Wireless Receiver for four channels with Dante. Choose Q1-9 or R1-9 to match.
Ownership and support
Ownership & Support
Warranty
Sennheiser lists a 2-year manufacturer warranty for the EW-DX SK.
