Sennheiser

Sennheiser EW-DX SKM Digital Wireless Handheld Microphone Transmitter

Model EW-DX SKM (Q1-9)

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Handheld transmitter with standard capsule interface for Sennheiser and Neumann modules (capsule sold separately)
  • 1.9 ms latency and 134 dB dynamic range
  • Up to 12 hours on a BA 70 lithium-ion pack, 8 hours on AA batteries
  • 10 mW RF power with up to 100 m working range

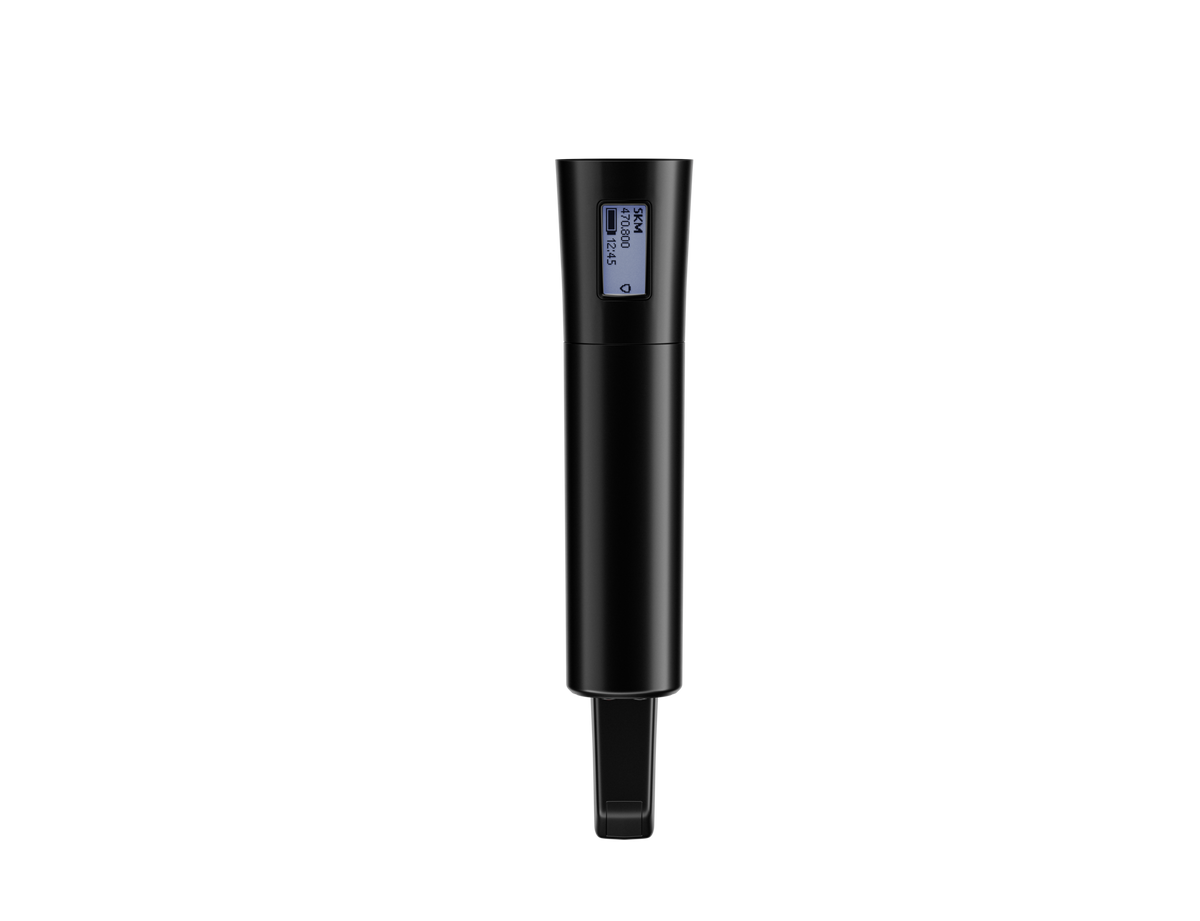

Sennheiser EW-DX SKM handheld transmitter without capsule, back view
  • Authorized Sennheiser Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Sennheiser EW-DX SKM?

The Sennheiser EW-DX SKM is a digital wireless handheld transmitter without a mute switch that takes any compatible Sennheiser or Neumann microphone capsule and works with Evolution Wireless Digital receivers. It offers 1.9 ms latency, a 134 dB dynamic range and up to 12 hours of runtime, which suits presenters, singers and event teams across UAE conference venues, ballrooms and places of worship that already run an EW-DX receiver.

The Sennheiser EW-DX SKM is the transmitter body of an Evolution Wireless Digital handheld microphone. It is delivered without a capsule, so the buyer chooses the microphone module that suits the voice or room. A persistent E-Ink display, function buttons, a digital trim and a switchable low cut let the user set the transmitter without a receiver at hand. The SKM-S version of this transmitter adds a programmable mute switch.

Why this product

Key Benefits

  • Choose your own capsule

    The Sennheiser standard capsule interface takes 14 listed modules, from the MMD 835-1 cardioid dynamic to the supercardioid MMD 945-1 and the Neumann KK 204 and KK 205 condenser modules.

  • Low-latency digital audio

    The Sennheiser Performance Audio Codec (SePAC) gives 1.9 ms system latency and a 134 dB dynamic range, so the gain of the transmitter does not have to be adjusted.

  • Always-on E-Ink display

    Frequency, battery status and encryption status stay visible on screen even when the batteries are removed.

  • Settings on the handheld

    Function buttons, digital audio trim, a test tone generator, a switchable LED and a low cut (off, 30, 60, 80, 100 or 120 Hz) are set directly on the transmitter, and the buttons can be locked.

  • Rechargeable or AA power

    A BA 70 pack gives up to 12 hours and charges in the transmitter through its charging contacts in the CHG 70N-C, while two AA batteries are included for up to 8 hours.

  • Metal housing

    The rugged metal body is made for handling on stage and in rental use.

Use cases

Applications

  • Conferences and panel discussions

    A handheld transmitter that takes any listed capsule suits moderators and presenters who pass the microphone around.

  • Hotel ballrooms and corporate events

    The 10 mW transmitter works at up to 100 m, enough for large function rooms.

  • Places of worship and live vocals

    Swap in a supercardioid or condenser capsule to match the singer or speaker.

  • Rental and replacement use

    Replace or add a handheld in an existing EW-DX system on the same frequency range.

Technical details

Technical Specifications

Microphone

Microphone Type
Digital wireless handheld transmitter, capsule not included
Capsule Interface
Sennheiser standard capsule interface (14 listed Sennheiser and Neumann modules)
Polar Pattern
Depends on the capsule fitted
Frequency Response
20 Hz to 20 kHz (-3 dB)
Dynamic Range
134 dB

Wireless

Latency
1.9 ms
Wireless Frequency Band
Q1-9: 470.2 to 550 MHz; R1-9: 520 to 607.8 MHz
Occupied Bandwidth
200 kHz
RF Output Power
10 mW ERP
Wireless Range
Up to 100 m (328 ft)

Battery

Battery Type
BA 70 lithium-ion pack (sold separately) or 2 × AA 1.5 V (included)
Battery Life
Up to 12 hours with BA 70; up to 8 hours with AA batteries

Power

Input Voltage
2.0 V to 4.35 V

Physical

Dimensions
50 × 268 mm with MMD 835 module; 40 × 200 mm without module
Weight
Approx. 304 g with MMD 835 module; approx. 195 g without module, without batteries

Environmental

Operating Temperature
-10 °C to 55 °C (14 °F to 131 °F)

Certifications & Warranty

Warranty
2 years (manufacturer)

In the box

What's Included

  • 1 × EW-DX SKM handheld transmitter (capsule sold separately)

  • 1 × MZQ 1 microphone clamp

  • 2 × AA batteries

  • Quick guide, safety guide and manufacturer declaration sheet

Installation

Installation & Mounting

Recommended Receiver

The EW-DX SKM needs an Evolution Wireless Digital receiver on the same frequency range. For a two-channel rack receiver see the Sennheiser EW-DX EM 2 2-Channel Wireless Receiver, and for four channels with Dante network audio see the Sennheiser EW-DX EM 4 DANTE 4-Channel Wireless Receiver. Choose Q1-9 or R1-9 to match the receiver.

Ownership and support

Ownership & Support

Warranty

Sennheiser lists a 2-year manufacturer warranty for the EW-DX SKM.

Complete your solution

Recommended Accessories

Expert FAQs

What pickup pattern does the Sennheiser EW-DX SKM use?

The Sennheiser EW-DX SKM has no fixed pickup pattern because it is delivered without a microphone capsule. The pattern comes from the module fitted to its standard capsule interface, for example cardioid with the MMD 835-1, supercardioid with the MMD 945-1 or the MME 865-1, and switchable cardioid and supercardioid with the MMK 965-1, all sold separately.

Which frequency range of the Sennheiser EW-DX SKM should I order for the UAE?

The Sennheiser EW-DX SKM is listed here in two frequency ranges: Q1-9 (470.2 to 550 MHz, article no. 509426) and R1-9 (520 to 607.8 MHz, article no. 509427). Sennheiser states that specific frequencies are subject to local RF regulations, and its International Frequency Advisor (SIFA) lists the ranges allowed per country, so confirm the range for your venue before ordering and match it with every transmitter and receiver in the system.

Does the Sennheiser EW-DX SKM include a microphone capsule?

No, the Sennheiser EW-DX SKM is delivered without a capsule. The box holds the transmitter, an MZQ 1 microphone clamp, 2 AA batteries and the guides. It accepts 14 listed modules, including the MMD 835-1, MMD 845-1, MME 865-1, MMD 935-1, MMD 945-1, MMK 965-1, MMD 42-1, Neumann KK 204 and KK 205, MM 435, MM 445 and the ME 9002, ME 9004 and ME 9005.

How long does the battery last in the Sennheiser EW-DX SKM?

The Sennheiser EW-DX SKM runs for up to 12 hours on a BA 70 lithium-ion battery pack and up to 8 hours on two AA 1.5 V alkaline batteries. Two AA batteries are included, while the BA 70 is sold separately. The pack can charge inside the transmitter through its charging contacts in the CHG 70N-C network-enabled charger, or on the L 70 USB charger.

What is the wireless range of the Sennheiser EW-DX SKM?

The Sennheiser EW-DX SKM transmits at 10 mW ERP with a working range of up to 100 m (328 ft). Longer runs depend on the receiver antennas, for which Sennheiser offers antenna boosters such as the EW-D AB (Q) and EW-D AB (R). Bluetooth Low Energy for the Smart Assist App works in the 2402 to 2480 MHz band.

Which receivers work with the Sennheiser EW-DX SKM?

The Sennheiser EW-DX SKM works with Evolution Wireless Digital receivers such as the EW-DX EM 2, EW-DX EM 2 DANTE and EW-DX EM 4 DANTE, provided the frequency range (Q1-9 or R1-9) matches. Each receiver channel is linked to one transmitter, and up to 146 channels in Standard Mode or 293 in Link Density Mode can run within an 88 MHz switching bandwidth.

What is the difference between the Sennheiser EW-DX SKM and the SKM-S?

The Sennheiser EW-DX SKM has no mute switch, while the EW-DX SKM-S adds a programmable mute switch that can mute the audio or the radio signal. Both share the same standard capsule interface, E-Ink display, 10 mW transmitter, 1.9 ms latency and 12 hour BA 70 runtime, and both fit the same receivers.

Where can I buy the Sennheiser EW-DX SKM in the UAE?

CorporateAV.ae is a supplier of genuine Sennheiser products in the UAE and delivers the Sennheiser EW-DX SKM same-day or next-day across the UAE, subject to availability and location. Request a Project Quote on this page, call +971 56 498 8088, WhatsApp us or email info@corporateav.ae. Phone: +971 56 498 8088. Email: info@corporateav.ae.
