Shure A15HP High Pass Filter
Model A15HP
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

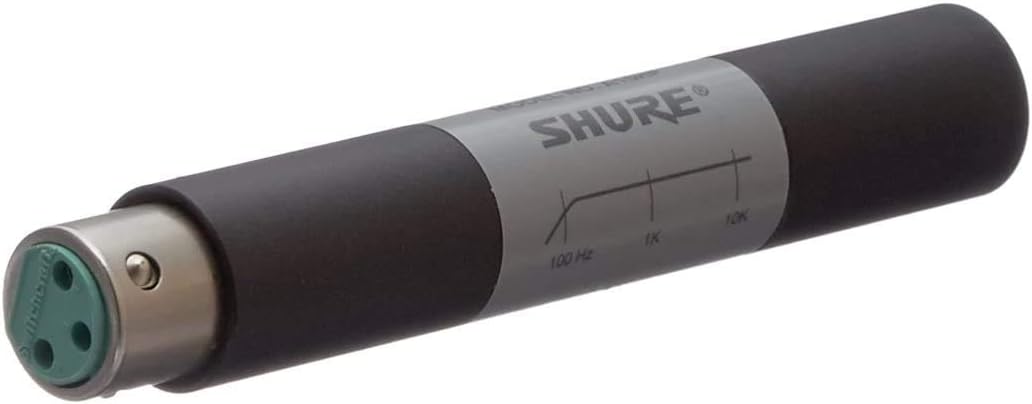

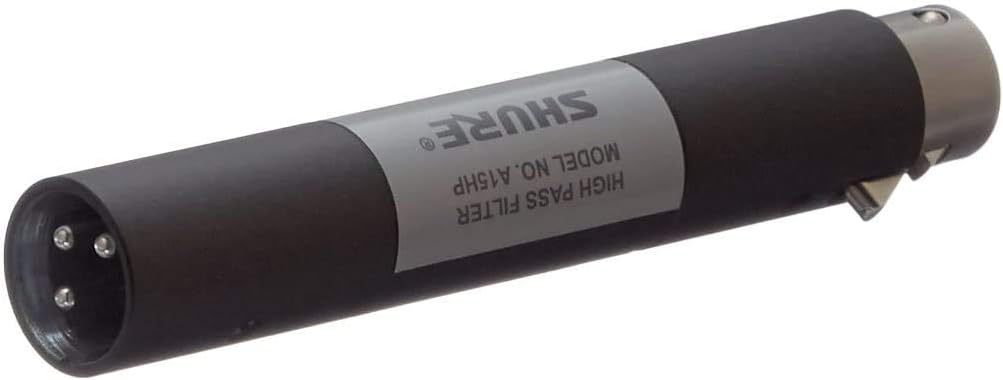

Shure A15HP High Pass Filter
Balanced XLR in-line high pass filter that reduces low frequencies below 100 Hz.
This filter rolls off low audio frequencies to reduce 60 Hz electrical hum, low-frequency wind noise, air conditioner noise, or stand-and floor-transmitted low-frequency vibrations.
When loaded with a low-impedance microphone input (800 ohms or more), the rolloff is 12 dB per octave below 100 Hz. When loaded with 150 ohms, the rolloff is 3 dB at 100 Hz. The output is flat above the rolloff point (with a maximum loss of 0.5 dB at 1 kHz).
Technical details
Technical Specifications
Audio Performance
- Frequency Response
- Flat above rolloff point; -0.5 dB maximum at 1 kHz
- Impedance
- EIA rated at 150 Ω
- Distortion
- 2.5% maximum (100 mV, open circuit voltage)
Connectivity
- Connectors
- Input: XLR, female
- Connectors
- Output: XLR, male
Physical
- Housing
- Full magnetic shield, steel with gray enamel finish
- Dimensions
- 19 mm (.75in. diameter); 114 mm (4.5in. long)
