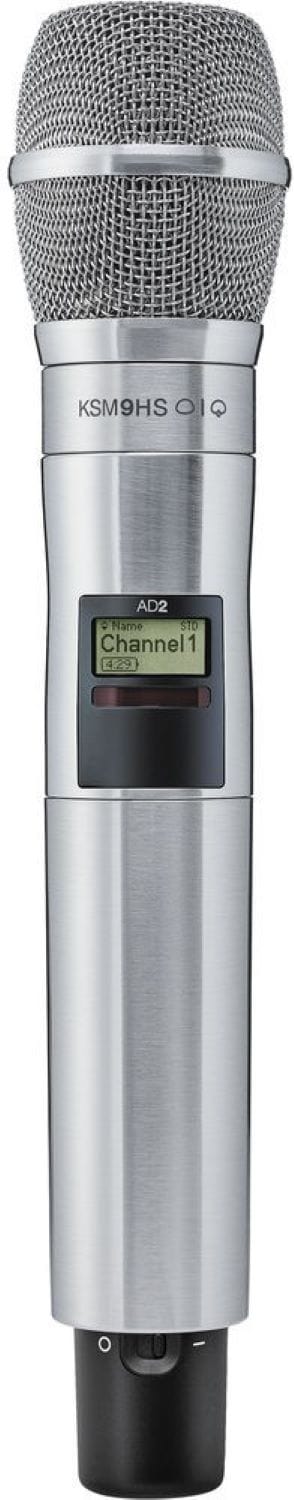

Shure AD2/K9HSN Axient Digital Handheld Transmitter with KSM9HSB Capsule - G57 Band - Nickel
Model AD2-K9HSN-G57
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure AD2/K9HSN Axient Digital Handheld Transmitter with KSM9HSB Capsule - G57 Band - Nickel
A Digital Handheld Transmitter that's part of Shure's Axient® Digital wireless series, the AD2/K9HSN features a KSM9HS microphone capsule, has a rugged nickel finish. A premium vocal condenser mic capsule, the KSM9HS is designed to capture vocal subtlety with extraordinary detail, and deliver clear articulation, functional flexibility, plus precise live performance vocal reproduction. Optimized for even the most demanding live environments, it's engineered to exacting standards, revealing nuance and subtlety. Its dual diaphragm design and switchable polar patterns (hypercardioid/subcardioid) makes it the choice for the world's most accomplished vocal performances.
Why this product
Key Benefits
-
Two transmission modes
:
-
Standard for optimal coverage
-
High Density mode for maximum system channel count and robust coverage
-
Optimum Operating Range via Selectable transmission modes & power levels
-
Encryption-enabled, secure transmission
-
Frequency and power lockout
-
Rugged metal construction in Nickel finish
-
External contacts for docked charging
-
AA or SB900A Li-ion rechargeable batteries
-
KSM9HS Microphone Capsule
:
-
Exceptional consistency across all frequencies, providing more gain before feedback, while decreasing proximity effect
-
Dual gold layered, low-mass Mylar® diaphragm design
-
Switchable polar patterns (Hypercardioid/Subcardioid)
-
Advanced suspension shock mount
-
Premium electronic components
Technical details
Technical Specifications
Microphone
- Cartridge Type
- Condenser (Electret Biased)
- Frequency Response
- 50 to 20,000 Hz
- Polar Patterns
- Switchable, Hypercardioid/Subcardioid
- Hypercardioid
- -50.5 dBV/Pa
- Subcardioid
- -53.0 dBV/Pa
- Hypercardioid
- 20.7 dB
- Subcardioid
- 22.7 dB
- Hypercardioid
- 73.3 dB
- Subcardioid
- 71.3 dB
Wireless
- Maximum Transmitter Tuning Range
- 184 MHz
- Transmitter Frequency Diversity
- Yes
- Standard mode
- 17 ch / 6 MHz, 23 ch / 8 MHz
- High Density Mode
- 47 ch / 6 MHz, 63 ch / 8 MHz
- Encryption
- Yes
General
- System Technology
- Digital
More details
Additional Information
Specifications:
- Transmission Modes:
- Standard
- High Density
- Frequency Diversity
- Channels per TV Band:
- KSM9HS Microphone Capsule:
- Sensitivity (typical; at 1000 Hz;1 Pa = 94 dB SPL):
- Self-noise (typical, equivalent SPL; A-weighted, IEC 651):
- Signal to Noise ratio:
- Sensitivity (typical; at 1000 Hz;1 Pa = 94 dB SPL):
