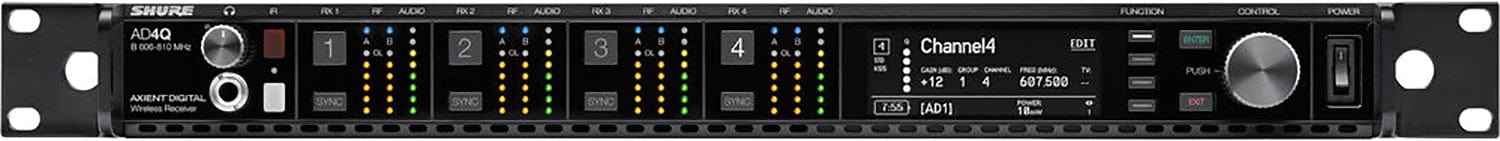

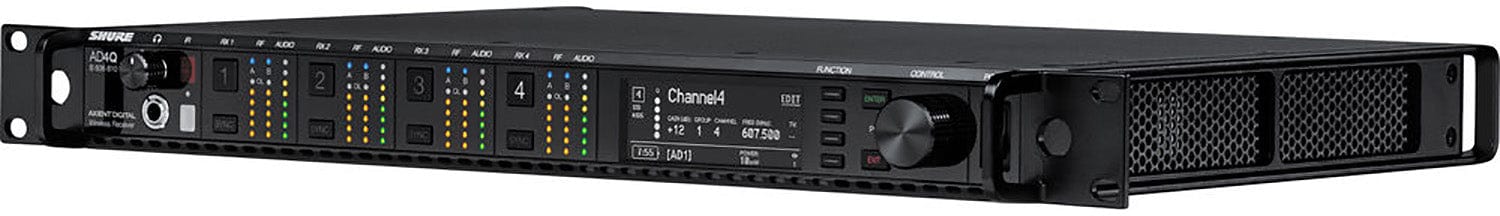

Shure AD4QNP=-B 4-Channel Digital Wireless Receiver for AD / ADX Transmitters - B Band - 606-810 MHz
Model AD4QNP-B
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure AD4QNP=-B 4-Channel Digital Wireless Receiver for AD / ADX Transmitters - B Band - 606-810 MegaHertz
Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.
The AD4Q Four-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, High Density (HD) mode, and Quadversity, ensuring solid performance in the most challenging RF environments. Networked control, AES3 + AES67 + Dante output, and signal routing options bring a new level of management and flexibility to the entire workflow.
Why this product
Key Benefits
-
Wide tuning range up to 184MHz
-
True digital diversity reception per channel for drop-out resistance
-
Networked control with Wireless Workbench® and ShurePlus™ Channels app
-
Quadversity™ mode for extended antenna coverage and improved RF signal-to-noise
-
Front panel headphone jack enables Dante Cue and Dante Browse monitoring
-
Configurable Ethernet switch for redundant Dante digital output
-
Switchable XLR/AES3 outputs
-
Channel Quality meter displays RF signal-to-noise
-
Locking AC connectors
-
Optional DC module available to support redundant power
Technical details
Technical Specifications
Microphone
- Signal-to-Noise Ratio (Dynamic Range)
- typical, 20 Hz to 20 kHz, receiver gain setting = -12 dB
- Gain Adjustment Range
- -18 to +42 dB in 1 dB steps (plus Mute setting)
- Insertion Loss
- 0 dB, typical
Wireless
- Working Range
- 100 m (330 ft)
- RF Tuning Step Size
- 25 kHz, varies by region
- Image Rejection
- >70 dB, typical
- RF Sensitivity
- -98 dBm at 10-5 BER

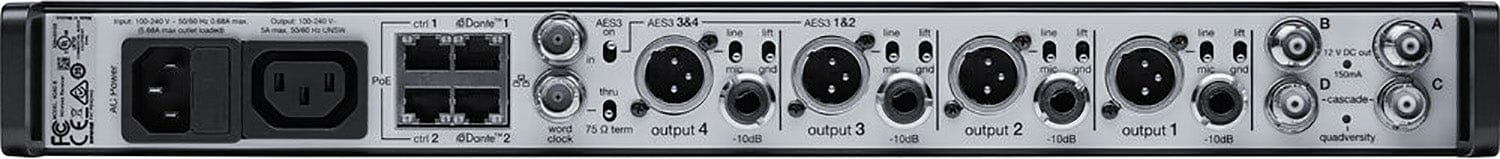

Connectivity
- XLR Line Output
- A-Weighted: 120 dB / Unweighted: 117 dB
- Digital (AES3/Dante)
- A-Weighted: 130 dB / Unweighted: 126 dB
- System Audio Polarity
- Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
- XLR
- Transformer Coupled Balanced (1=ground, 2=audio +, 3=audio -)
- TRS
- Transformer Coupled Balanced (Tip = Audio +, Ring = Audio -, Sleeve = Ground)
- Impedance
- 100 Ω, Typical, XLR Line Out
- TRS
- +8 dBV
- Network Interface
- 10/100 Mbps, 1Gbps, Dante Digital Audio
- Network Addressing Capability
- DHCP or Manual IP address
- Maximum Cable Length
- 100 m (328 ft)
- Connector Type
- BNC
- Impedance
- 50 Ω
Power
- Phantom Power Protection
- Yes

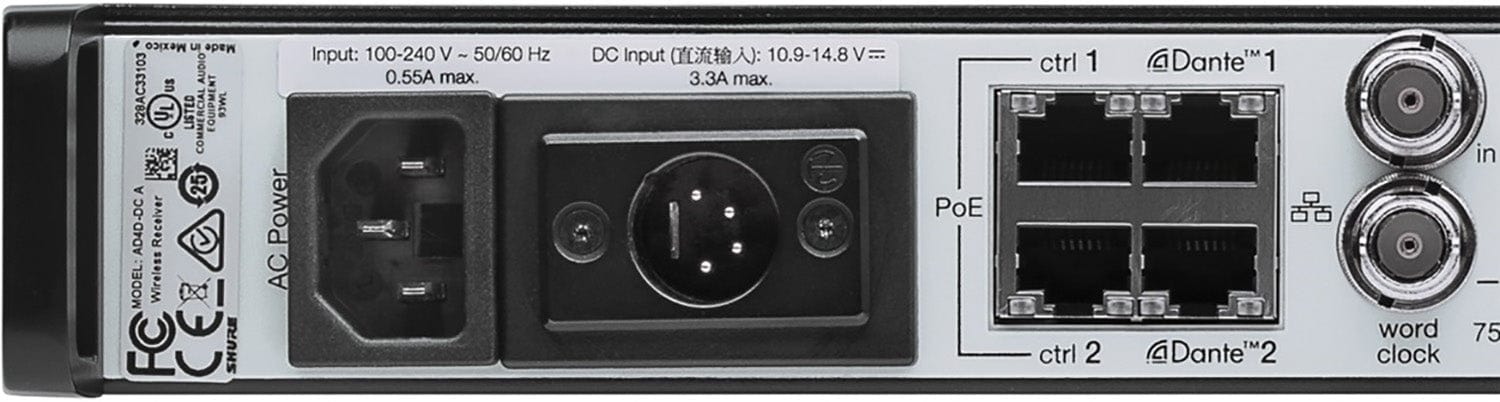

- Power Requirements
- 100 to 240 V AC, 50-60 Hz, 0.68 A max.
- DC Power Requirements
- 10.5 to 32V DC, 4.0 A max.
- Bias Voltage
- 12 to 13.5 V DC, 150 mA maximum, per antenna
Physical
- Dimensions
- 44 x 483 x 333 mm H x W x D
- Weight
- 4.8 kg (10.6 lbs), without antennas
- Housing
- Steel; Extruded aluminum
Environmental
- Operating Temperature Range
- -18°C (0°F) to 50°C (122°F)
- Storage Temperature Range
- -29°C (-20°F) to 65°C (149°F)
General
- STD
- 2.08 ms
- HD
- 2.96 ms
- AD1
- 20 - 20 kHz (±1 dB)
- AD2
- Note: Dependent on microphone type
- LINE setting
- +18 dBV
- MIC setting
- -12 dBV
- Mic/Line Switch
- 30 dB pad
- Maximum
- 31 W (106 BTU/hr)
- Idle
- 21 W (72 BTU/hr)
- Note
- For connection of one additional receiver in the same band
- Configuration
- Unbalanced, passive
- Spurious Rejection
- >80 dB, typical
More details
Additional Information
Specifications:
- Latency Analog Output:
- Audio Frequency Response:
- Configuration:
- Full Scale Output (200K Ω load):
- Thermal Power Dissipation:
- Switchable on-off
- RF Carrier Frequency Range model dependent: AD4Q=B: 606-810 MHz
