Shure ADX5BP-TA3 Dual TA3 Back Plate for Axient Digital ADX5D Wireless Receiver
Model ADX5BP-TA3
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure ADX5BP-TA3 Dual TA3 Back Plate for Axient Digital ADX5D Wireless Receiver

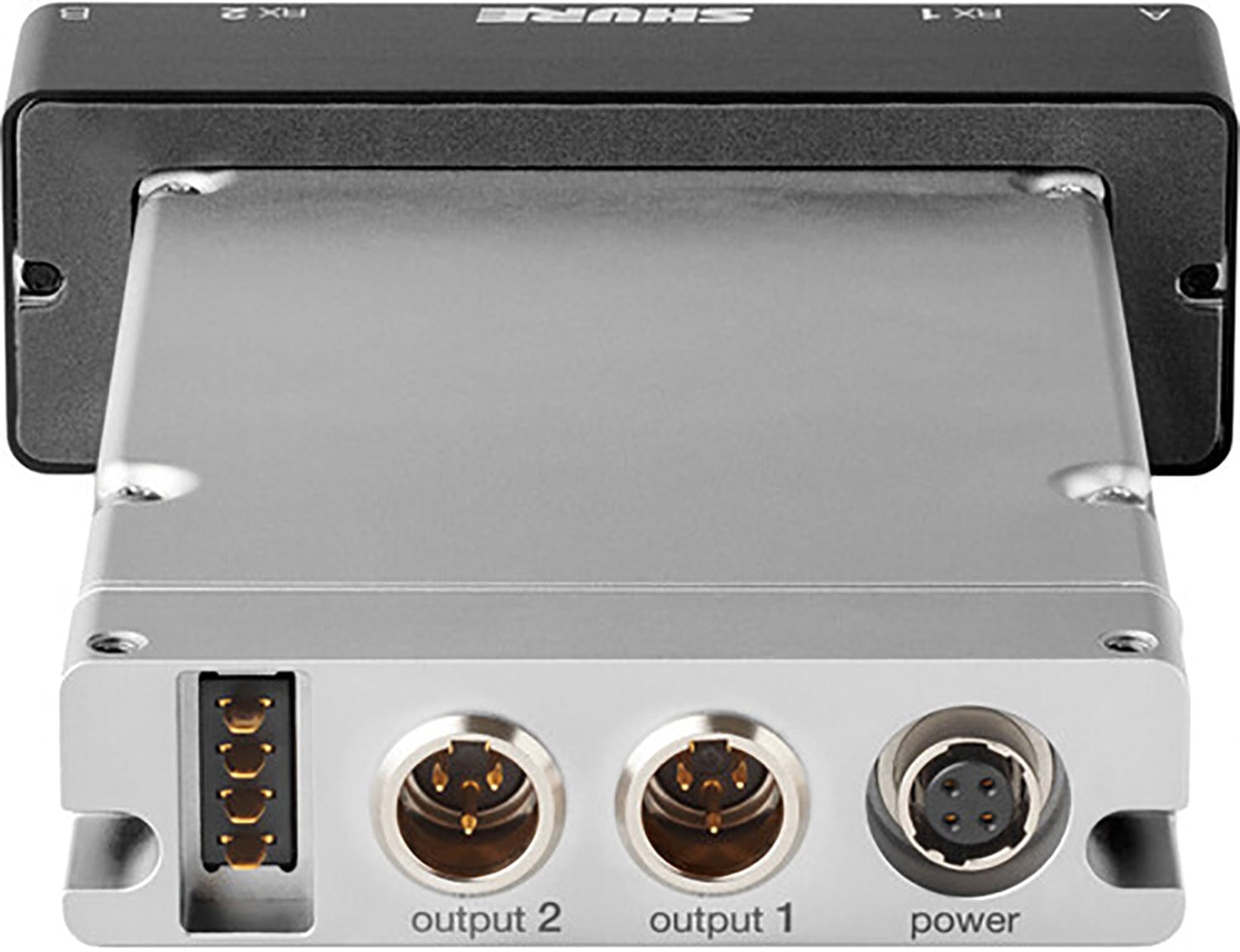

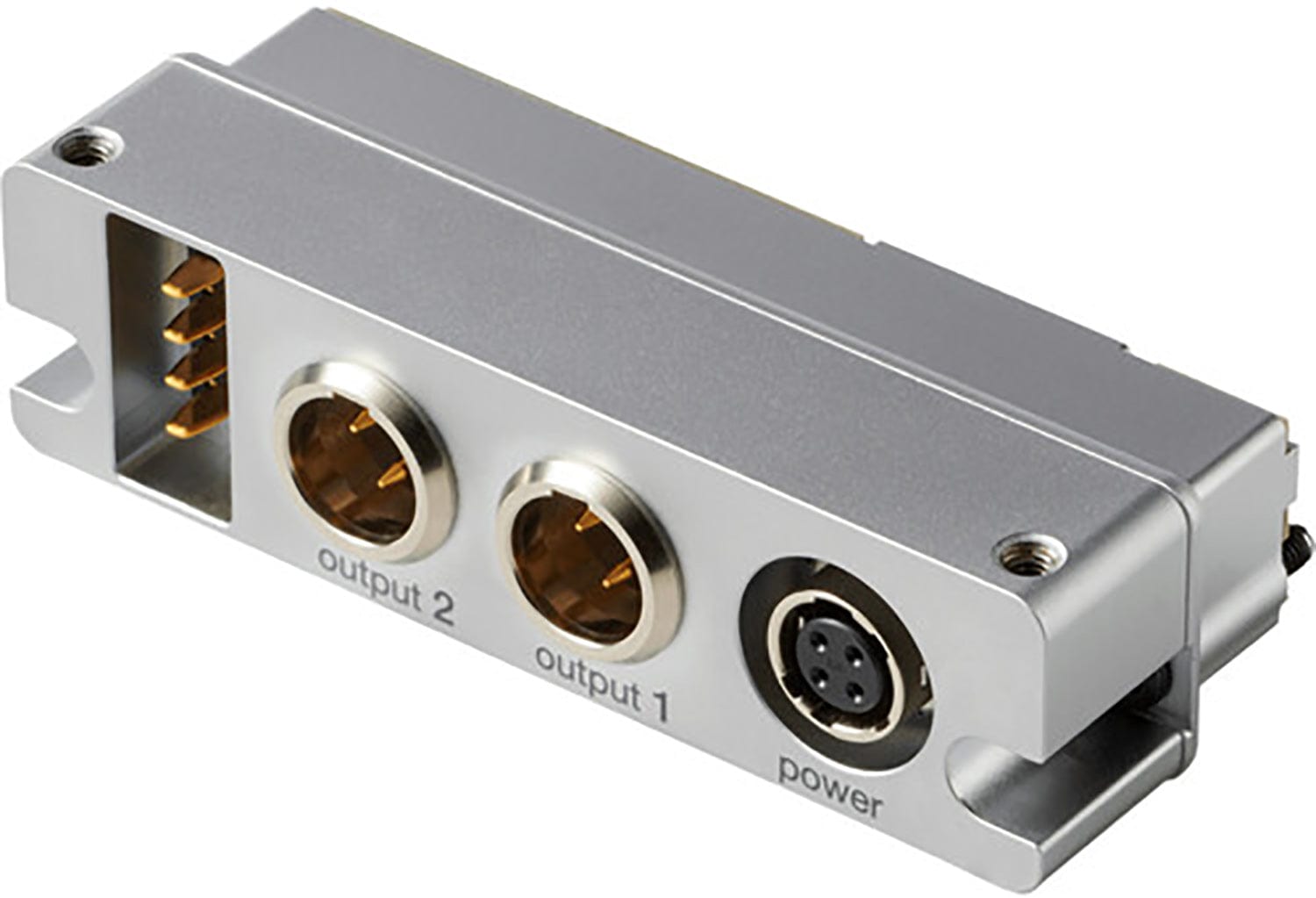

One of the major advantages of the slot-in wireless receiver form factor is its versatility, allowing for multiple applications such as insertion into a camera, multi-coupler device, or standalone use with power provided by a battery distribution system (BDS) or battery sled. The ADX5BP-TA3 Backplate provides standalone connectivity for the Axient® Digital ADX5D, facilitating integration into professional broadcast cameras, multi-coupler devices, and battery distribution systems (BDS). It features a 4-pin connector for mating with a Shure battery sled, two TA3 (mini 3-pin XLR) audio output connectors, and a 4-pin locking Hirose power input connector. Captive Phillips-head screws ensure easy installation to the ADX5D. The backplate offers two channels of audio output: both analog, though Output 1 can be configured for digital AES3 output via the device menu (analog Output 2 is disabled when AES3 is selected).
Why this product
Key Benefits
-
TA3 backplate for the Axient Digital ADX5D dual-channel portable wireless receiver
-
2 x TA3 analog outputs
-
Output 1 can be configured as two-channel AES3 digital outputs (Output 2 is disabled when AES3 is selected)
-
1 x 4-pin power connector for battery sled use
-
1 x Hirose 4-pin power connector
-
Captive Phillips head screws provide simple installation to the ADX5D
-
Compatible with the Shure WA451 audio cable (TA3F-to-XLR)
Technical details
Technical Specifications
Audio Performance
- VESA mounting pattern
- Yes
Power
- Input voltage
- 6V DC to 18V DC
Physical
- Mounting
- Not specified by manufacturer
Included & Optional Accessories
- Included rods
- Yes
General
- Clamping range
- Not specified by manufacturer
More details
Additional Information
Specifications:
- Mounting:
- General:
- Power I/O:
- 1x Hirose (18 VDC) input
- 1x Proprietary (18 VDC) input
- Audio I/O:
- 2x Mini-XLR 3-pin AES3/Line output
- Power I/O:
