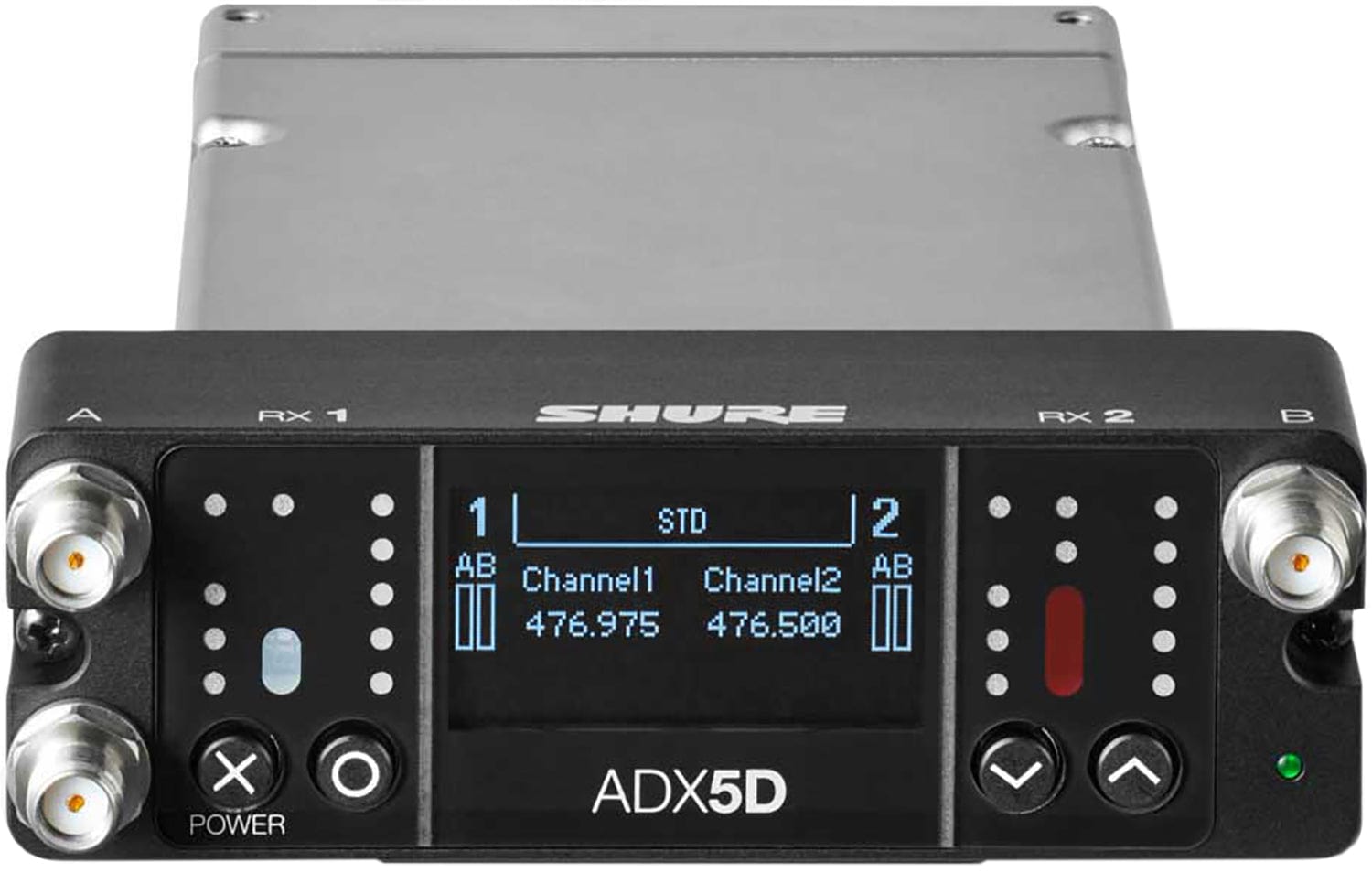

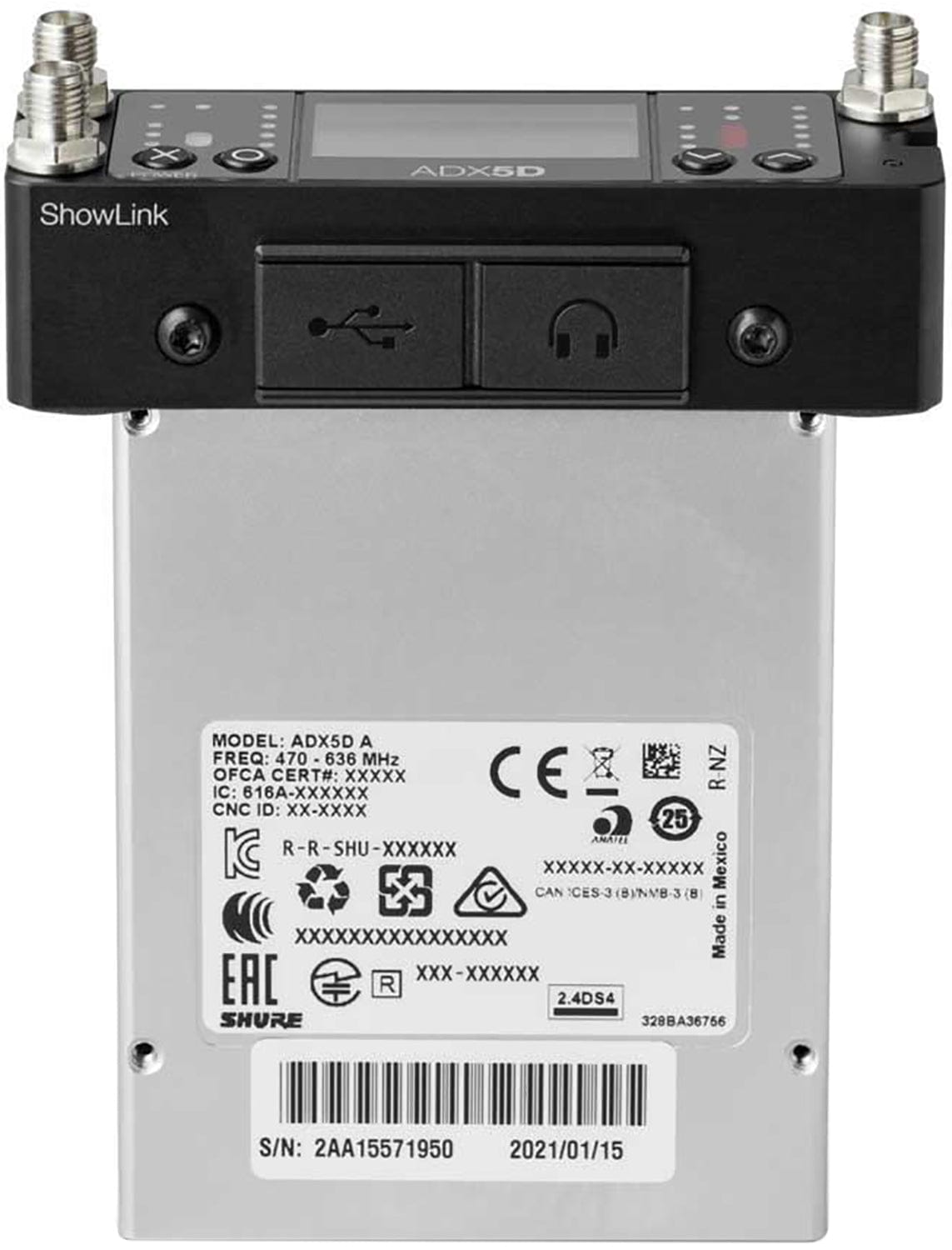

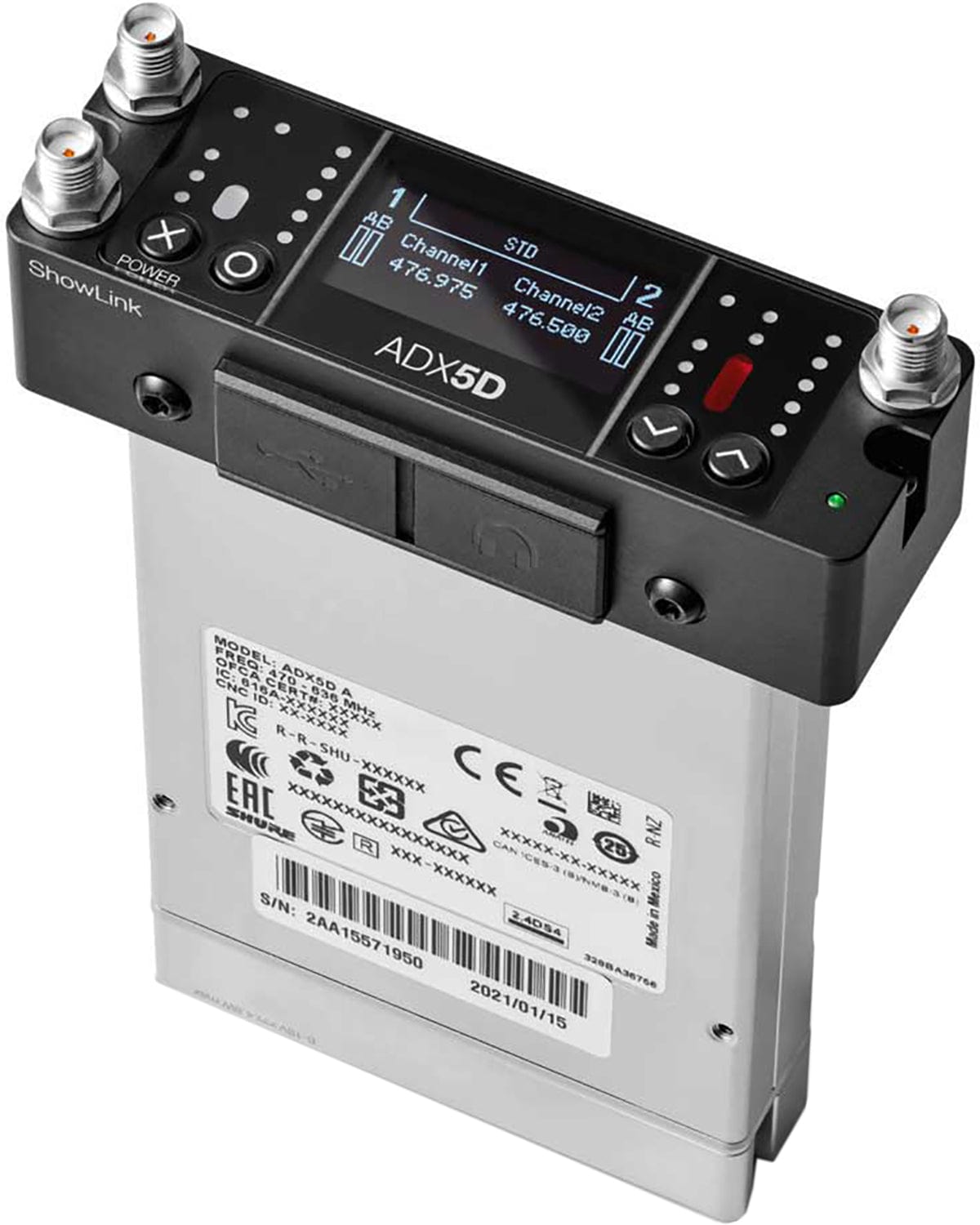

Shure ADX5D=-A Axient Digital Dual-Channel Portable Wireless Receiver - 470-636 MHz
Model ADX5D-A
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure ADX5D=-A Axient Digital Dual-Channel Portable Wireless Receiver - 470-636 MegaHertz
The dual-channel ADX5D portable wireless receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environment. As an Axient Digital ADX Series wireless receiver, the ADX5D features ShowLink® Direct Mode that allows remote control of Axient Digital transmitters without the need of external equipment.* Robust RF. Impeccable audio. Axient Digital quality and performance. All in a portable, slot-in design. Premium portable wireless.
Why this product
Key Benefits
-
Dual-channel slot-in portable wireless receiver
-
Impeccable audio quality
-
Wide tuning range up to 184 MHz (region dependent)
-
High spectral efficiency due to advanced digital modulation scheme offers more wireless channels in available RF space
-
High Density (HD) mode provides even higher spectral efficiency (application dependent)
-
True digital diversity reception per channel for drop-out resistance and excellent range
-
Networked control with Wireless Workbench® software and ShurePlus™ Channels app
-
5-segment Channel Quality meters display per-channel RF link quality
-
ADX series receiver with ShowLink Direct Mode allows remote control of Axient Digital transmitters without the need of external equipment*
-
Third-party integration and control from select portable mixers and recorders for RF scan and deployment, audio gain adjustments, transmitter battery life monitoring, and more.*
-
Party Dial feature enables users to quickly switch between RF channels from a pre-selected group of frequencies
-
Optimized Menu Structure places the most commonly used features within a few clicks of each other
-
Enhanced Shortcut Menu provides rapid access to only a few critical features and menus
-
Aux 3.5mm audio output provide connection to headphones or to a balanced line-level input
-
Accessory Mount with cold shoe adapter (sold separately)
-

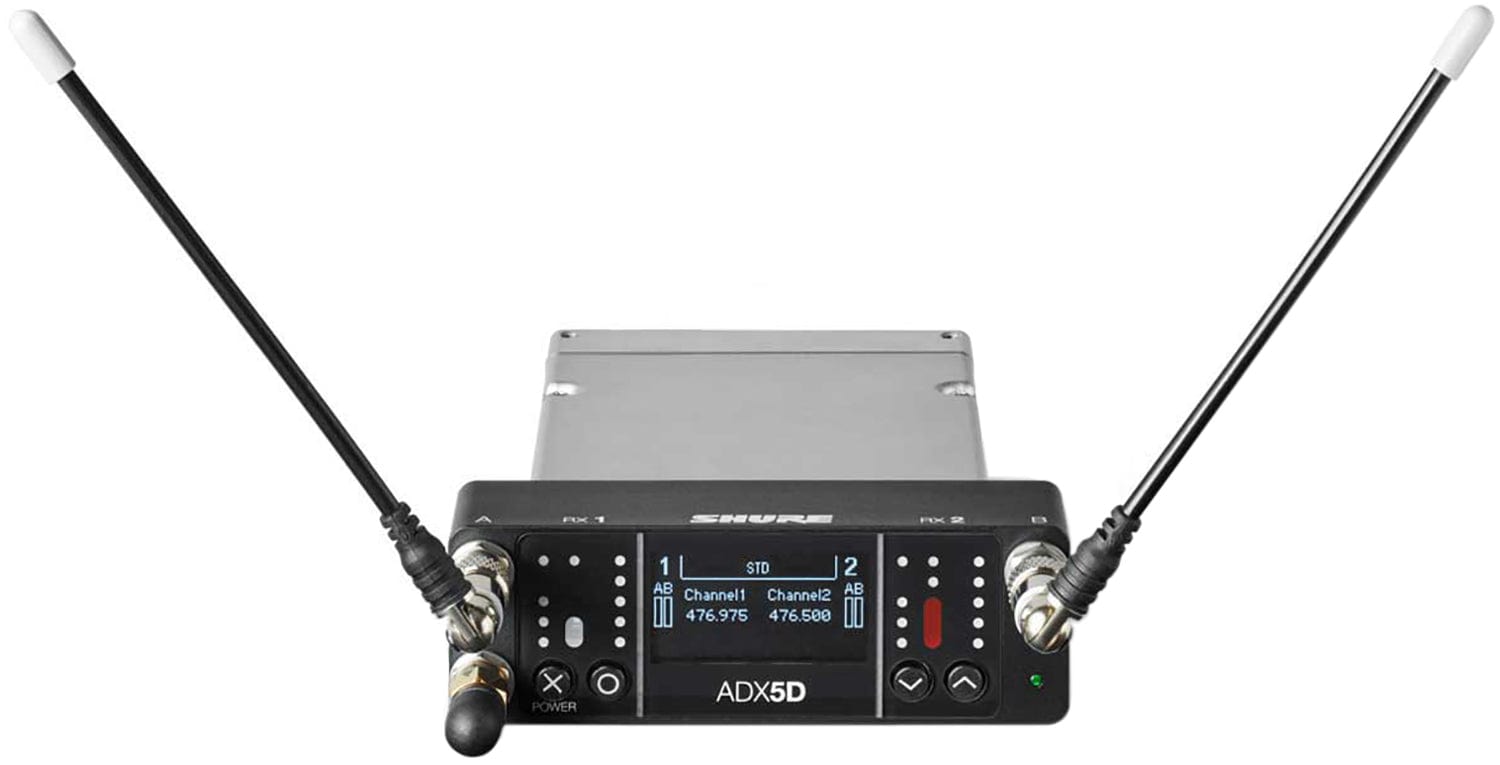

Removable antennas with standard SMA connectors
-
High-resolution OLED display
-
USB-C port for firmware upgrades
-
Streamline user interface
-
Low latency, down to 2 milliseconds
Technical details
Technical Specifications
Microphone
- Gain Adjustment Range
- -18 to +42 dB in 1 dB steps (plus Mute setting)
- Audio Frequency Response
- 20 Hz - 20 kHz Note: Dependent on microphone type
- Dynamic Range
- 129 dB
Wireless
- RF Carrier Frequency Range
- 470-636 MHz
- High Density Mode
- 40 m (131 ft)
- RF Sensitivity
- -90 dBm at 10-5 BER
- RF Tuning Step Size
- 25 kHz, varies by region
- Image Rejection
- >70 dB, typical
- Frequency Range
- 2.40 to 2.4835 GHz (16 Channels)
- Working Range
- 30m Note: Actual range depends on RF signal absorption, reflection, and interference
- ShowLink® Antenna Power
- 2.5 dBm EIRP
- Antenna Type
- 1 Omni 2.4 GHz
- High Density Mode
- 2.96ms
Connectivity
- Connector Type
- SMA (Shell=Ground, Center=Signal)
- Impedance
- 50 Ω
- Network Type
- IEEE 802.15.4
- Impedance
- 66 Ω, Typical, TA3 Out
- Full Scale Output ( 200K Ωload)
- +9 dBV
- System Audio Polarity
- Positive pressure on diaphragm produces positive voltage on audio+ with respect to audio-
- Connector Type
- USB-C
- USB Protocol
- USB 2.0
- USB Role
- Peripheral (upstream-facing port)
- USB Power Delivery
- None
Power
- Phantom Power Protection
- Yes Note: 3.5mm output does not have phantom power protection
- DC Power Requirements
- 6V DC to 18V DC
Physical
- Dimensions (HxWxD)
- 1.14 x 3.46 x 4.25" (29 x 88 x 108mm) (No backplate)
- Weight
- 0.53Lbs (0.24kg), without antennas or backplate
- Housing
- Machined aluminum
Environmental
- Operating Temperature Range
- 0.4° to 122°F (-18° to 50°C)
- Storage Temperature Range
- -20° to 149°F (-29° to 65°C)
General
- Standard Density Mode
- 75m (246 ft)
- Spurious Rejection
- >80 dB, typical
- Total Harmonic Distortion
- 0.0006% at -6 dBFS, 1 kHz,
- Standard Density Mode
- 2.08ms
- Maximum
- 4.8 W (18 V in, full brightness, all audio full scale out, and RF channels active)
- Nominal
- 4W (12 V in, no outputs, no linked transmitters)
- Minimum
- 2.3 W (6.5V in, both channels in standby)
