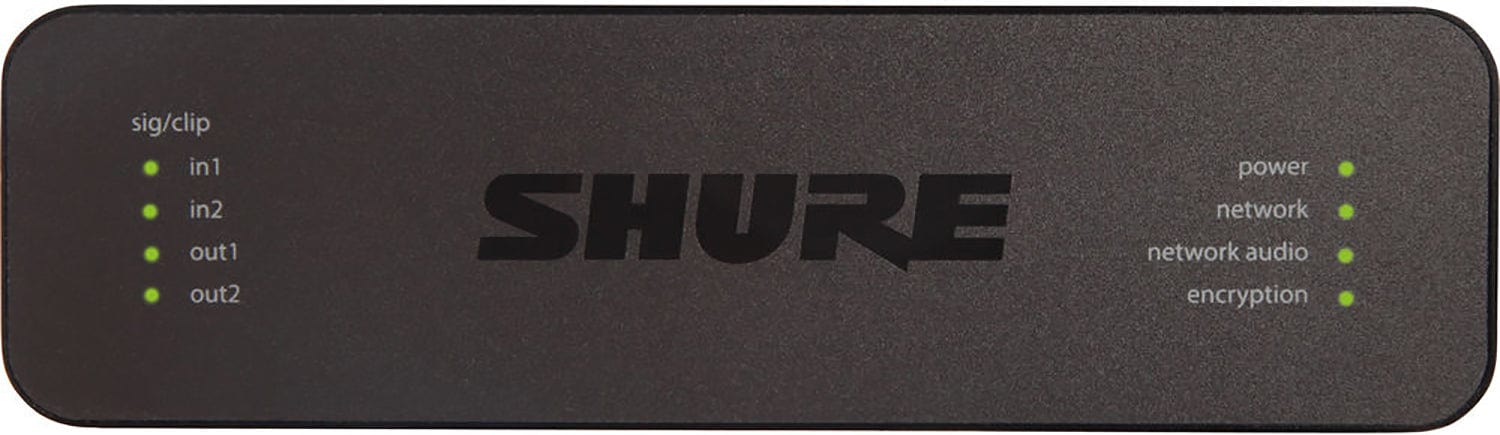

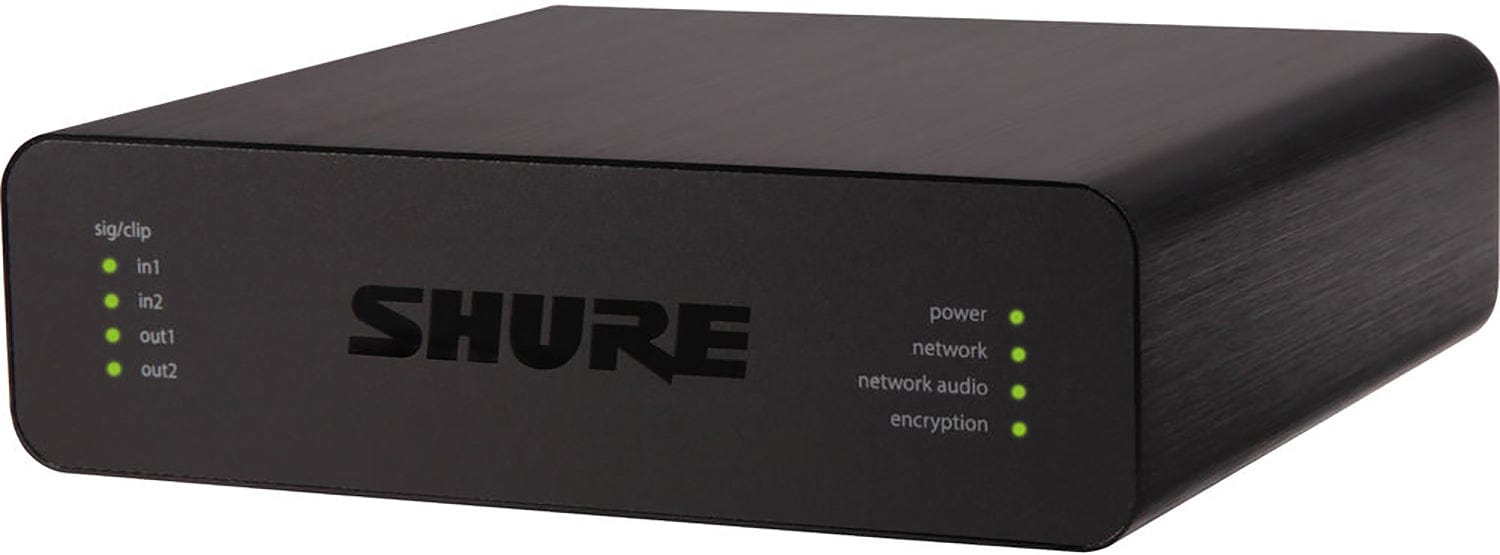

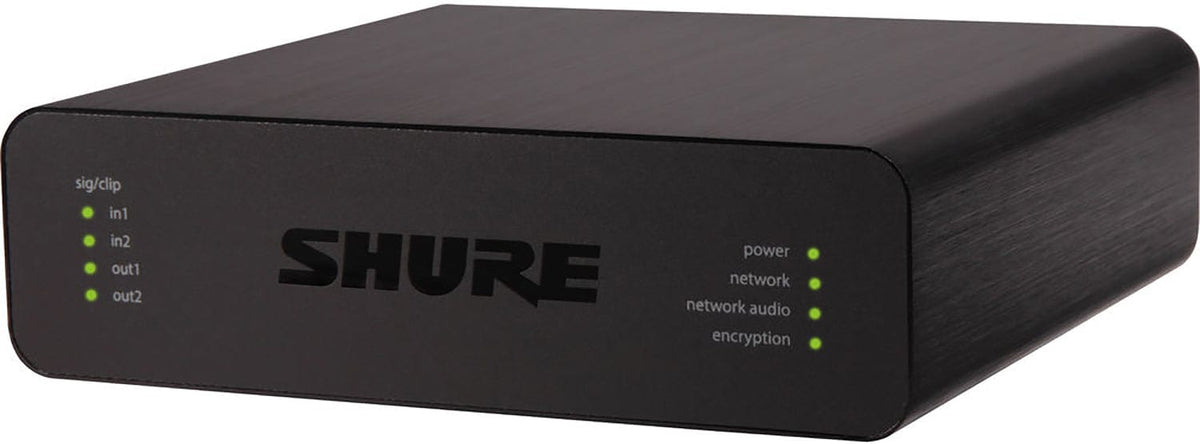

Shure ANI22-XLR 2 Channel In/2 Channel Out XLR Audio Network Interface with Dante
Model ANI22-XLR
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure ANI22-XLR 2 Channel In/2 Channel Out XLR Audio Network Interface with Dante
Audio network interface allows 2 analog mic or line inputs and 2 analog outputs to connect to a Dante network for easy audio routing and convenient browser-based remote control. Audio network interface complements the existing ANI4IN and ANI4OUT products.
Why this product
Key Benefits
-
Converts up to 2 mic/line analog signals onto a Dante Network
-
Converts up to 2 Dante digital audio signals to line/mic analog signals, ANI22XLR: Analog audio XLR connectors (2 in, 2 out)
-
Power-over-Ethernet (PoE) eliminates need for outboard power supply
-
Compact form factor is easy to mount without equipment rack
Technical details
Technical Specifications
Microphone
- Frequency Response
- 20 Hz to 20 kHz ±1 dB
- Analog Gain Range
- 51 dB (adjustable in 3 dB steps)
- Dynamic Range
- 113 dB, 20 Hz to 20 kHz, A-weighted, typical
Wireless
- Channel Count
- 2 inputs, 2 outputs
- Per Channel
- Equalizer (4-band Parametric, Dante channels only), Mute, Limiter, Gain (140 dB range)
Connectivity

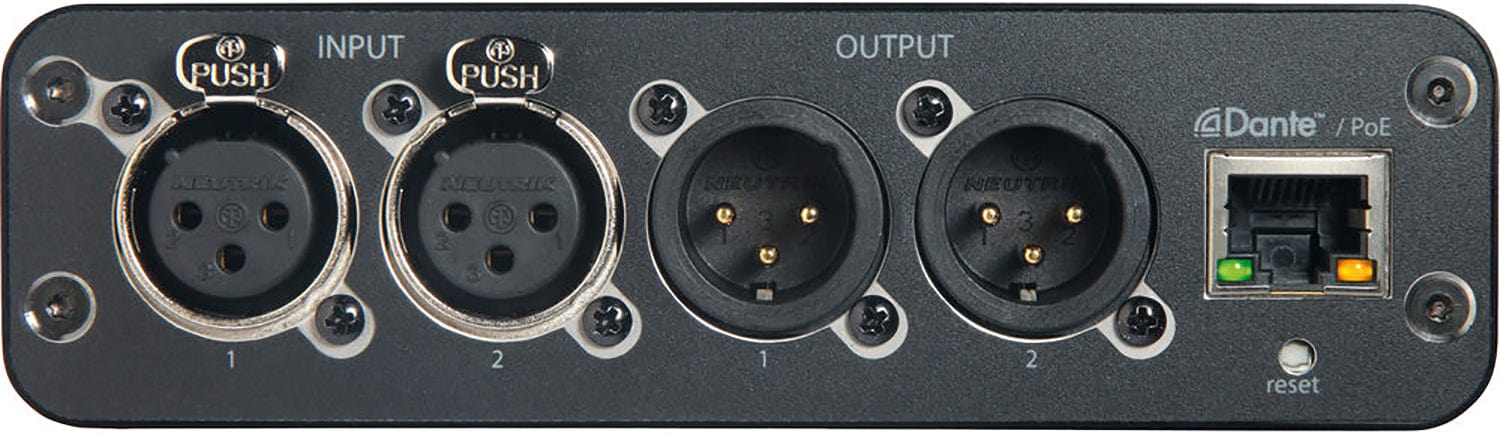

- Inputs (Analog)
- 2 x 3-pin XLR connectors
- Outputs (Analog)
- 2 x 3-pin XLR connectors
- Polarity
- Non-inverting, any input to any output
- Dante Audio Flows
- Sampling Rate: 24-bit/48 kHz
- Analog to Dante
- 0.35 ms
- Dante to Analog
- 0.71 ms
- Input Impedance
- 5 kOhms
- Output Impedance
- 150 Ohms
- Networking
- Cat 5e or higher (shielded cable recommended)
Power
- Power Requirements
- Power over Ethernet (PoE), Class 0 (PoE Plus compatible)
- Power Consumption
- 11 W maximum
Physical
- Dimensions (H x W x D)
- 1.6 x 5.5 x 5.0" (4 x 14 x 12.8 cm)
- Weight
- 1.5 lb (672 g)
Environmental
- Operating Temperature Range
- 20 to 104°F (-6.7 to 40°C)
- Storage Temperature Range
- 20 to 165°F (-29 to 74°C)
General
- Application Control
- HTML5
- Maximum
- 12.1 W (41.3 BTU/hr)
- Typical
- 9.8 W (33.7 BTU/hr)
- System
- Channel Summing
More details
Additional Information
Specifications:
- Dante Connection:
- 1 x RJ45
- Thermal Dissipation:
- Audio:
- Latency:
- Does not include Dante latency
- Equivalent Input Noise:
- 20 Hz to 20 kHz, A-weighted, input terminated with 150 Ohms
- Analog Gain Setting = +0 dB, -93 dBV
- Analog Gain Setting = +27 dB, -119 dBV
- Analog Gain Settings = +51 dB, -130 dBV
- Total Harmonic Distortion (THD): @ 1 kHz, 0 dBV Input, 0 dB analog gain <0.05%
- Common Mode Rejection Ratio: >70 dB, 50 Ohms balanced source @ 1 kHz
- Input Clipping Level:
- Analog Gain Setting = +0 dB, +20 dBV
- Analog Gain Setting = +27 dB, -7 dBV
- Analog Gain Setting = +51 dB, -31 dBV
- Analog Output Levels:
- Selectable Line 0 dB
- Aux -20 dB
- Mic -46 dB
- Digital Signal Processing (DSP):
- Latency:
