Shure ANIUSB-MATRIX Audio Network Interface
Model ANIUSB-MATRIX
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure ANIUSB-MATRIX ANIUSB-MATRIX USB Audio Network Interface with Matrix Mixing
The ANIUSB-MATRIX USB Audio Network Interface complements the existing ANI4IN, ANI4OUT, and ANI22 products. It offers the ideal performance, connectivity, and affordability for audio/video conferencing installations in small and medium-size meeting rooms when a premium microphone solution is desired, and acoustic echo cancellation of an A/V conferencing codec will be used.
The ANIUSB-MATRIX connects 4 Microflex Advance or Microflex Wireless microphone channels via Dante (4 in / 2 out), provides analog connectivity (1 block in / 1 block out) to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out).
An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs.
Why this product
Key Benefits
-
Connects 4 Dante audio inputs and 1 analog input to an A / V conferencing system or a PC-based videoconferencing application
-
Flexible signal routing and connectivity: analog audio (1 block in / 1 block out) to room A / V conferencing system; USB (1 in / out) to connect to laptop or room PC
-
Power-over-Ethernet (PoE) eliminates the need for an outboard power supply
-
Compact form factor is easy to mount without equipment rack
Technical details
Technical Specifications
Connectivity
- Polarity
- Non-inverting, any input to any output
Power
- Power Requirements
- Power over Ethernet (PoE), Class 0. (PoE Plus compatible)
- Power Consumption
- 6.5W, maximum
Physical
- Weight
- 1.5 lbs (668 g)
- Dimensions (HxWxD)
- 1.6" x 5.5" x 5.0" (4 x 14 x 12.8 cm)
Environmental
- Operating Temperature Range
- 20°F - 104°F (-6.7°C - 40°C)
- Storage Temperature Range
- -20°F - 165°F (74°C - -29°C)
General
- Control Application
- HTML5 Browser-based
More details
Additional Information
Specifications:

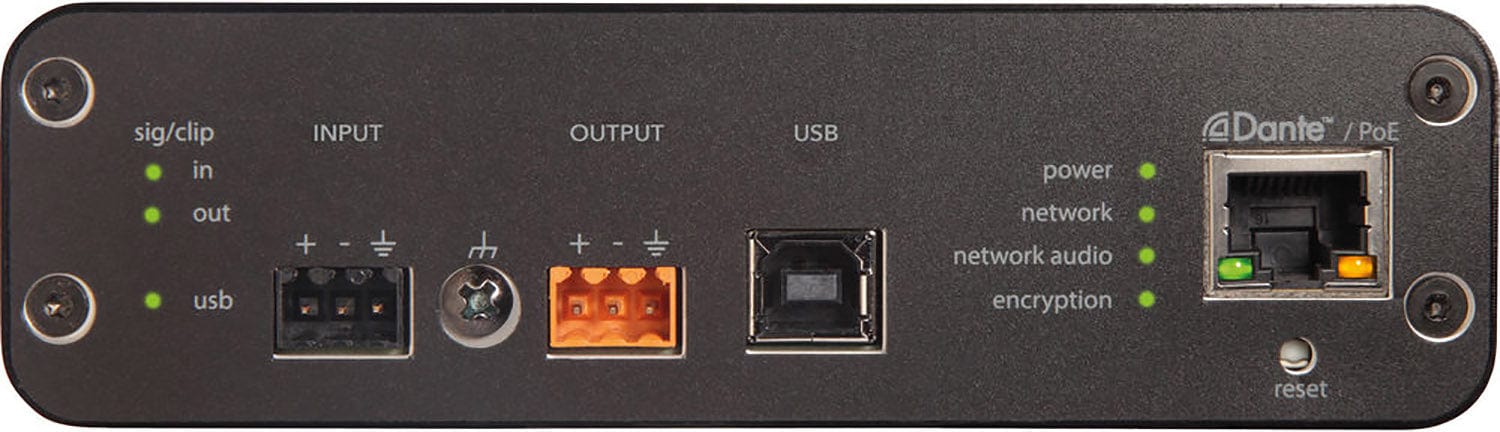

- USB Connections:
- (1) USB 2.0, Type B
- Single port carries 1 input and 1 output channel (Summed mono)
- Network Connections (Dante Digital Audio):
- (1) RJ45
- 4 input channels, 2 output channels
