Shure Axient AD1 Bodypack Transmitter - K54 Band
Model AD1-K54
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

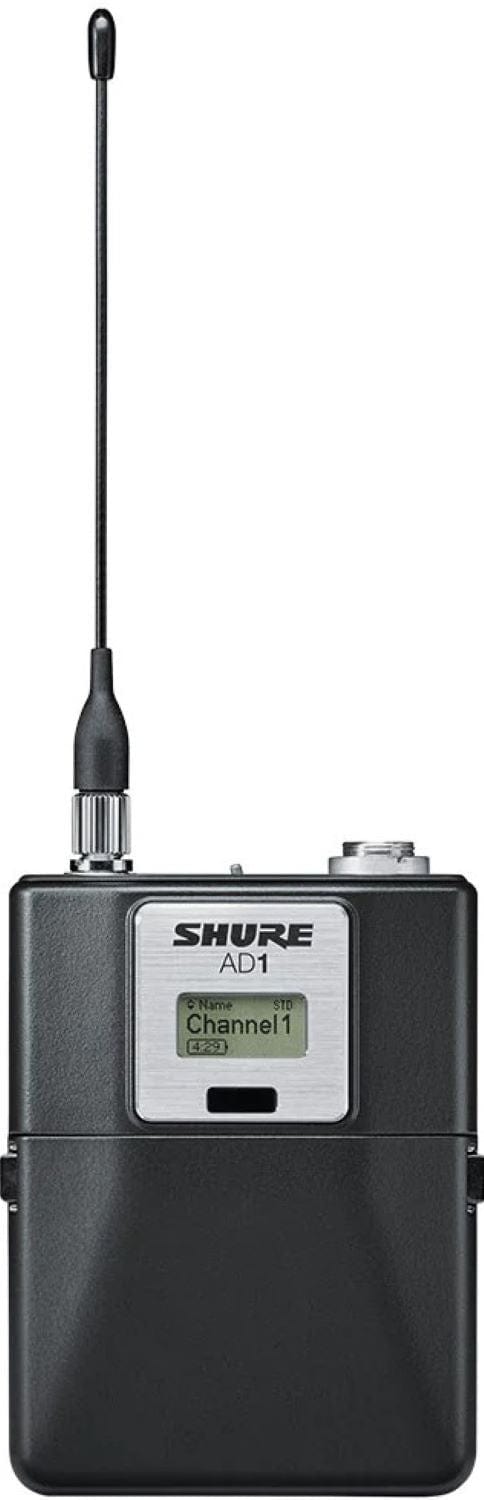

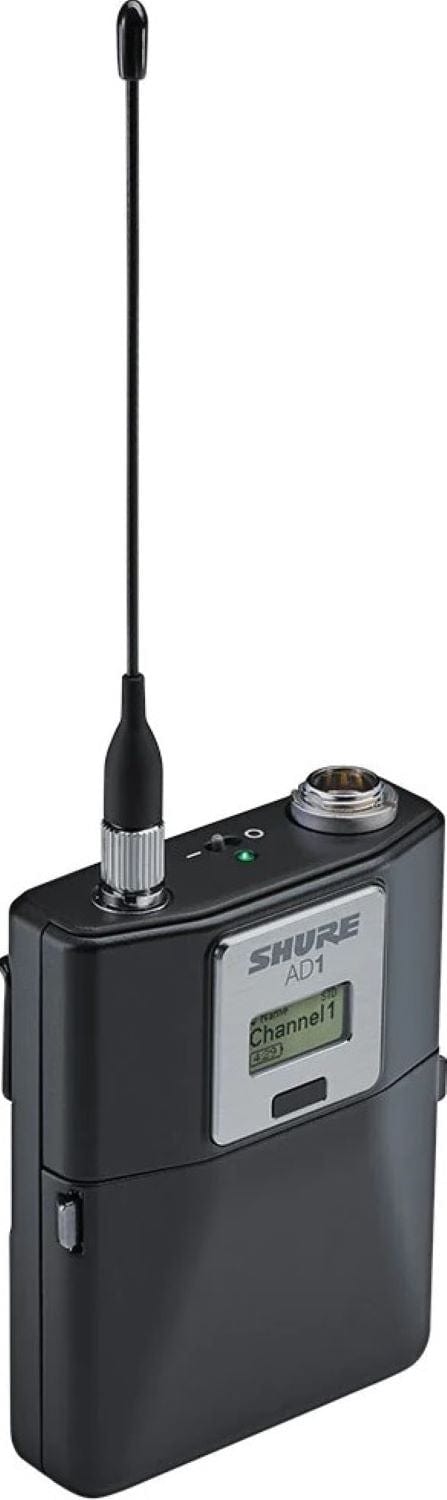

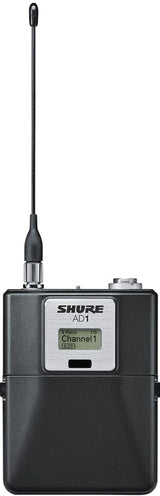

Shure Axient AD1 Bodypack Transmitter - K54 Band
AD series bodypack transmitters deliver impeccable audio quality and RF performance with wide-tuning, High Density (HD) mode, and encryption. The transmitter features durable metal construction, AA or SB900A rechargeable power (with dockable charging), and TA4 or LEMO3 connector options. The AD1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.
With breakthrough RF performance and wide tuning up to 184 MHz, the AD1 puts professional-quality wireless digital audio within reach.
Why this product
Key Benefits
-
Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
-
Encryption-enabled, secure transmission
-

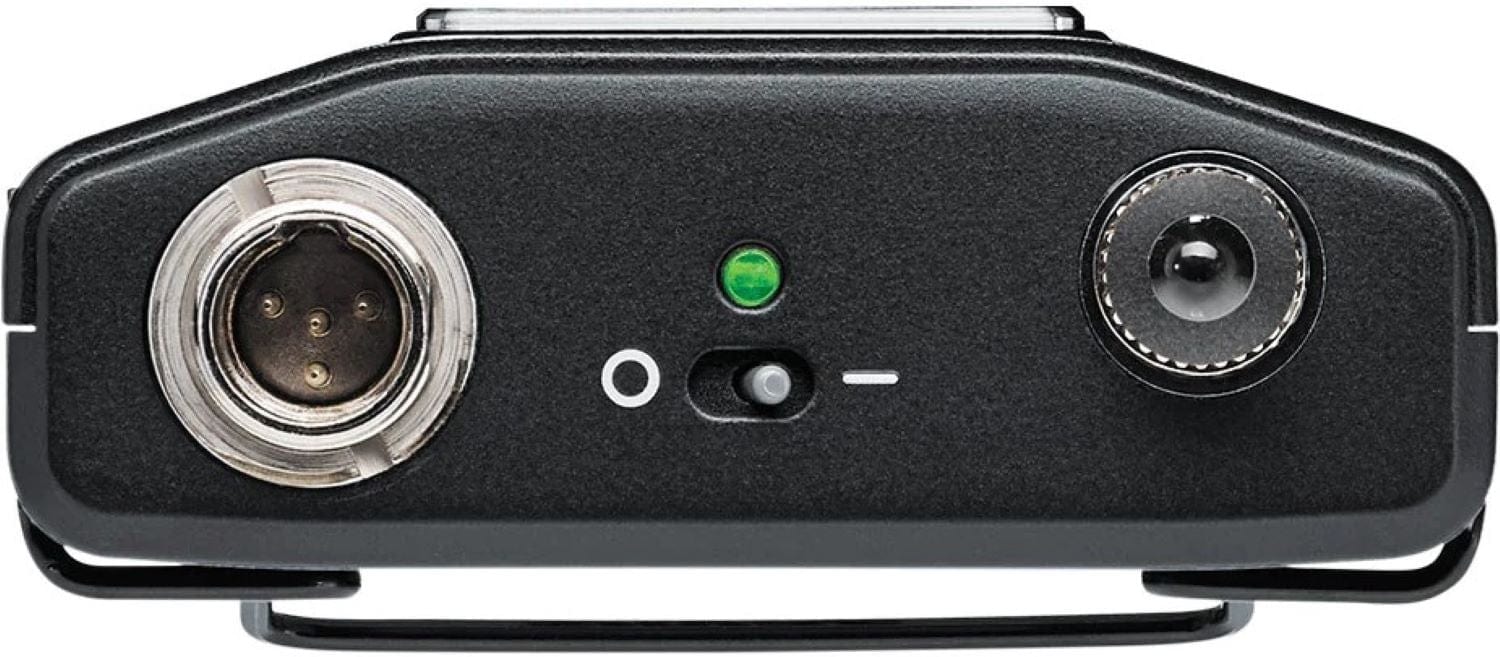

Two connector options: TA4 and LEMO3
-
Detachable ¼-wave antenna
-
Magnesium alloy design for lightweight wear
-

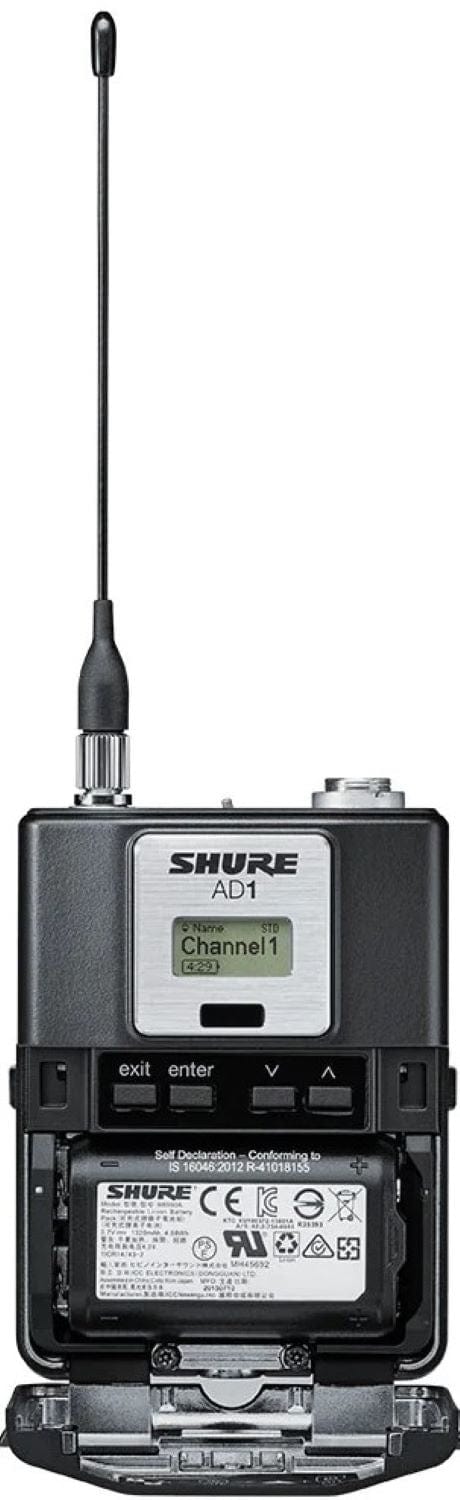

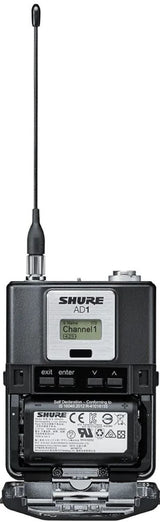

AA or SB900A Li-ion rechargeable batteries for convenient power options
-
External contacts for docked charging
Technical details
Technical Specifications
Microphone
- Gain Offset Range
- –12 to 21 dB (in 1 dB steps)
- Pad Off
- 8.5 dBV (7.5 Vpp)
- Pad On
- 20.5 dBV (30 Vpp)
Wireless
- Antenna Type
- 1/4 wave
- Occupied Bandwidth
- <200 kHz
- Modulation Type
- Shure Axient Digital Proprietary
Battery
- Battery Type
- Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Connectivity
- Connector
- SMA
- Impedance
- 50 Ω
Power
- Power
- 2 mW, 10 mW, 35 mW
Physical
- Dimensions
- 86 mm × 66 mm × 23 mm (3.4 in. × 2.6 in. × 0.9 in.) H × W × D
- Weight
- 155 g (5.47 oz.), without batteries
- Housing
- Cast Aluminum
General
- Shure SB900A
- up to 9 hours
- Alkaline
- up to 8 hours
- Configuration
- Unbalanced
- TA4M
- 1 MΩ
- LEMO
- 8.2 MΩ
More details
Additional Information
Specifications:
- Battery Runtime @ 10 mW:
- Audio Input:
- Connector:
- 4-Pin male mini connector (TA4M)
- LEM03 connector
- Impedance:
- Maximum Input Level 1 kHz at 1% THD:
- Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20: –120 dBV, A-weighted, typical
- Connector:
- RF Output:
