Product details
Overview

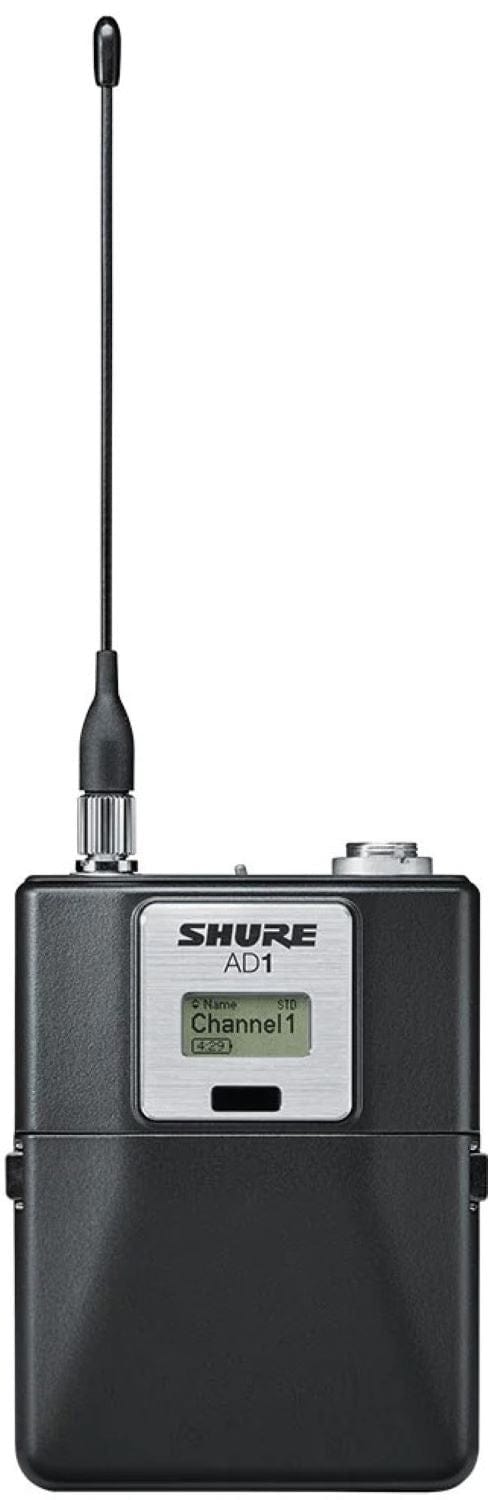

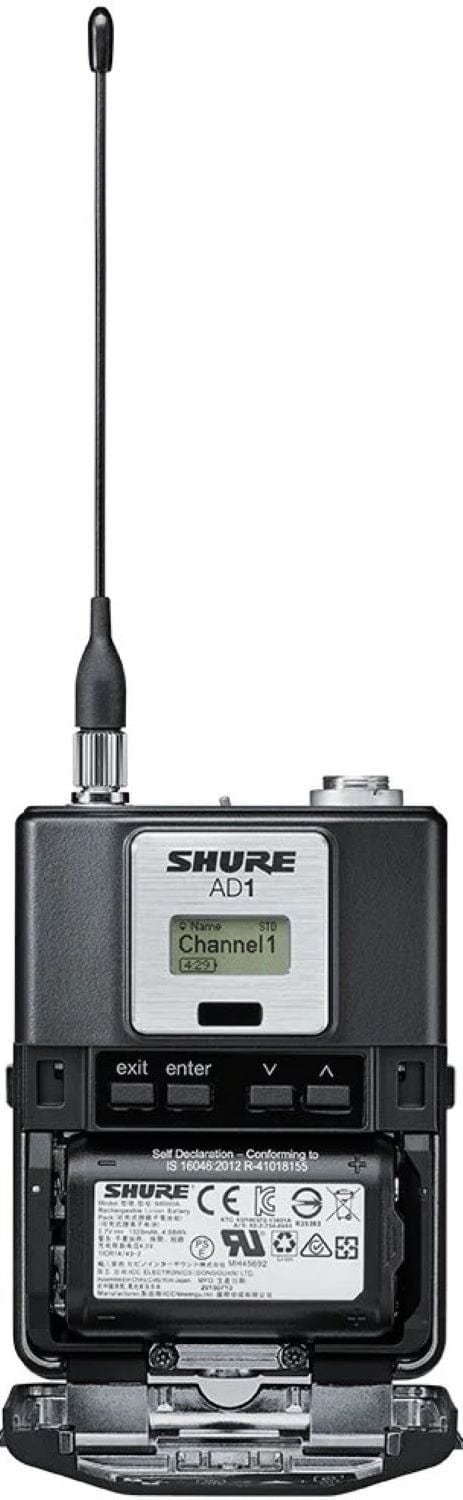

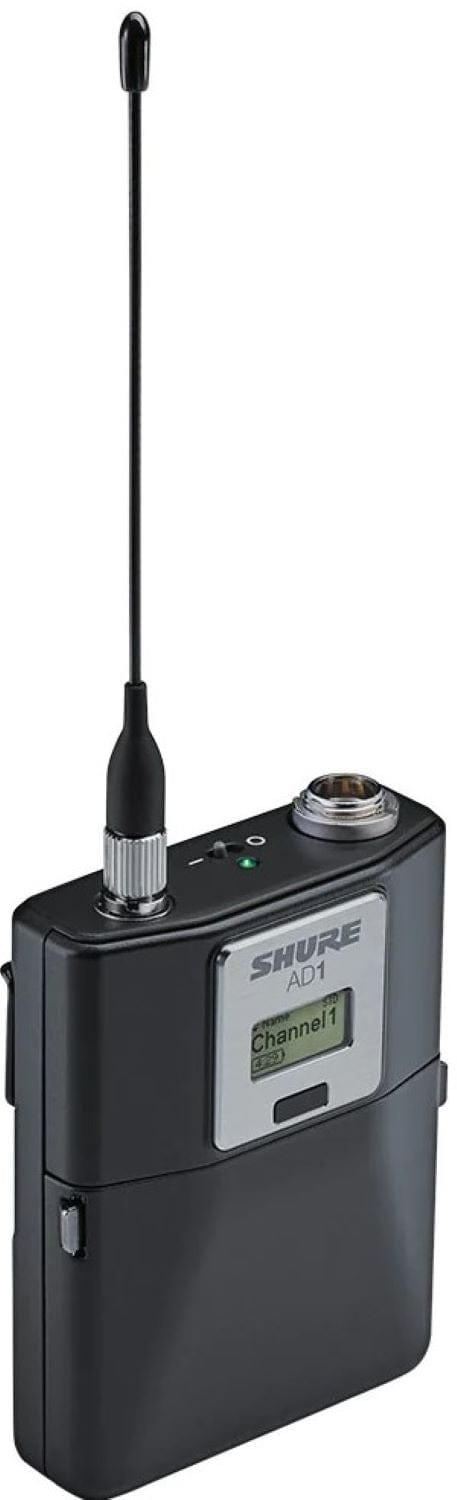

Shure Axient AD1 Bodypack Transmitter - X55 Band
The Shure ADX1 is a digital wireless bodypack transmitter compatible with Axient Digital series receivers. It is ShowLink-enabled for automatic interference avoidance and real-time remote control of parameters.
The ADX1 operates in a 19 MHz UHF bandwidth. It provides up to 10 hours of operation on an SB910 rechargeable battery, with a selectable 2/10/40mW RF output power and a transmission range up to 330'.
Why this product
Key Benefits
-
For Axient Digital Systems
-
ShowLink Remote Control
-

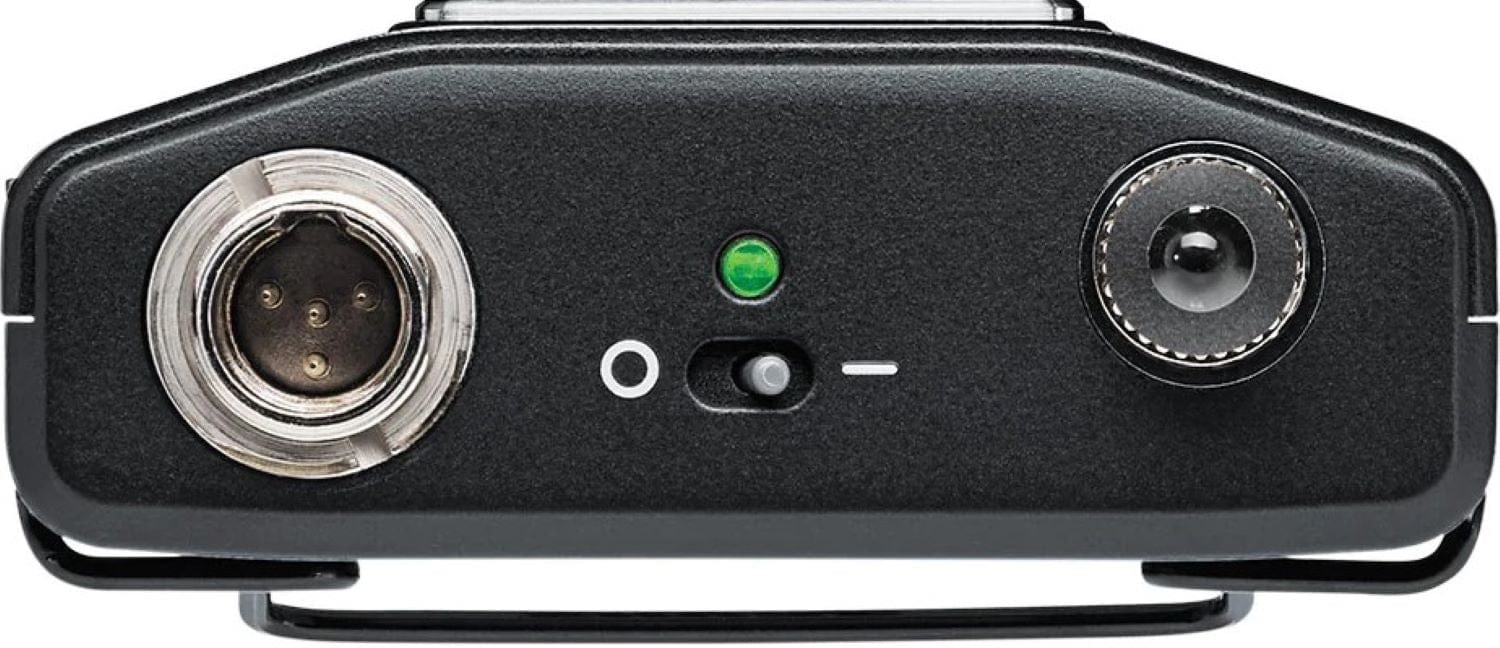

3-Pin LEMO Connector
-
Automatic Gain Adjustment
-
2/10/40mW RF Output Power
-
Detachable Antenna, Mute Mode
-
Secure AES-256 Encryption
-
Networked Intelligent Charging
-
10 Hours with SB910 Rechargeable Battery
Technical details
Technical Specifications
Microphone
- Pad
- 12 dB
- Auto-Level Control
- Yes
- Gain Range
- -12 to +21 dB (1 dB Steps)
Wireless
- RF Frequency Band
- 941 to 960 MHz
- RF Bandwidth
- 19 MHz
- Frequency Step Size
- 25 kHz
- Max Operating Range
- 328.1' / 100 m (Line of Sight)
- Latency
- 2 to 2.9 ms (Selectable)
- Encryption
- AES 256
- Modulation
- Proprietary
- Transmitter Type
- Bodypack
- RF Output Power
- 2 / 10 / 40 mW
- Sync Method
- IR
- Antenna
- 1 x 1/4 Wave Flexible Whip, Detachable (Beltpack)
Connectivity
- Audio I/O
- 1 x LEMO 3-Pin Female Unbalanced Input (Lockable)
Power
- Power Requirements
- Battery
Physical
- Display & Indicators
- 1 x Backlit LCD (Battery Status, Channel, Group, Signal Strength)
- Housing
- Aluminum
- Dimensions
- 2.7 x 3.6 x 0.7" / 68 x 91 x 19 mm (without Antennas)
- Weight
- 5 oz / 142 g
Environmental
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
Included & Optional Accessories
- Included Cable Connector
- None
General
- Muting
- Off/On Switch
- Med.
- 10 Hours (Lithium Rechargeable)
More details
Additional Information
Specifications:
- Transmitter:
- Audio Input Level:
- 8.5 dBV / 7.5 Vpp (Pad Off)
- 20.5 dBV / 30 Vpp (Pad On)
- Battery Type:
- 1 x Rechargeable (Included, Replaceable)
- 3 x AAA (Not Included, Replaceable)
- Approx. Battery Life:
- Audio Input Level:
