Shure Axient AD1 Bodypack Transmitter
Model AD1LEMO3-G57
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

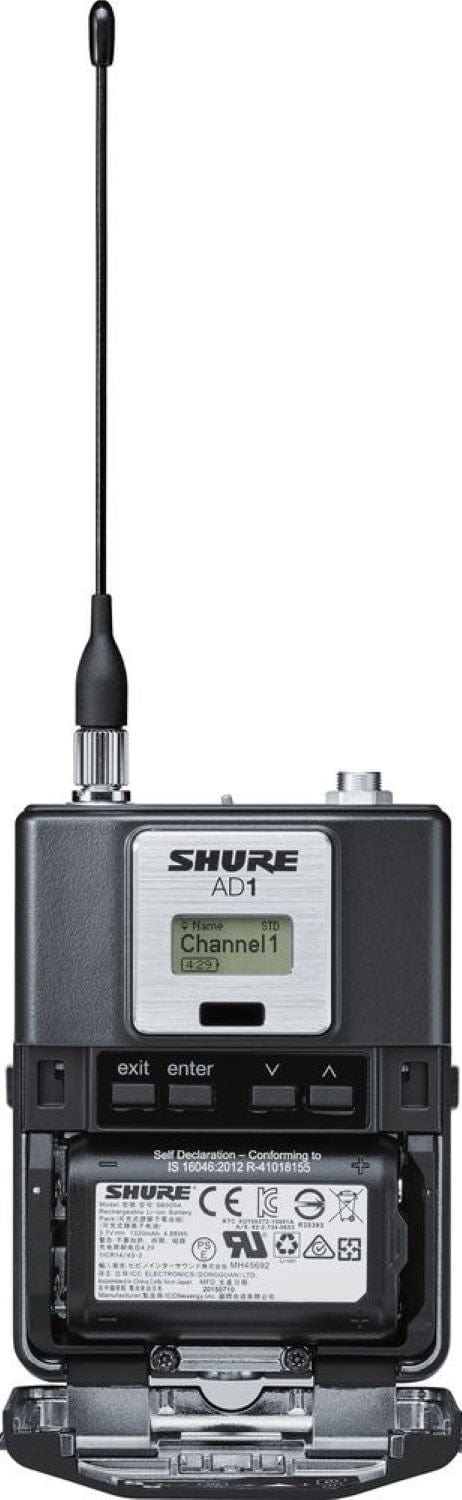

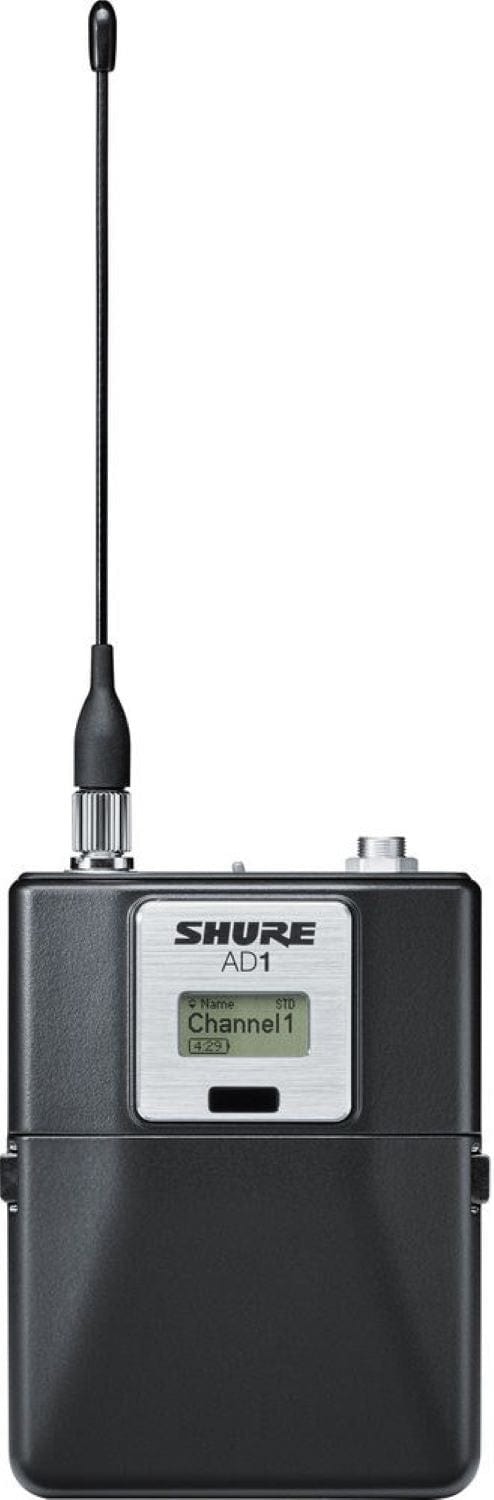

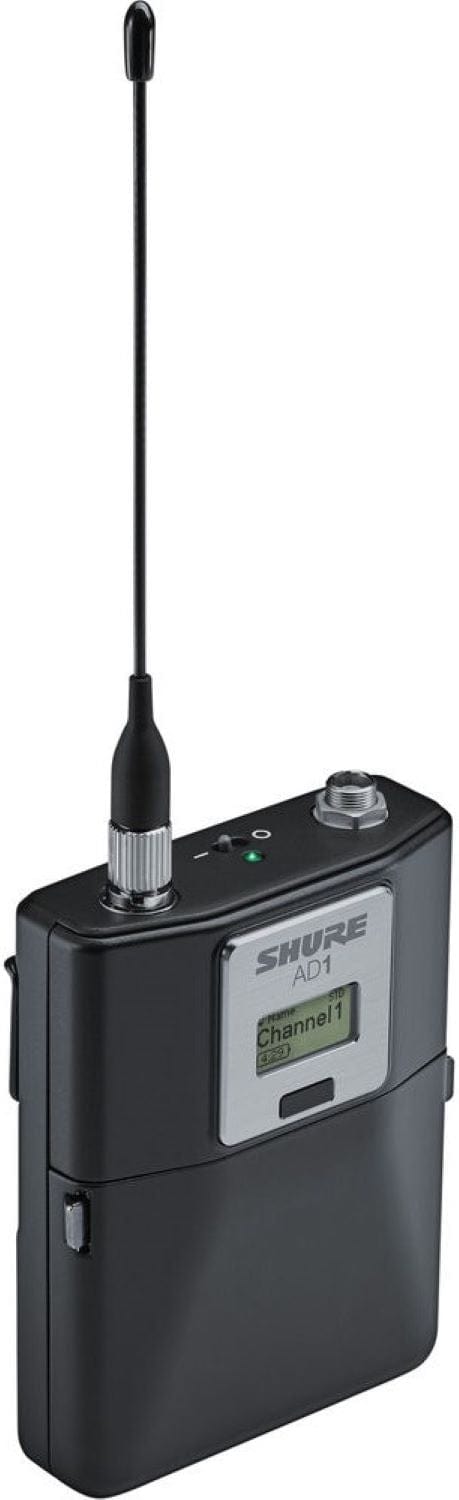

Shure Axient AD1 Bodypack Transmitter
The AD1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems. With breakthrough RF performance and wide tuning up to 184MHz, the AD1 puts professional-quality wireless digital audio within reach. AD1 delivers impeccable audio quality and RF performance with wide-tuning, High Density mode and encryption. Features durable metal construction, optional rechargeable power with dockable charging and LEMO3 connector options.
Why this product
Key Benefits
-
Performance
:
-
20Hz to 20kHz range with flat frequency response
-
Automatic input staging optimizes gain setting
-
AES 256-bit encryption-enabled for secure transmission
-
>120dB dynamic range
-
100m (300') line-of-sight operating range
-
Selectable modulation modes optimize performance for spectral efficiency or audio quality: Standard - optimal coverage, low latency and High density - dramatic increase in max system channel count
-
Built-in tone generator and RF markers to facilitate range-testing
-
Switchable Power Levels = 2/10/35mW (region dependent)
-
Frequency Diversity selection using two bodypacks
-
Design
:
-

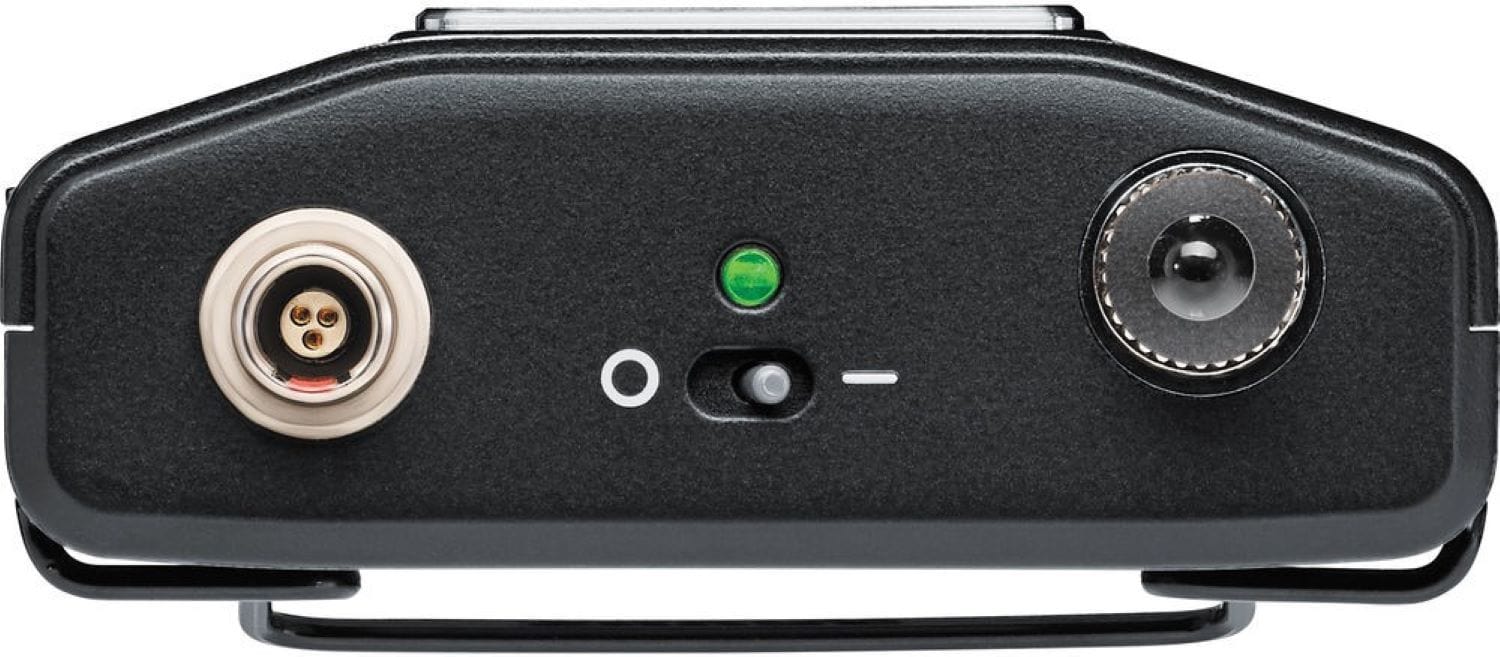

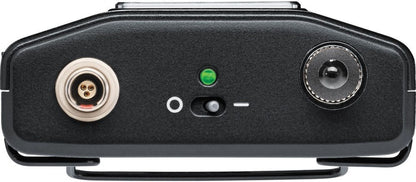

LEMO3 audio connector option
-
Backlit LCD with easy to navigate menu and controls
-
Rugged metal construction
-
Flexible 1/4 wave antenna
-
Menu and power lockout
-
Power
:
-
Over 8 hours continuous use with 2x AA alkaline batteries
-
Shure SB900A lithium-ion rechargeable battery provides extended battery life, precision metering and zero memory effect
-
External charging contacts for docked charging
Technical details
Technical Specifications
Microphone
- Gain Offset Range
- -12 to 21 dB (in 1 dB steps)
Wireless
- Frequency Band
- G57: 470 to 616MHz
- Tuning Range
- 184MHz
- Standard Mode
- 17 Ch/6MHz, 23 Ch/8MHz
- High Density Mode
- 47 Ch/6MHz, 63 Ch/8MHz
- Encryption
- Yes
- RF Output
- Connector - SMA
- RF Output
- Antenna Type - 1/4 Wave
- RF Output
- Impedance - 50 Ohms
- RF Output
- Occupied Bandwidth - <200kHz
- RF Output
- Modulation Type - Shure Axient Digital Proprietary
- RF Output
- Power - 2mW, 10mW, 35mW
Battery
- Battery Type
- Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5V
- Charging Type
- SBC100, SBC200 & SBC800 (for SB900/SB900A), SBRC networked rack charger
Connectivity
- Audio Input
- Connector: 4-Pin male mini connector (TA4M)
- Audio Input
- Configuration: Unbalanced
- Audio Input
- Impedance: 1MOhms
- Audio Input
- Maximum Input Level: 1kHz at 1% THD: Pad Off: 8.5dBV (7.5 Vpp), Pad On: 20.5 dBV (30 Vpp)
- Audio Input
- Preamplifier EIN: System Gain Setting >=+20: 120dBV, A-weighted, typical
Physical
- Housing
- Cast Aluminum
- Dimensions
- 86 x 66 x 23mm (3.39 x 2.60 x 0.91")
- Weight
- Without batteries: 142g (5.01 oz)
General
- Compatibility
- Axient Digital Wireless Systems
- Shure SB900A
- Up to 9 hours
- Alkaline
- Up to 8 hours
More details
Additional Information
Specifications:
- Transmission Mode:
- Standard
- High Density
- Channels:
- Battery Runtime (At 10 mW):
