Shure Axient AD1LEMO3 Bodypack Transmitter - X55 Band
Model AD1LEMO3-X55
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

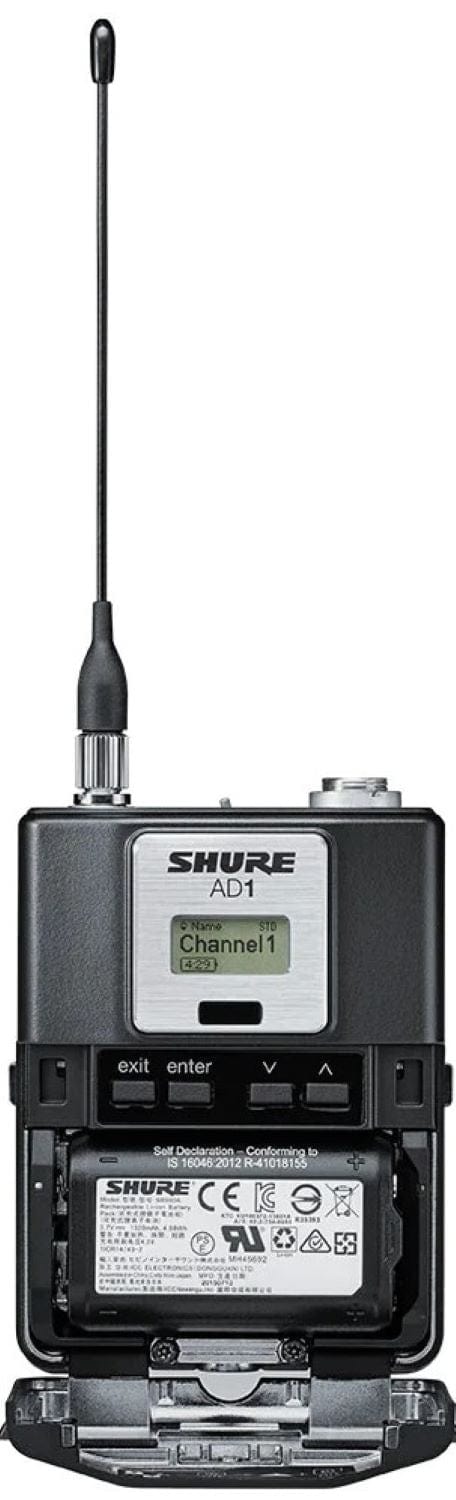

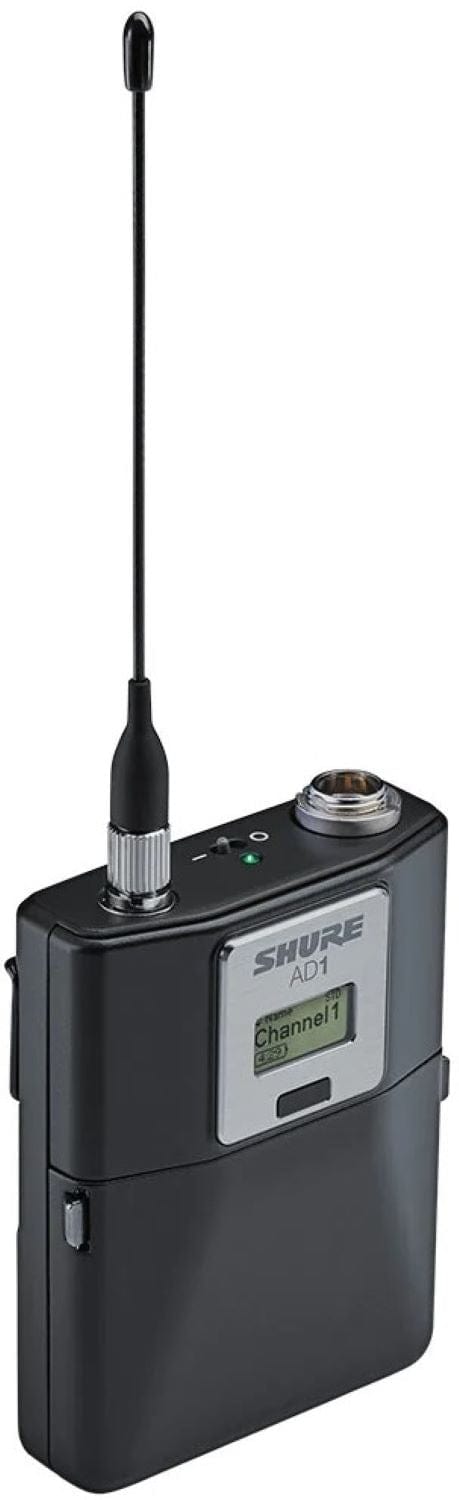

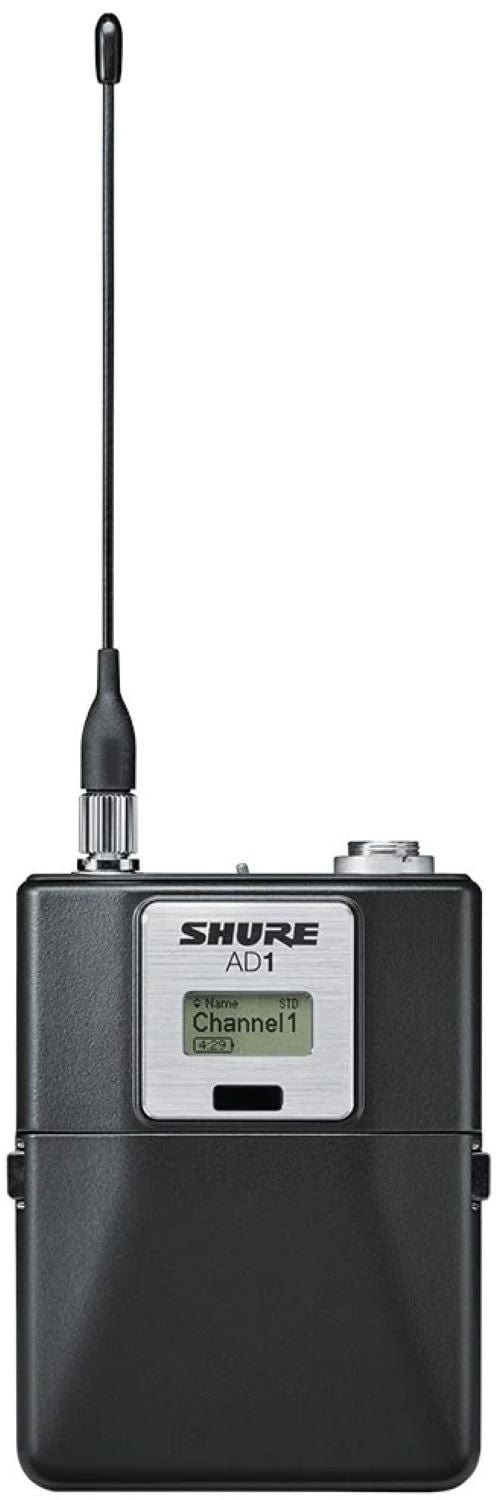

Shure Axient AD1LEMO3 Bodypack Transmitter - X55 Band
Equipped with LEMO 3-pin connector for select third-party microphone products. With breakthrough RF performance and wide tuning up to 184 MHz, the AD series wireless bodypack transmitter puts professional quality digital audio within reach.
Why this product
Key Benefits
-
Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
-
Encryption-enabled, secure transmission
-

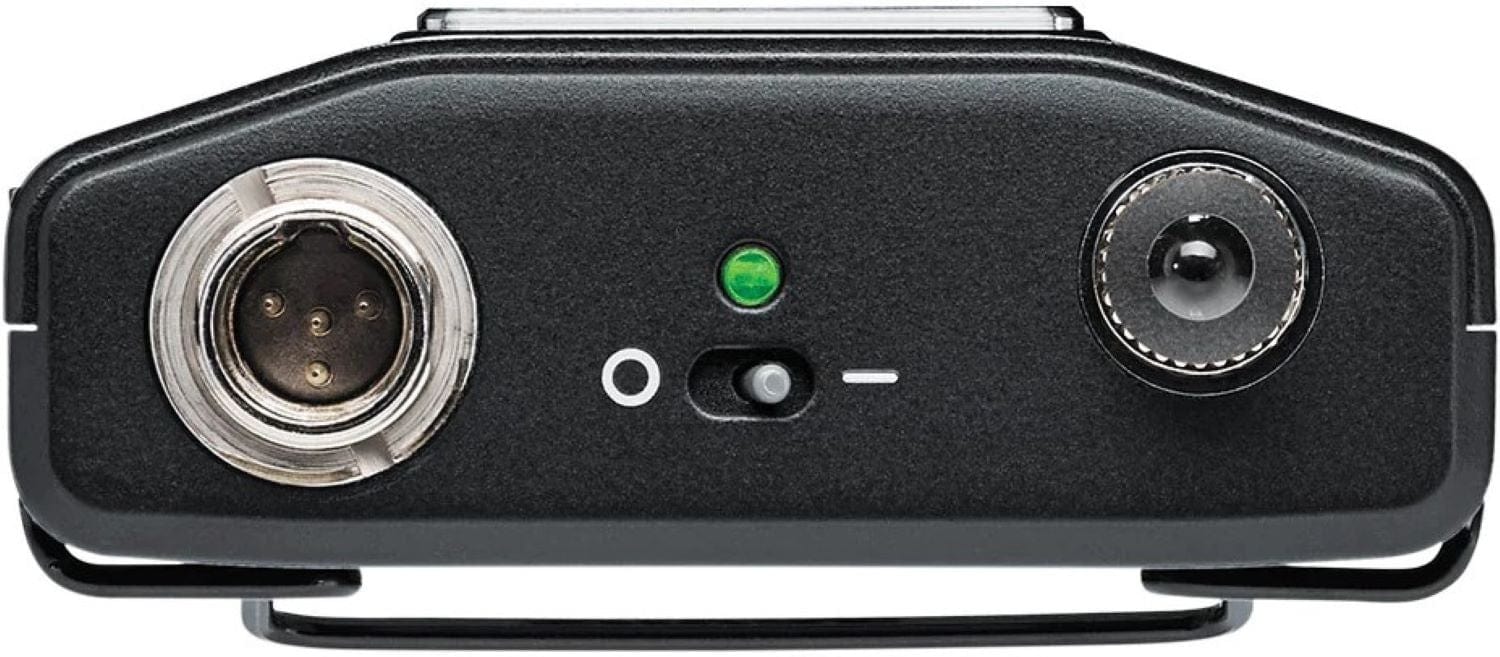

Two connector options: TA4 and LEMO3
-
Detachable ¼-wave antenna
-
Magnesium alloy design for lightweight wear
-
AA or SB900A Li-ion rechargeable batteries for convenient power options
-
External contacts for docked charging
Technical details
Technical Specifications
Microphone
- Gain Offset Range
- –12 to 21 dB (in 1 dB steps)
- Pad Off
- 8.5 dBV (7.5 Vpp)
- Pad On
- 20.5 dBV (30 Vpp)
Wireless
- Antenna Type
- 1/4 wave
- Occupied Bandwidth
- <200 kHz
- Modulation Type
- Shure Axient Digital Proprietary
Battery
- Battery Type
- Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Connectivity
- Connector
- SMA
- Impedance
- 50 Ω
Power
- Power
- 2 mW, 10 mW, 35 mW
Physical
- Dimensions
- 86 mm × 66 mm × 23 mm (3.4 in. × 2.6 in. × 0.9 in.) H × W × D
- Weight
- 155 g (5.47 oz.), without batteries
- Housing
- Cast Aluminum
General
- Shure SB900A
- up to 9 hours
- Alkaline
- up to 8 hours
- Configuration
- Unbalanced
- TA4M
- 1 MΩ
- LEMO
- 8.2 MΩ
More details
Additional Information
Specifications:
- Battery Runtime @ 10 mW:
- Audio Input:
- Connector:
- 4-Pin male mini connector (TA4M)
- LEM03 connector
- Impedance:
- Maximum Input Level 1 kHz at 1% THD:
- Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20: –120 dBV, A-weighted, typical
- Connector:
- RF Output:
