Shure Axient AD2/KSM9HS Handheld Wireless Microphone Transmitter - X55 Band
Model AD2-K9HSB-X55
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

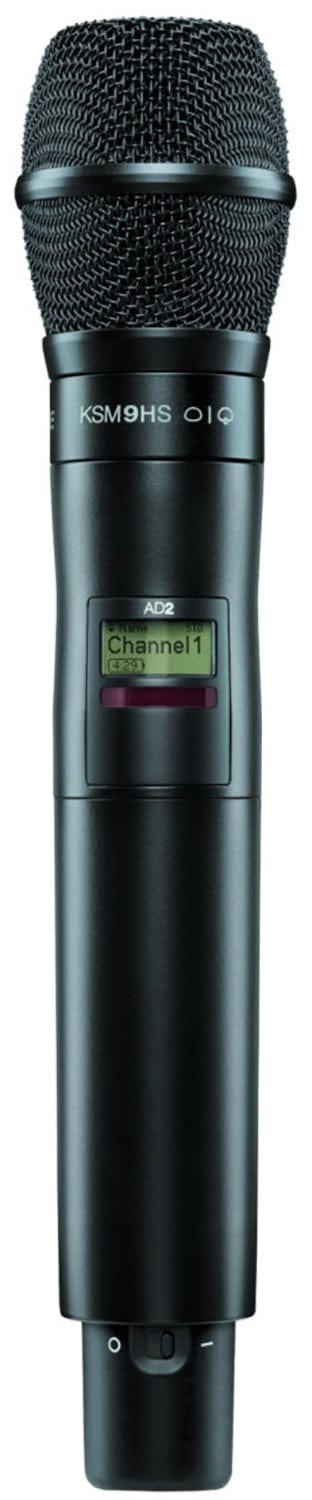

Shure Axient AD2/KSM9HS Handheld Wireless Microphone Transmitter - X55 Band
The black Shure AD2/KSM9HSB is a digital handheld wireless microphone transmitter compatible with Axient Digital series receivers.
The AD2/KSM9HSB comes equipped with a dual-diaphragm KSM9HS condenser capsule that captures sonic nuances with superior detail, delivering precise vocal reproduction for high-end live performances. The KSM9HS capsule offers two switchable polar patterns to provide FOH engineers with more choices in dealing with varying environments or the microphone techniques of different performers. The hypercardioid pattern offers excellent off-axis rejection and extended gain before feedback, making it an ideal choice in loud environments. The subcardioid pattern provides a wide coverage angle with subtle off axis-rejection, resulting in a natural sound and minimized proximity effect.
Why this product
Key Benefits
-
For Axient Digital Systems
-
KSM9HS Condenser Mic Capsule
-
Hypercardioid/Subcardioid Polar Pattern
-
Automatic Gain Adjustment
-
2/10/35mW RF Output Power
-
Mute Mode, Backlit LCD
-
Secure AES-256 Encryption
-
Networked Intelligent Charging
-
Interchangeable Capsule Design
-
9 Hours with SB900A Rechargeable Battery
Technical details
Technical Specifications
Microphone
- Audio Input Level
- 145 dB
- Gain Range
- -12 to +21 dB (3 dB Steps)
- Microphone Type
- Handheld Capsule
- Sound Field
- Mono
- Capsule
- Electret Condenser
- Polar Pattern
- Cardioid, Supercardioid
- Frequency Range
- 50 Hz to 20 kHz
- Maximum SPL
- Hypercardioid: 150.8 dB SPL
- Sensitivity
- Hypercardioid: -50.5 dBV/Pa at 1 kHz
Wireless
- RF Frequency Band
- 941 to 960
- RF Bandwidth
- 146 MHz
- Frequency Step Size
- 25 kHz
- Max Operating Range
- 328.1' / 100 m (Line of Sight)
- Latency
- 2 to 2.9 ms (Selectable)
- Encryption
- AES 256
- Modulation
- Proprietary
- Transmitter Type
- Handheld
- RF Output Power
- 2 / 10 / 35 mW
- Sync Method
- IR
- Antenna
- 1 x Internal Single-Band Helical (Handheld)
Connectivity
- Audio I/O
- None
Power
- Power Requirements
- Battery
Physical
- Display & Indicators
- 1 x LCD (Battery Status, Channel, Group, Signal Strength)
- Housing
- Aluminum
- Dimensions
- 2 x 10.1" / 51 x 256 mm
- Weight
- 12 oz / 340 g (without Batteries)
Environmental
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
General
- Muting
- Mute Switch
- Med.
- 8 Hours (Alkaline)
- Med.
- : 9 Hours (Lithium Shure SB900A)
More details
Additional Information
Specifications:
- Transmitter:
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Battery Type:
- Microphone:
