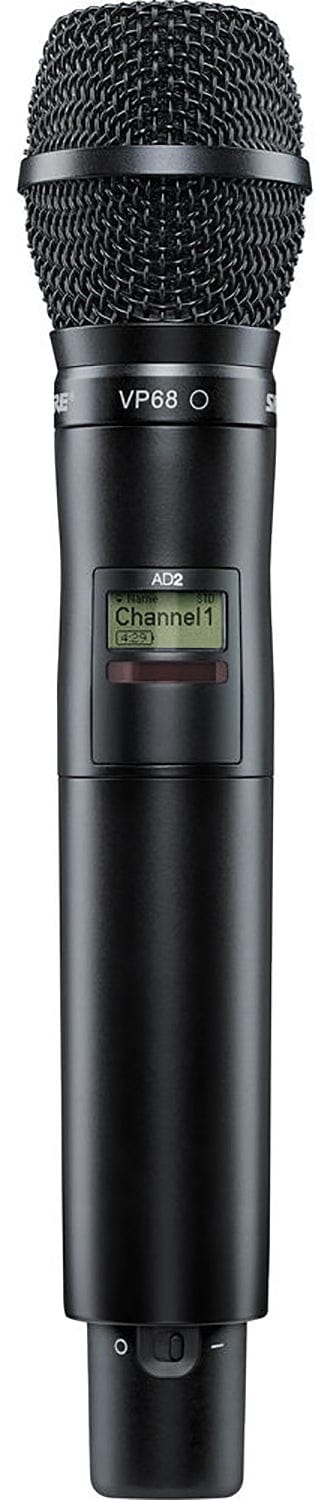

Shure Axient AD2/VP68 Handheld Wireless Microphone Transmitter - G57 Band
Model AD2-VP68-G57
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure Axient AD2/VP68 Handheld Wireless Microphone Transmitter - G57 Band
The Shure AD2/VP68 is a digital handheld wireless microphone transmitter compatible with Axient Digital series receivers.
The AD2/VP68 comes equipped with a VP68 condenser capsule that delivers a natural sound optimized for speech intelligibility. The capsule's omnidirectional polar pattern ensures that the sound remains consistent, even when moving the mic between speakers.
Why this product
Key Benefits
-
For Axient Digital Systems
-
VP68 Condenser Omnidirectional Mic
-
Automatic Gain Adjustment
-
2/10/35mW RF Output Power
-
Mute Mode, Backlit LCD
-
Secure AES-256 Encryption
-
Networked Intelligent Charging
-
Interchangeable Capsule Design
-
9 Hours with SB900A Rechargeable Battery
Technical details
Technical Specifications
Microphone
- Audio Input Level
- 145 dB
- Gain Range
- -12 to +21 dB (3 dB Steps)
- Microphone Type
- Handheld Capsule
- Sound Field
- Mono
- Capsule
- Condenser
- Polar Pattern
- Omnidirectional
- Frequency Range
- 40 Hz to 20 kHz
- Maximum SPL
- 136.5 dB SPL
- Sensitivity
- 41 dBV/Pa at 1 kHz
- Dynamic Range
- 118 dB
Wireless
- RF Frequency Band
- 470 to 616 MHz
- RF Bandwidth
- 146 MHz
- Frequency Step Size
- 25 kHz
- Max Operating Range
- 328.1' / 100 m (Line of Sight)
- Latency
- 2 to 2.9 ms (Selectable)
- Encryption
- AES 256
- Modulation
- Proprietary
- Transmitter Type
- Handheld
- RF Output Power
- 2 / 10 / 35 mW
- Sync Method
- IR
- Antenna
- 1 x Internal Single-Band Helical (Handheld)
Connectivity
- Audio I/O
- None
Power
- Power Requirements
- Battery
Physical
- Display & Indicators
- 1 x LCD (Battery Status, Channel, Group, Signal Strength)
- Housing
- Aluminum
- Dimensions
- 2 x 10.1" / 51 x 256 mm
- Weight
- 12 oz / 340 g (without Batteries)
Environmental
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
Shipping & Packaging
- Package Weight
- 1.605 lb
- Box Dimensions (LxWxH)
- 13.2 x 4.7 x 4.5"
General
- Muting
- Mute Switch
- Med.
- 8 Hours (Alkaline)
- Med.
- : 9 Hours (Lithium Shure SB900A)
More details
Additional Information
Specifications:
- Transmitter:
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Battery Type:
- Microphone:
- Packaging Info:
