Shure Axient AD3 Digital Wireless Transmitter
Model AD3-G57
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure Axient AD3 Axient Digital Plug-On Wireless Transmitter

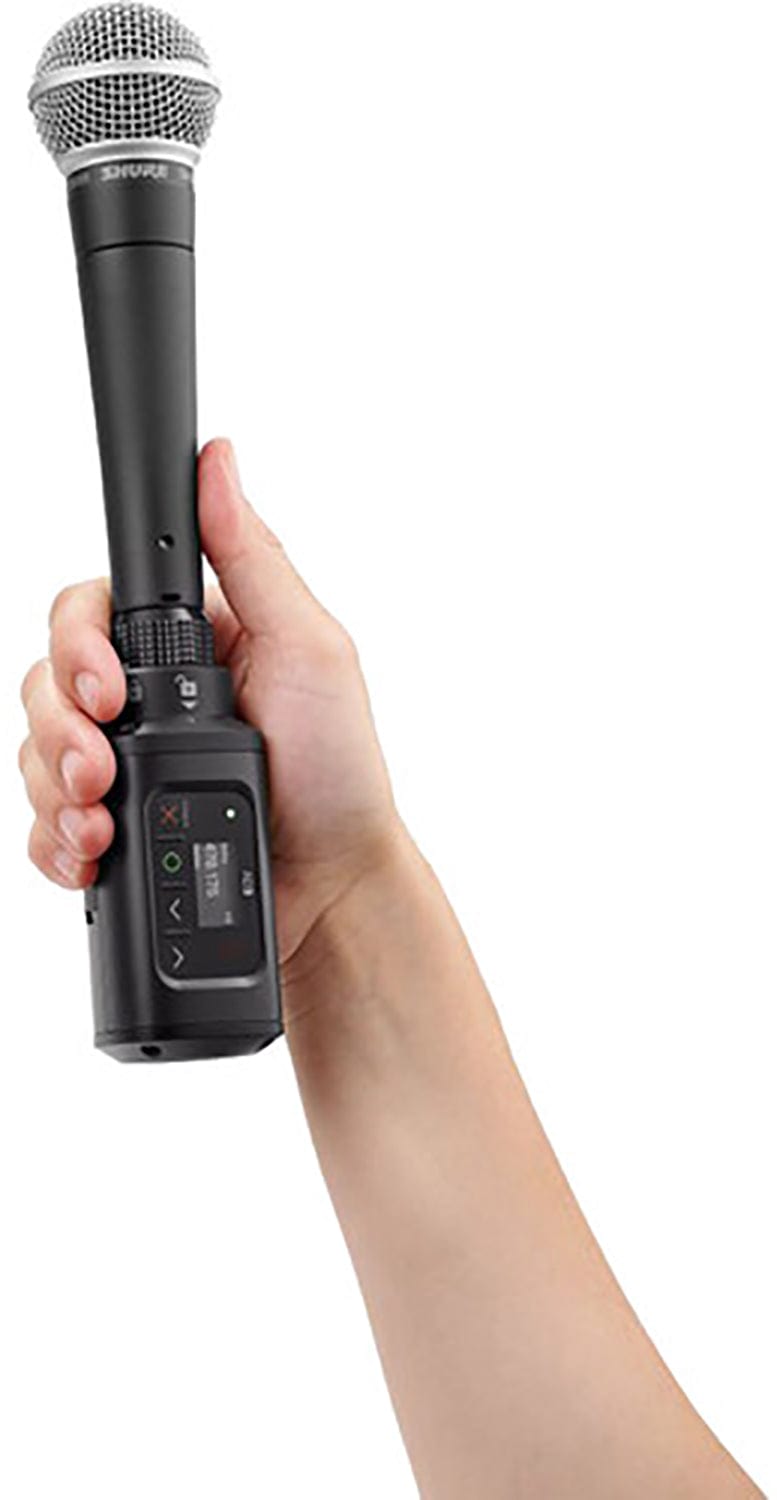

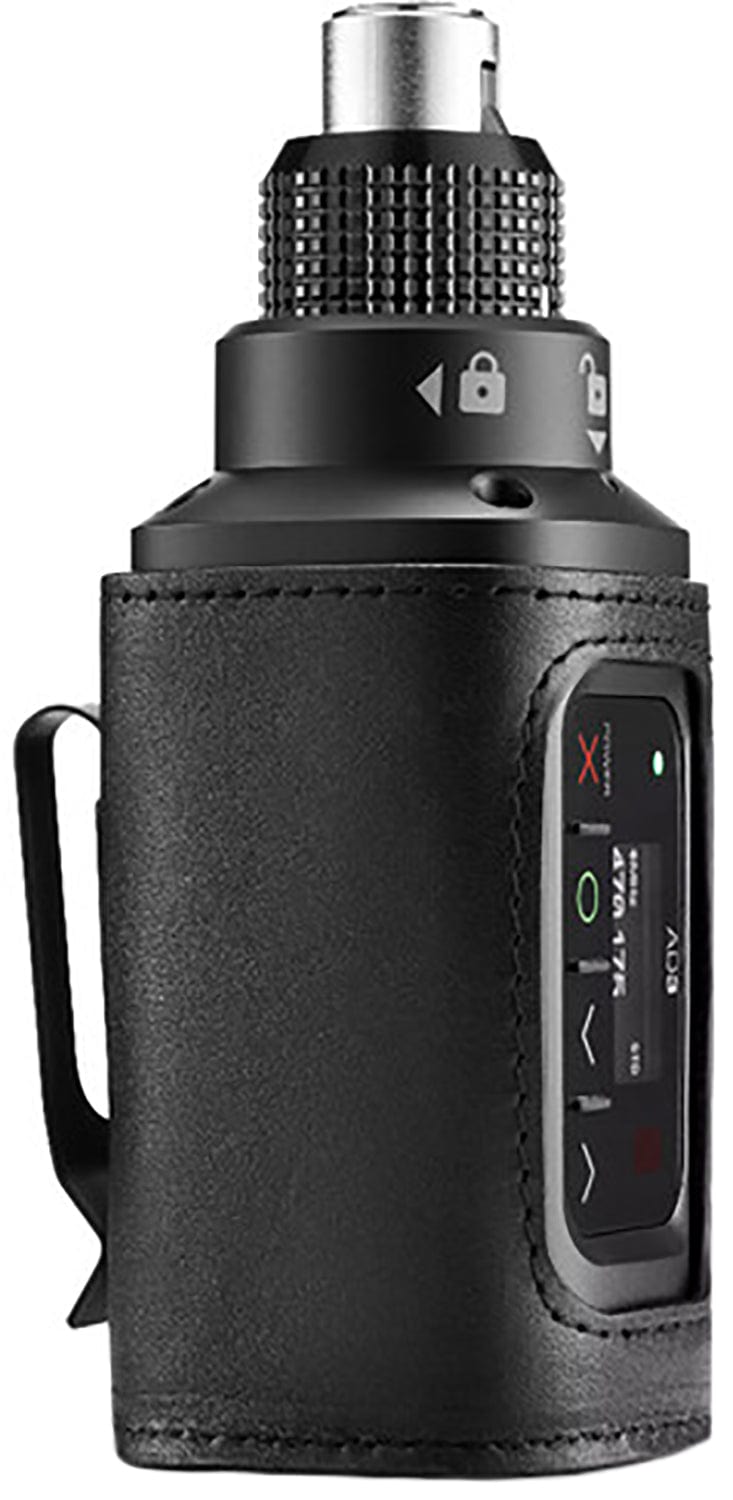

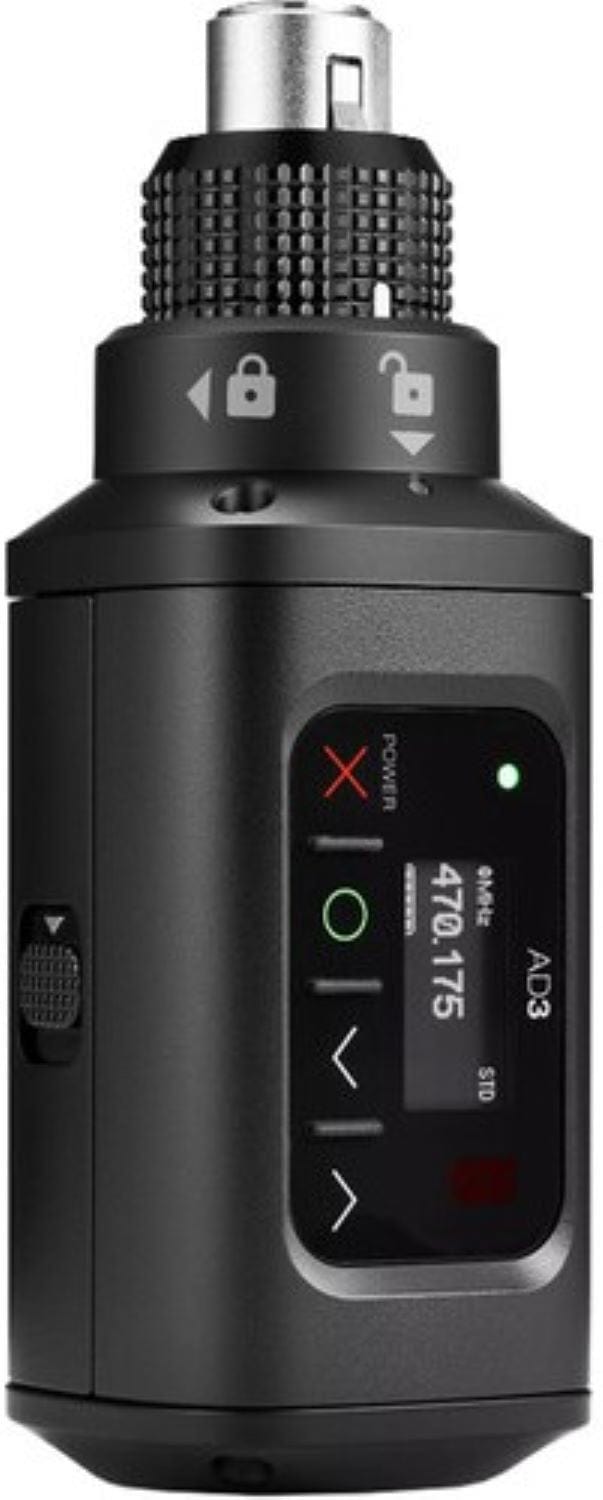

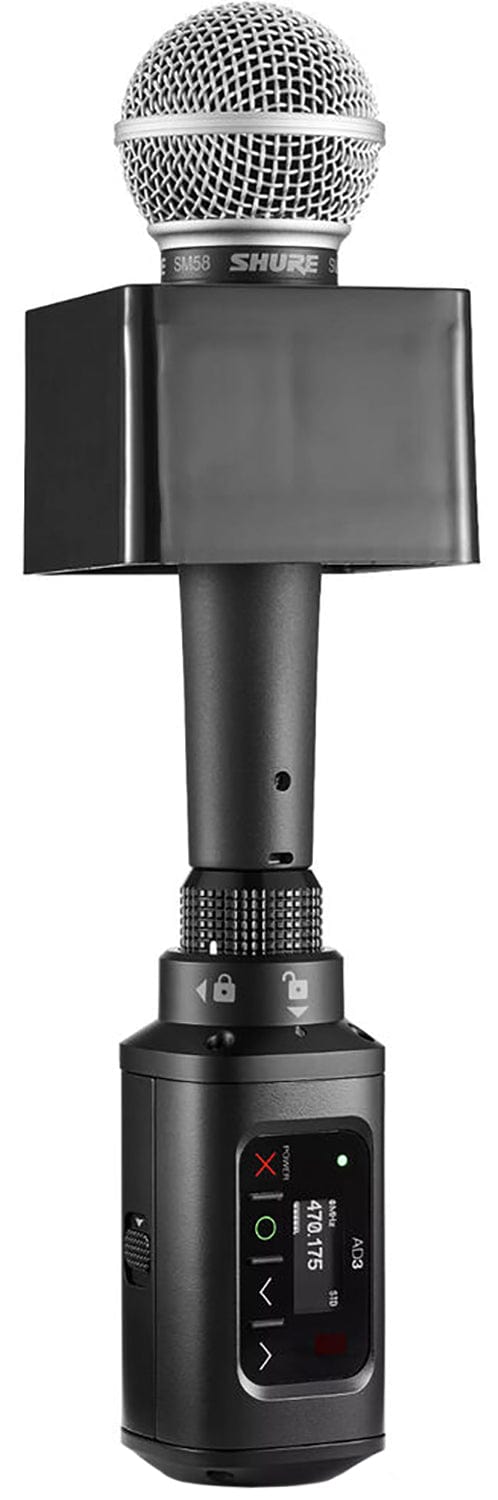

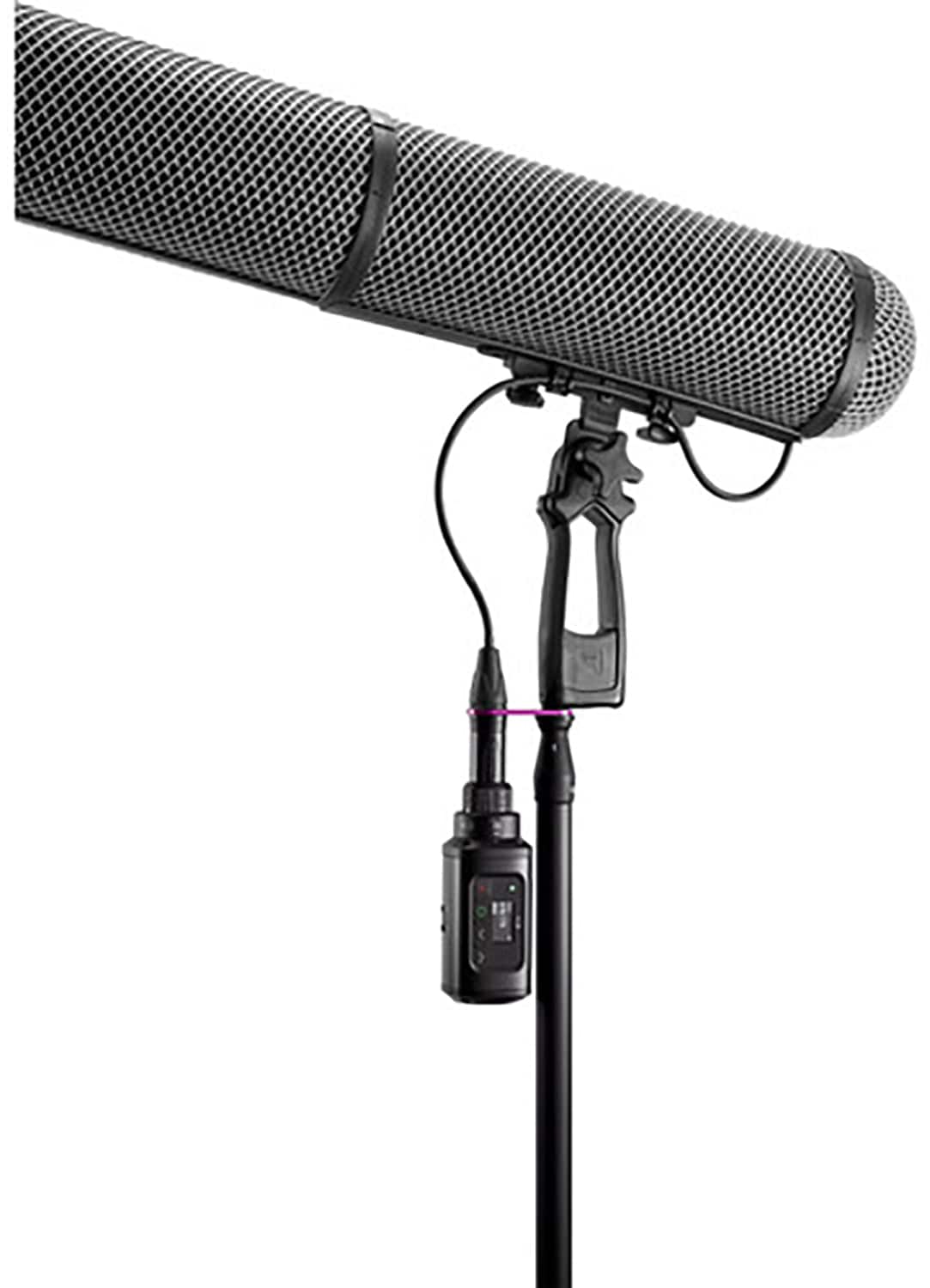

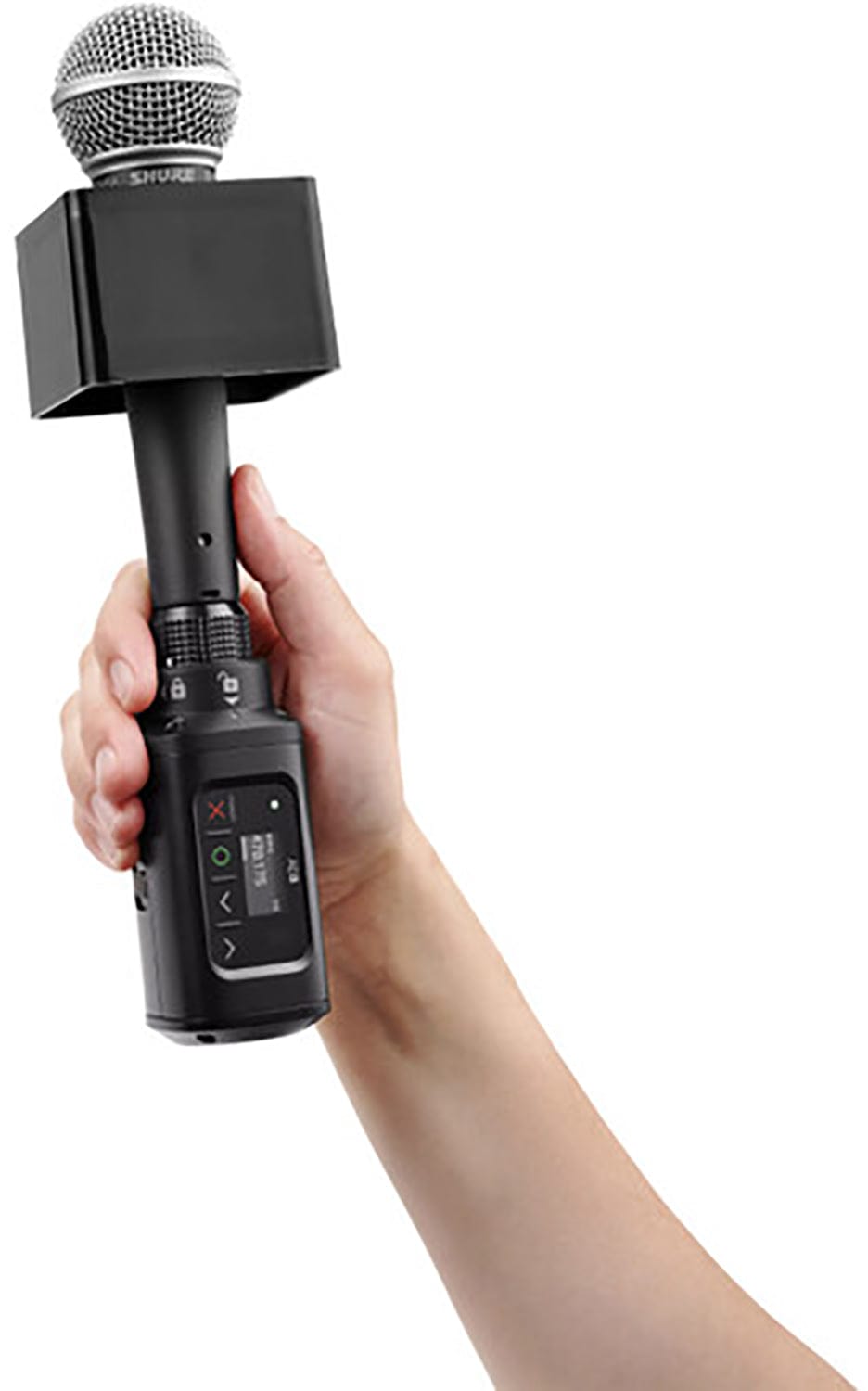

The Shure AD3 is a digital handheld wireless plug-on microphone transmitter compatible with Axient Digital series receivers. The AD3 features a secure XLR connector and supplies 48 V phantom power, allowing you to use any handheld or shotgun XLR microphone with the Axient digital wireless system.

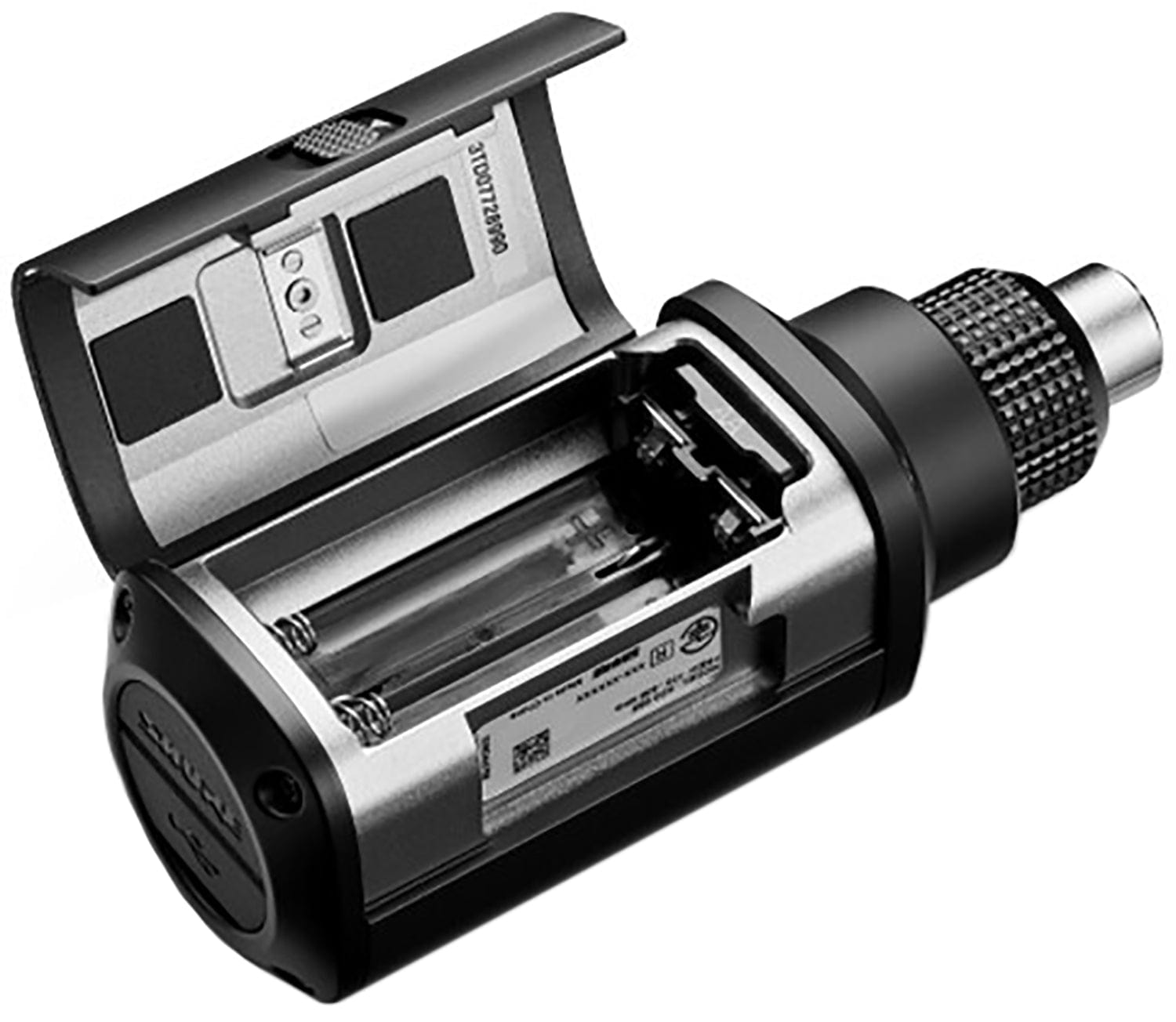

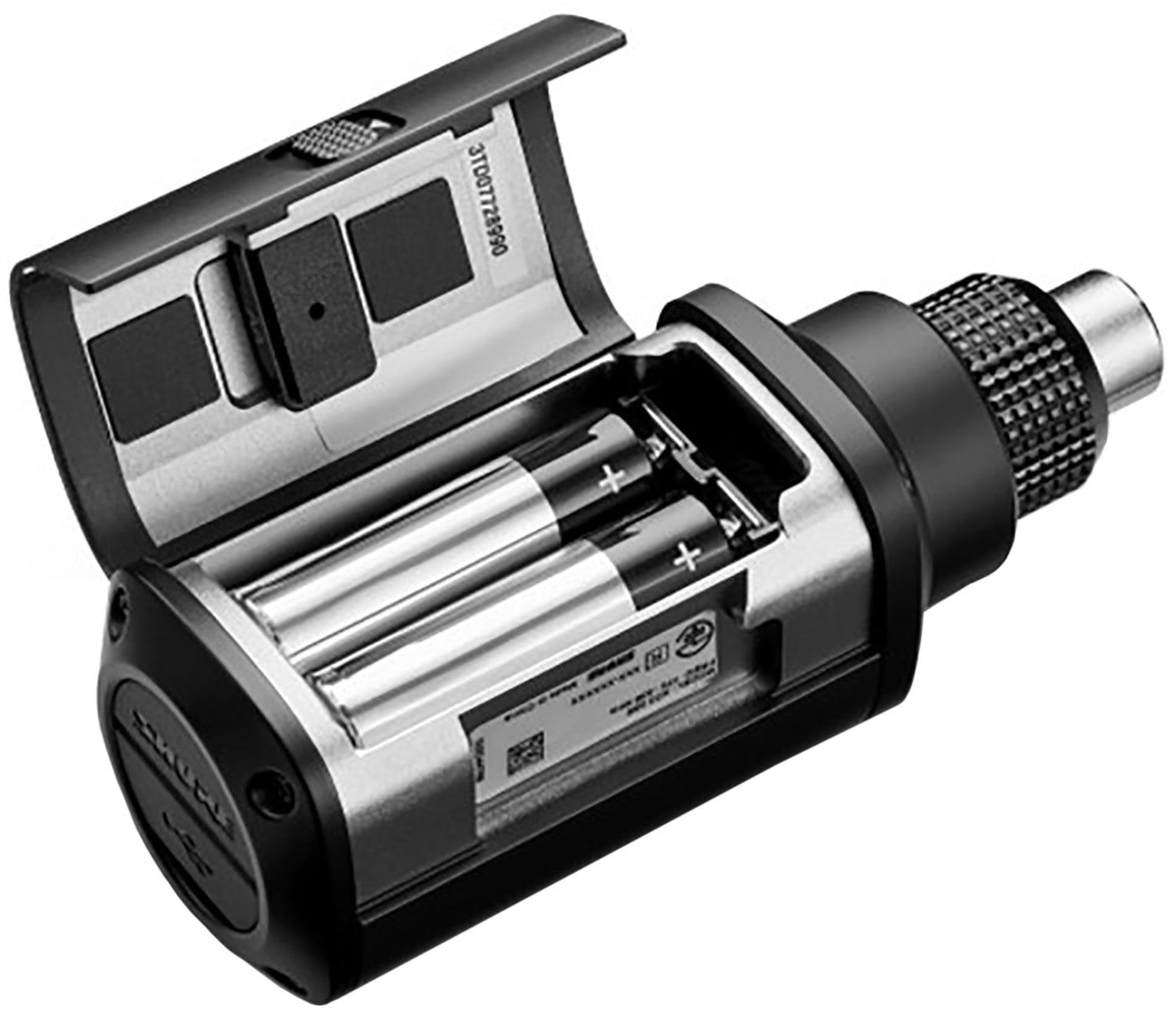

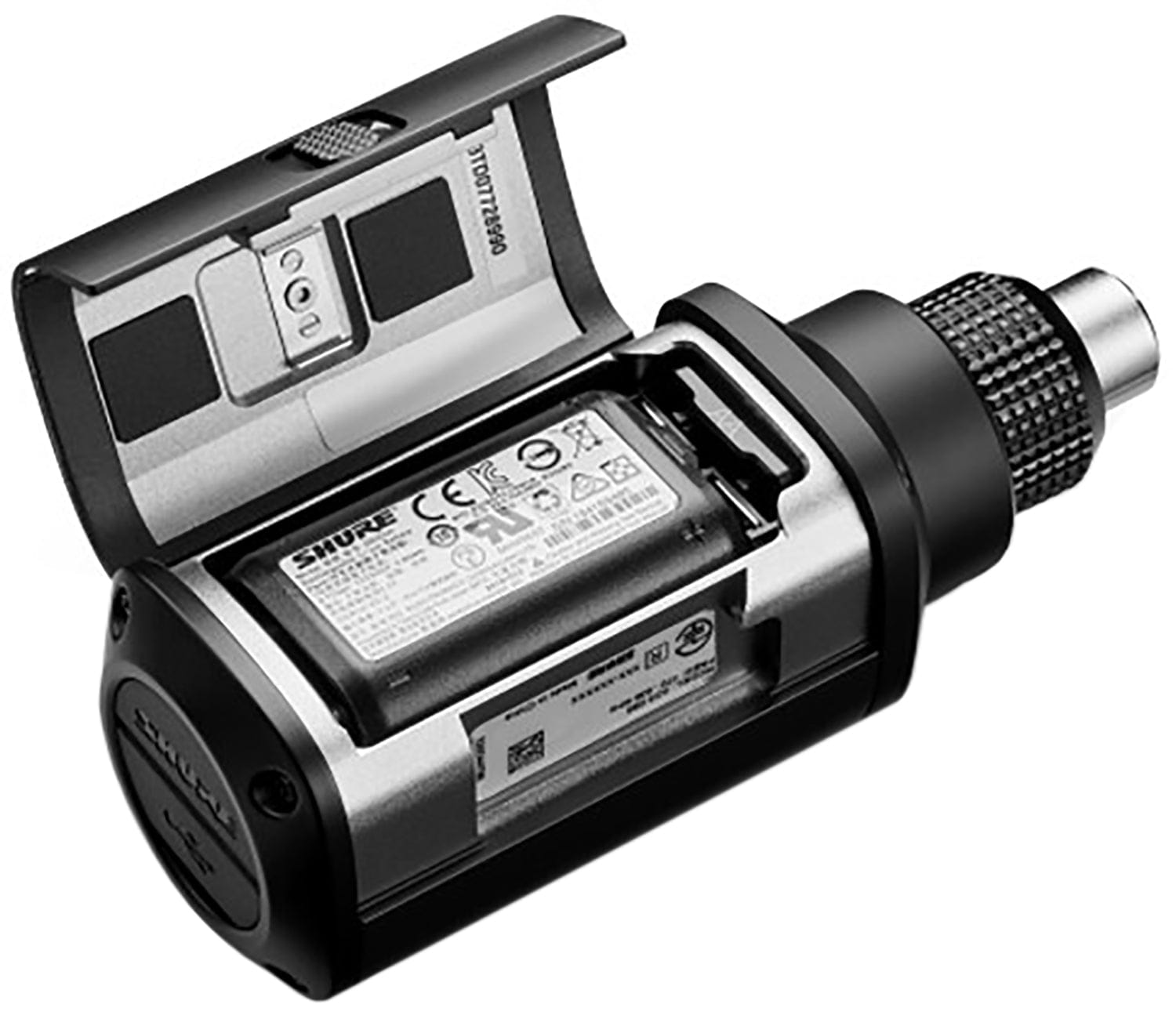

The transmitter operates in a single 146 MHz ultrawide UHF bandwidth with selectable 2/10/35mW RF output power and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or an SB900A lithium-ion rechargeable battery (available separately).
With a durable, moisture-resistant, lightweight aluminum housing, the AD3 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options, making it ideal for high-profile, sound-reinforcement applications.
See it in detail
Product Video
Why this product
Key Benefits
-
For Axient Digital Receivers
-

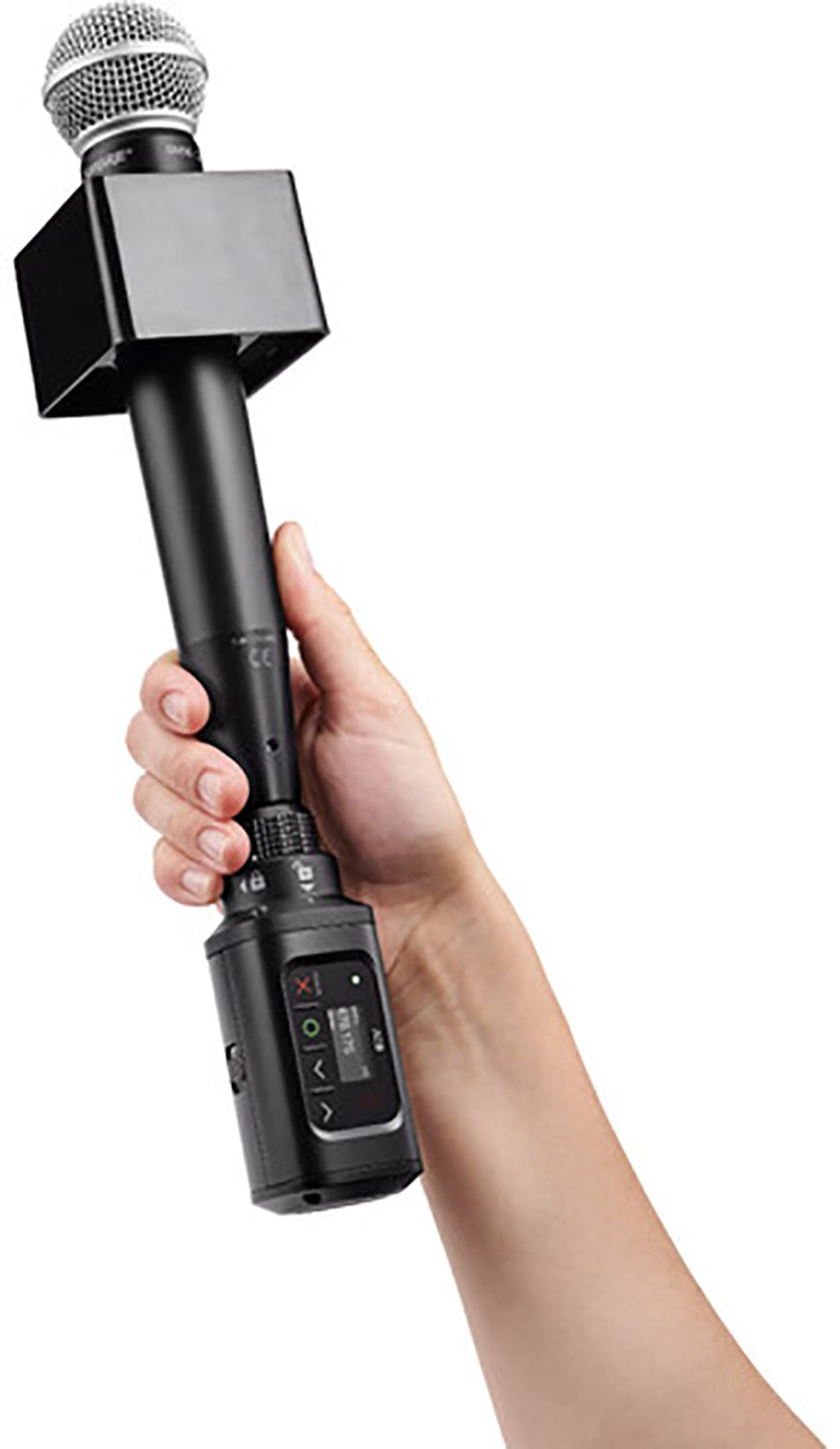

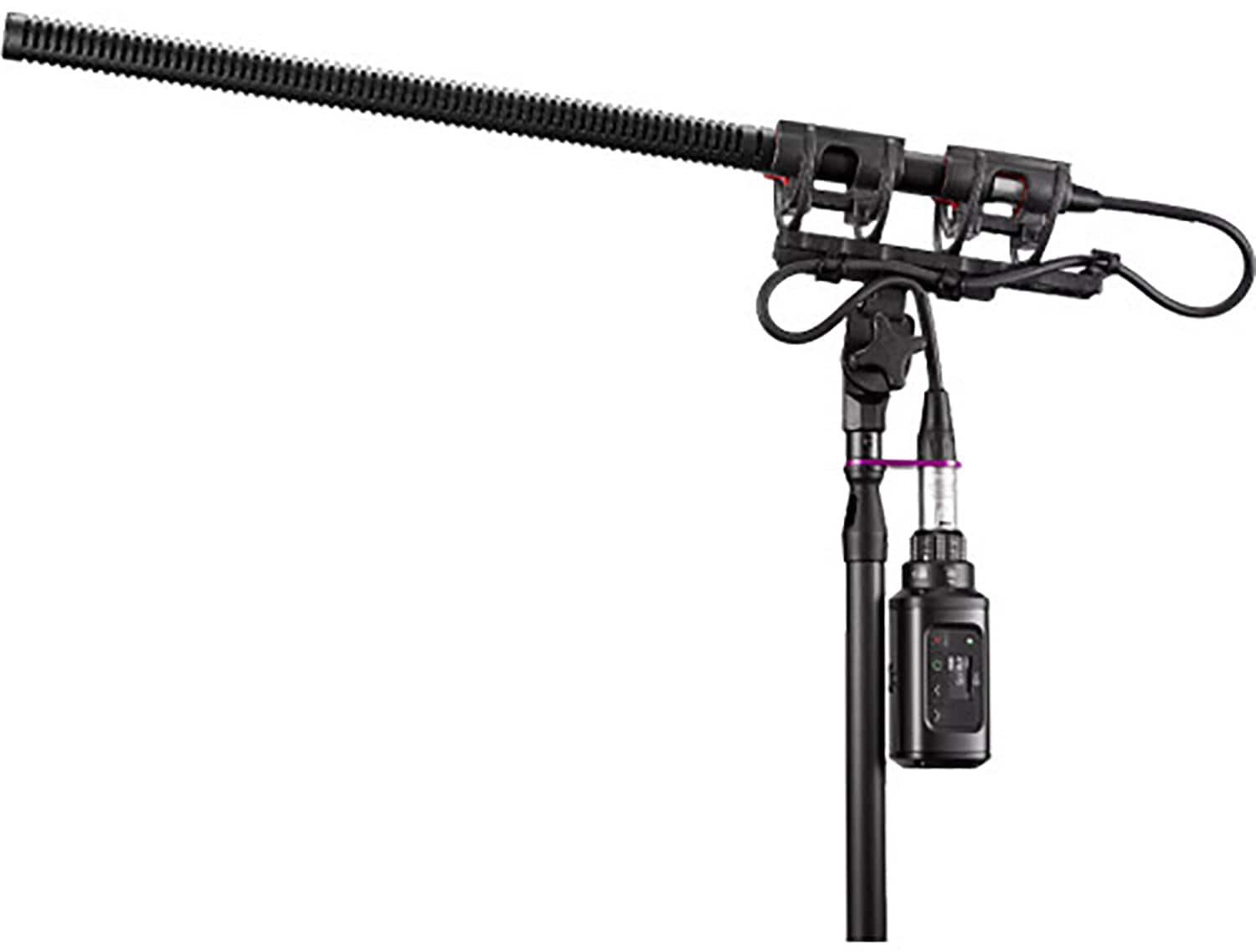

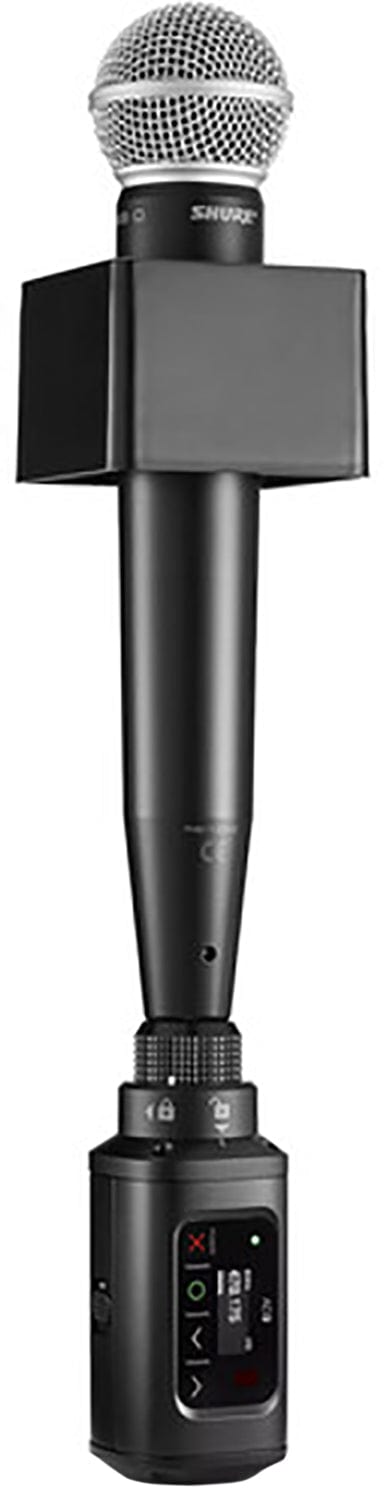

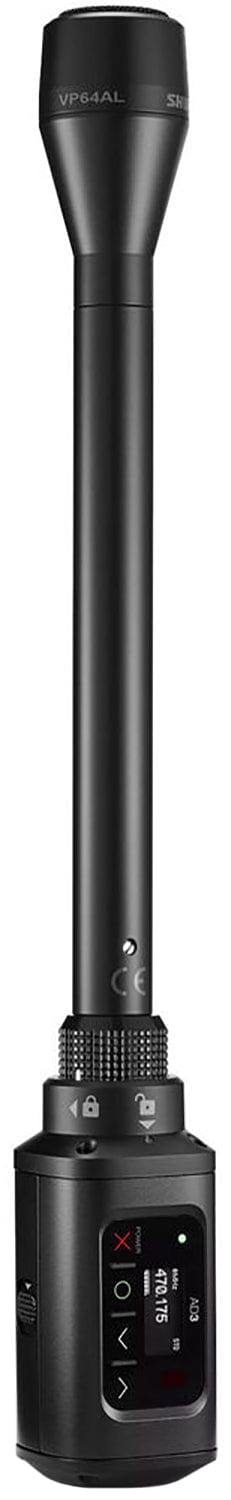

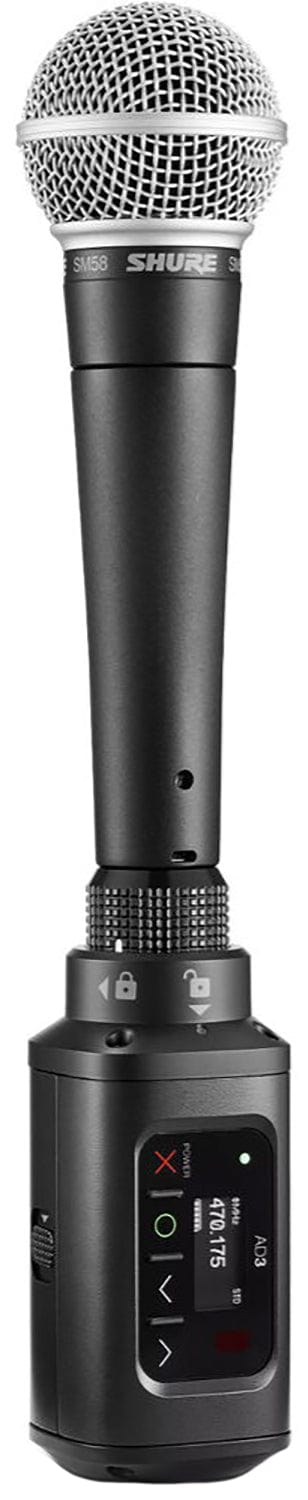

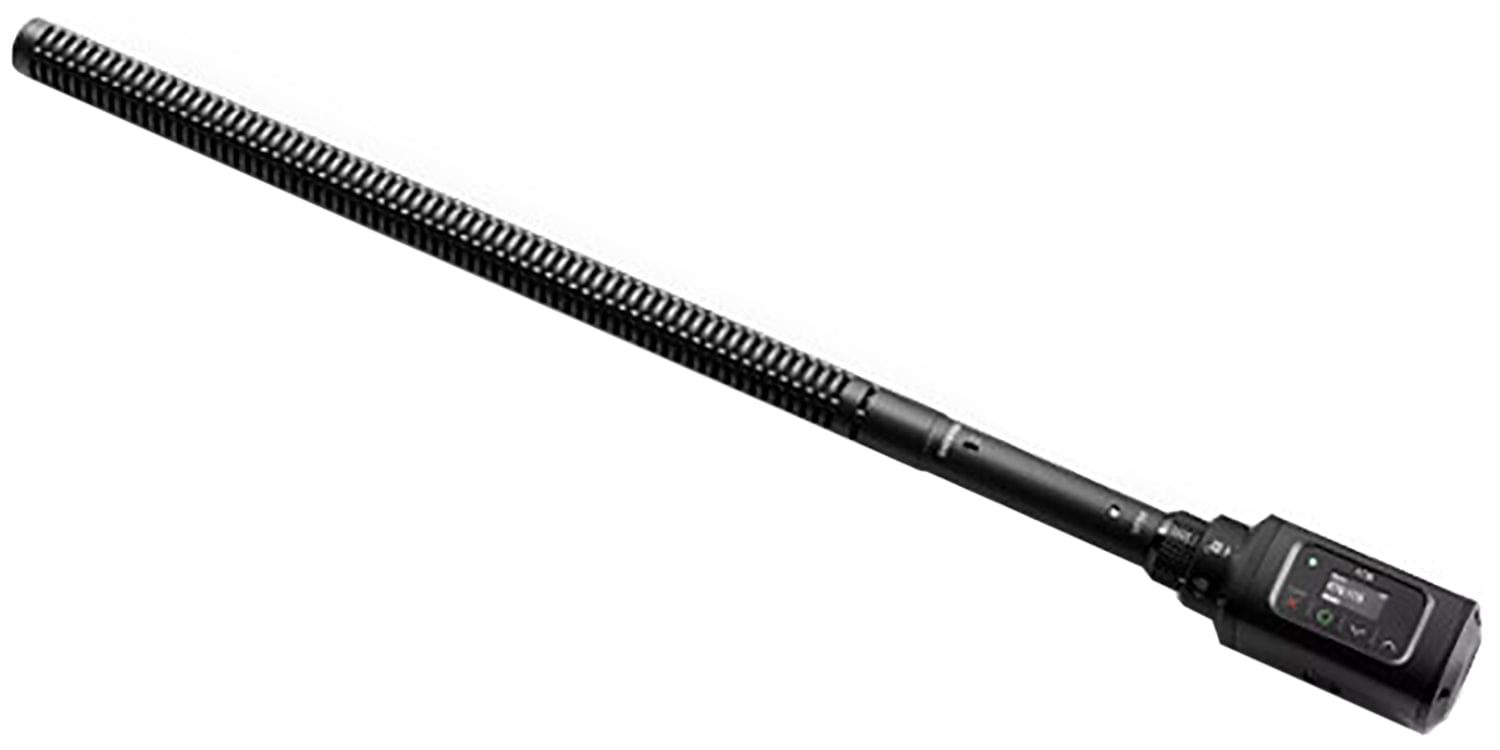

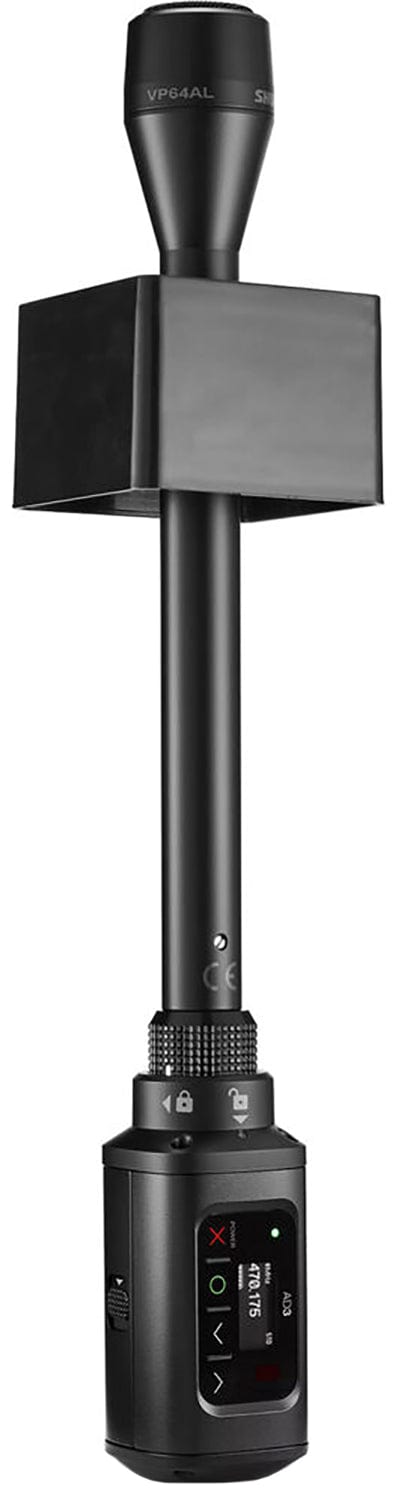

Use with Any Handheld or Shotgun Mic
-

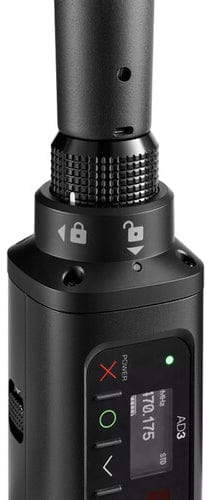

XLR Connector with 48V Phantom
-
Automatic Gain Adjustment
-
2/10/35mW RF Output Power
-

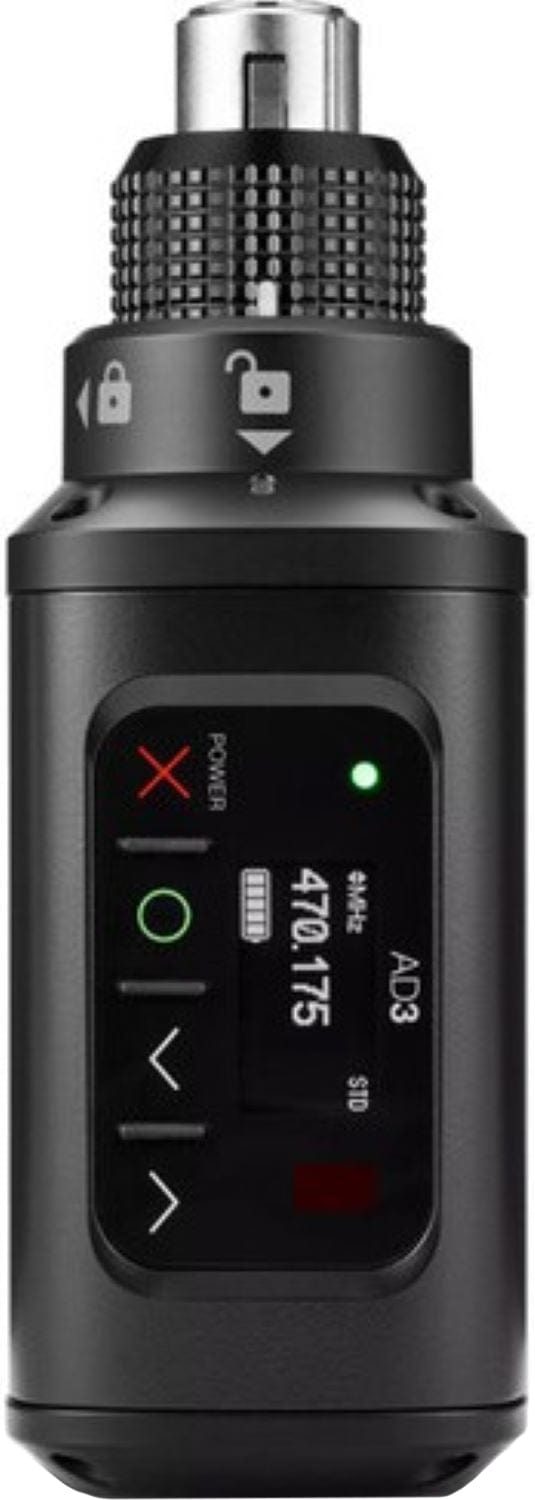

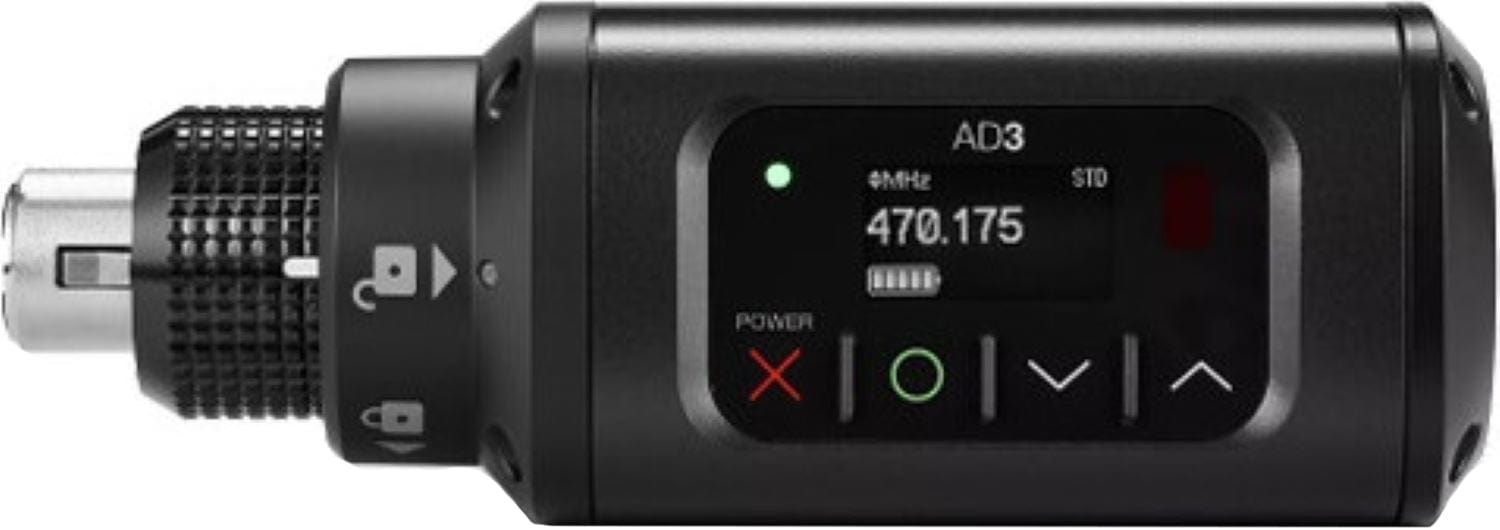

Backlit LCD
-
Secure AES-256 Encryption
-
Networked Intelligent Charging
-
8 Hours with SB900A Rechargeable Battery
Technical details
Technical Specifications
Microphone
- Pad
- None
- Auto-Level Control
- Yes
- Gain Range
- -12 to +21 dB (3 dB Steps)
- Frequency Response
- 20 Hz to 20 kHz
Wireless
- RF Frequency Band
- 470 to 616 MHz
- RF Bandwidth
- 166 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 328.1' / 100 m (Line of Sight)
- Latency
- 2 to 2.9 ms (Selectable)
- Encryption
- AES 256
- Modulation
- Proprietary
- Transmitter Type
- Plug-On
- RF Output Power
- 2 / 10 / 35 mW
- Sync Method
- IR
- Antenna
- 1 x Internal Single-Band Helical (Handheld)
Connectivity
- Audio I/O
- 1 x XLR 3-Pin Female Balanced Input (Lockable)
- USB/Lightning I/O

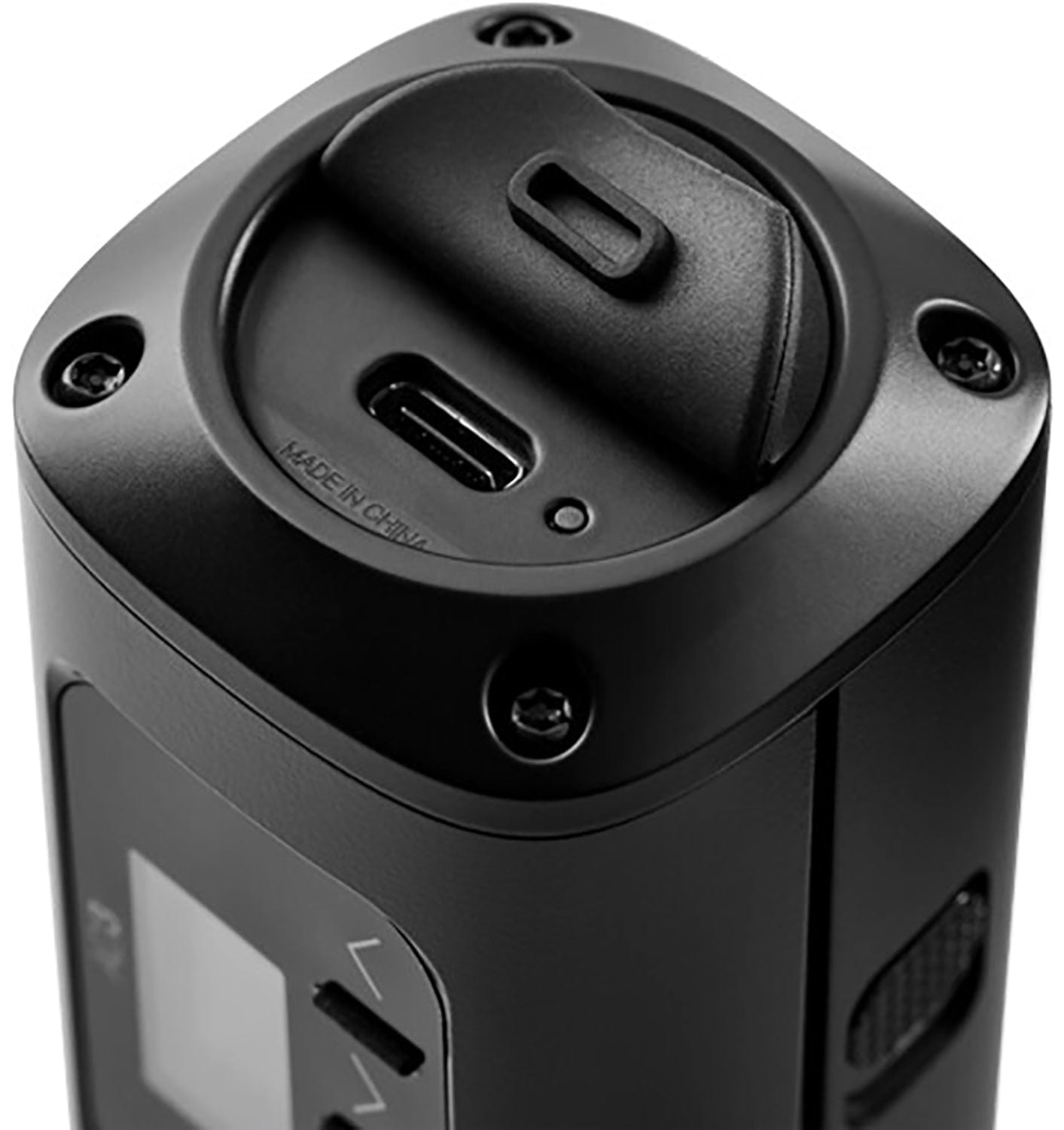

- 1 x USB-C (Charging)
Power
- Phantom Power
- +48 V
- Power Requirements
- Battery
Physical
- Display & Indicators
- 1 x LCD (Battery Status, Channel, Group, Signal Strength)
- Housing
- Aluminum
Environmental
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
Shipping & Packaging
- Package Weight
- 1.475 lb
- Box Dimensions (LxWxH)
- 12.1 x 4.6 x 3.4"
General
- Signal Processing
- None
- Med.
- 8 Hours (Alkaline)
- Med.
- 8 Hours (Lithium Shure SB900A)
More details
Additional Information

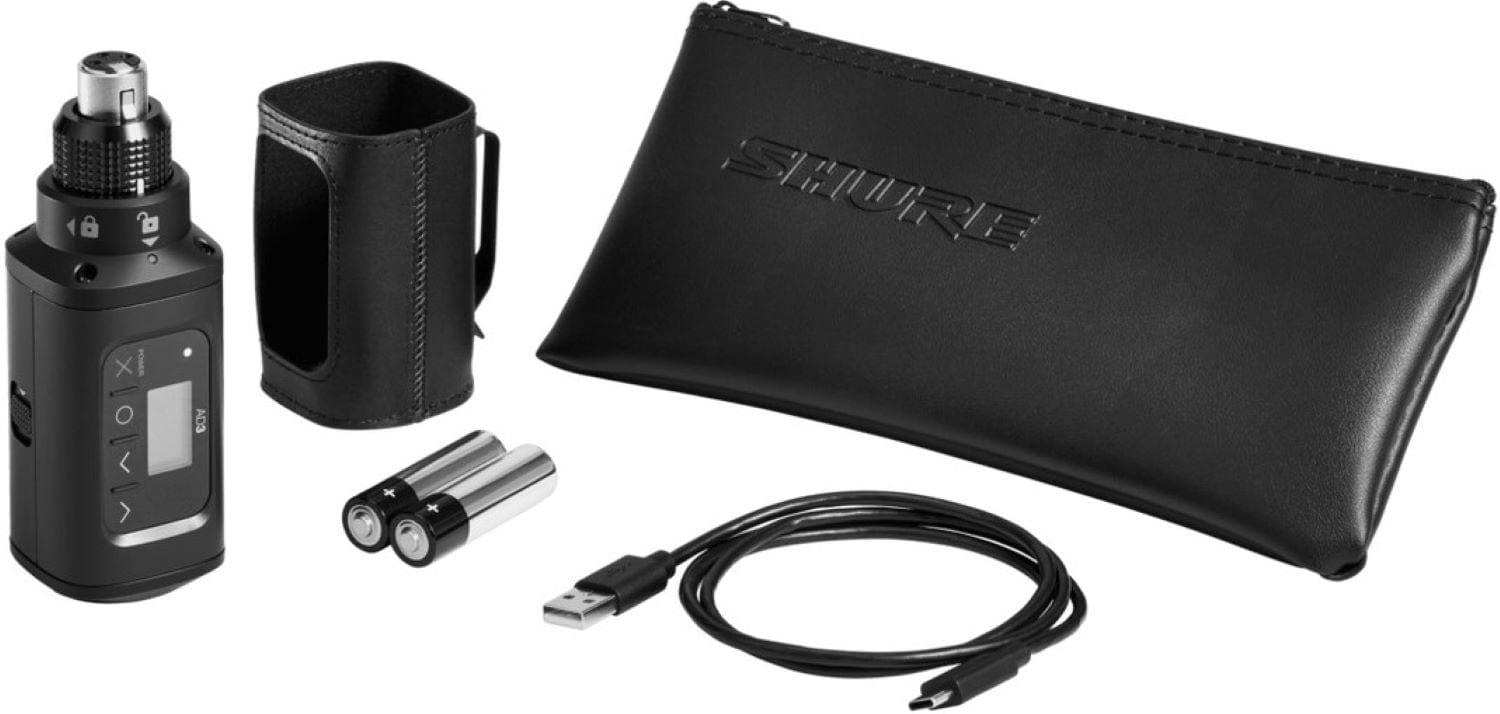

Specifications:
- Transmitter:
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Battery Type:
- Packaging Info:
