Product details
Overview

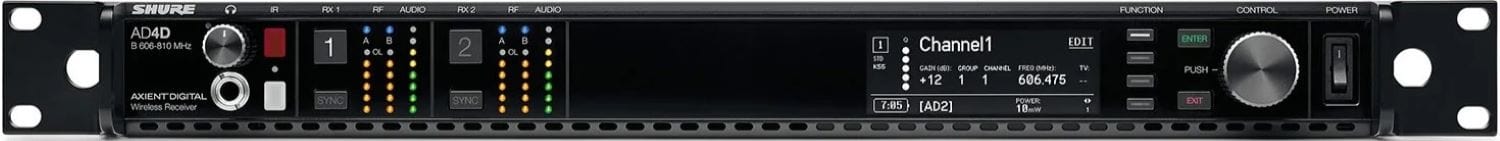

Shure Axient AD4D-DC Two-Channel Digital Wireless Receiver - C Band

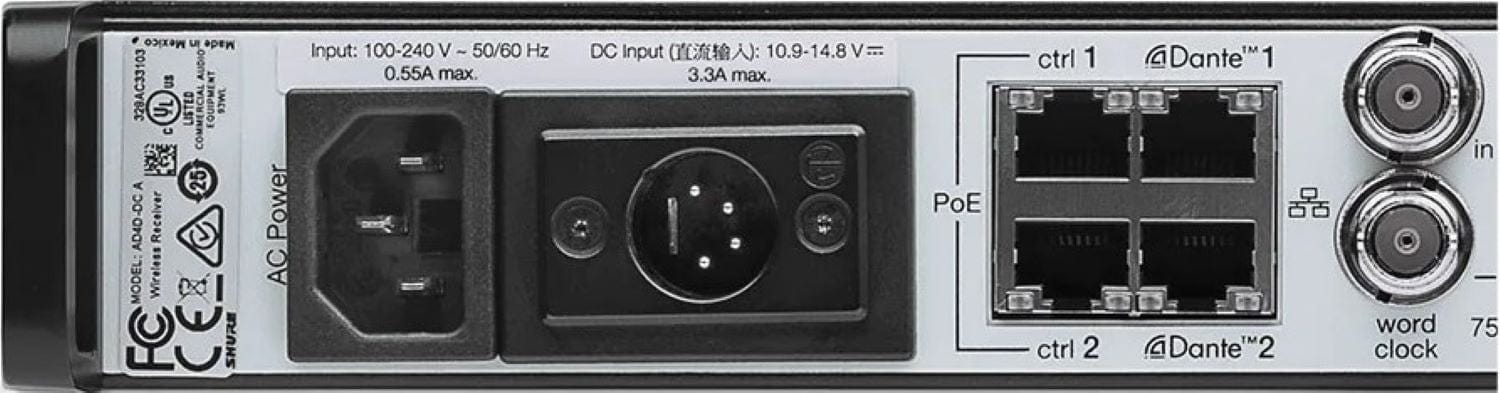

The Shure AD4D-DC is a 2-channel wireless receiver with a built-in DC power module, complete with cable and mounting accessories. The unit accepts DC power for use in broadcast production trucks, as well as AC for power redundancy.
Part of the Axient Digital system, the AD4D-DC delivers mission-critical signal stability and clear, transparent sound for professional productions that demand flawless execution. Every feature has been stress-tested to enable seamless, uninterrupted audio in high-profile applications such as televised live performances, award shows and corporate events, the Broadway stage, secure government installations, and state-of-the-art meeting and training facilities.
Why this product
Key Benefits
-
For Major Events, High-End Installations
-
DC Power Module
-
2 x Digital Audio Channels, 1 Rackspace
-
166 MHz Ultrawide Tuning Range
-
Expandable to 120+ Channels
-
True Digital Diversity Reception
-
4 x Ethernet/Dante Ports
-
XLR and AES3 Outputs
-
RF Cascade Ports
-
Secure AES-256 Encryption
Technical details
Technical Specifications
Microphone
- Gain Range
- -18 to +42 dB (1 dB Steps)
- Pad
- 30 dB
- Frequency Response
- 20 Hz to 20 kHz ±1 dB (Dependent on Mic)
Wireless
- Number of RF Channel Frequencies
- 6640
- Diversity
- True Digital Diversity
- RF Frequency Band
- C: 750 to 960 MHz
- RF Bandwidth
- 166 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 328.1' / 100 m
- Max Transmitters per Band
- 120
- Latency
- 2 to 2.9 ms (Selectable)
- Modulation
- Proprietary
- Receiver Type
- Rackmount
- Antenna
- 2 x 1/2 Wave External, BNC (Rear-Mount)
- Approximate RF Sensitivity
- -98 dBm
- Adjacent Channel Isolation
- >70 dB
Connectivity
- Number of Audio Channels
- 2
- XLR Outputs
- +18 dBV (Line Level)
- XLR Outputs
- -12 dBV (Mic Level)
- 1/4" Outputs
- +8 dBV
- Network I/O
- 4 x RJ45 (1 Gb/s)
- Network Protocols
- DHCP, Dante, Manual IP
- USB/Lightning Connectivity
- None
- Standalone Audio Interface Capable
- No
- Impedance
- XLR Outputs: 100 Ohms (Balanced)
Power
- Antenna Bias Voltage
- 12 to 13 VDC, 150 mA (per Antenna)
- Power Requirements
- AC Input, DC Input
- AC/DC Power Adapter
- 10.9 to 14.8 VDC at 3.3 A (Included)
- DC Input Power
- 10.9 to 14.8 VDC at 3.3A
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz at 0.68 A
Physical
- Mounting Options
- Rackmount (with Included Hardware)
- Display & Indicators
- 1 x Backlit LCD (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Sync)
- Housing
- Steel
- Dimensions
- 19 x 1.7 x 13.1" / 483 x 44 x 333 mm (without Mounting Hardware, Antennas)
- Weight
- 10.1 lb / 4.6 kg (without Antenna)
Environmental
- Operating Temperature
- 0 to 122°F / -18 to 50°C
- Storage Temperature
- -20 to 149°F / -29 to 65°C
Shipping & Packaging
- Package Weight
- 14.685 lb
- Box Dimensions (LxWxH)
- 22.9 x 17.6 x 3.2"
General
- Timecode Support
- No
- Yes
- Android & iOS
- App Name
- ShurePlus Channels
- Functionality
- Remote Control
- Rackmount Size
- 1 RU (Full Rack)
- Spurious
- Rejection: >80 dB
More details
Additional Information
Specifications:
- Mobile App Compatible:
- OS Compatibility:
- Windows 10 or Later
- macOS 10.14 or Later

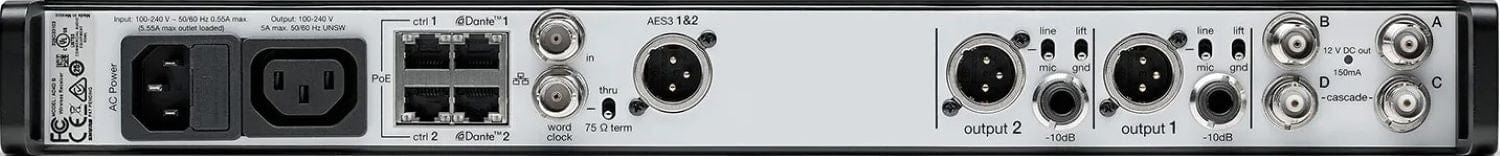

- Receiver:
- Audio I/O:
- 2 x XLR 3-Pin Male Balanced Output
- 1 x XLR (AES3) 3-Pin Male Balanced Output
- 2 x 1/4" TRS Female Balanced Output
- 1 x 1/4" TRS Female Unbalanced Headphone Output
- Audio Output Level:
- Word Clock I/O:
- 1 x BNC Input
- 1 x BNC Through
- Audio I/O:
- Packaging Info:
