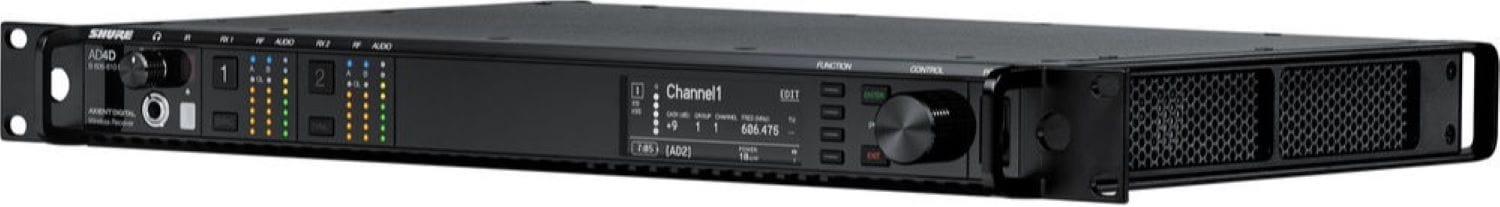

Shure Axient AD4DNP Two-Channel Digital Wireless Receiver - B Band
Model AD4DNP-B
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure Axient AD4DNP Two-Channel Digital Wireless Receiver - B Band
The AD4D Axient Digital Dual Receiver sets a new standard in transparent digital audio and maximum spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control and signal routing options bring a new level of management and flexibility to your entire workflow. Compatible with all Axient Digital transmitters.
Why this product
Key Benefits
-
Wide tuning range up to 184MHz
-
True digital diversity reception per channel for drop-out resistance
-
Networked control with Wireless Workbench® and ShurePlus™ Channels app
-

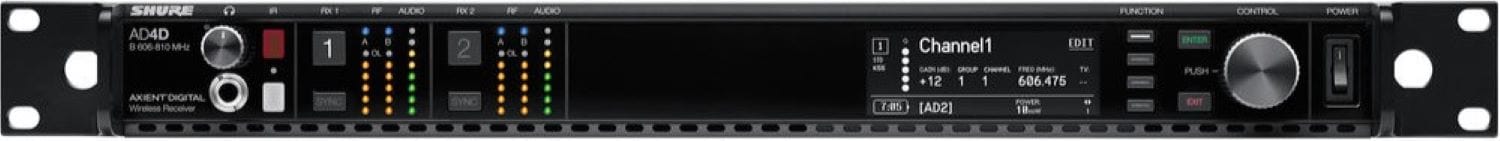

Front panel headphone jack enables Dante Cue and Dante Browse monitoring
-
Configurable Ethernet switch for redundant Dante digital output
-
AES3 output
-
Channel Quality meter displays RF signal-to-noise
-
Locking AC connectors
-
Optional DC module available to support redundant power
Technical details
Technical Specifications
Microphone
- Gain Adjustment Range
- –18 to +42 dB in 1 dB steps (plus Mute setting)
- Insertion Loss
- 0 dB, typical
Wireless
- RF Carrier Frequency Range
- B: 606–810 MHz

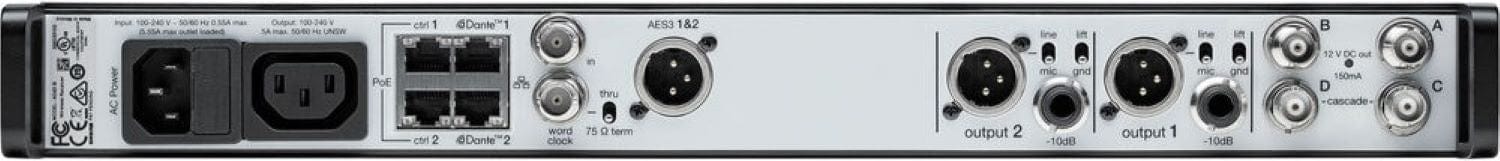

Connectivity
- XLR
- Transformer-coupled Balanced (1=ground, 2=audio +, 3=audio -)
- Impedance (Typical, XLR Line out)
- 100Ω
- XLR
- LINE setting= +18 dBV, MIC setting= –12 dBV
- Network Interface
- 10/100 Mbps, 1 Gbps, Dante Digital Audio
- Network Addressing Capability
- DHCP or Manual IP address
- Maximum Ethernet Cable Length
- 100 m (328 ft)
- Connector Type
- BNC
- Impedance
- 50 Ω
Power
- Power Requirements
- 100 to 240 V AC, 50–60 Hz; 0.26 A max.
- Phantom Power Protection
- Yes
- Bias Voltage
- 12–13.5 V DC, 150 mA maximum, per antenna, switchable on/off
Physical
- Dimensions
- 44 mm × 483 mm × 333 mm (1.7 in. × 19.0 in. × 13.1 in.), H × W × D
- Weight
- 4.6 kg (10.1 lbs), without antennas
- Housing
- Steel; Extruded aluminum
General
- Maximum
- 23 W (78 BTU/hr)
- Idle
- 15 W (52 BTU/hr)
- 1/4" (6.35 mm)
- Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground)
- 1/4" (6.35 mm)
- +8 dBV
- Mic/Line Switch
- 30 dB pad
- Configuration
- Unbalanced, passive
- Spurious Rejection
- >80 dB, typical
More details
Additional Information
Specifications:
- Thermal Dissipation:
- Audio Output:
- Configuration:
- Full Scale Output (200 kΩ load):
- Configuration:
- Networking:
- Cascade output:
- RF Input:
