Shure Axient AD4D Two-Channel Digital Wireless Receiver Package
Model TZ-PCK-AD4D
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

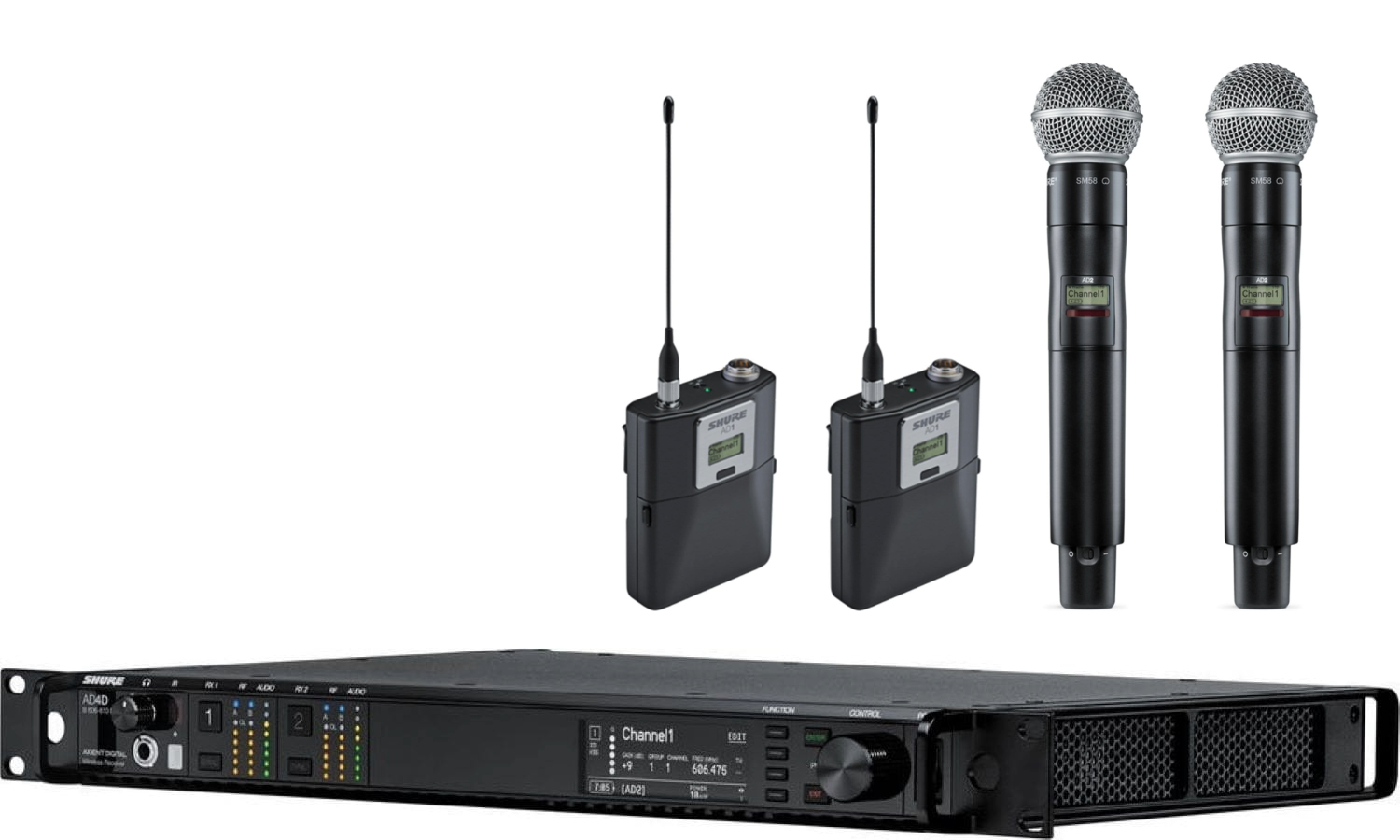

Shure Axient AD4D Two-Channel Digital Wireless Receiver Package
Available from Mid-September 2026
Package include:
- 1x AD4D Dual Digital Receiver 470-626MHz

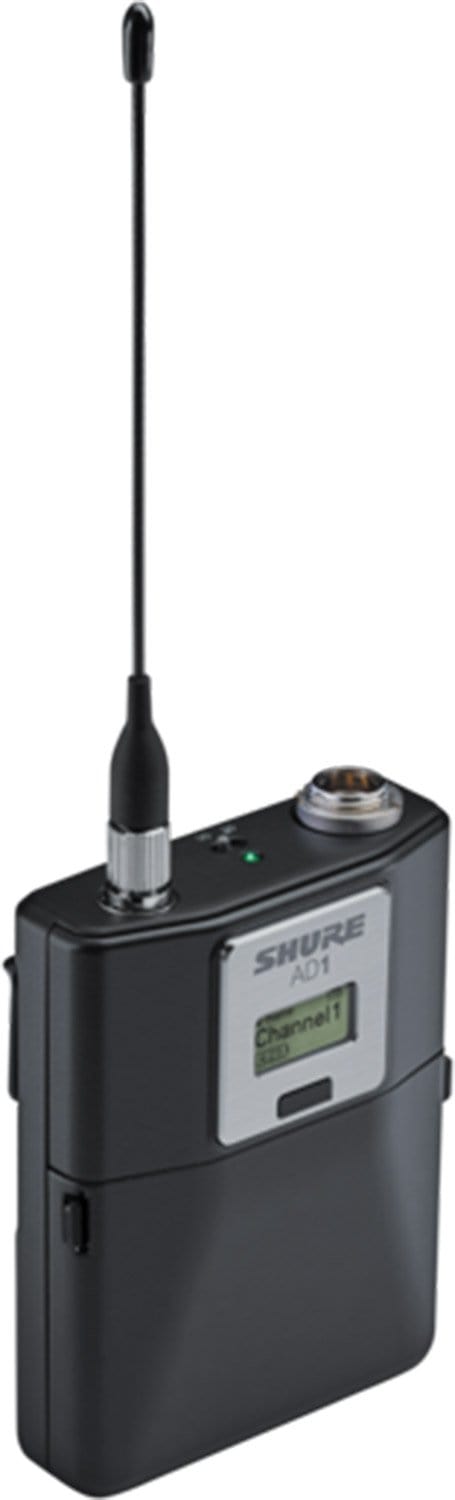

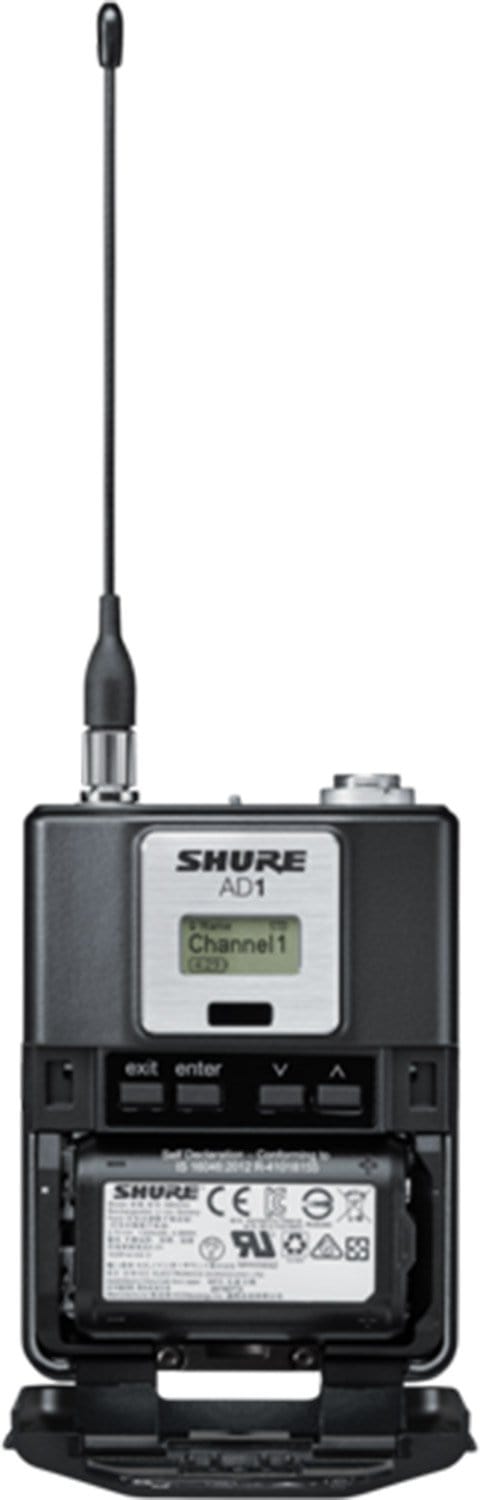

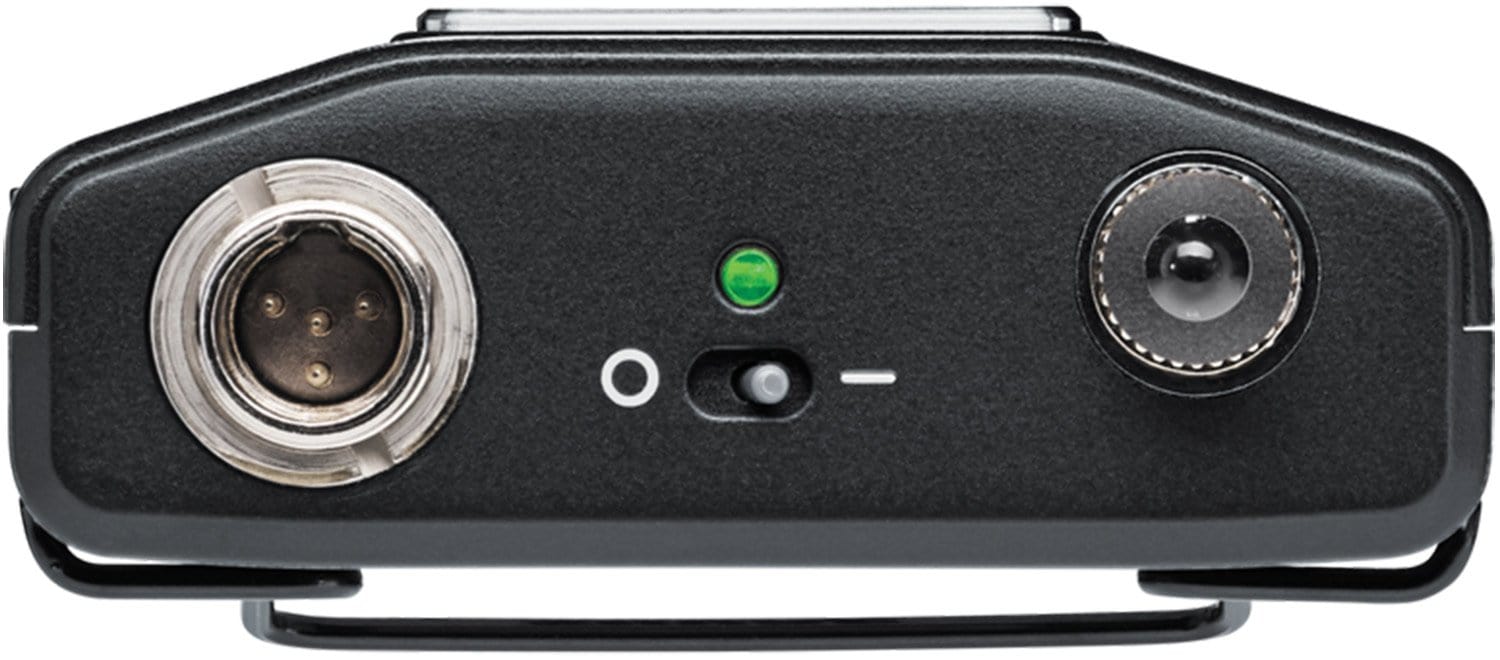

- 2x AD1G57 Digital Beltpack Transmitter G57 470-616MHz

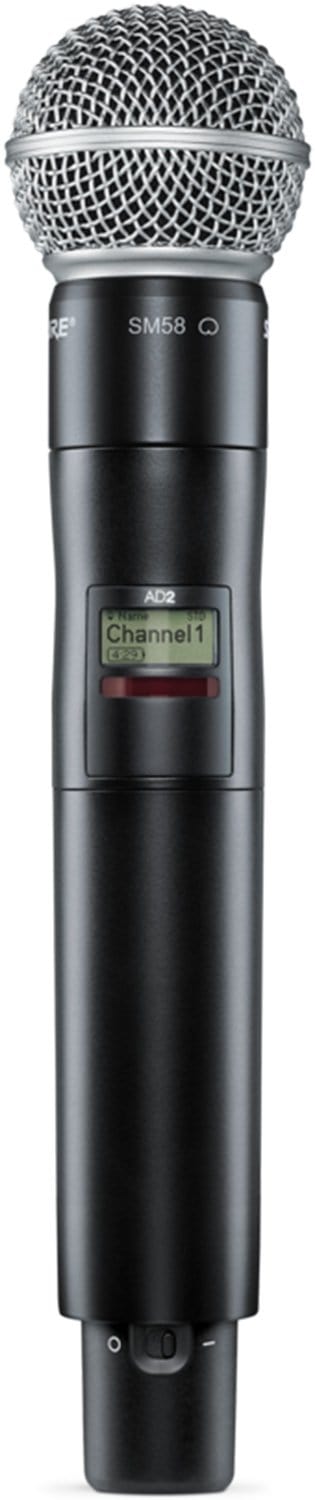

- 2x AD2G57 Digital Handheld Transmitter G57 470-626MHz

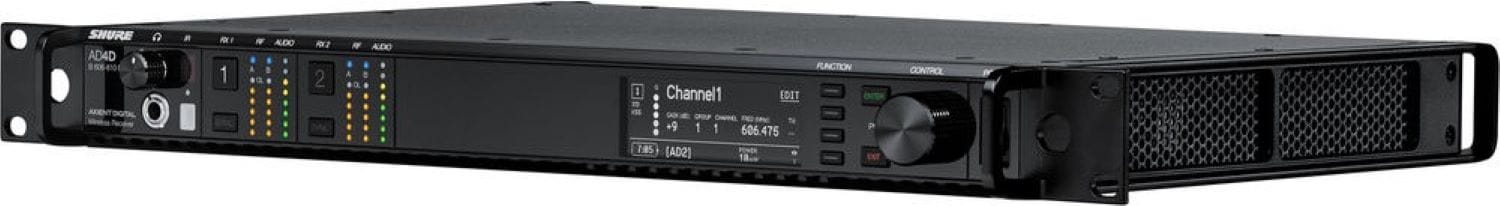

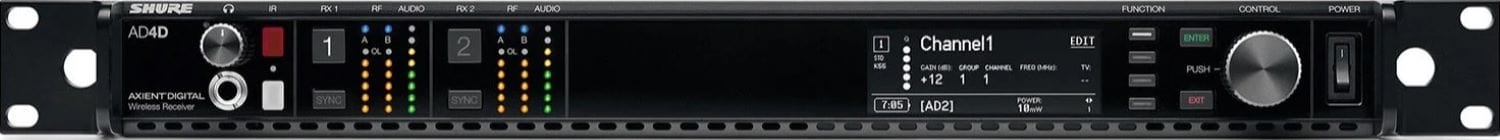

The Shure AD4D-US is a 2-channel wireless receiver housed in a rugged, single-rack unit complete with cable and mounting accessories. Part of the Axient Digital system, it delivers mission-critical signal stability and clear, transparent sound for professional productions that demand flawless execution.
Every feature has been stress-tested to enable seamless, uninterrupted audio in high-profile applications such as televised live performances, award shows and corporate events, the Broadway stage, secure government installations, and state-of-the-art meeting and training facilities.
The AD4D-US operates in a single 166-MHz ultrawide bandwidth that encompasses the entire usable UHF range from 470 to 626 MHz. It offers low 2ms latency, XLR/AES3 + AES67/Dante outputs, and 256-bit encryption. The Dante Cue and Dante Browse features enable high-fidelity headphone monitoring from any connected Dante-enabled device.
In standard mode, Axient Digital supports over 120 simultaneous channels. For high channel counts, HD mode allows up to 47 active transmitters per 6 MHz TV channel. The receiver is compatible with AD1, ADX1, ADX1M, AD2, ADX2, and ADX2FD transmitters.
Why this product
Key Benefits
-
2 x Digital Audio Channels, 1 Rackspace
-
166 MHz Ultrawide Tuning Range
-
Expandable to 120+ Channels
-
True Digital Diversity Reception
-
4 x Ethernet/Dante Ports
-
XLR and AES3 Outputs
-
RF Cascade Ports
-
Secure AES-256 Encryption
Technical details
Technical Specifications
Microphone
- Gain Range
- -18 to +42 dB (1 dB Steps)
- Pad
- 30 dB
- Frequency Response
- 20 Hz to 20 kHz ±1 dB (Dependent on Mic)
Wireless
- Number of RF Channel Frequencies
- 6640
- Diversity
- True Digital Diversity
- RF Frequency
- 470 to 626 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 328.1' / 100 m
- Max Transmitters per Band
- 120
- Latency
- 2 to 2.9 ms (Selectable)
- Modulation
- Proprietary
- Receiver Type
- Rackmount
- Antenna
- 2 x 1/2 Wave External, BNC (Rear-Mount)
- Approximate RF Sensitivity
- -98 dBm
- Adjacent Channel Isolation
- >70 dB
Connectivity
- Number of Audio Channels
- 2
- XLR Outputs
- +18 dBV (Line Level)
- XLR Outputs
- -12 dBV (Mic Level)
- 1/4" Outputs
- +8 dBV
- Network I/O
- 4 x RJ45 (1 Gb/s)
- Network Protocols
- DHCP, Dante, Manual IP
- Standalone Audio Interface Capable
- No
- Impedance
- XLR Outputs: 100 Ohms (Balanced)
Power
- Antenna Bias Voltage
- 12 to 13 VDC, 150 mA (per Antenna)
- Power Requirements
- AC Input
- DC Input Power
- 10.9 to 14.8 VDC at 3.3A
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz at 0.68 A
Physical
- Mounting Options
- Rackmount (with Included Hardware)
- Display & Indicators
- 1 x Backlit LCD (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Sync)
- Housing
- Steel
- Dimensions
- 19 x 1.7 x 13.1" / 483 x 44 x 333 mm (without Mounting Hardware, Antennas)
- Weight
- 10.1 lb / 4.6 kg (without Antenna)
Environmental
- Operating Temperature
- 0 to 122°F / -18 to 50°C
- Storage Temperature
- -20 to 149°F / -29 to 65°C
General
- Timecode Support
- No
- Yes
- Android & iOS
- App Name
- ShurePlus
- Functionality
- Remote Control
- Rackmount Size
- 1 RU (Full Rack)
- Spurious
- Rejection: >80 dB
More details
Additional Information
Specifications:
- Mobile App Compatible:
- OS Compatibility:
- Windows
- macOS
- Receiver:

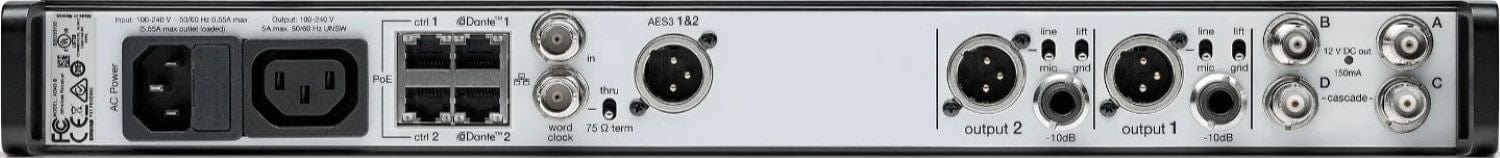

- Audio I/O:
- 2 x XLR 3-Pin Male Balanced Output
- 1 x XLR (AES3) 3-Pin Male Balanced Output
- 2 x 1/4" TRS Female Balanced Output
- 1 x 1/4" TRS Female Balanced Headphone Output
- Audio Output Level:
- Word Clock I/O:
- 1 x BNC Input
- 1 x BNC Through
- Audio I/O:
