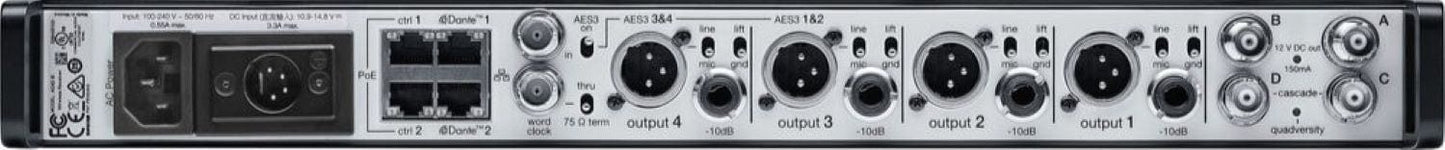

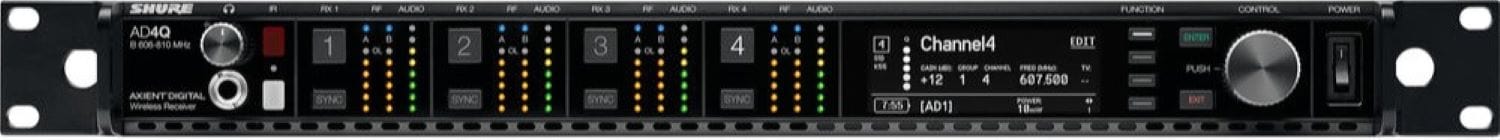

Shure Axient AD4Q-DC Four-Channel Digital Wireless Receiver - C Band
Model AD4Q-DC-C
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure Axient AD4Q-DC Four-Channel Digital Wireless Receiver - C Band
The AD4Q Axient Digital Quad Receiver sets a new standard in transparent digital audio and maximum spectral efficiency. Groundbreaking performance features include wide tuning, low latency, High Density (HD) mode, and Quadversity™, ensuring solid performance in the most challenging RF environments. Networked control, AES3 + AES67 + Dante™ and signal routing options bring a new level of management and flexibility to your entire workflow. Compatible with all Axient Digital transmitters.
Why this product
Key Benefits
-

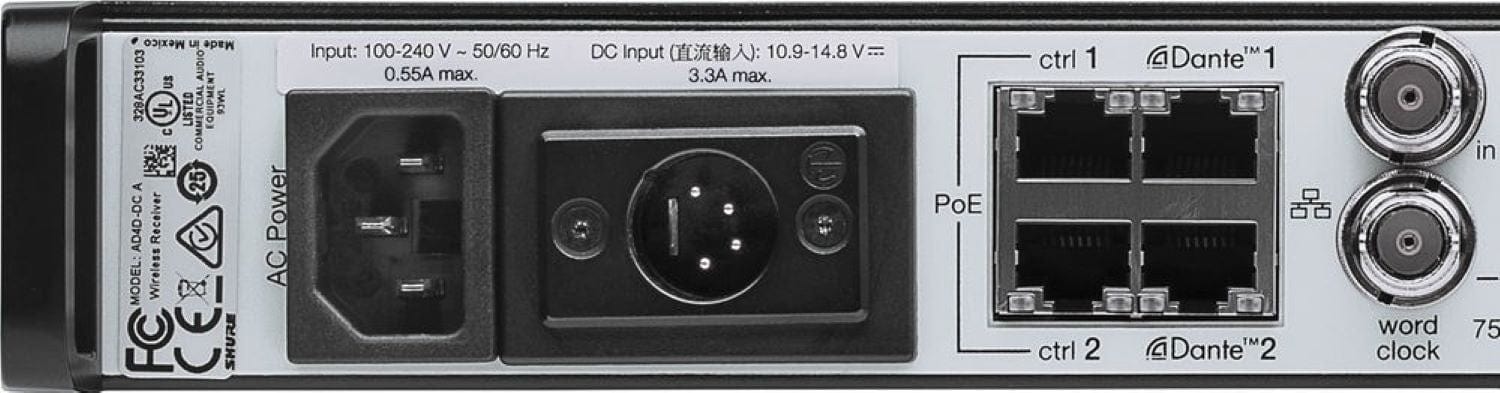

DC Power Module supports backup power sources and remote operation
-
Wide tuning range up to 184MHz
-
True digital diversity reception per channel for drop-out resistance
-
Networked control with Wireless Workbench® and ShurePlus™ Channels app
-
Quadversity™ mode for extended antenna coverage and improved RF signal-to-noise
-
Front panel headphone jack enables Dante Cue and Dante Browse monitoring
-
Configurable Ethernet switch for redundant Dante digital output
-
Switchable XLR/AES3 outputs
-
Channel Quality meter displays RF signal-to-noise
-
Locking AC connectors
-
Optional DC module available to support redundant power
Technical details
Technical Specifications
Microphone
- Gain Adjustment Range
- –18 to +42 dB in 1 dB steps (plus Mute setting)
- Insertion Loss
- 0 dB, typical
Wireless
- RF Carrier Frequency Range
- C: 750 to 960 MHz
Connectivity
- XLR
- Transformer-Coupled Balanced (1=ground, 2=audio +, 3=audio –)
- XLR (LINE setting)
- +18 dBV
- XLR (MIC setting)
- –12 dBV
- Network Interface
- 10/100 Mbps, 1 Gbps, Dante Digital Audio
- Network Addressing Capability
- DHCP or Manual IP address
- Maximum Cable Length
- 100 m (328 ft)
- Connector Type
- BNC
- Impedance
- 50 Ω
Power
- DC Input Voltage Range
- 10.9–14.8 V DC
- Maximum DC Input Current
- 4.0 A
- Phantom Power Protection
- Yes
- Bias Voltage
- 12-13.5 VDC, 150 mA maximum, per antenna, switchable on/off
Physical
- Weight
- 10.6 lb (4.8 kg) without antennas
- Housing
- Steel; extruded aluminum
General
- Maximum
- 23 W (78 BTU/hr)
- Idle
- 15 W (6)
- Protection Modes
- Overvoltage, Undervoltage, Reverse Polarity
- Pin 1
- Negative; Pin 2: No Connection
- Pin 3
- No Connection; Pin 4: Positive
- 1/4" (6.35 mm)
- Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground)
- 1/4" (6.35 mm)
- +8 dBV
- Mic/Line Switch
- 30 dB pad
- Configuration
- Unbalanced, passive
- Spurious Rejection
- >80 dB, typical
More details
Additional Information
Specifications:
- Dimensions (H × W × D):
- 1.7 × 19.0 × 13.1 in
- (44 × 483 × 333 mm)
- Power Requirements:
- 100 to 240 VAC, 50–60 Hz
- 0.68 A max
- Thermal Dissipation:
- 4-Pin XLR:
- Audio Output:
- Configuration:
- Impedance (Typical, XLR Line Out) 100 Ω
- Full Scale Output (200 kΩ load):
- Configuration:
- Networking:
- Cascade Output:
- RF Input:
