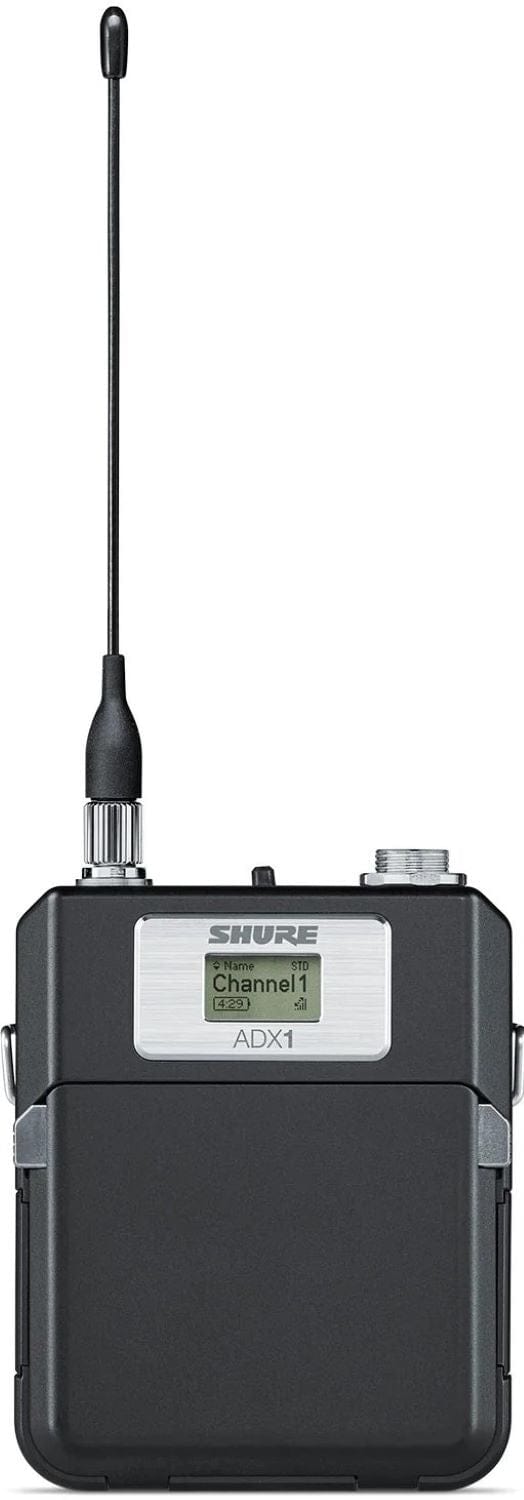

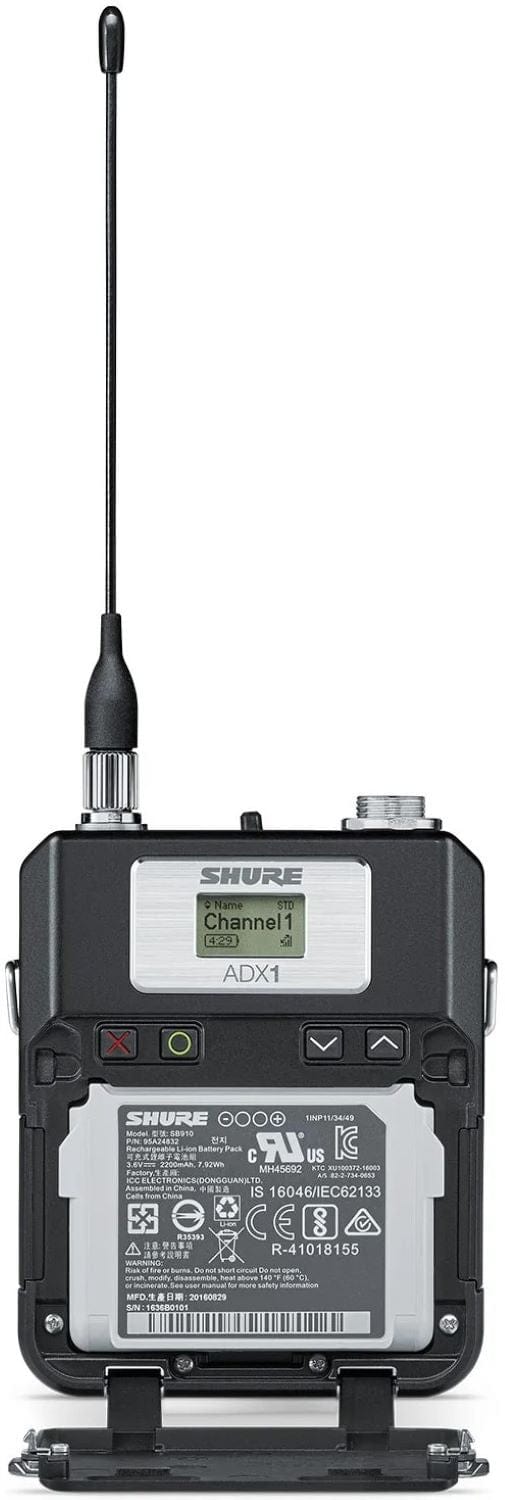

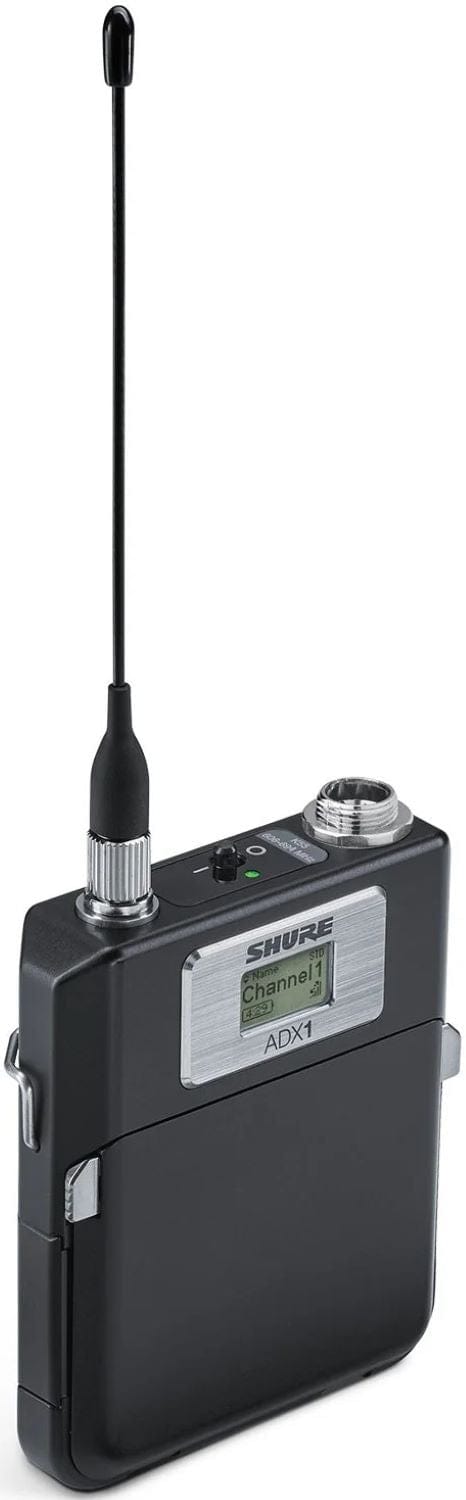

Shure ADX1 Bodypack Transmitter
Model ADX1-G57
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure ADX1 Bodypack Transmitter
ADX1, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink® remote control for real-time parameter adjustments right from the booth.
Why this product
Key Benefits
-
Removable antenna and fully concealed buttons and switch
-

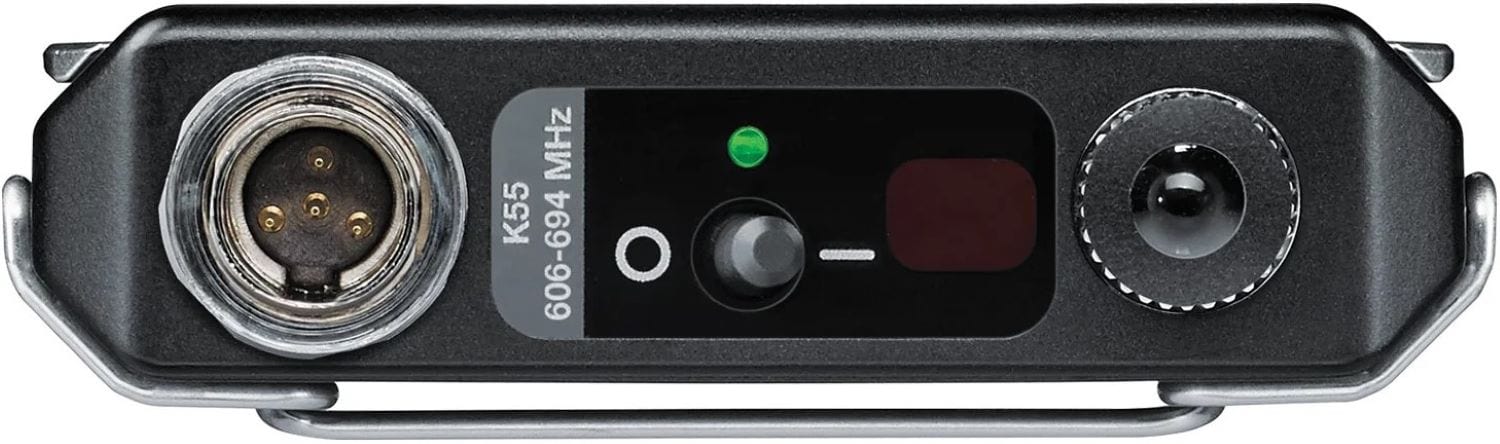

Two connector options: TA4 and LEMO3
-
Advanced control menu with powerful features
-
Durable, moisture-resistant*, lightweight metal case
-
Up to 10 hours of runtime with SB910 rechargeable batteries
-
Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
-
External contacts for docked charging
-
Two transmission modes
:
-
Standard for optimal coverage
-
New High Density for maximum system channel count and robust coverage
-
Encryption-enabled, secure transmission
Technical details
Technical Specifications
Microphone
- Gain Offset Range
- –12 to 21 dB (in 1 dB steps)
- Pad Off
- 8.5 dBV (7.5 Vpp)
- Pad On
- 20.5 dBV (30 Vpp)
Wireless
- Antenna Type
- UHF 1/4 Wave
- Occupied Bandwidth
- <200 kHz
- Modulation Type
- Shure Axient Digital Proprietary
- Specific Absorption Rate (SAR)
- <0.20 W/kg
- Antenna Type
- ZigBee Dual Conformal
- Frequency Range
- 2.40 to 2.4835 GHz (24 Channels)
- RF Output Power Varies By Region
- 10 dBm (ERP)
- Frequency Band
- 470 to 616 Mhz
Battery
- Battery Type
- SB910 Rechargeable Lithium-Ion
Connectivity
- Connector
- SMA
- Impedance
- 50 Ω
- Network Type
- IEEE 802.15.4
Power
- Power
- 2 mW, 10 mW, 20 mW, 40 mW
Physical
- Weight
- 5.0 oz (142 g) without batteries
- Housing
- Aluminum
General
- Configuration
- Unbalanced
- TA4M
- 910 kΩ
- LEMO3
- 8.2 kΩ
More details
Additional Information
Specifications:
- Battery Run Time (@10 mW): up to 10 hours
- Dimensions (H × W × D):
- 3.6 × 2.7 × 0.8 in
- (91 × 68 × 19 mm)
- Audio Input:
- Connector:
- 4-Pin male mini connector (TA4M)
- LEMO3 Connector
- Impedance:
- Maximum Input Level (1 kHz at 1% THD):
- Preamplifier Equivalent (Input Noise (EIN)) System Gain Setting ≥20: –120 dBV A-weighted, typical
- RF Output:
- Showlink®:
- Available Models:
- ADX1-TQG:
- Axient Digital Showlink® -Enabled
- Bodypack Transmitter, TA4M Connector
- ADX1-TQG:
