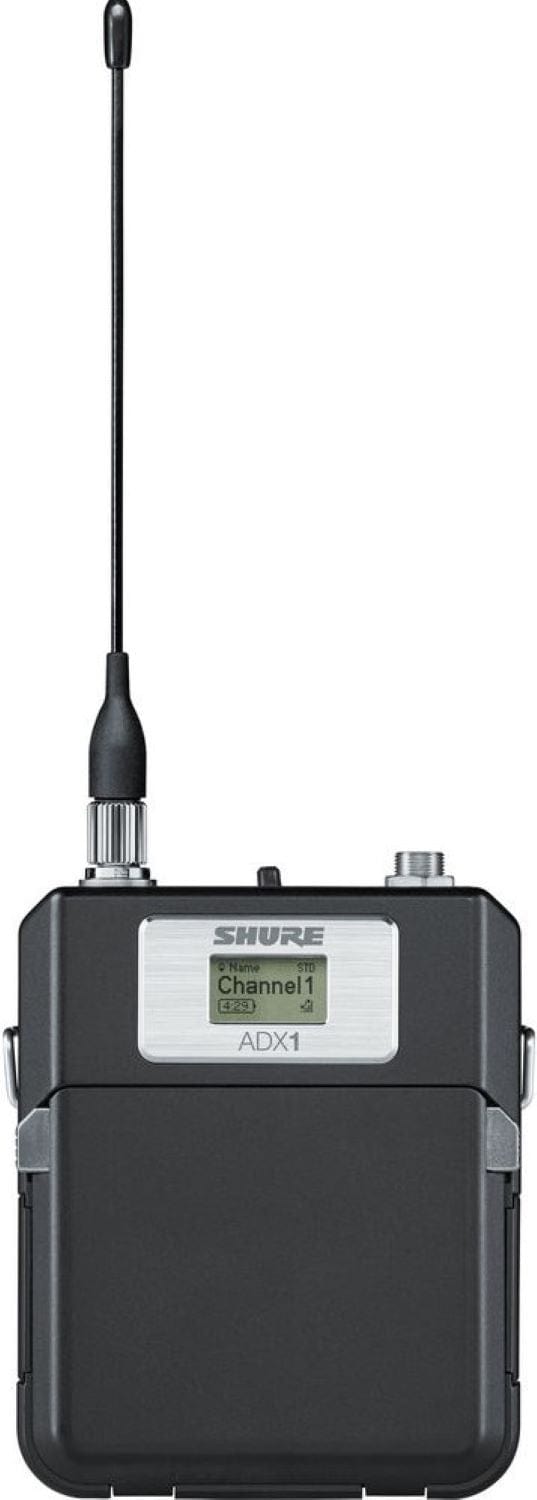

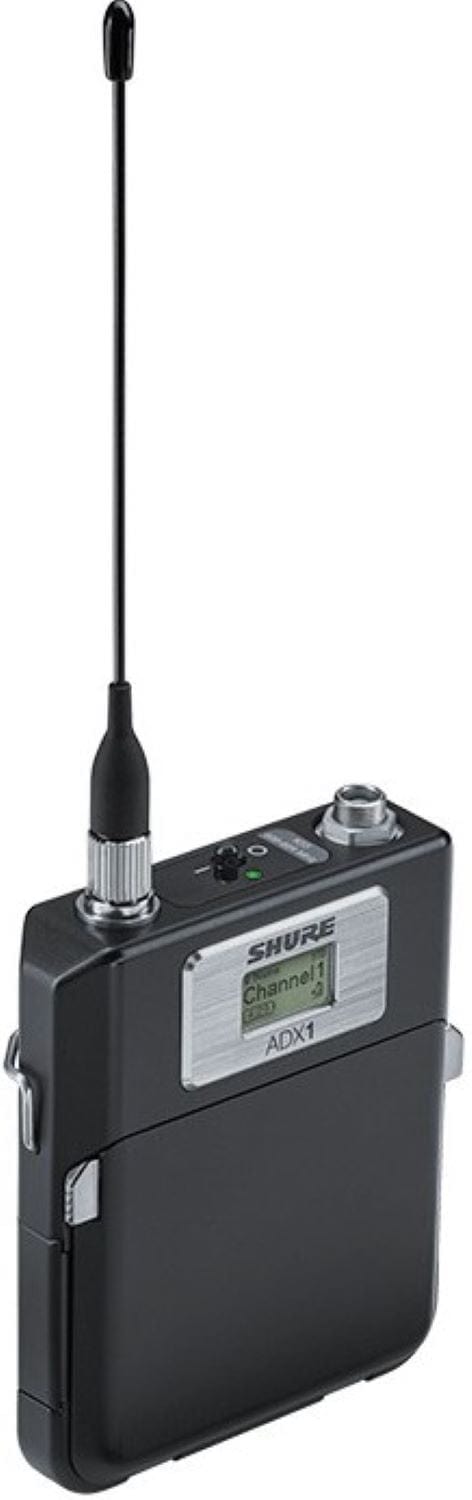

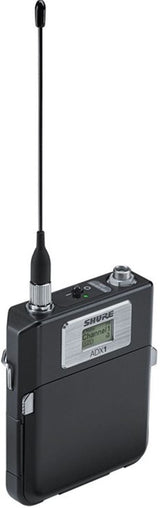

Shure Axient ADX1LEMO3 Bodypack Transmitter - G57 Band
Model ADX1LEMO3-G57
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure Axient ADX1LEMO3 Bodypack Transmitter - G57 Band
ADX1, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink® remote control for real-time parameter adjustments right from the booth.
Why this product
Key Benefits
-
Removable antenna and fully concealed buttons and switch
-

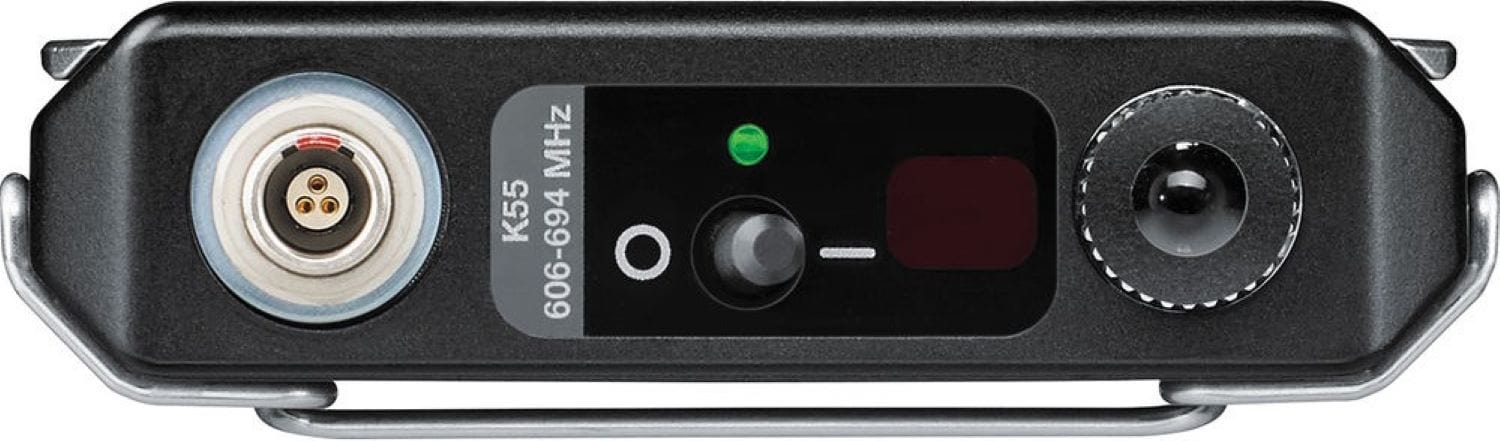

Two connector options: TA4 and LEMO3
-
Advanced control menu with powerful features
-
Durable, moisture-resistant*, lightweight metal case
-
Up to 10 hours of runtime with SB910 rechargeable batteries
-
Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
-
External contacts for docked charging
-
Two transmission modes
:
-
Standard for optimal coverage
-
New High Density for maximum system channel count and robust coverage
-
Encryption-enabled, secure transmission
Technical details
Technical Specifications
Microphone
- Gain Offset Range
- –12 to 21 dB (in 1 dB steps)
- Pad Off
- 8.5 dBV (7.5 Vpp)
- Pad On
- 20.5 dBV (30 Vpp)
Wireless
- Antenna Type
- UHF 1/4 Wave
- Occupied Bandwidth
- <200 kHz
- Modulation Type
- Shure Axient Digital Proprietary
- Specific Absorption Rate (SAR)
- <0.20 W/kg
- Antenna Type
- ZigBee Dual Conformal
- Frequency Range
- 2.40 to 2.4835 GHz (24 Channels)
- RF Output Power Varies By Region
- 10 dBm (ERP)
- Frequency Band
- 470 to 636 Mhz
Battery
- Battery Type
- SB910 Rechargeable Lithium-Ion
Connectivity
- Connector
- SMA
- Impedance
- 50 Ω
- Network Type
- IEEE 802.15.4
Power
- Power
- 2 mW, 10 mW, 20 mW, 40 mW
Physical
- Weight
- 5.0 oz (142 g) without batteries
- Housing
- Aluminum
General
- Configuration
- Unbalanced
- TA4M
- 910 kΩ
- LEMO3
- 8.2 kΩ
More details
Additional Information
Specifications:
- Battery Run Time (@10 mW): up to 10 hours
- Dimensions (H × W × D):
- 3.6 × 2.7 × 0.8 in
- (91 × 68 × 19 mm)
- Audio Input:
- Connector:
- 4-Pin male mini connector (TA4M)
- LEMO3 Connector
- Impedance:
- Maximum Input Level (1 kHz at 1% THD):
- Preamplifier Equivalent (Input Noise (EIN)) System Gain Setting ≥20: –120 dBV A-weighted, typical
- RF Output:
- Showlink®:
- Available Models:
- AD1-LEMO3:
- Axient Digital Showlink® -Enabled
- Bodypack Transmitter, LEMO3 Connector
- AD1-LEMO3:
