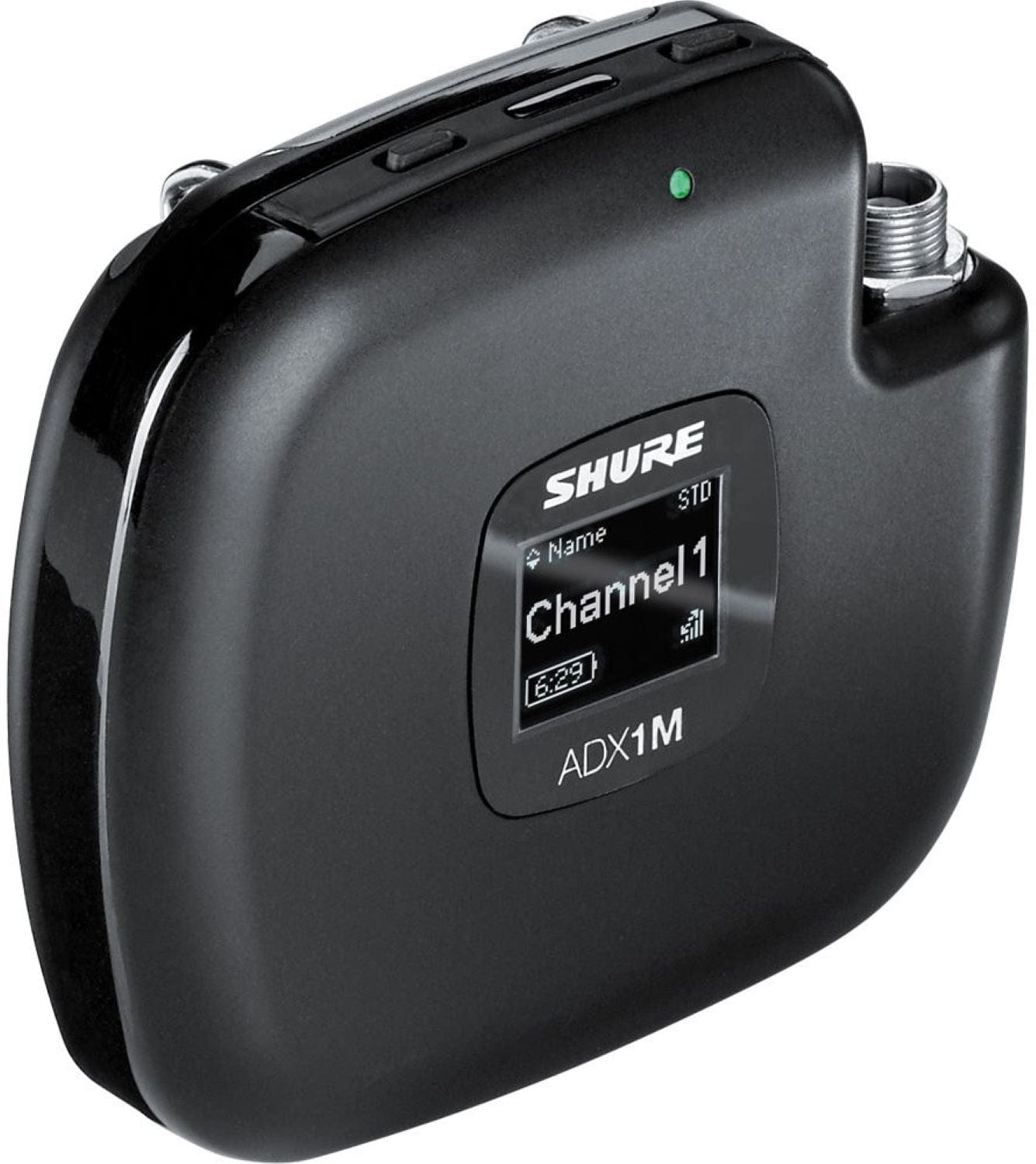

Shure ADX1M Micro Bodypack Transmitter
Model ADX1M-G57
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure ADX1M Micro Bodypack Transmitter
ADX1M delivers impeccable audio quality and RF performance, and is equipped with ShowLink® remote control for real-time parameter adjustments and interference avoidance. The contoured form factor and lightweight PEI construction offer both comfort and heat resistance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeabilty. Membrane switches and LEMO connector protect against moisture, while the OLED display provides excellent visibility in low-light environments.
Why this product
Key Benefits
-
Small and streamlined design for better concealment and wear (68mm × 60mm × 18mm)
-
High-contrast OLED display
-
Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
-
Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
-
Ultem® PEI construction for heat resistance and durability
-
Recessed LEMO connector
-
Sealed buttons and LEMO connection for protection against sweat and moisture ingress
-
Two transmission modes
:
-
Standard for optimal coverage
-
New High Density for maximum system channel count and robust coverage
-
Encryption-enabled, secure transmission
-
Up to 7 hours of runtime with SB910M rechargeable batteries
-
Detachable belt clip
Technical details
Technical Specifications
Microphone
- Gain Offset Range
- –12 to 21 dB (in 1 dB steps)
- Maximum Input Level 1 kHz at 1% THD
- Pad Off: 8.5 dBV (7.5 Vpp)
Wireless
- Antenna Type
- Integrated Helical
- Occupied Bandwidth
- <200 kHz
- Modulation Type
- Shure Axient Digital Proprietary
- Specific Absorption Rate (SAR)
- <0.24 W/kg
- Frequency Band
- 470 to 616 Mhz
Battery
- Battery Type
- Shure SB910M Rechargeable Li-Ion
Connectivity
- Connector
- LEMO3 Connector
- Impedance
- 8.2 kΩ
- Impedance
- 50 Ω
Power
- Power
- 2 mW, 10 mW, 20 mW
Physical
- Weight
- 2.4 oz (68 g) without battery
- Housing
- Ultem® (PEI)
General
- Configuration
- Unbalanced
More details
Additional Information
Specifications:
- Battery Run Time @10 mW: up to 7 hours
- Dimensions (H × W × D):
- 2.4 × 2.7 × 0.7 in
- (60.4 × 68.0 × 18.0 mm)
- Audio Input:
- Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥20: –120 dBV A-weighted, typical
- RF Output:
- Available Model:
- Axient Digital Showlink® -Enabled
- Micro Bodypack Transmitter, LEMO3 Connector
