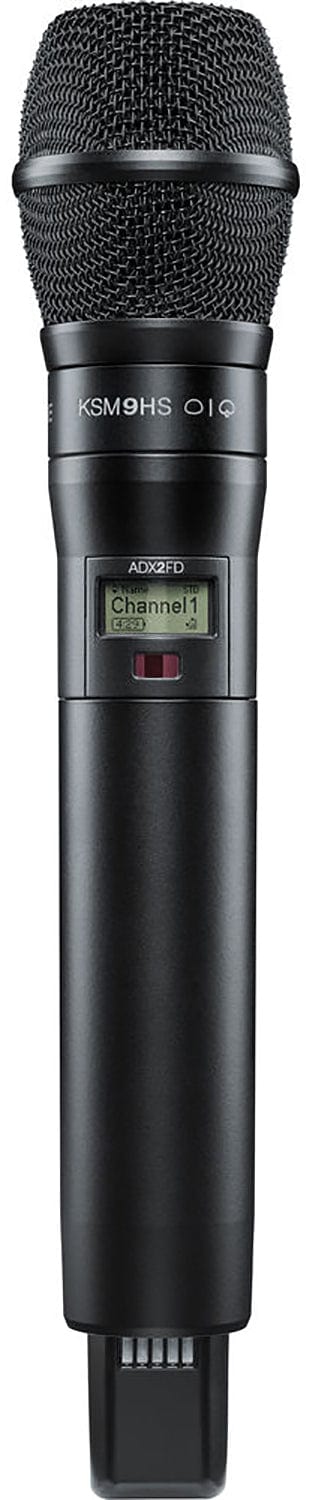

Shure Axient ADX2FD/K9HSN Handheld Wireless Microphone Transmitter - G57 Band
Model ADX2FD-K9HSN-G57
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure Axient ADX2FD/K9HSN Handheld Wireless Microphone Transmitter - G57 Band
ADX2FD, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
Why this product
Key Benefits
-
Ability to transmit RF signal on two discrete carriers
-
Optional 50 mW High Power mode for driving increased power on a single frequency
-
Durable, moisture-resistant, lightweight metal case
-
Available in black or nickel finish
-
Up to 6.5 hours of runtime with SB920A rechargeable batteries when transmitting on two RF carriers, Up to 9 hours of battery life when transmitting on a single RF carrier
-
External contacts for docked charging with optional fully-covered radome
-
Diversity ShowLink® enabled for remote transmitter control and automatic interference avoidance
-
Two transmission modes
:
-
Standard for optimal coverage
-
New High Density for maximum system channel count and robust coverage
-
Encryption-enabled, secure transmission
Technical details
Technical Specifications
Microphone
- Gain Offset Range
- –12 to 21 dB (in 1 dB steps)
- Maximum Input Level (1 kHz at 1% THD)
- 145 dB SPL, typical (SM58)
Wireless
- Single-Carrier Mode
- up to 9 hours
- Frequency Diversity
- up to 6.5 hours
- Occupied Bandwidth
- <200 kHz
- Standard Mode
- 350 kHz
- High-Density Mode
- 125 kHz
- Modulation Type
- Shure Axient Digital Proprietary
- Single Carrier Mode
- 2 mW, 10 mW, 20 mW, 50 mW
- Frequency Diversity Mode
- 2 × 20 mW
- Specific Absorption Rate (SAR)
- <0.21 W/kg
- Antenna Type
- ZigBee Dual Conformal
- Frequency Range
- 2.40 to 2.4835 GHz (24 Channels)
- RF Output Power Varies By Region
- 10 dBm (ERP)
- Frequency Band
- 470 to 616 Mhz
Battery
- Battery Type
- SB920A Rechargeable Lithium-Ion
Connectivity
- Network Type
- IEEE 802.15.4
Physical
- Dimensions (L × Dia.)
- 10.0 × 2.0 in (254 × 51 mm)
- Weight
- 11.9 oz (338 g) without batteries
- Housing
- Cast Aluminum
General
- Configuration
- Unbalanced
More details
Additional Information
Specifications:
- Battery Run Time (@10 mW):
- Audio Input:
- RF Output:
- Integrated Dual-Band Helical
- Channel-to-Channel Spacing:
- Power:
- ShowLink®:
