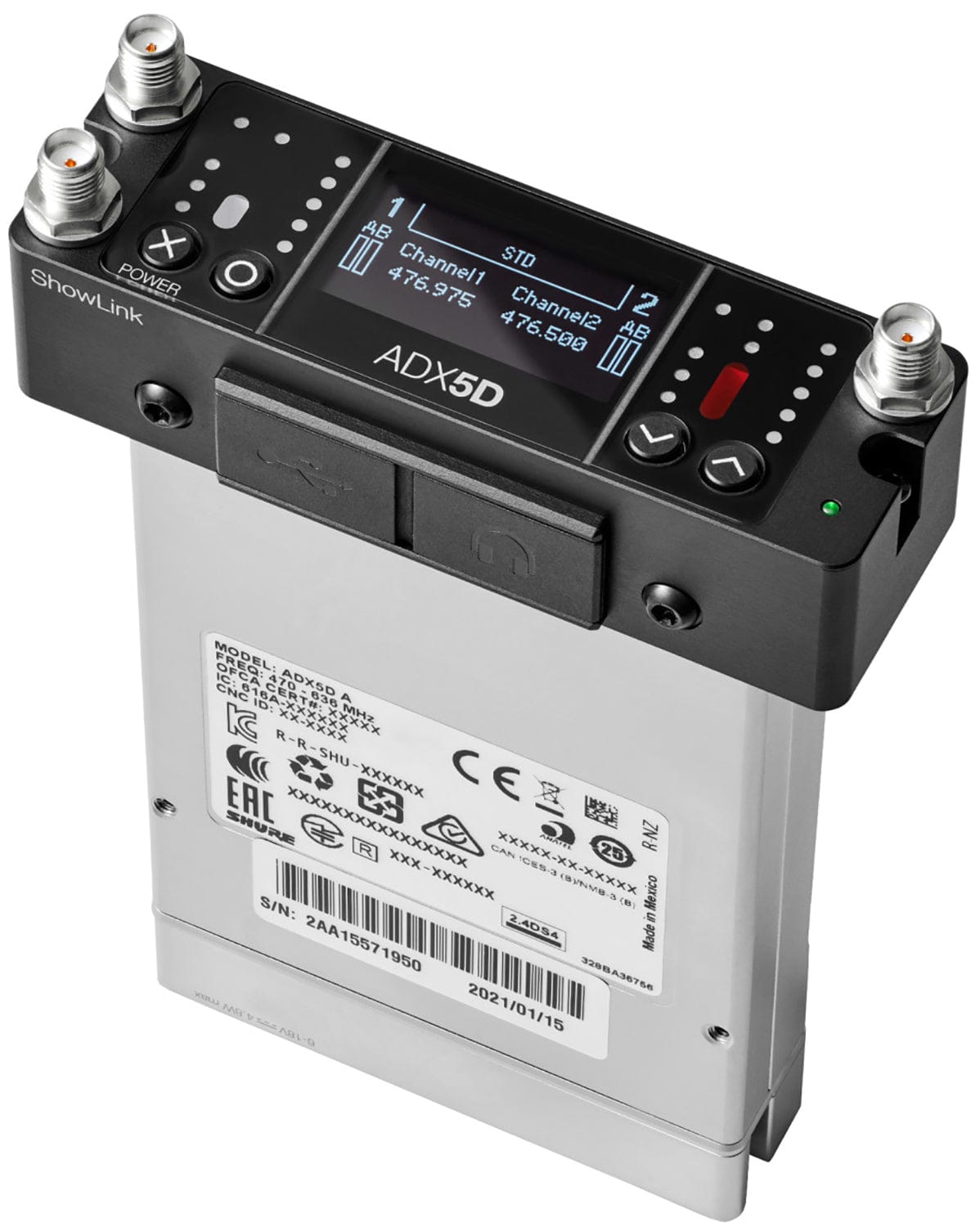

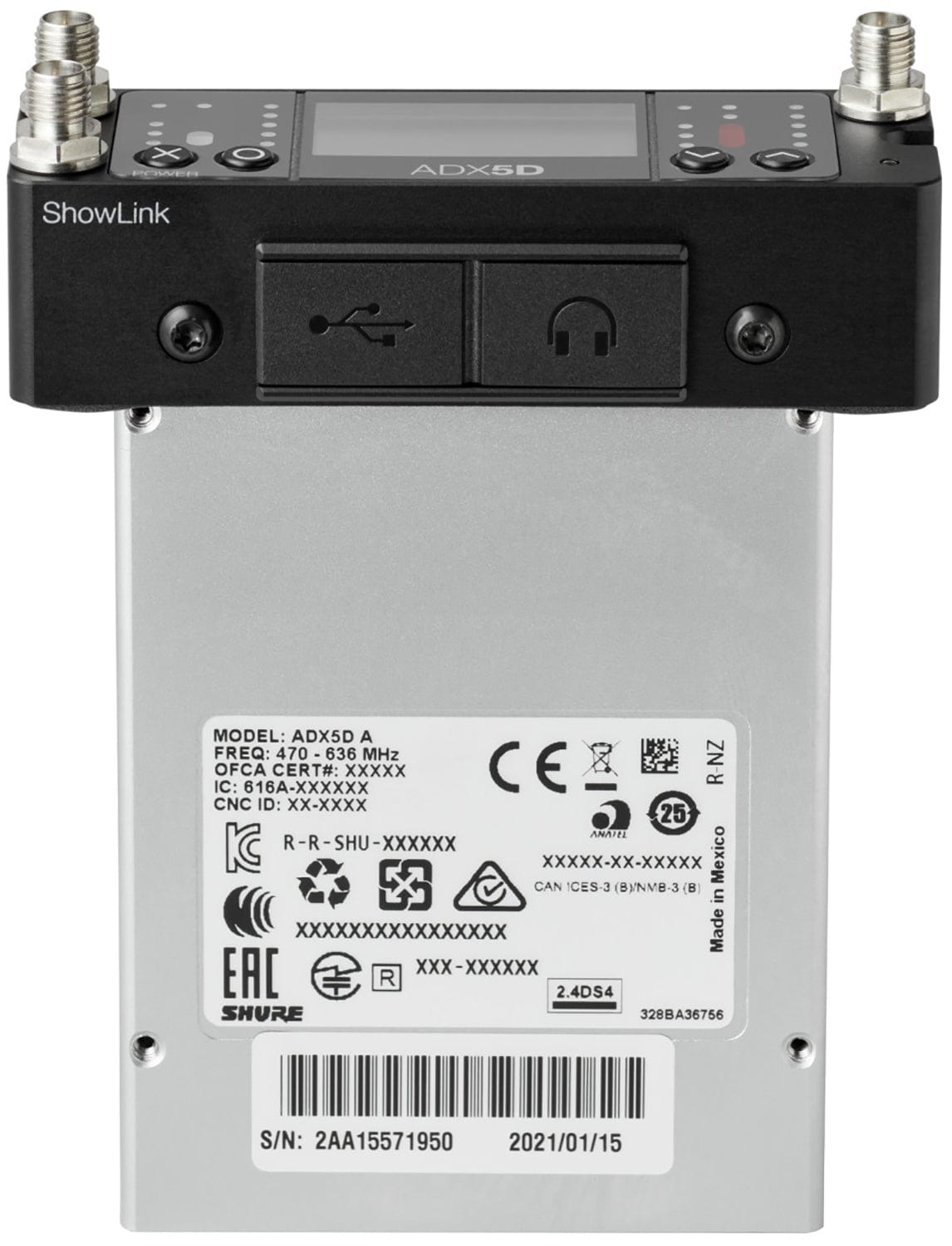

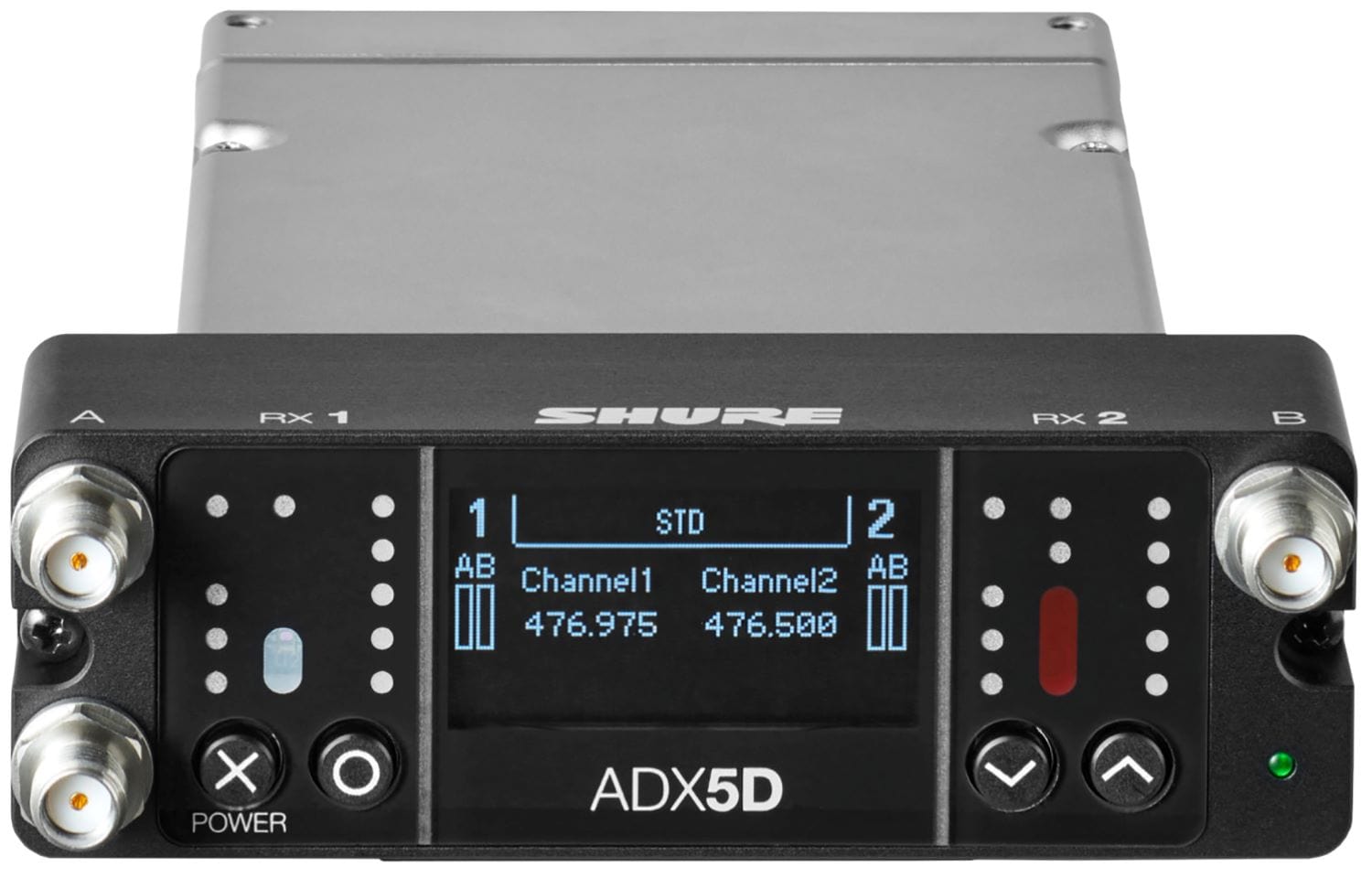

Shure Axient ADX5DUS Digital Dual-Channel Portable Wireless Receiver - A Band
Model ADX5DUS-A
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure Axient ADX5DUS Digital Dual-Channel Portable Wireless Receiver - A Band
The Axient® Digital ADX5D dual-channel wireless receiver delivers superior RF performance, spectral efficiency, and transparent audio quality in a portable, slot-in form. As an Axient Digital ADX Series wireless receiver, the ADX5D features ShowLink® Direct Mode that allows remote control of Axient Digital transmitters without the need of external equipment.* Robust RF. Impeccable audio. Axient Digital quality and performance. All in a portable, slot-in design.
Why this product
Key Benefits
-
Dual-channel slot-in form wireless receiver
-
Wide tuning range up to 184 MHz (region dependent)
-
High spectral efficiency due to advanced digital modulation scheme offers more wireless channels in available RF space
-
High Density (HD) mode provides even higher spectral efficiency (application dependent)
-
True digital diversity reception per channel for drop-out resistance and excellent range
-
Impeccable audio quality
-
Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
-
5-segment Channel Quality meters displays per-channel RF link quality
-
ADX series receiver with ShowLink Direct Mode allows remote control of Axient Digital transmitters without the need of external equipment
-
Aux 3.5mm audio output provide connection to headphones or to a balanced line level input
-
Three backplate connector options to suit various applications and connector types (sold separately)
-
Accessory Mount with cold shoe adapter (sold separately)
-

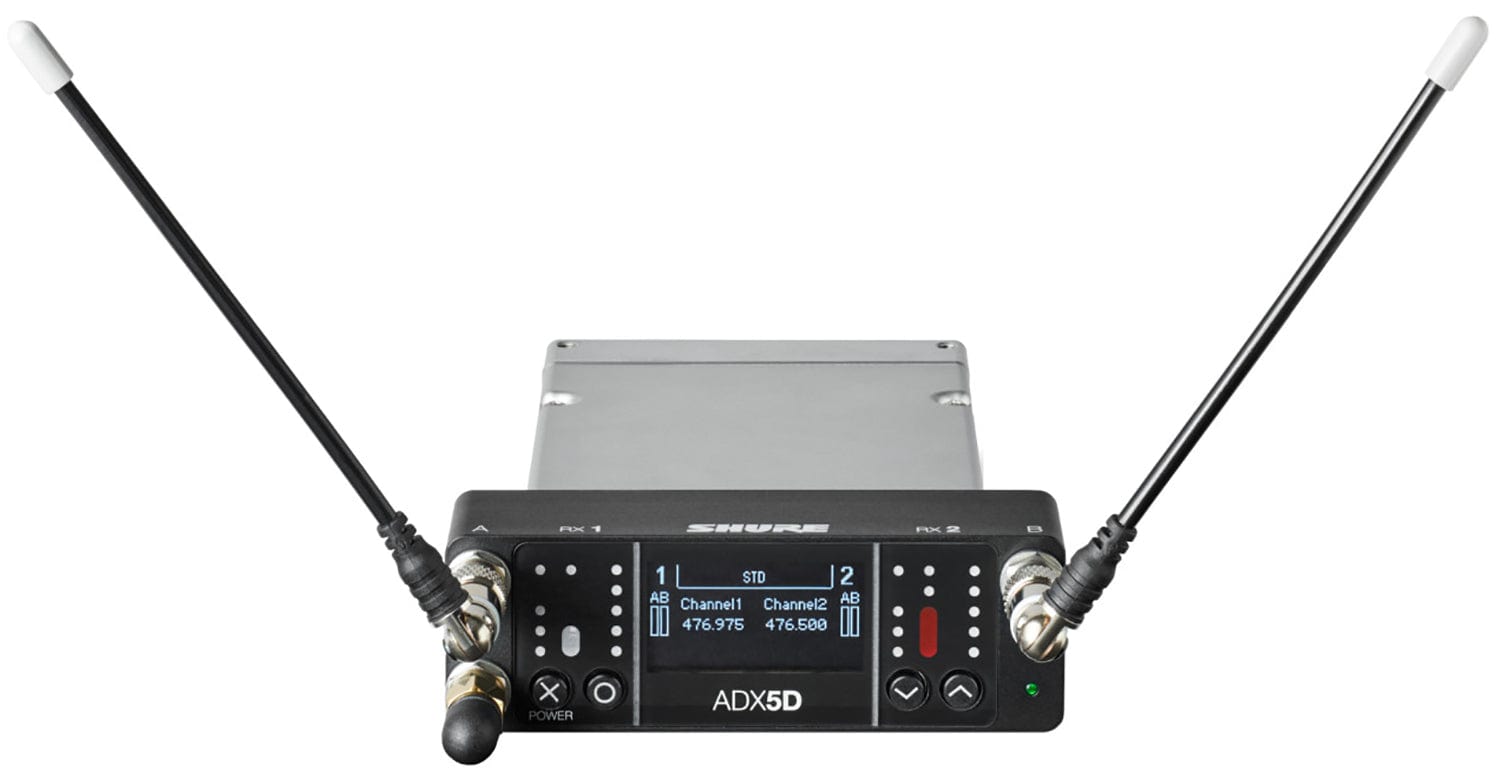

Removable antennas with standard SMA connectors
-
High-resolution OLED display
-
USB-C port for firmware upgrades
-
Streamline user interface
-
Low latency, down to 2 milliseconds
Technical details
Technical Specifications
Microphone
- Gain Adjustment Range
- -18 to +42 dB, in 1 dB steps
- Audio Frequency Response
- 20 Hz to 20 kHz
- Dynamic Range
- 129 dB
Wireless
- Frequency Band
- 470–636 MHz
- Frequency Range
- 2.40 to 2.4835 GHz (16 Channels)
- Working Range
- 100 ft (30 m)
- ShowLink® Antenna Power
- 2.5 dBm EIRP
- Antenna Type
- 1 Omni 2.4 GHz
Connectivity
- Connector Type
- SMA (Shell=Ground, Center=Signal)
- Impedance
- 50 Ω
- Impedance
- 66 Ω
- Full Scale Output
- +9 dBV, 200 kΩ load
- System Audio Polarity
- Positive pressure on diaphragm produces positive voltage on Audio + with respect to Audio -
- Connector Type
- USB-C
- USB Protocol
- USB 2.0
- USB Role
- Peripheral (upstream-facing port)
- USB Power Delivery
- None
- Network Type
- IEEE 801.15.4
Power
- Phantom Power Protection
- Yes, 3.5 mm output does not have Phantom Power Protection
- DC Power Requirements
- 6 to 18 VDC
Physical
- Dimensions (H × W × D)
- 1.1 × 3.4 × 4.25 in (29 × 88 × 108 mm)
- Weight
- 0.53 lbs (0.24 kg)
- Housing
- Machined Aluminum
General
- SD Mode
- 246 ft (75 m)
- HD Mode
- 131 ft (40 m)
- Spurious Rejection
- >80 dB
- Total Harmonic Distortion
- 0.0006% at -6 dBFS, 1 kHz
- SD Mode
- 2.08 ms
- HD Mode
- 2.96 ms
- Max
- 4.8 W (78 BTU/hr)
- Nominal
- 4.2 W (51 BTU/hr)
- MIn
- 2.3 W (X BTU/hr)
More details
Additional Information
Specifications:
- UHF:
- Working Range:
-
- RF Sensitivity -90 dBm @ 105 BER
- Audio Output:
- Analog Output Latency:
- Analog Output Latency:
- USB Input:
- Power:
- Thermal Power Dissipation:
- Thermal Power Dissipation:
- Mechanical:
- SHOWLINK®:
