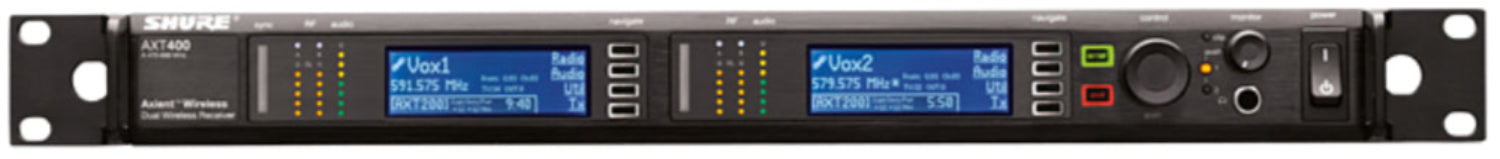

Shure AXT400 Dual Channel Receiver

Interference Detection and Avoidance

During operation, the AXT400 receiver can detect the presence of an interfering analog or digital signal. When a potential interference source is detected, a warning message is displayed along with options for changing frequency. When used with the AXT600 Spectrum Manager, the receiver can switch to a ‘backup’ frequency deployed by the Spectrum Manager, either manually or automatically. The Spectrum Manager constantly monitors a compatible frequency list to ensure the best available frequencies are used. With ShowLink™ Remote Control, the receiver and transmitter can execute a synchronized switch to a clear frequency, resolving the interference.

Frequency Diversity

Frequency Diversity provides seamless audio in environments where there is a risk of dropouts or interference by using transmission from a single audio source on two independent radio frequencies. In Frequency Diversity mode, the AXT400 Receiver continuously analyzes signal quality and uses both signals to provide optimized audio on a single channel. In the case of RF interference on one frequency the receiver automatically uses the other frequency, delivering clean, uninterrupted audio.

Wideband Tuning

Up to 228 MHz tuning bandwidth accommodates multiple transmitter bands, providing flexibility and simplifying receiver inventories. A single receiver can cover the entire US UHF TV band.

Networking

The AXT400 Receiver shares information with other system components via Ethernet, enabling advanced features such as remote control of transmitters and management using WWB 6 software. The receiver has two RJ45 Ethernet ports capable of 10/100 Mbps network speeds. The Ethernet ports are power over Ethernet (PoE) enabled, which can be used to supply power to a ShowLink Access Point. To verify the network is correctly configured, the list of network-ready devices can be identified using the Find All utility in the front panel menu.

Groups and Channels

The receiver includes a wide selection of frequency Groups which allow easy access to compatible Channels for multiple receivers. Channel Scan finds an open frequency within the current Group. Group Scan finds the open Channels in all Groups and allows easy programming of compatible frequencies to other AXT400 receivers over the network.

RF Cascade Ports

The cascade ports share RF signal with up to 5 receivers within the same frequency band. RF cascade allows antenna signal to be conveniently distributed for up to 10 channels without using splitters or distribution amplifiers.

Compatible Transmitters

The receiver is compatible with the following Shure transmitters:

• AXT100 Bodypack Transmitter
• AXT200 Frequency Diversity Handheld Transmitter
• UR1 Bodypack Transmitter
• UR1H Bodypack Transmitter
• UR1M Micro-Bodypack Transmitter
• UR2 Handheld Transmitter
• MW2 Handheld Transmitter
• MW3 Handheld Transmitter
