Shure B181C Cardioid Microphone Capsule for Beta 181
Model TZ-B181C
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

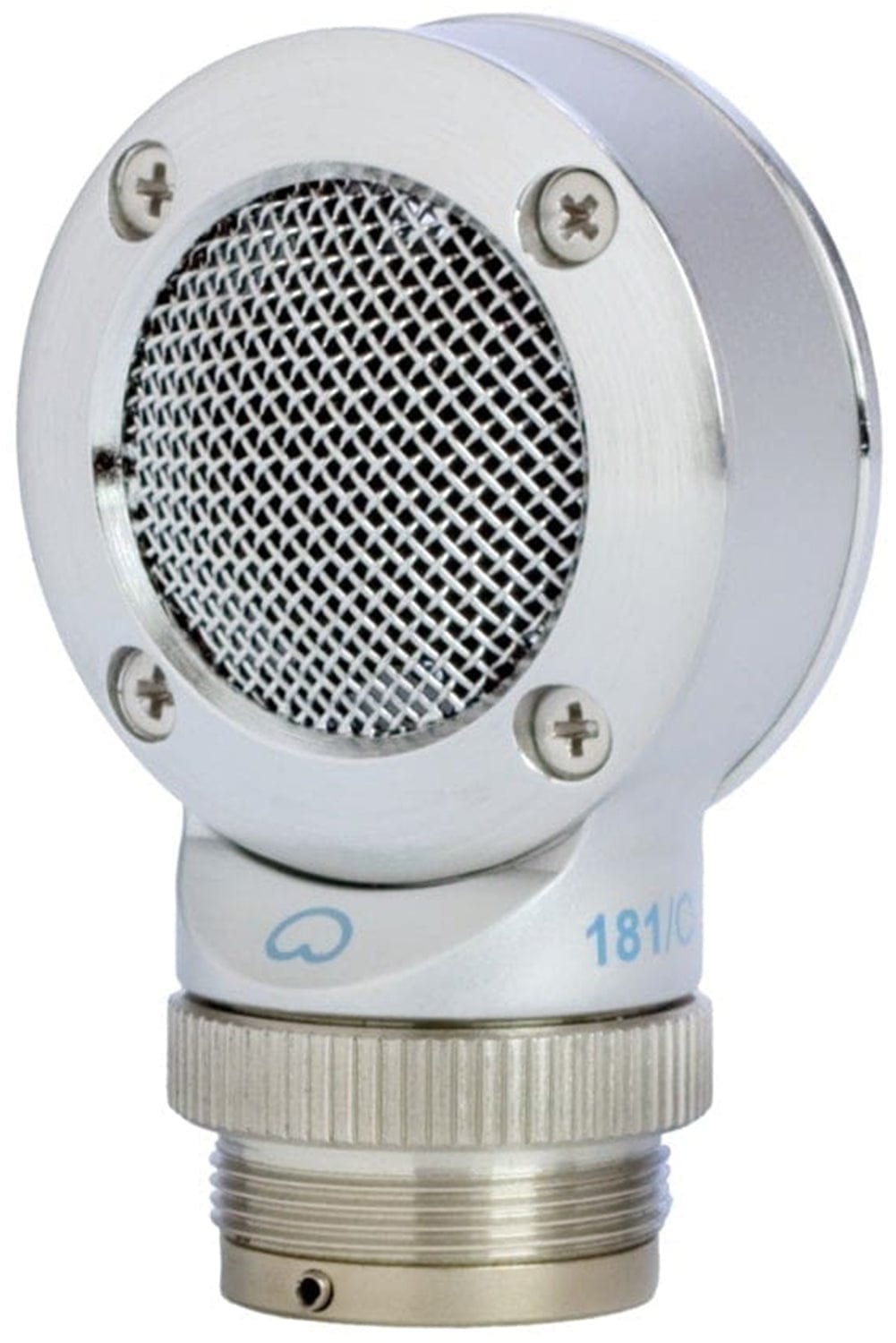

Shure B181C Cardioid Microphone Capsule for Beta 181
Cardioid capsule for Beta 181 microphone.
Cardioid capsule replaces the capsule for a Beta 181 microphone. The cardioid capsule is ideal for drum overhead, piano, acoustic instrument applications, and studio recording.
The Shure Beta 181 is an ultra-compact, small-diaphragm side-address condenser microphone, designed for discrete placement and control in live and studio environments. Featuring interchangeable cardioid, supercardioid, omnidirectional, and bidirectional capsule options for superior versatility, the small diaphragm design provides superior audio with consistent, textbook polar responses in a form factor small enough to get close to the source in the tightest conditions.
Why this product
Key Benefits
-
Interchangeable polar pattern capsules attach to a compact XLR preamplifier with integrated XLR connections for the ultimate in low-profile application flexibility (each Beta 181 ships with one polar pattern capsule and one XLR preamplifier)
-
Precision-engineered, compact side-address design features innovative locking ring to provide secure connection between capsule and preamplifier
-
Beta 181/C (cardioid) for drum overhead, piano, acoustic instrument applications
-
Frequency response tailored for wide dynamic range applications for use in high SPL environments
Technical details
Technical Specifications
Audio Performance
- Polar Pattern
- Cardioid
- Frequency Response
- 20 to 20,000 Hz
- Output Impedance
- 110 Ω
- Maximum SPL (1 kHz at 1% THD, 1kΩ load)
- 149.0 dB SPL
- Signal-to-Noise Ratio
- 73.5 dB
- Dynamic Range (at 1 kHz, 1 kΩ load)
- 128.5 dB
- Common Mode Rejection (20–20,000 Hz)
- ≥55 dB
- Polarity
- Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power
- Power Requirements
- 11–52 VDC phantom power (IEC-61938), 1.2 mA
General
- Cartridge Type
- Electret Condenser
More details
Additional Information
Specifications
- Clipping Level (1 kHz at 0.25% THD, 1kΩ load): 7.5 dBV (2.4 V)
- Self-Noise (equivalent SPL, A-weighted, typical): 20.5 dB
