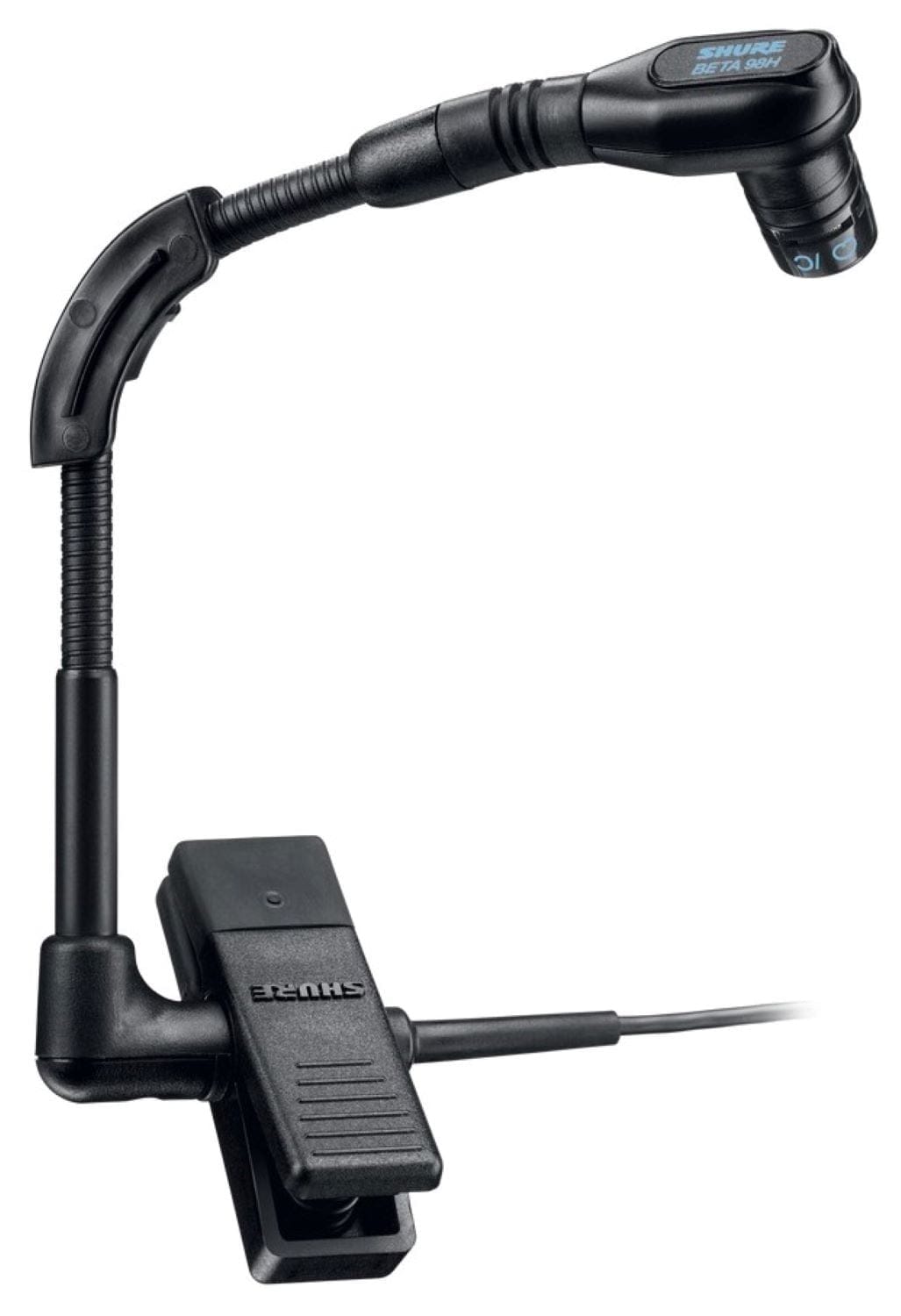

Shure BETA 98H/C Instrument Microphone
Model WB98H-C
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

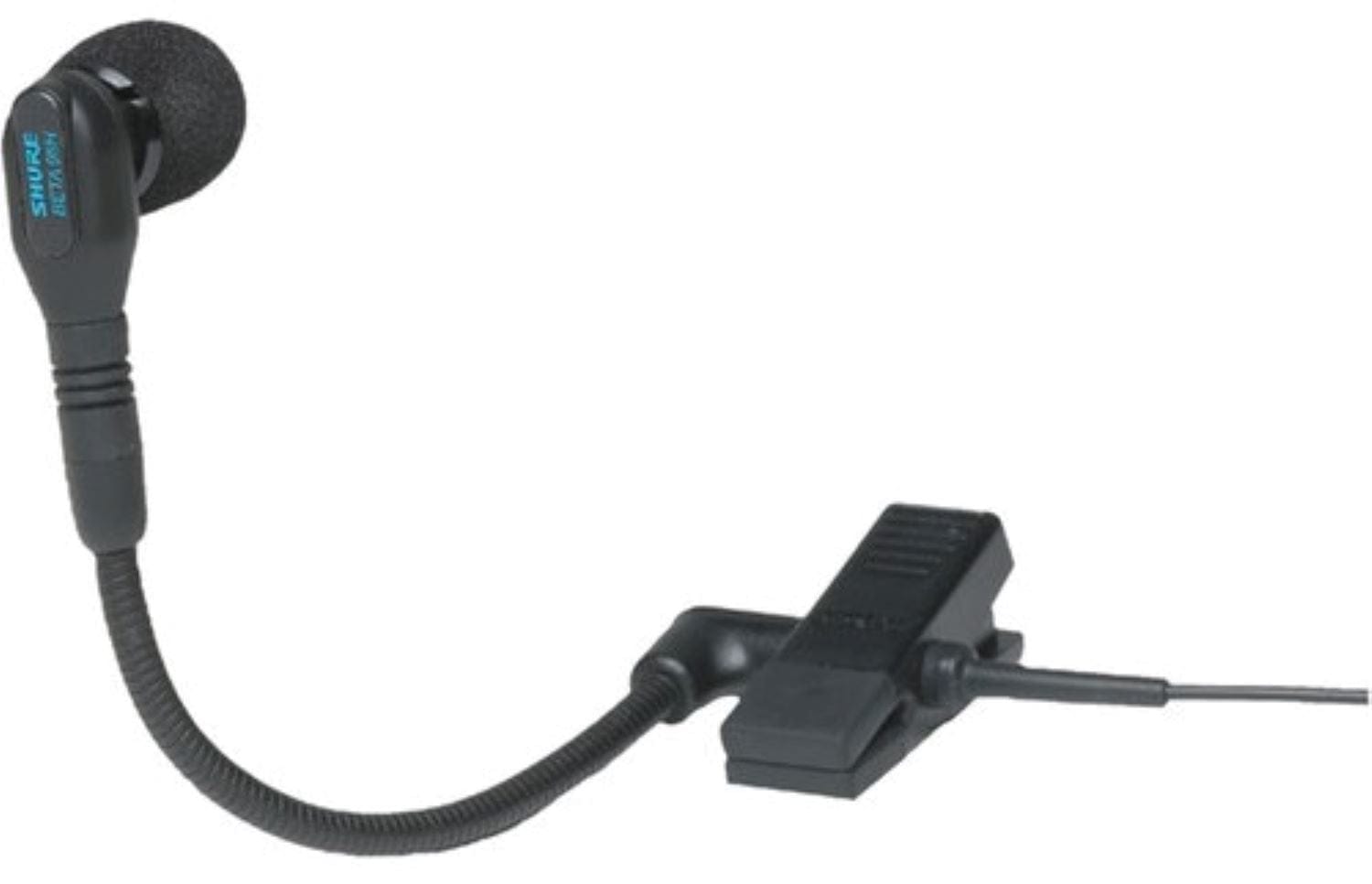

Shure BETA 98H/C Miniature Instrument Microphone
The Beta 98H/C miniature cardioid condenser instrument microphone clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allows the microphone to be easily positioned and secured, and an isolation shock-mount reduces the transmission of instrument vibrations. A gooseneck angle brace is included to provide better retention of the desired microphone placement.
Why this product
Key Benefits
-
Premier live performance microphone with Shure quality, ruggedness, and reliability
-
Uniform supercardioid pick-up pattern for maximum gain before feedback and superior rejection of off-axis sound
-
Smooth, wide frequency response with gradual presence rise and controlled proximity effect tailored for vocals
-
Advanced cartridge shock mount system absorbs mechanical shock and minimizes handling noise
-
Dent-resistant steel mesh grille and enamel coated metal alloy construction resist wear and abuse
-
Effective built-in pop filter reduces undesirable wind and breath noise
-
Very low susceptibility to RF and electromagnetic hum
Technical details
Technical Specifications
Microphone
- Cartridge Type
- Electret Condenser
- Frequency Response
- 20 to 20,000 Hz
- Polar Pattern
- Cardioid
- Maximum SPL(1 kHz at 1% THD, 1KΩ load)
- 155 dB SPL
- Dynamic Range(at 1 kHz, 1KΩ load)
- 124 dB, 132 dB
Connectivity
- Output Impedance
- 150 Ω
- Equivalent Output Noise (A-weighted)
- 31 dB SPL (typical)
- Polarity
- Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power
- Power Requirements
- 11–52 VDC phantom power (IEC-61938), 1.2 mA
More details
Additional Information
Specifications:
- Sensitivity (at 1 kHz, open circuit voltage): –56 dBV/Pa (1.6 mV)(1 Pascal=94 dB SPL)
- Clipping Level(1 kHz at 0.25% THD, 1KΩ load): 3 dBV (1.4 V)
- Signal-to-Noise Ratio(Referenced at 94 DB SPL at 1 kHz): 63 dB
