Shure

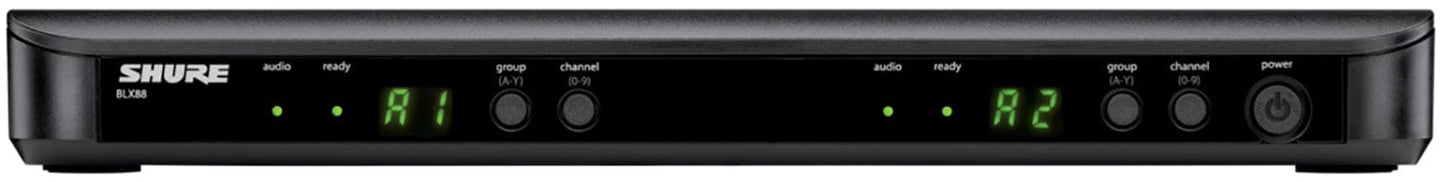

Shure BLX1288 Wireless Combo System with SM58 Handheld and MX153 Earset - H10 Band

Model BLX1288-MX153-H10

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

Shure BLX1288 Wireless Combo System with SM58 Handheld and MX153 Earset - H10 Band
  • Authorized Shure Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

Shure BLX1288 Wireless Combo System with SM58 Handheld and MX153 Earset - H10 Band

The Shure BLX1288/MX53 Wireless Combo System combines professional-quality sound with simple setup and up to 14 hours battery life for great versatility and legendary audio performance right out of the box.

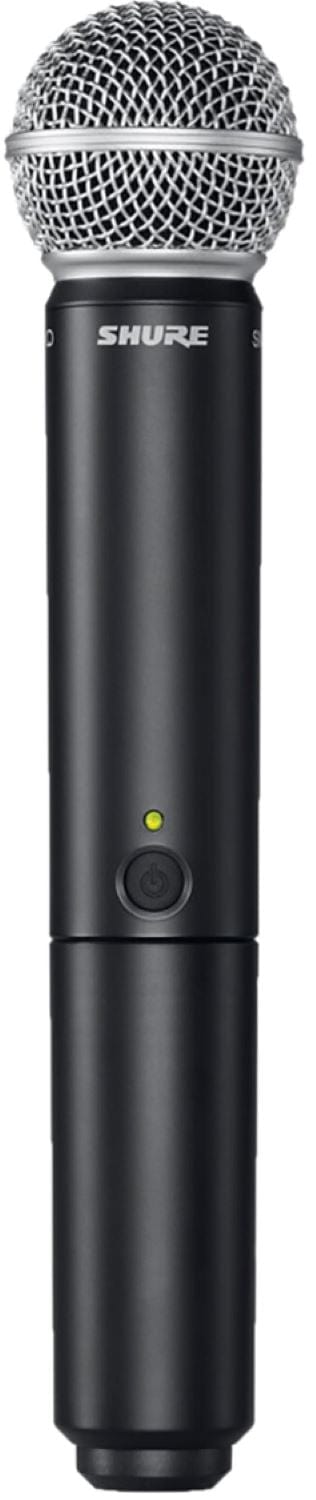

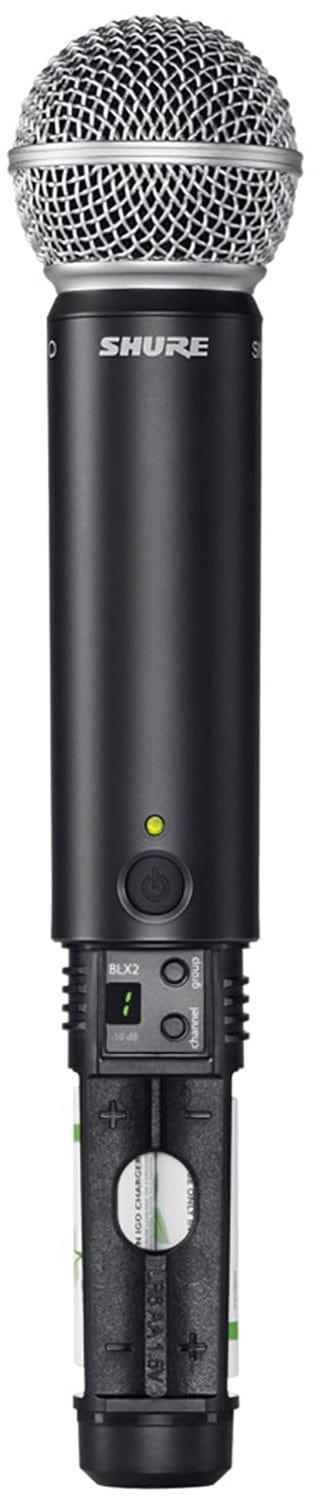

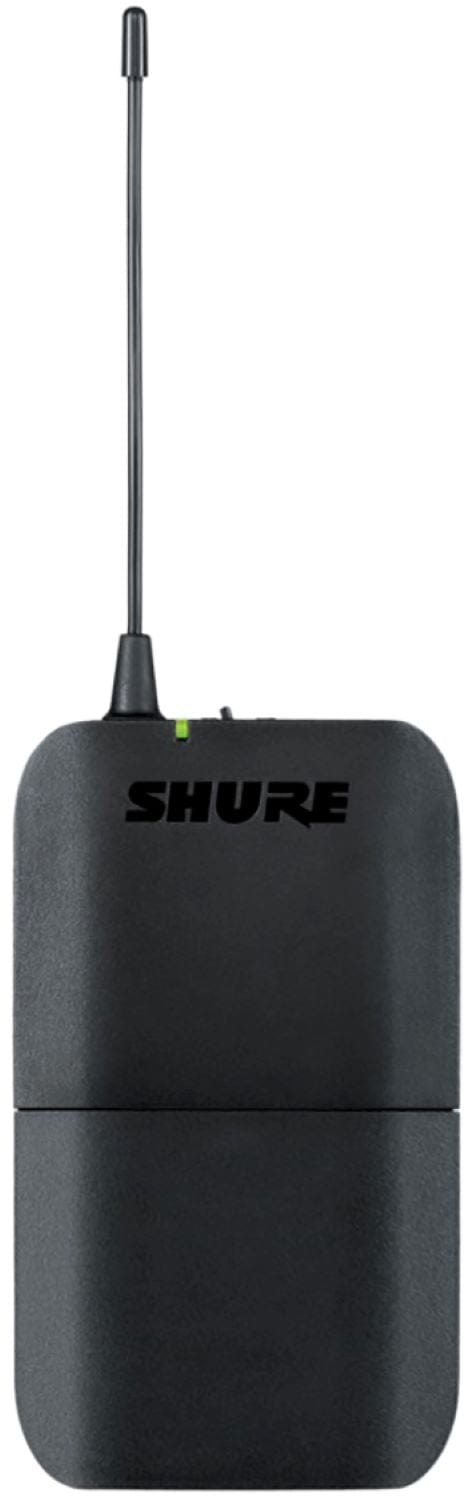

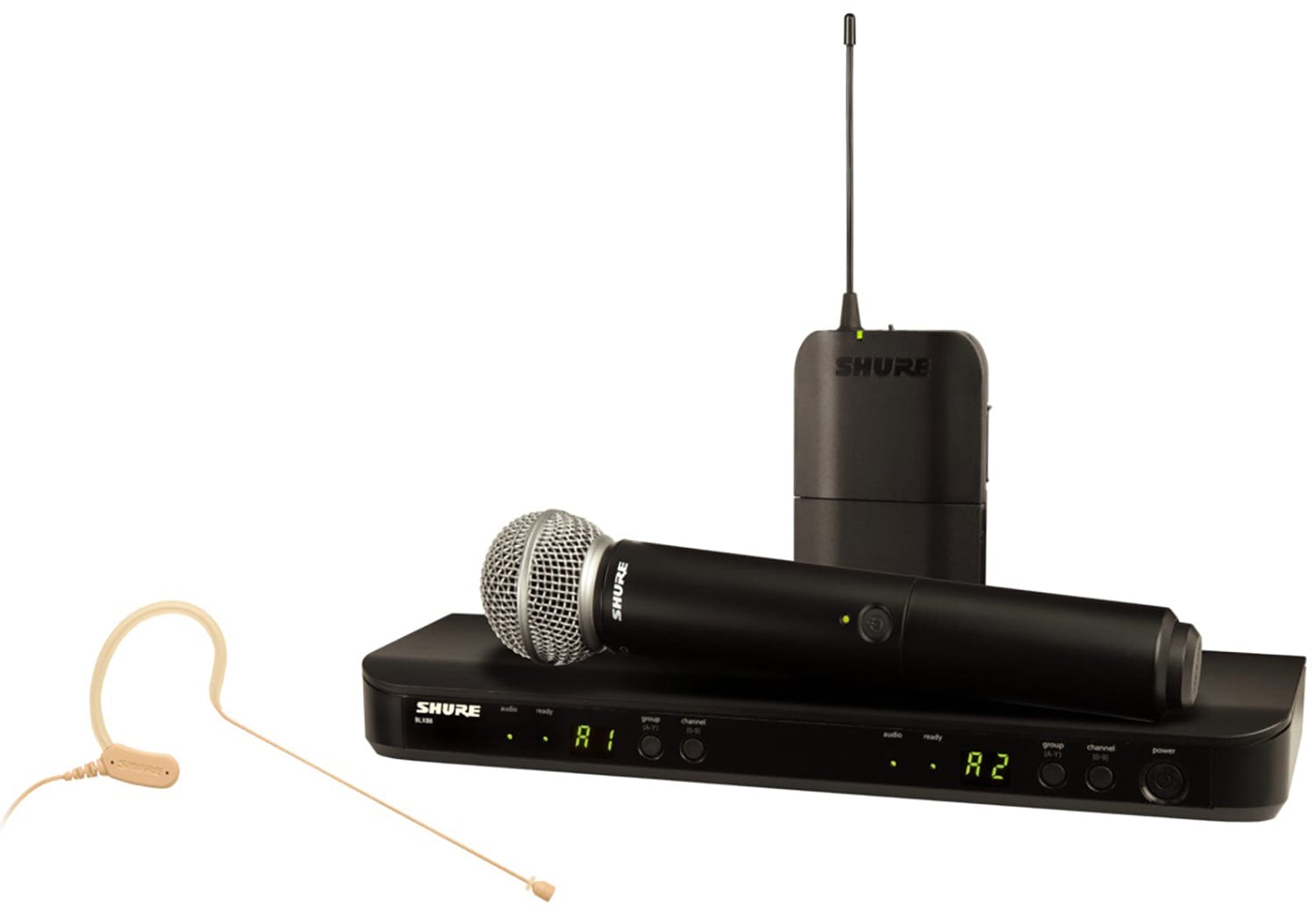

The system includes BLX88 dual-channel receiver, MX153 earset microphone w/ BLX1 bodypack transmitter and legendary SM58 handheld transmitter, power supply, microphone clip, lavalier clip, lavalier windscreens, 2 sets of AA batteries, and user guide.

Why this product

Key Benefits

  • Superior Audio - Perform with Confidence

  • Reliable Signal - Extend your range

  • Easy Setup – Own the stage

  • Battery Life – 14 hours of power

  • Systems Expansions – Run up to 12 channels per frequency band

  • Versatility Included – You’ve got options

Technical details

Technical Specifications

Microphone

Dynamic Range
100 dBA
Frequency Response
50 Hz to 15 kHz (Dependent on Mic)
Auto-Level Control
No
Gain Range
-16 to +10 dB
Microphone Type
Earset
Sound Field
Mono
Capsule
Electret Condenser
Polar Pattern
Omnidirectional
Frequency Range
20 Hz to 20 kHz
SNR
60 dB
Equivalent Noise Level
34 dB
Maximum SPL
107 dB SPL
Sensitivity
-41 dBV/Pa
Dynamic Range
73 dB
Gain Range
-20 to -10 dB
Second Microphone Type
Handheld Capsule
Capsule
Dynamic
Polar Pattern
Cardioid
Frequency Range
50 Hz to 15 kHz

Wireless

Wireless Technology
Analog UHF
Number of RF Channel Frequencies
123
Diversity
Antenna Diversity
RF Frequency Band
H10 (542 to 572 MHz)
RF Bandwidth
24 MHz
RF Channel Scanning
Auto-Scan
Max Operating Range
300' / 91.4 m (Line of Sight)
Max Transmitters per Band
12
Encryption
Yes
Receiver Type
Tabletop
Antenna
2 x Internal, Fixed
Approximate RF Sensitivity
-105 dBm
Transmitter Type
Bodypack
RF Output Power
10 mW
Sync Method
Manual
Antenna

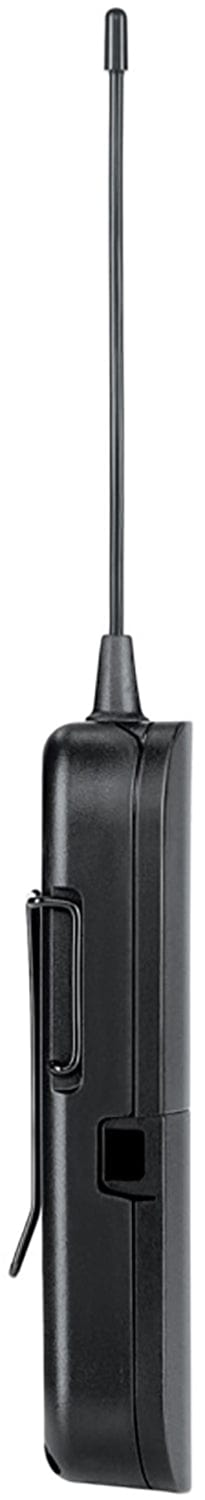

1 x Flexible Whip, Fixed (Beltpack)
Transmitter Type
Handheld
Antenna
1 x Internal (Handheld)

Battery

Battery Type

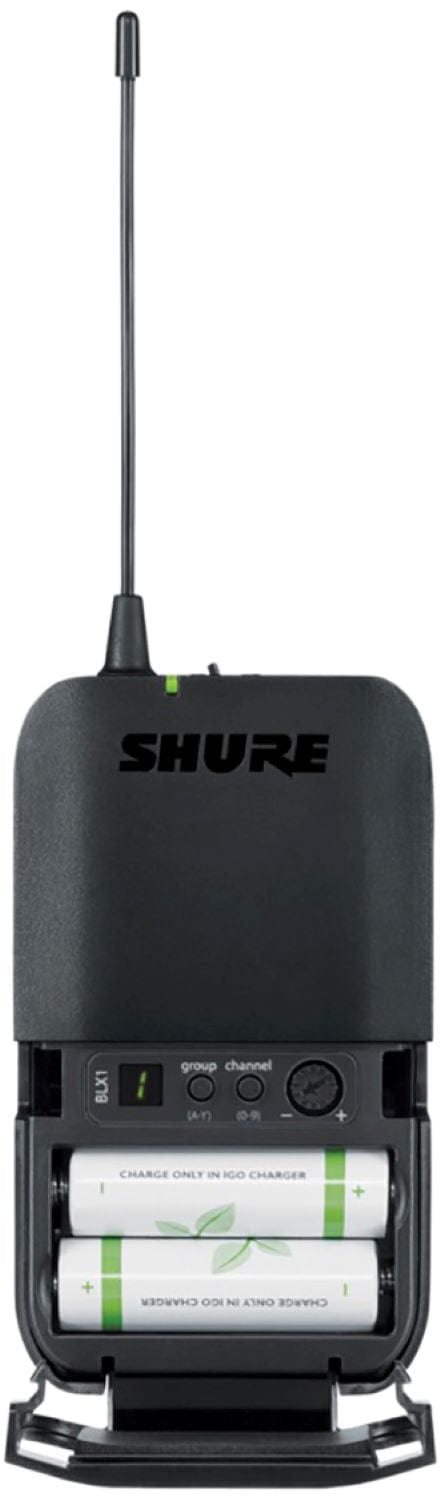

2 x AA (Included)
Approx. Battery Life
14 Hours (Alkaline)

Connectivity

Number of Audio Channels
2
XLR Outputs
-27 dBV (Mic Level)
1/4" Outputs
-13 dBV (Instrument Level)
XLR Outputs
200 Ohms
1/4" Outputs
50 Ohms
Audio I/O

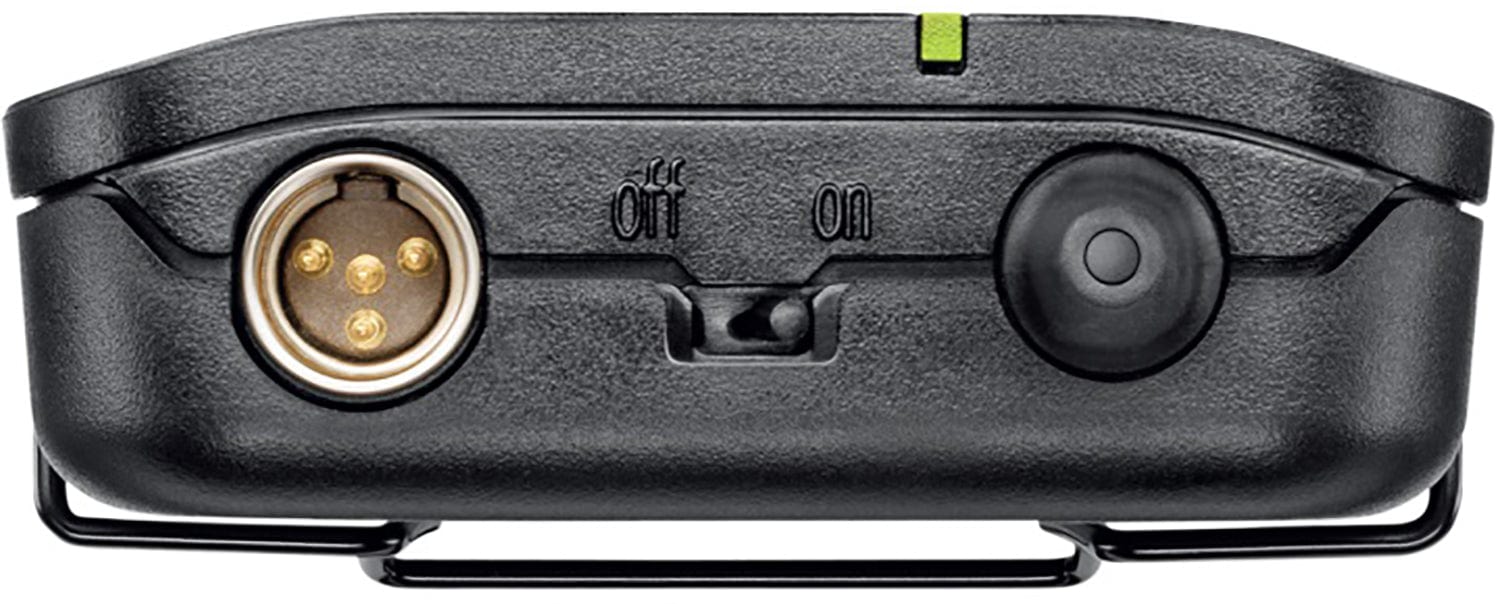

1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Output Connector
1 x TA4/Mini XLR 4-Pin Female (Lockable)
Cable Length
4.00' / 1.22 m
Audio I/O
None

Power

Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
12 to 15 VDC at 160 mA, Center-Positive (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 150 mA
Power Requirements
Battery
Operating Voltage
1 to 5 V

Physical

Housing
ABS
Dimensions
15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm
Weight
15.1 oz / 429 g
Dimensions
2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight
2.6 oz / 75 g (without Batteries)
Color
Black
Weight
0.7 oz / 20 g
Weight
7.7 oz / 218 g (without Batteries)

Environmental

Operating Temperature
0 to 135°F / -17 to 57°C

Shipping & Packaging

Package Weight
5.21 lb
Box Dimensions (LxWxH)
19.2 x 16.4 x 3.5"

General

Muting
Off/On Switch

More details

Additional Information

Specifications:

  • System:
    • Included Transmitters:
      • 1 x Bodypack
      • 1 x Handheld
  • Receiver:

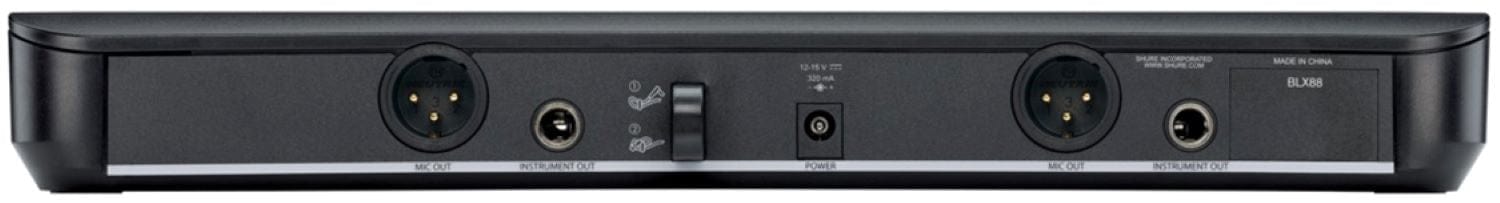

    • Audio I/O:

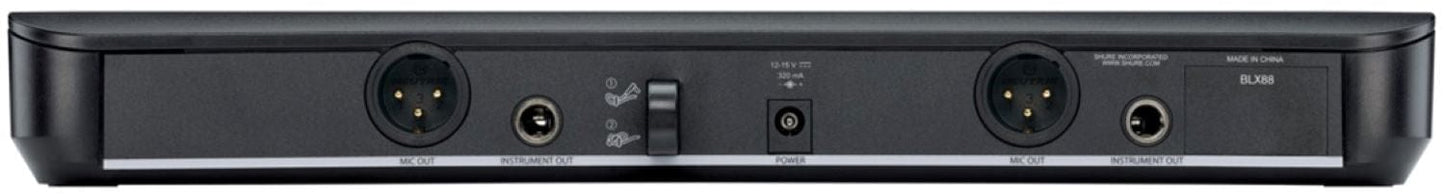

      • 2 x XLR 3-Pin Male Balanced Output
      • 2 x 1/4" TS Female Unbalanced Output
    • Audio Output Level:
    • Impedance:
    • Display & Indicators:

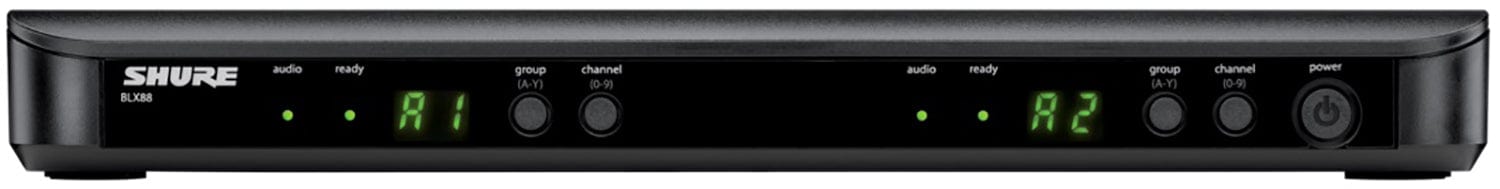

      • 1 x Multi-Segment LED (Channel, Group)
      • 2 x LED (AF Level, Sync)
  • Transmitter:
    • Display & Indicators:
      • 1 x Multi-Segment LED (Channel, Group)
      • 1 x LED (Battery Status, Power)
  • Microphone:
  • Transmitter 2:
    • Display & Indicators:
      • 1 x Multi-Segment LED (Channel, Group)
      • 1 x LED (Battery Status, Power)
  • Microphone 2:
  • Packaging Info:
