Shure BLX14R/MX53 Wireless Headset Microphone H11
Model BLX14R-MX53-H11
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

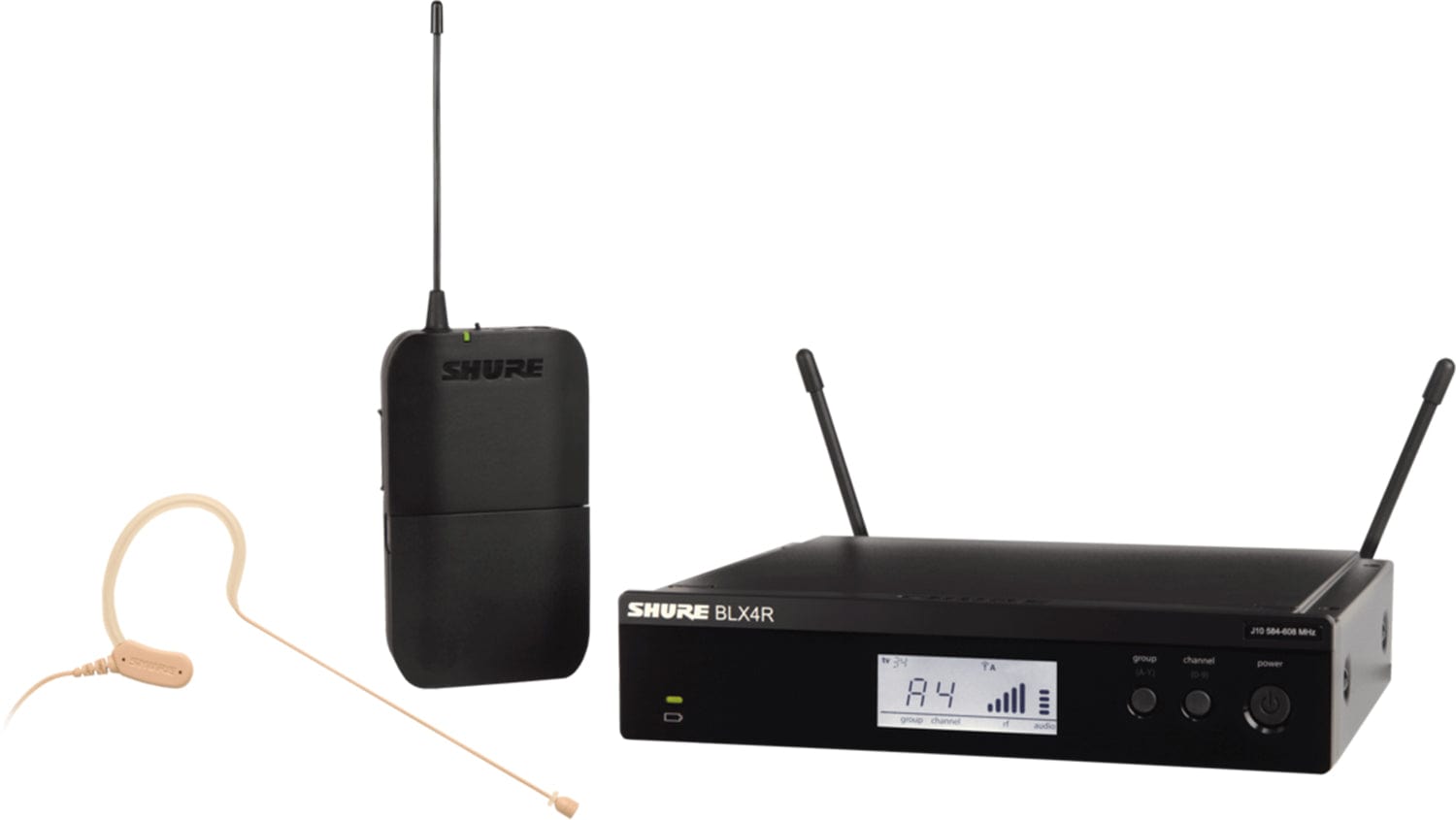

Shure BLX14R/MX53 Wireless Headset Microphone H11

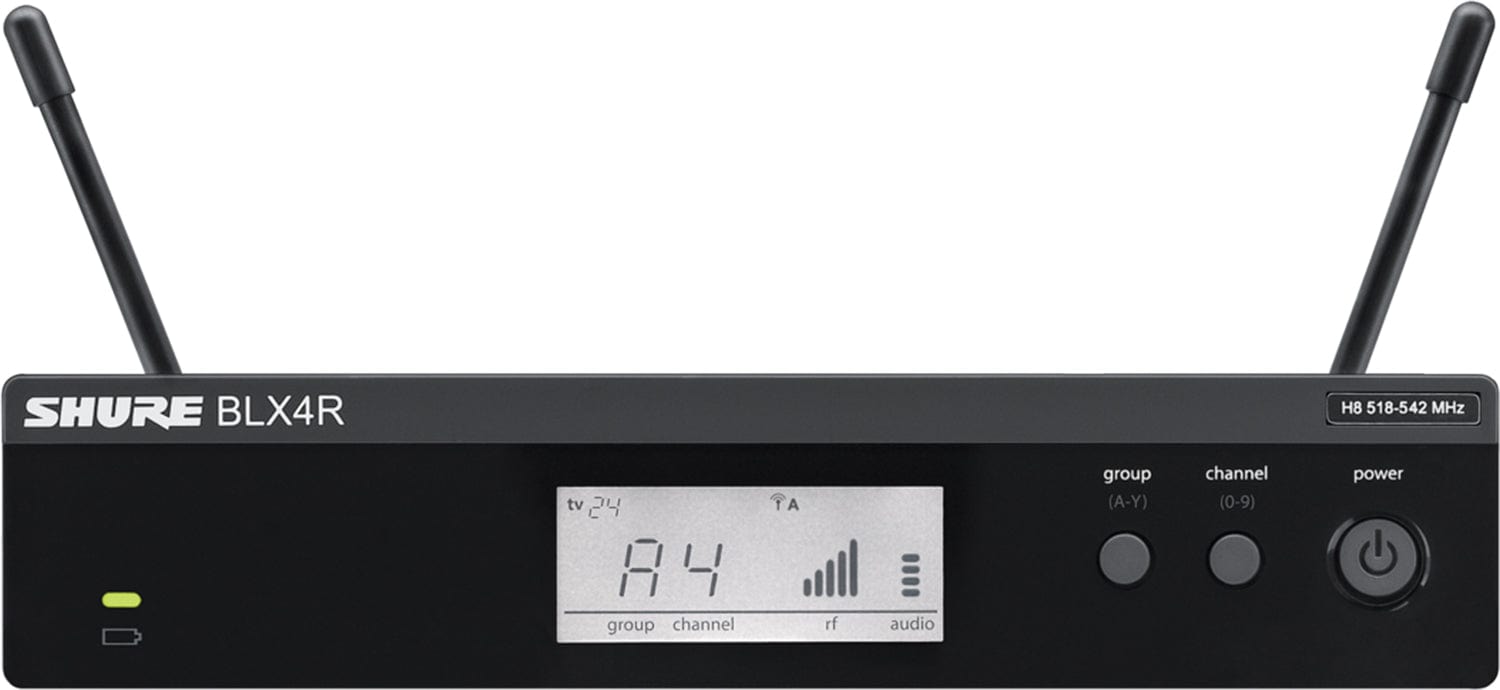

The Shure BLX14R/MX53 brings presenters, teachers, clergy, and lecturers a cost-effective wireless earset microphone system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the rugged BLX4R single-channel receiver with LCD display, adjustable output level, and removable antennas for rackmounting the unit—ideal for A/V installations and sound-reinforcement applications.
Why this product
Key Benefits
-
For Presenters and Lecturers
-
MX153 Omni Subminiature Earset Mic
-

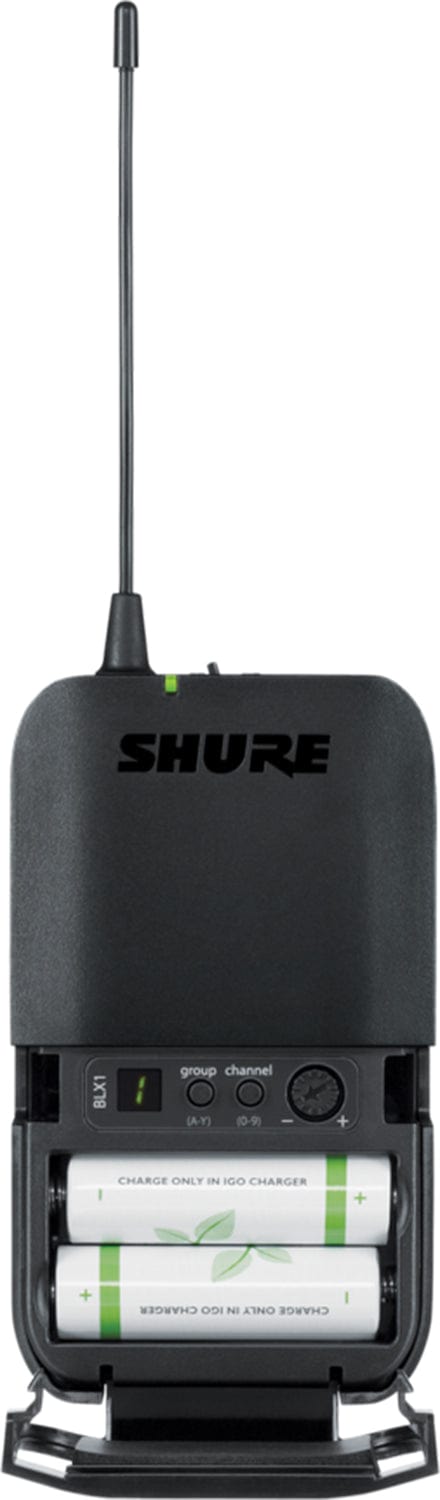

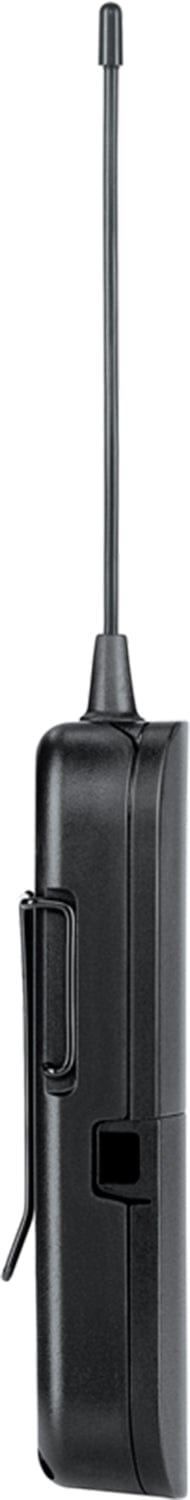

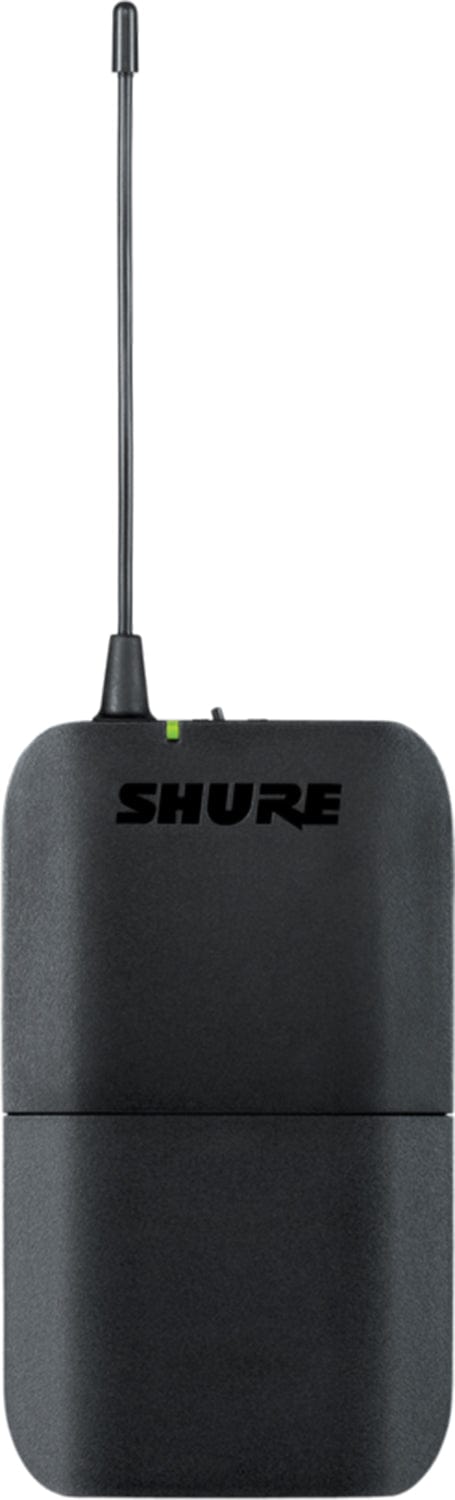

Lightweight Bodypack Transmitter
-
Single-Channel Rackmount Receiver
-
123 Auto-Scan Frequencies
-
Two Removable Antennas with Diversity
-
Adjustable Output Level
-
Rugged Metal Construction
-
14-Hr AA Batteries
-
Expandable to 12 Mic Channels/300' Range
Technical details
Technical Specifications
Microphone
- Dynamic Range
- 100
- Frequency Response
- 50 Hz to 15 kHz (Dependent on Mic)
- Auto-Level Control
- No
- Gain Range
- -16 to +10 dB
- Microphone Type
- Earset
- Sound Field
- Mono
- Capsule
- Electret Condenser
- Polar Pattern
- Omnidirectional
- Frequency Range
- 20 Hz to 20 kHz
- SNR
- 60 dB
- Equivalent Noise Level
- 34 dB
- Maximum SPL
- 107 dB SPL
- Dynamic Range
- 73 dB
Wireless
- Wireless Technology
- Analog UHF
- Number of RF Channel Frequencies
- 123
- Diversity
- Antenna Diversity
- RF Bandwidth
- 24 MHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band
- 12
- Receiver Typegood
- Tabletop
- Antenna
- 2 x 1/4 Wave External, Detachable (Rear-Mount)
- Adjacent Channel Isolation
- >50 dB
- Transmitter Type
- Bodypack
- RF Output Power
- 10 mW
- Sync Method
- Manual
- Antenna
- 1 x Flexible Whip, Fixed (Beltpack)
Battery
- Battery Type
- 2 x AA (Included)
- Approx. Battery Life
- 14 Hours (Alkaline)
Connectivity
- Number of Audio Channels
- 1
- XLR Output
- -20.5 dBV (Mic Level)
- 1/4" Output
- -13 dBV (Instrument Level)
- XLR Output
- 200 Ohms
- 1/4" Output
- 50 Ohms
- Audio I/O
- 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
- Output Connectors
- 1 x TA4/Mini XLR 4-Pin Female (Lockable)
- Cable Length
- 4' / 1.22 m
Power
- Power Requirements
- AC/DC Power Adapter
- AC/DC Power Adapter
- 12 to 15 VDC at 260 mA, Center-Positive (Included)
- Power Requirements
- Battery
- Operating Voltage
- 1 to 5 V
Physical
- Mounting Options
- Rackmount (with Included Hardware)
- Housing
- Steel
- Dimensions
- 7.8 x 2 x 6.4" / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
- Weight
- 35.2 oz / 998 g
- Housing
- ABS
- Dimensions
- 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
- Weight
- 2.6 oz / 75 g (without Batteries)
- Weight
- 0.7 oz / 19.76 g
Included & Optional Accessories
- Included Transmitters
- 1 x Bodypack
Shipping & Packaging
- Package Weight
- 7.11 lb
General
- H11
- 572 to 596 MHz
- Rackmount Size
- 1 RU (1/2 Rack)
- Muting
- Off/On Switch
More details
Additional Information
Specifications:
- System:
- RF Frequency Band:
- RF Frequency Band:
- Receiver:
- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4" TS Female Unbalanced Output
- Audio Output Level:
- Impedance:
- Display & Indicators:
- 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
- 1 x LED (Transmitter Battery Status)
- Audio I/O:
- Transmitter:
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Display & Indicators:
- Microphone:
- Packaging Info:
- Box Dimensions (LxWxH) 18.5 x 14.8 x 4"
