Shure BLX14R Wireless Rack-mount Instrument System with Beta 98H/C Clip-on Gooseneck Microphone - J11 Band
Model BLX14R-B98-J11
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure BLX14R Wireless Rack-mount Instrument System with Beta 98H/C Clip-on Gooseneck Microphone - J11 Band

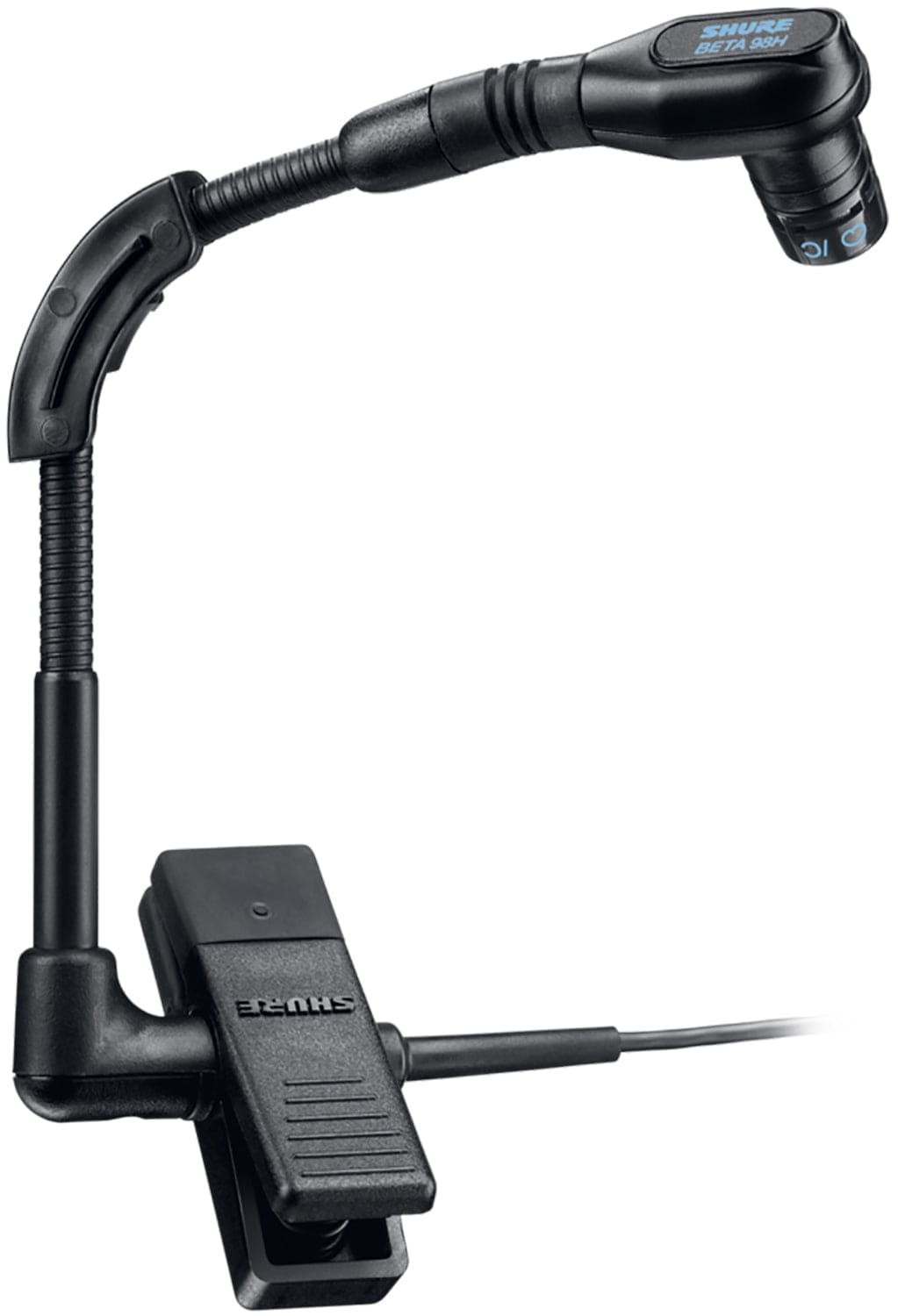

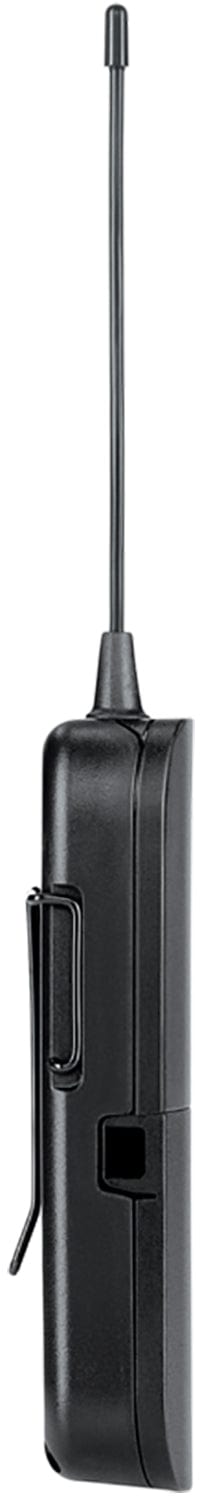

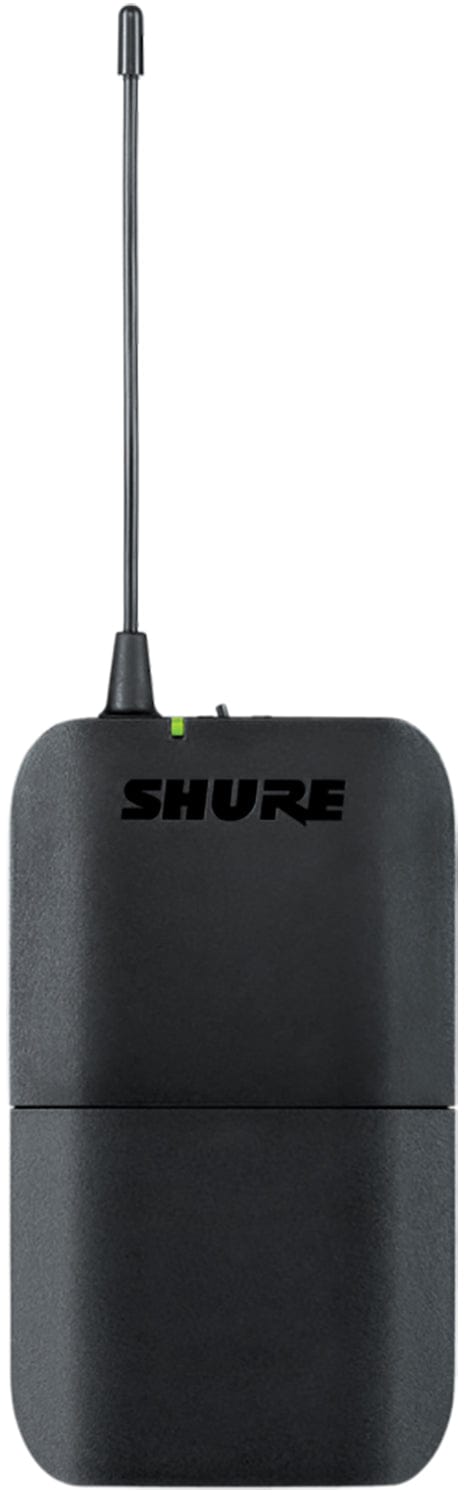

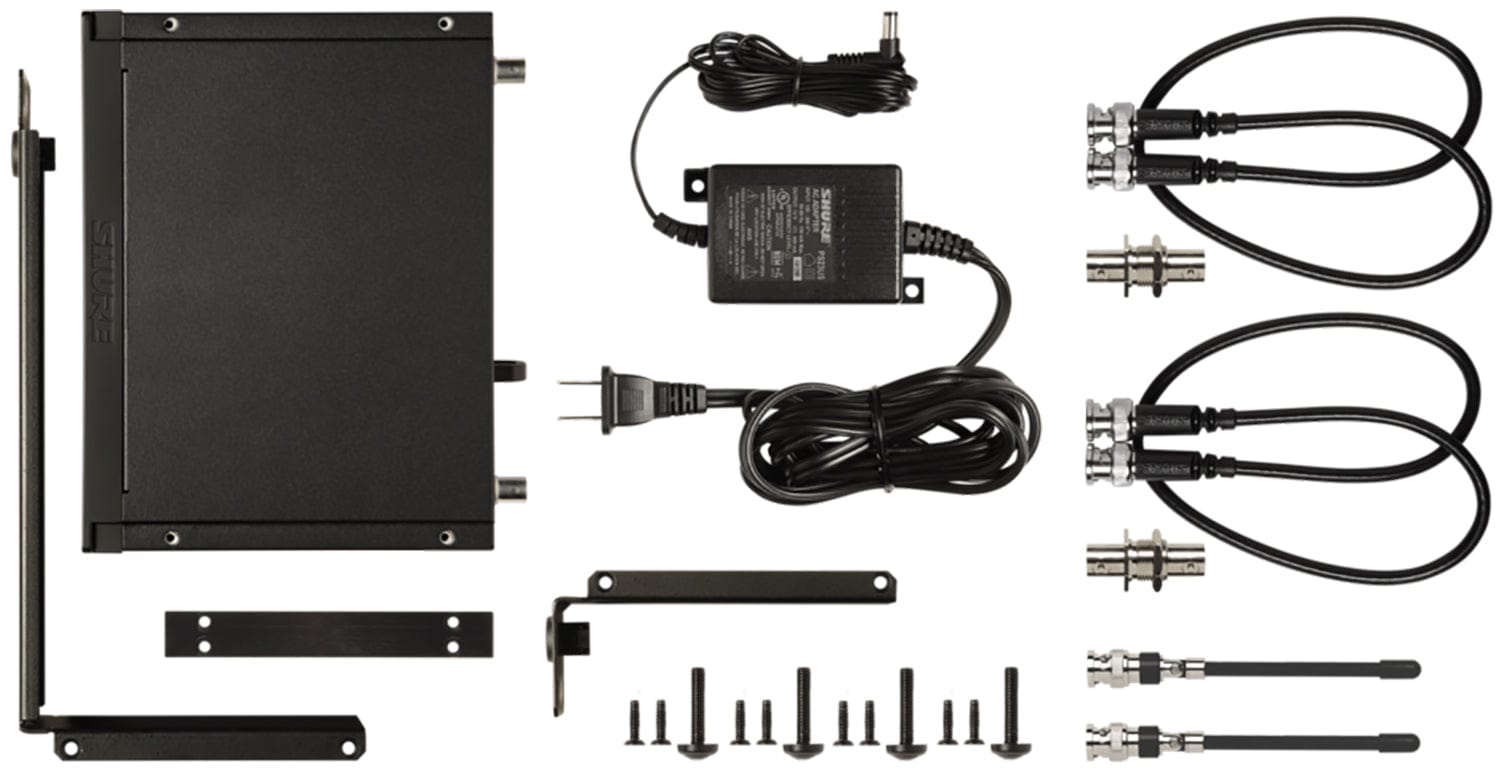

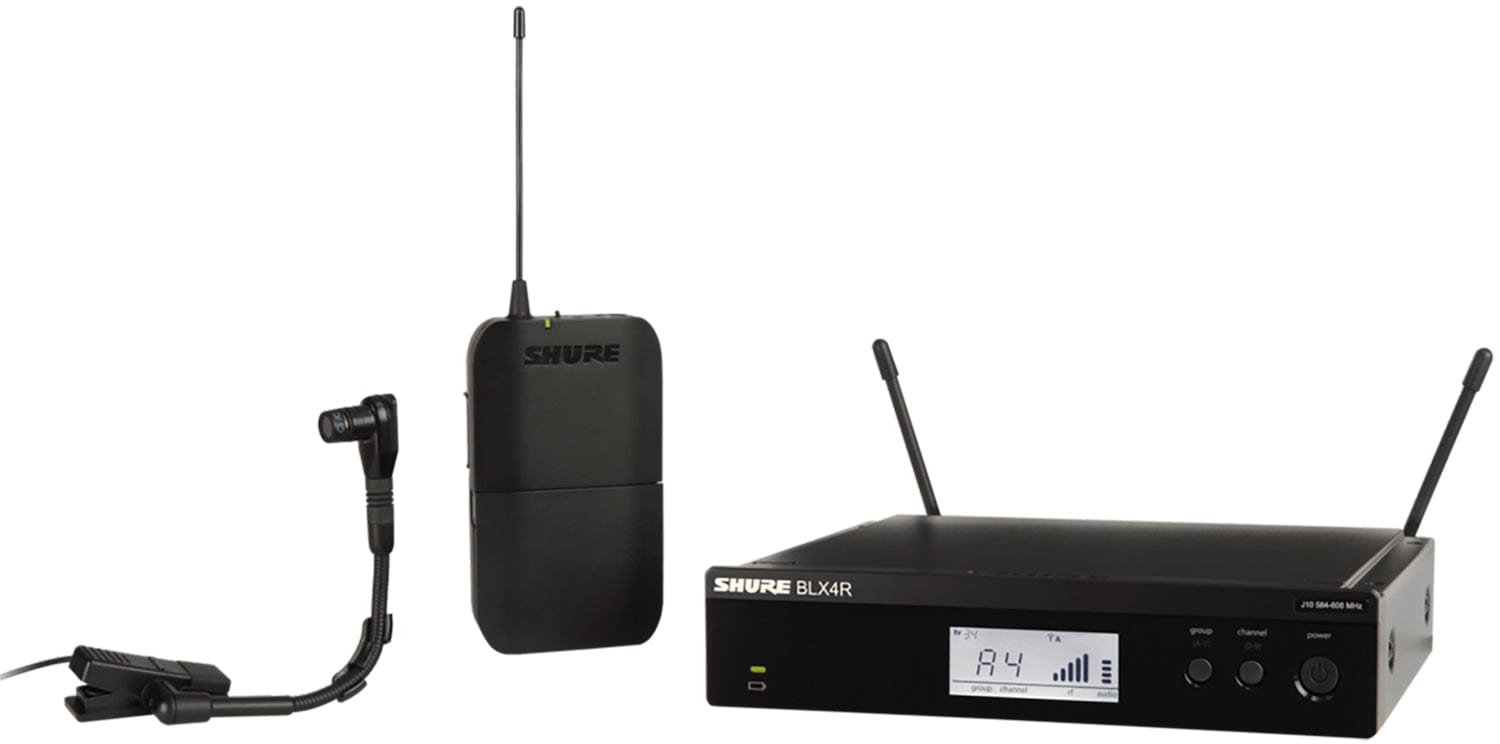

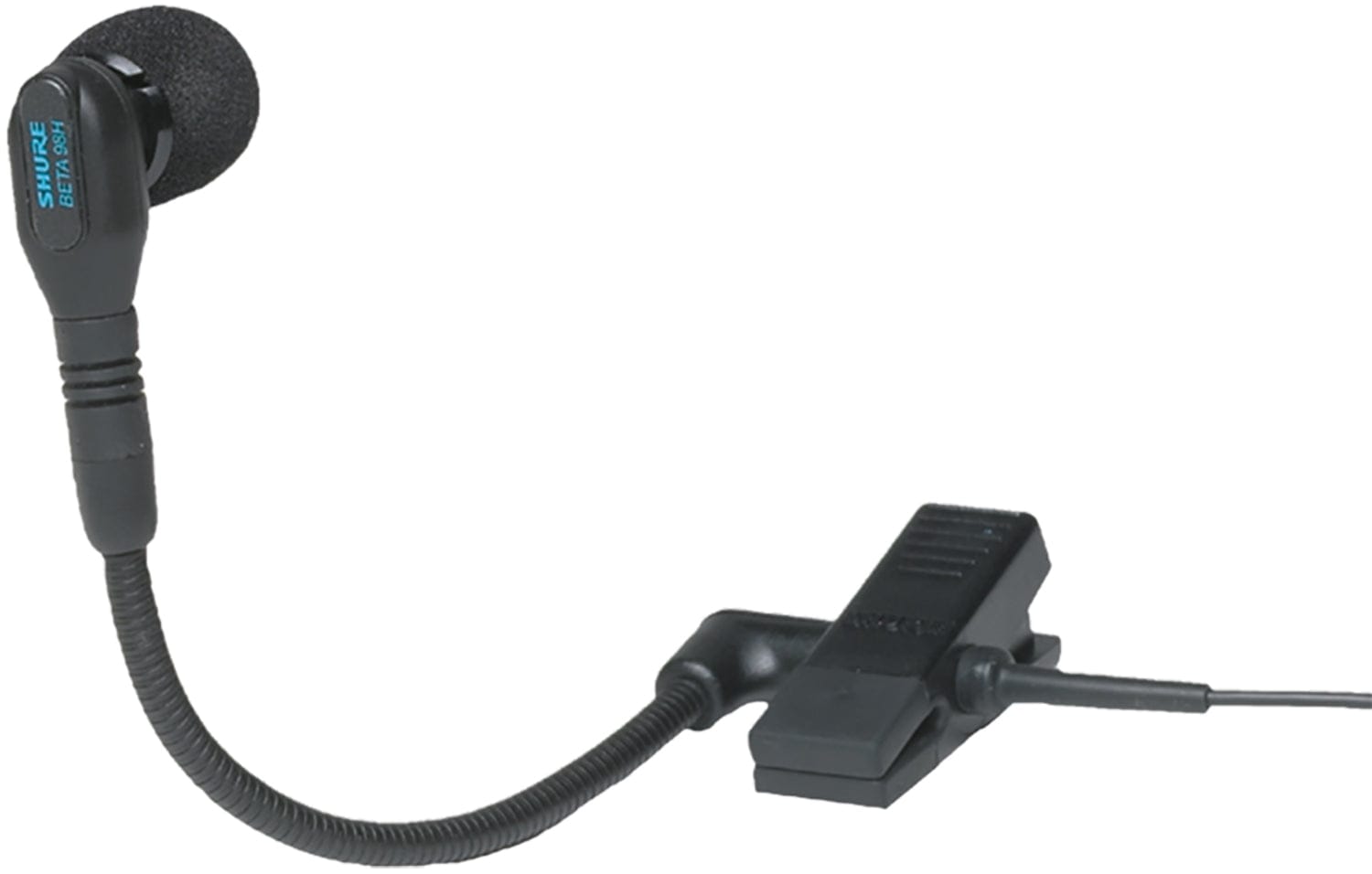

The Shure BLX14R/B98 Wireless Rack-mount Instrument System combines professional-quality sound with simple setup and up to 14 hours battery life for legendary audio performance right out of the box. The system includes BLX4R half-rack single-channel receiver, B98H/C gooseneck instrument microphone with BLX1 bodypack transmitter, clip-on clamp, power supply, 2 AA batteries, rackmount kit, 2 1/4 wave antennas, and user guide.
Why this product
Key Benefits
-
Superior Audio - Perform with Confidence
-
Reliable Signal - Extend your range
-
Easy Setup – Own the stage
-
Battery Life – 14 hours of power
-
Systems Expansions – Run up to 12 channels per frequency band
-
Versatility Included – You’ve got options
Technical details
Technical Specifications
Microphone
- Dynamic Range
- 100 dBA
- Frequency Response
- 50 Hz to 15 kHz (Dependent on Mic)
- Auto-Level Control
- No
- Gain Range
- -16 to +10 dB
- Microphone Type
- Clip-On Instrument
- Sound Field
- Mono
- Capsule
- Electret Condenser
- Polar Pattern
- Cardioid
- Frequency Range
- 20 Hz to 20 kHz
- SNR
- 60 dB
- Equivalent Noise Level
- 34 dB
- Maximum SPL
- 107 dB SPL
- Sensitivity
- -41 dBV/Pa
- Dynamic Range
- 73 dB
Wireless
- Wireless Technology
- Analog UHF
- Number of RF Channel Frequencies
- 123
- Diversity
- Antenna Diversity
- RF Frequency Band
- J11 (596-616 MHz)
- RF Bandwidth
- 24 MHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band
- 12
- Receiver Type
- Rackmount
- Antenna
- 2 x 1/4 Wave External, Detachable (Rear-Mount)
- Adjacent Channel Isolation
- >50 dB

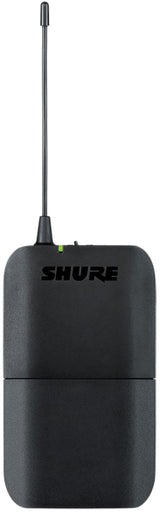

- Transmitter Type
- Bodypack
- RF Output Power
- 10 mW
- Sync Method
- Manual
- Antenna
- 1 x Flexible Whip, Fixed (Beltpack)

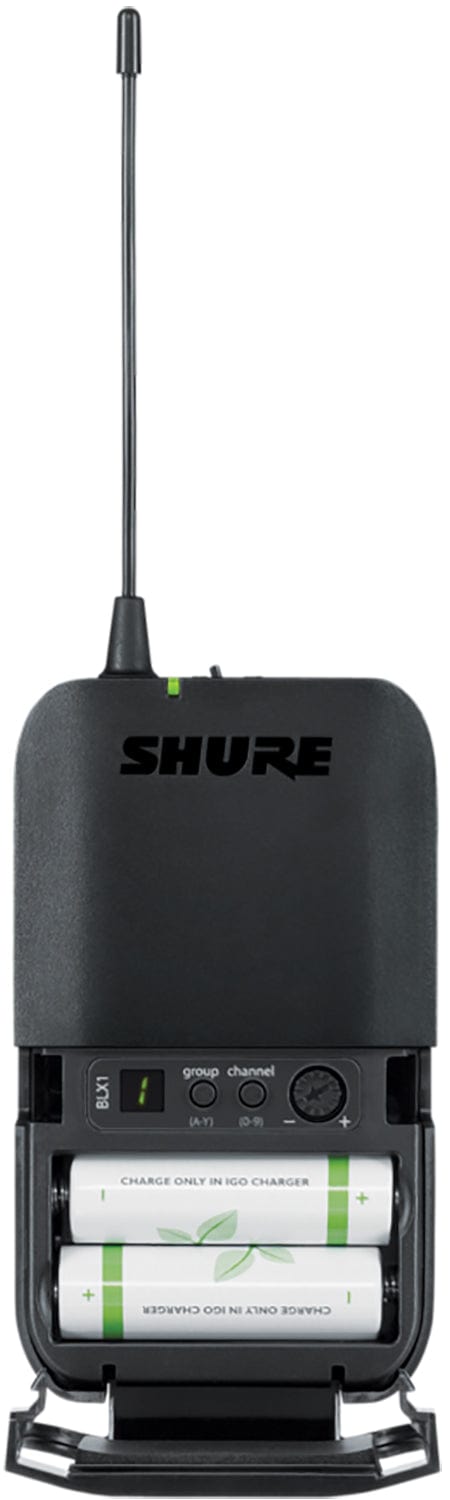

Battery
- Battery Type
- 2 x AA (Included)
- Approx. Battery Life
- 14 Hours (Alkaline)
Connectivity
- Number of Audio Channels
- 1
- XLR Outputs
- -27 dBV (Mic Level)
- 1/4" Outputs
- -13 dBV (Instrument Level)
- XLR Outputs
- 200 Ohms
- 1/4" Outputs
- 50 Ohms

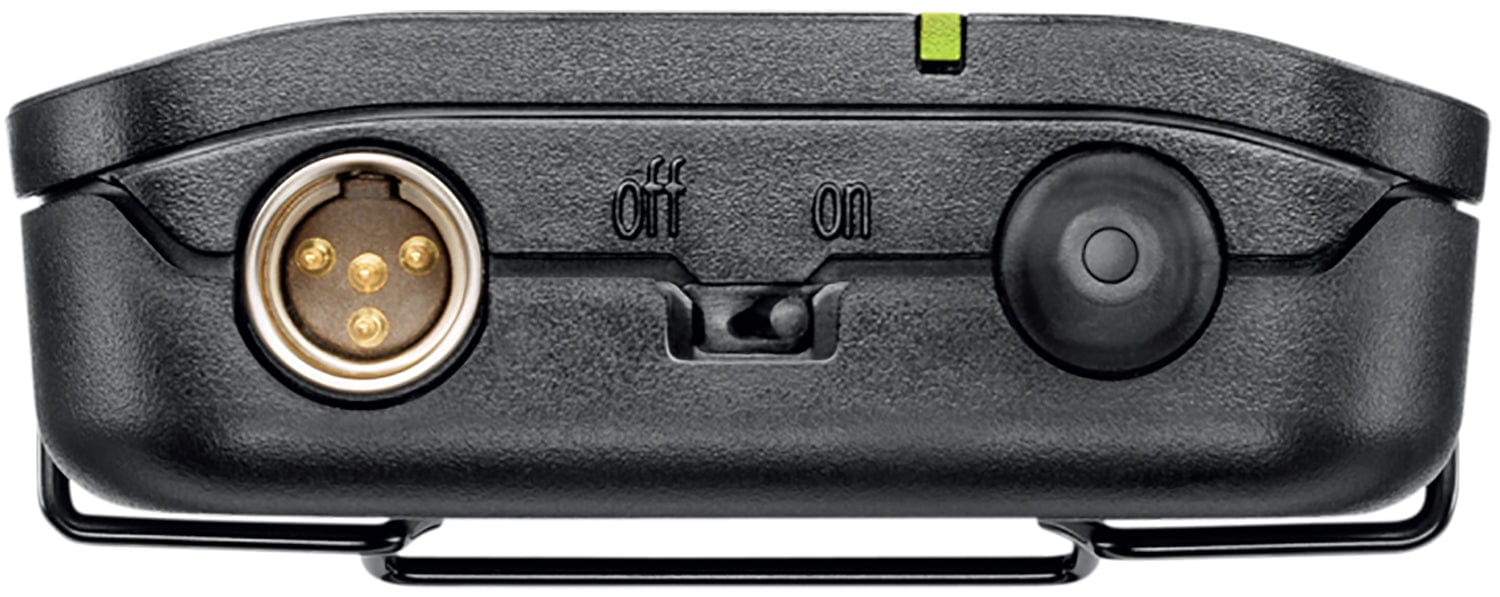

- Audio I/O
- 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
- Output Connector
- 1 x TA4F/Mini XLR 4-Pin Female (Lockable)
- Cable Length
- 4' / 1.22 m
Power
- Power Requirements
- AC/DC Power Adapter
- AC/DC Power Adapter
- 12 to 15 VDC at 160 mA, Center-Positive (Included)
- Power Requirements
- Battery
- Operating Voltage
- 1 to 5 V
Physical
- Mounting Options
- Rackmount (with Included Hardware)
- Housing
- Steel
- Dimensions
- 7.8 x 2 x 6.4" / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
- Weight
- 35.2 oz / 998 g
- Housing
- ABS
- Dimensions
- 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
- Weight
- 2.6 oz / 75 g (without Batteries)
- Color
- Black
- Weight
- 0.7 oz / 19.76 g
Included & Optional Accessories
- Included Transmitters
- 1 x Bodypack
- Included Cable Connector
- 1/4" TS
General
- Rackmount Size
- 1 RU (1/2 Rack)
- Muting
- Off/On Switch
- Instrument Mic Type
- Clarinet, French Horn, Percussion/Drum, Saxophone, Trombone, Trumpet, Tuba
More details
Additional Information
Specifications:
- System:
- Receiver:

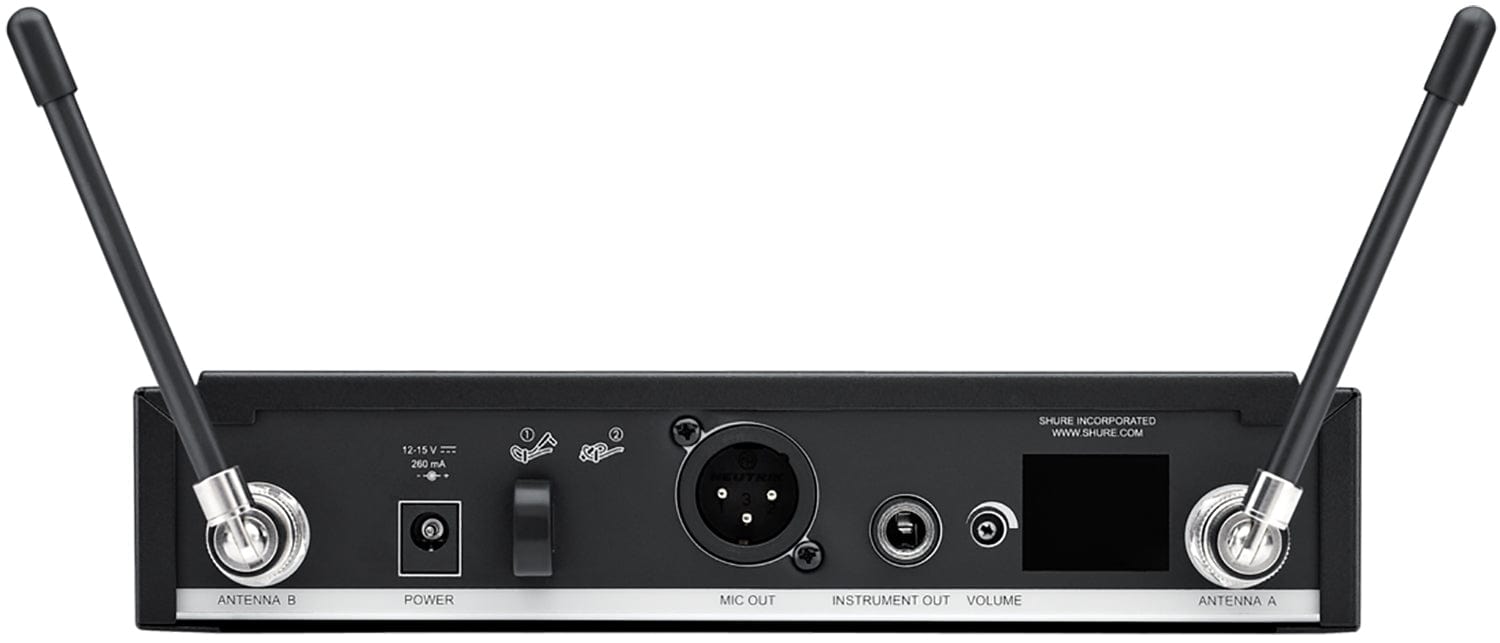

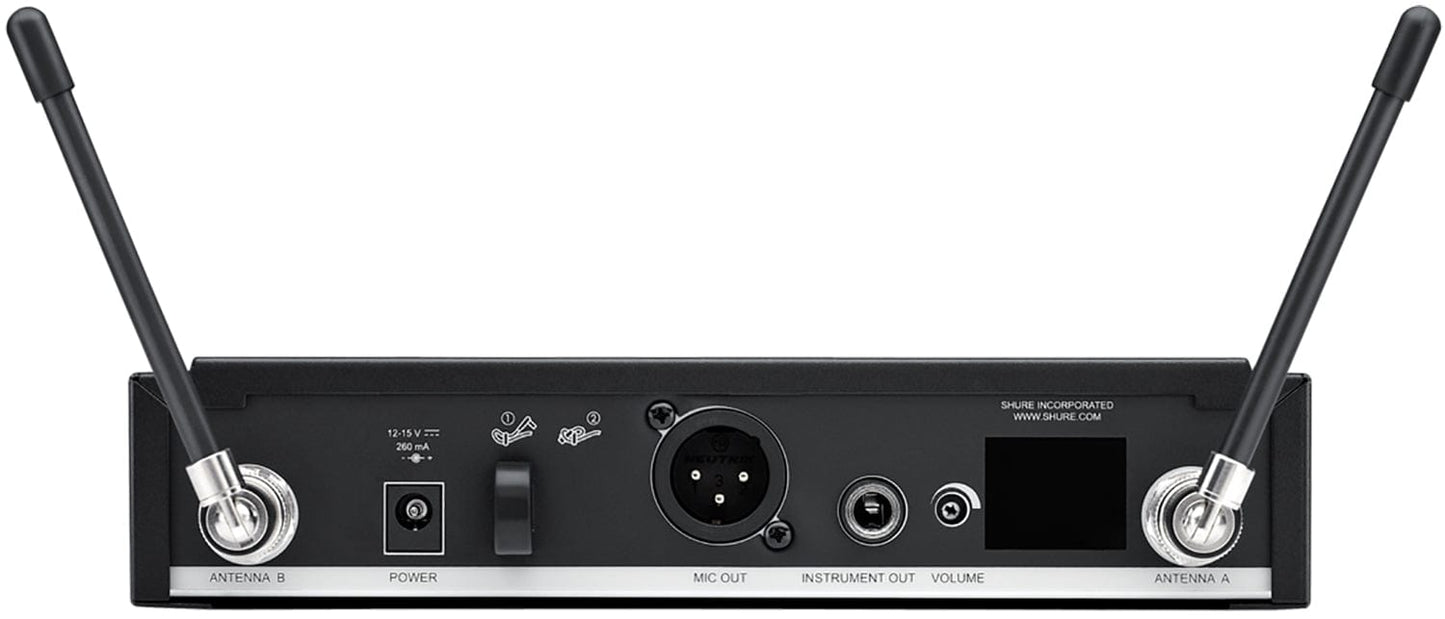

- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4" TS Female Unbalanced Output
- Audio Output Level:
- Impedance:

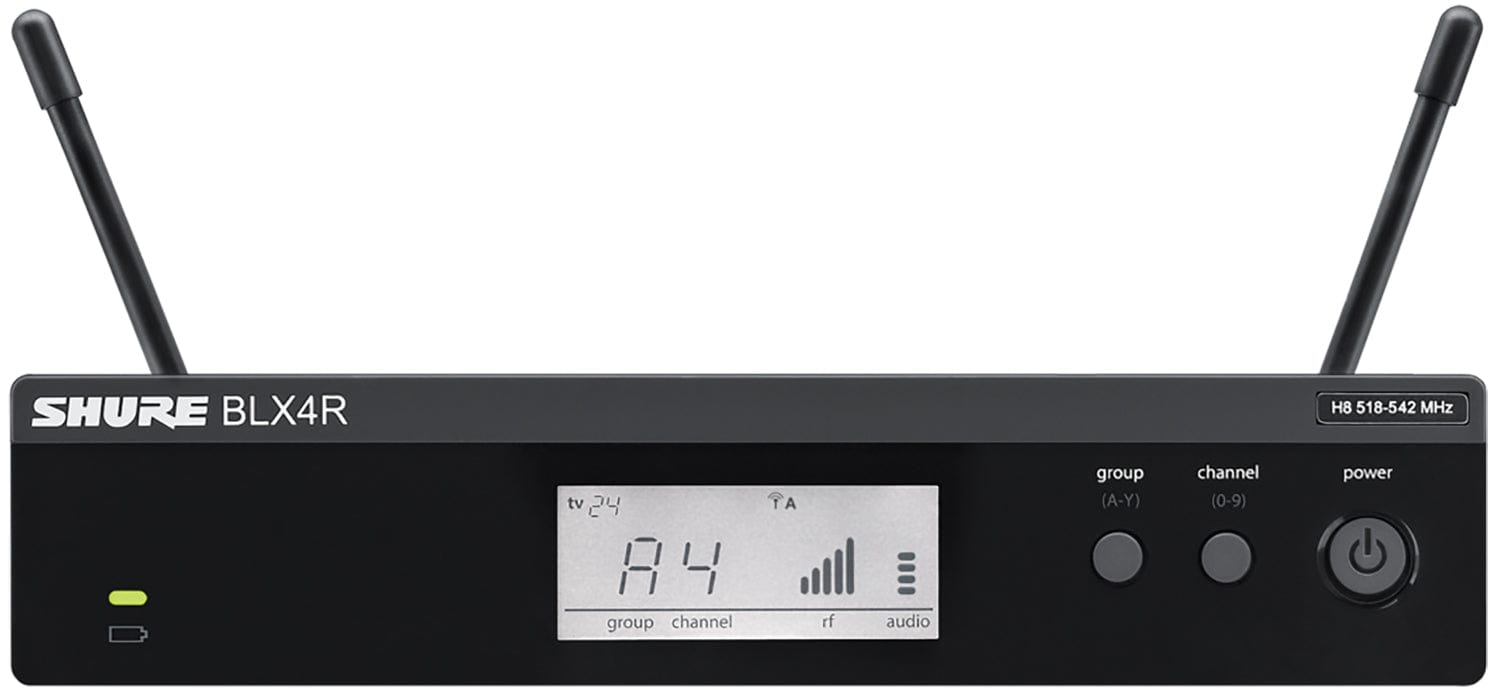

- Display & Indicators:
- 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
- 1 x LED (Transmitter Battery Status)
- Audio I/O:
- Transmitter:
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Display & Indicators:
- Microphone:
