Shure BLX188 Wireless Dual Presenter System with Two CVL Lavalier Microphones - H11 Band
Model BLX188-CVL-H11
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure BLX188 Wireless Dual Presenter System with Two CVL Lavalier Microphones - H11 Band

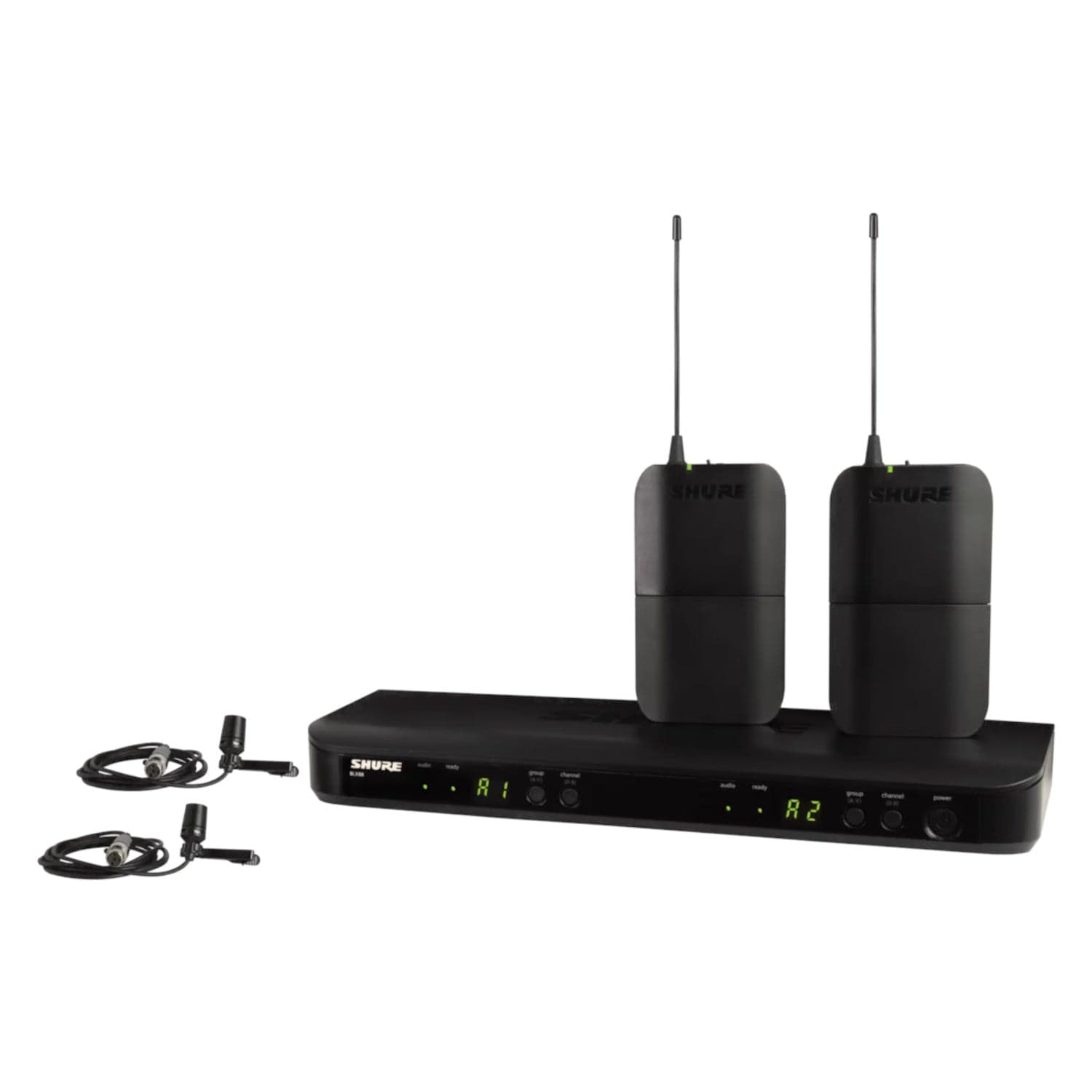

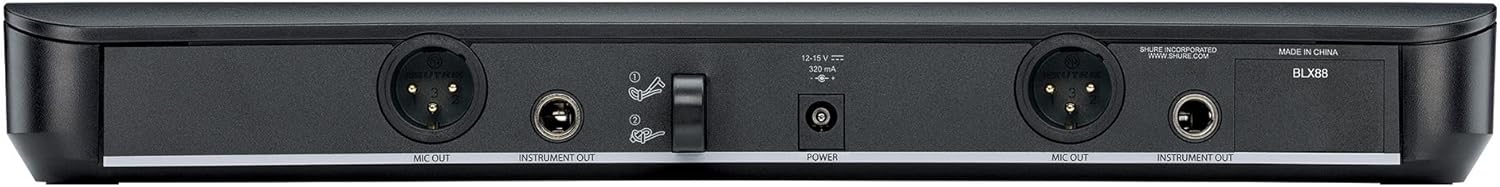

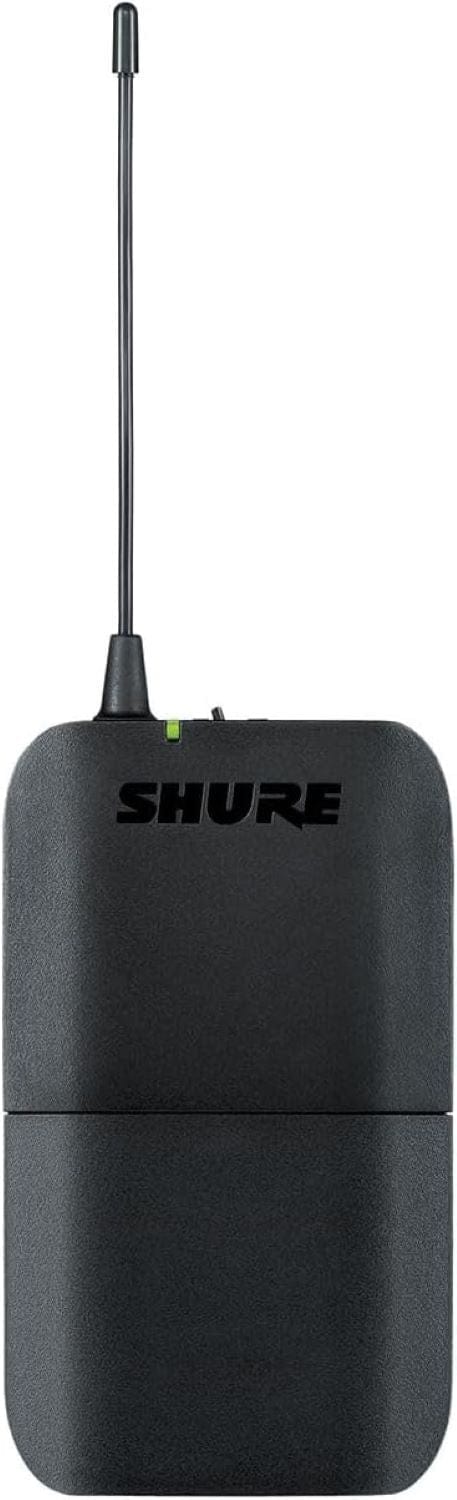

The Shure BLX188/CVL Wireless Dual Presenter System combines professional-quality sound with simple setup and and up to 14 hours battery life for great audio performance for two presenters right out of the box. The system includes BLX88 tabletop dual-channel receiver, 2 CVL lavalier microphones with BLX1 bodypack transmitters, lavalier clips, power supply, 2 sets of AA batteries, windscreens and user guide.
Why this product
Key Benefits
-
Superior Audio - Perform with Confidence
-
Reliable Signal - Extend your range
-
Easy Setup – Own the stage
-
Battery Life – 14 hours of power
-
Systems Expansions – Run up to 12 channels per frequency band
-
Versatility Included – You’ve got options
Technical details
Technical Specifications
Microphone
- Dynamic Range
- 100 dBA
- Frequency Response
- 50 Hz to 15 kHz (Dependent on Mic)
- Auto-Level Control
- No
- Gain Range
- -16 to +10 dB

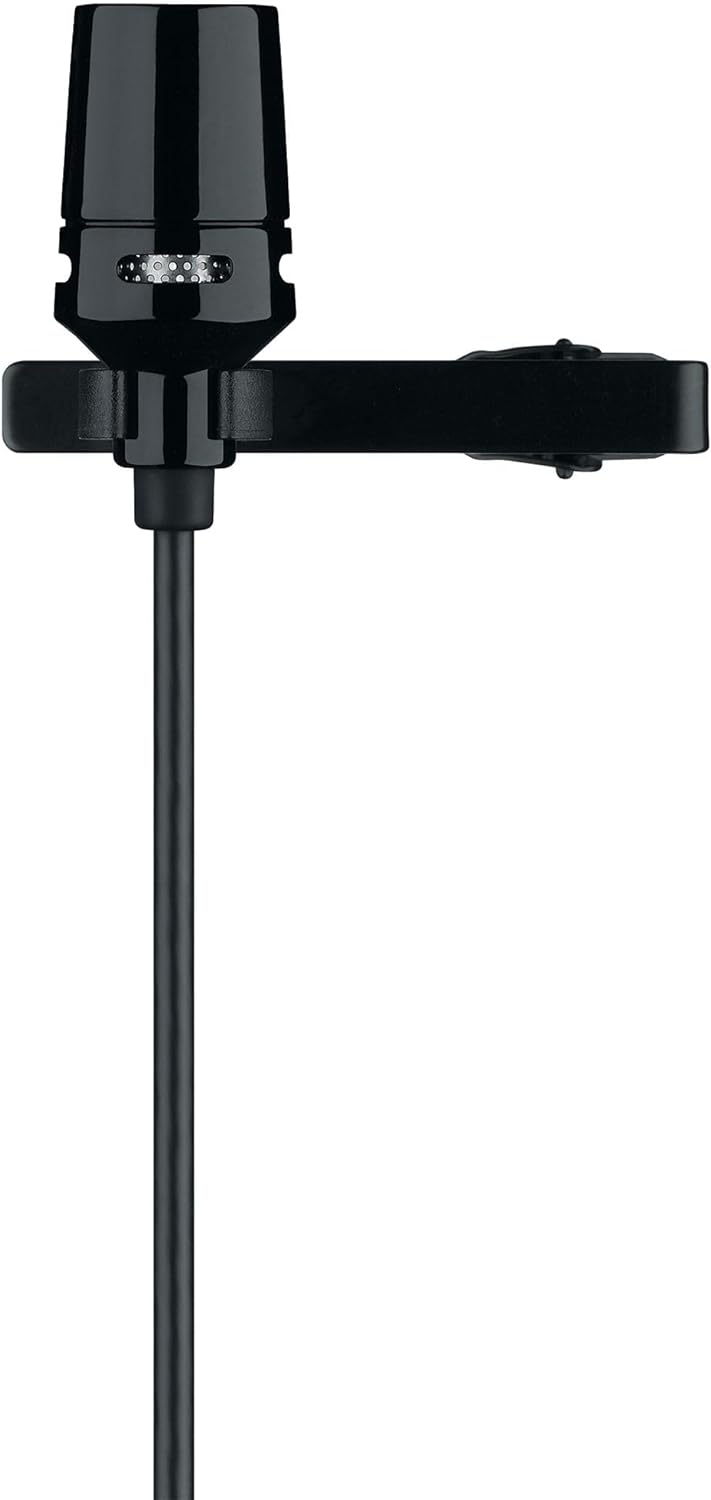

- Microphone Type
- Lavalier
- Sound Field
- Mono
- Capsule
- Electret Condenser
- Polar Pattern
- Cardioid
- Frequency Range
- 50 Hz to 20 kHz
- SNR
- 72 dB
- Equivalent Noise Level
- 22 dB A-Weighted
- Maximum SPL
- 139 dB SPL
- Dynamic Range
- 117 dB
Wireless
- Wireless Technology
- Analog UHF
- Number of RF Channel Frequencies
- 123
- Diversity
- Antenna Diversity
- RF Frequency Band
- H11 (572-596 MHz)
- RF Bandwidth
- 24 MHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band
- 12

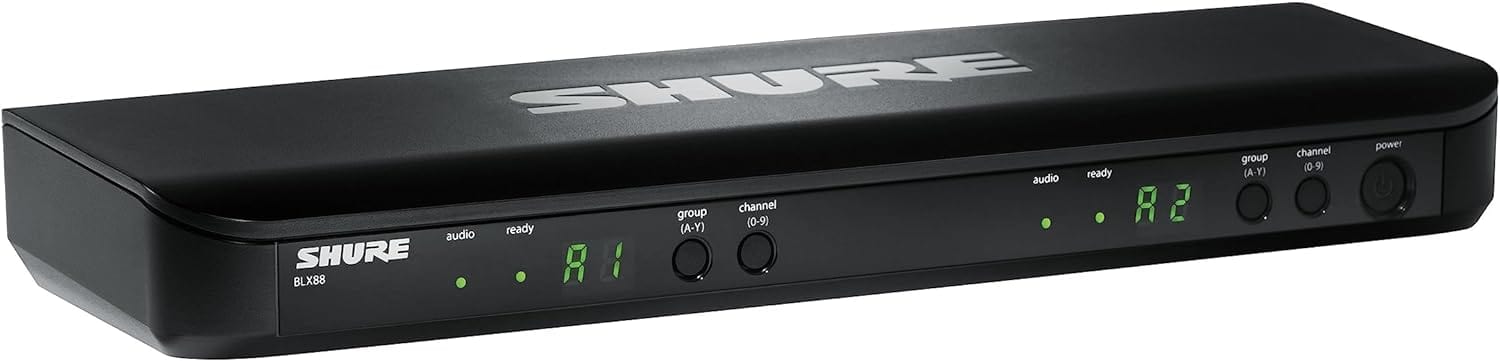

- Receiver Type
- Tabletop
- Antenna
- 2 x Internal, Fixed
- Adjacent Channel Isolation
- >50 dB

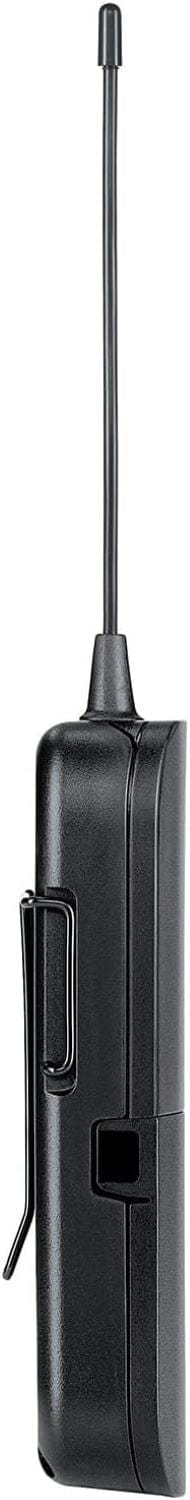

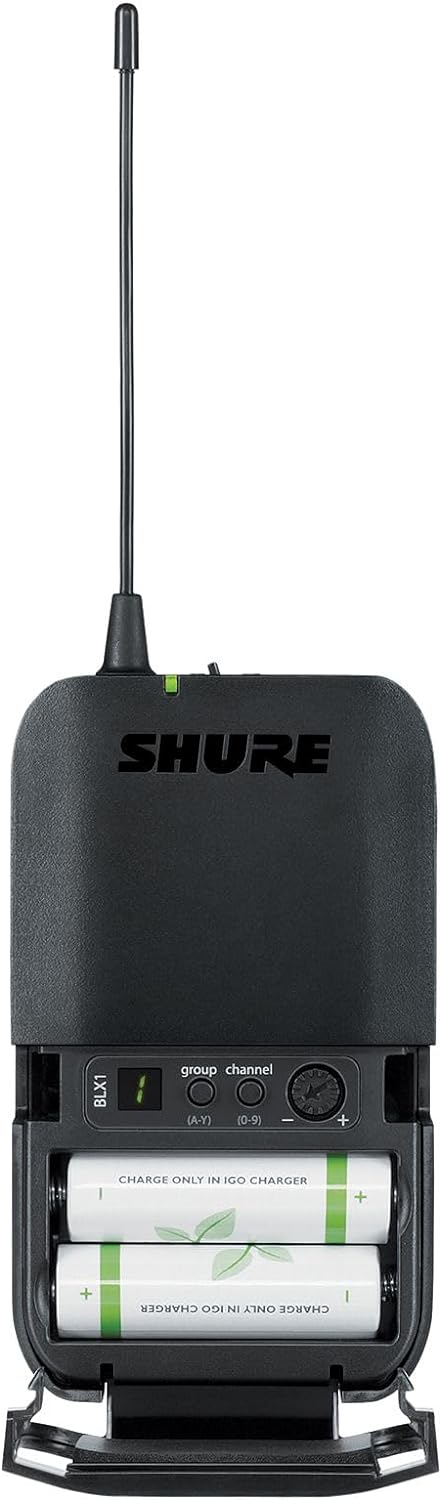

- Transmitter Type
- Bodypack
- RF Output Power
- 10 mW
- Sync Method
- Manual
- Antenna
- 1 x Flexible Whip, Fixed (Beltpack)
Battery
- Battery Type
- 2 x AA (Included)
- Approx. Battery Life
- 14 Hours (Alkaline)
Connectivity
- Number of Audio Channels
- 2
- XLR Outputs
- -27 dBV (Mic Level)
- 1/4" Outputs
- -13 dBV (Instrument Level)
- XLR Outputs
- 200 Ohms
- 1/4" Outputs
- 50 Ohms
- Audio I/O

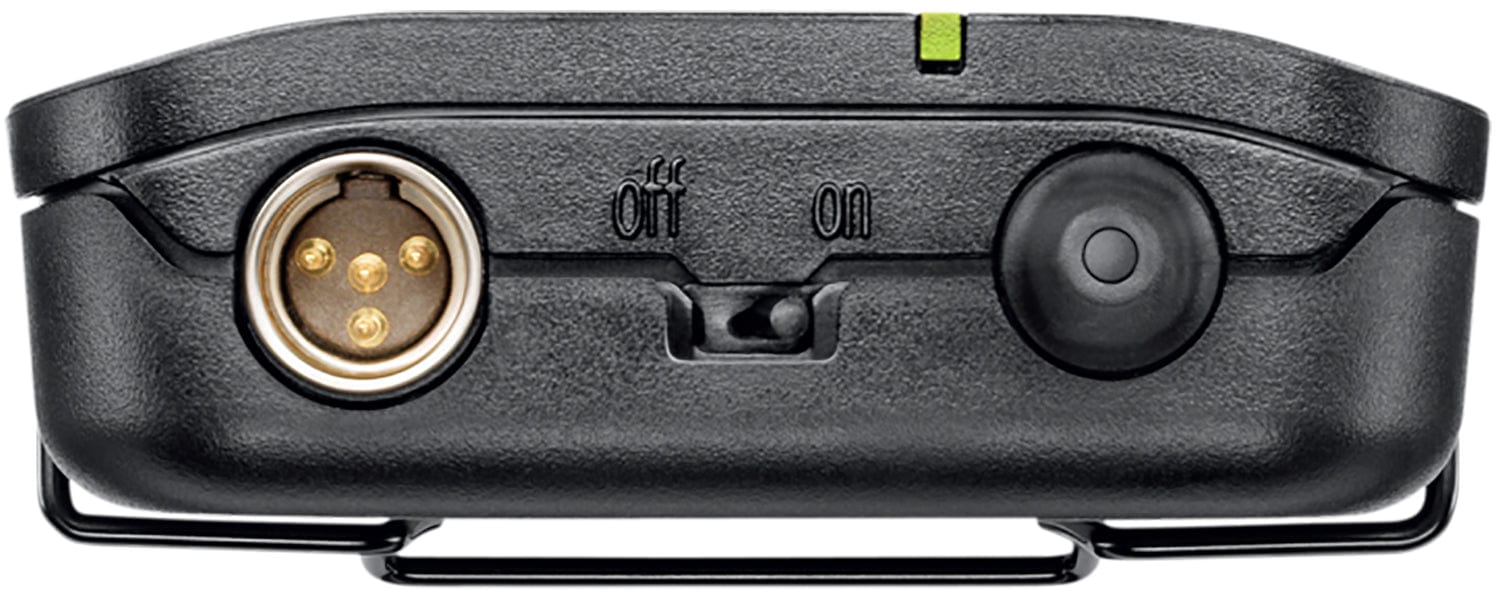

- 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
- Output Connector
- 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
- Cable Length
- 4.27' / 1.3 m
Power
- Power Requirements
- AC/DC Power Adapter
- AC/DC Power Adapter
- 12 to 15 VDC at 160 mA, Center-Positive (Included)
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz at 150 mA
- Power Requirements
- Battery
- Operating Voltage
- 5 V
Physical
- Housing
- ABS
- Dimensions
- 15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm
- Weight
- 15.1 oz / 429 g
- Dimensions
- 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
- Weight
- 2.6 oz / 75 g (without Batteries)
- Weight
- 0.88 oz / 25 g
Included & Optional Accessories
- Included Transmitters
- 2 x Bodypack
Shipping & Packaging
- Package Weight
- 6.885 lb
- Box Dimensions (LxWxH)
- 18.4 x 15.4 x 4"
General
- Muting
- Off/On Switch
More details
Additional Information
Specifications:
- System:
- Receiver:
- Audio I/O:

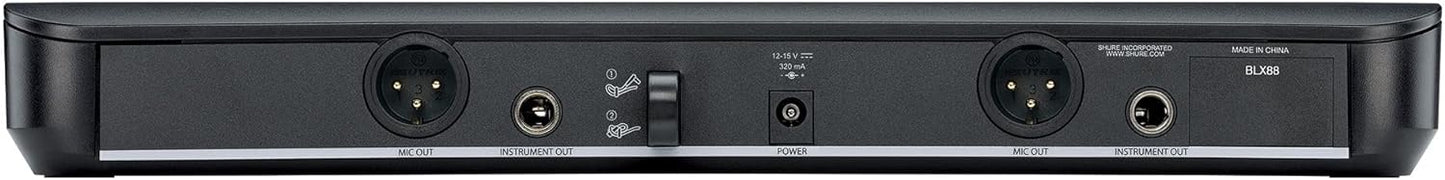

- 2 x XLR 3-Pin Male Balanced Output
- 2 x 1/4" TS Female Unbalanced Output
- Audio Output Level:
- Impedance:

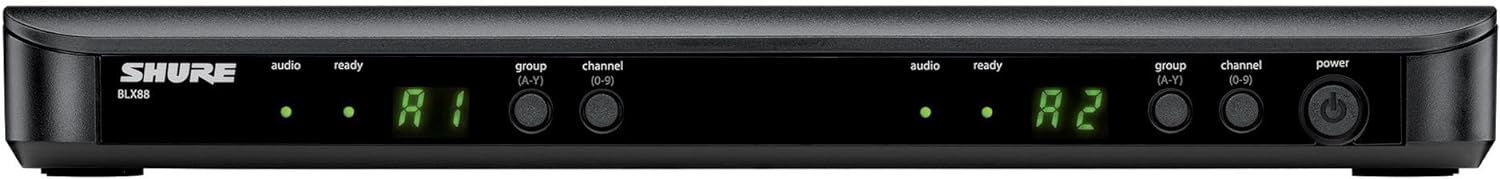

- Display & Indicators:
- 2 x Multi-Segment LED (Channel, Group)
- 4 x LED (AF Level, Sync)
- Audio I/O:
- Transmitter:
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Display & Indicators:
- Microphone:
