Shure BLX288 Wireless Dual Vocal System with 2x PG58 Handheld Transmitters - J11 Band
Model BLX288-PG58-J11
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure BLX288 Wireless Dual Vocal System with 2x PG58 Handheld Transmitters - J11 Band

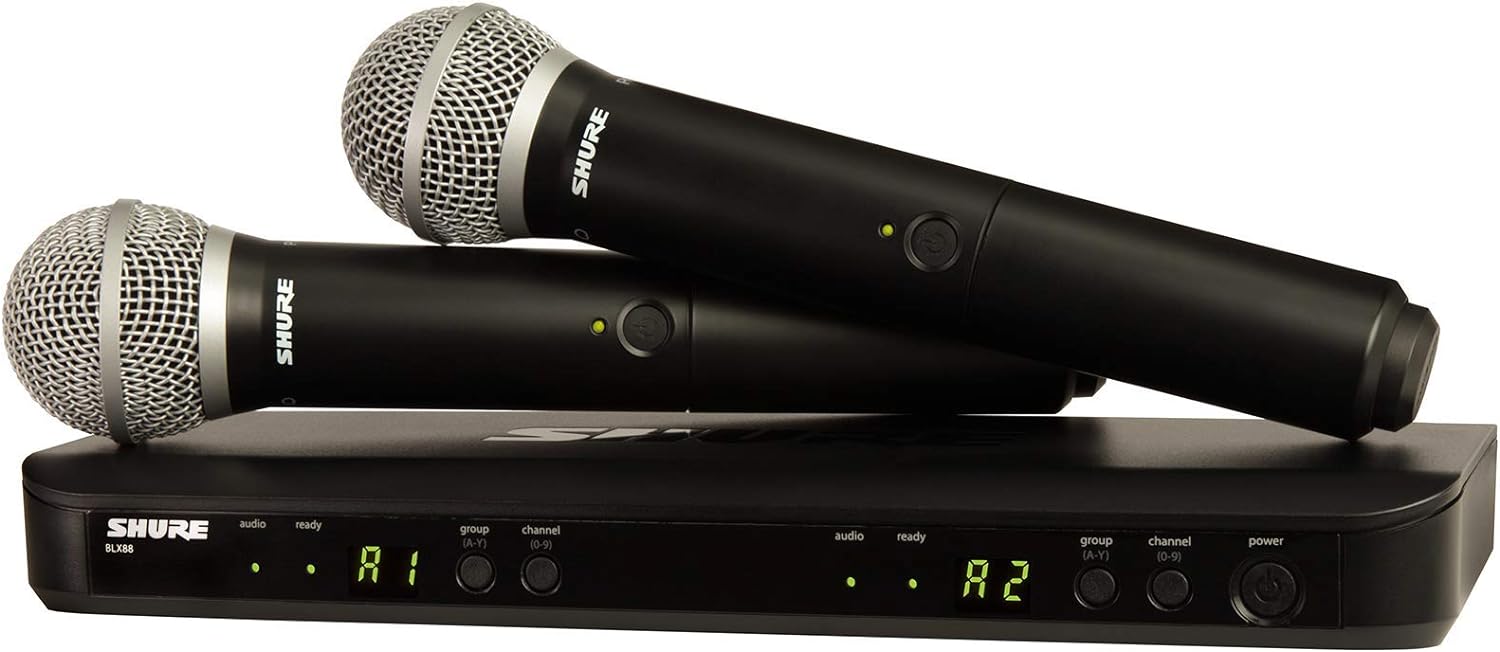

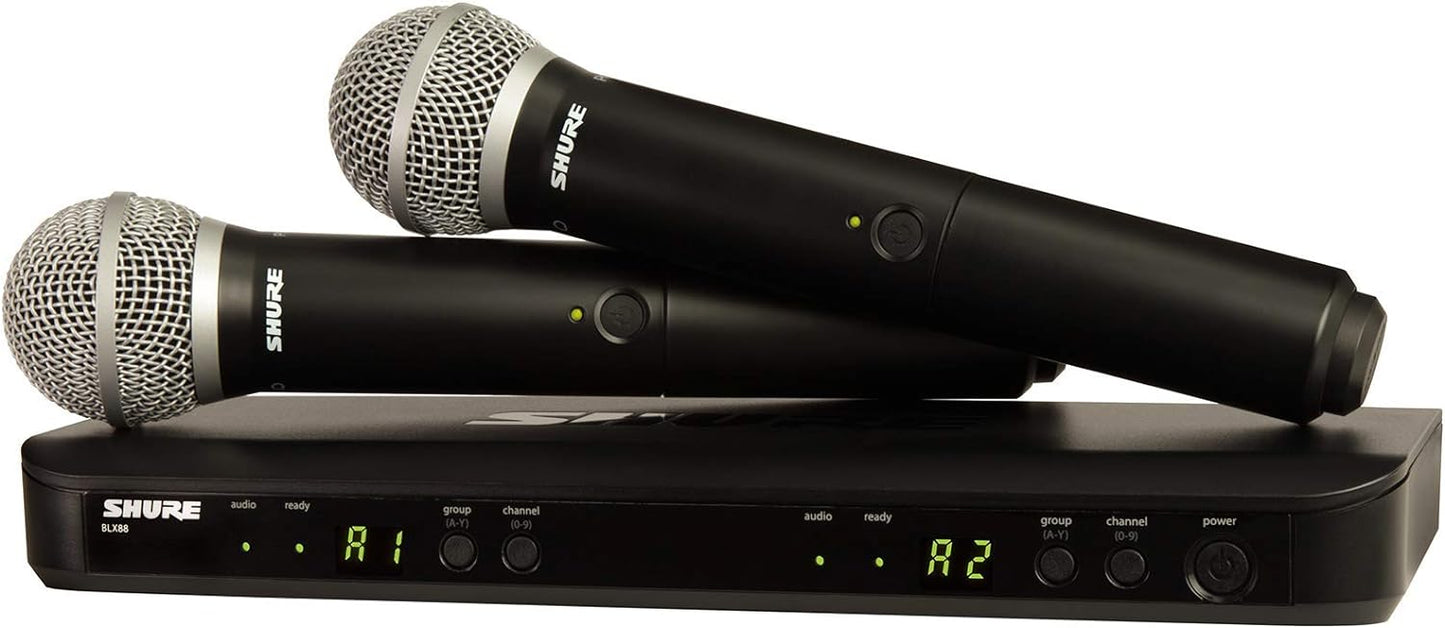

The Shure BLX288/PG58 Wireless Dual Vocal System combines professional-quality sound with simple setup and up to 14 hours battery life for great audio performance for two vocalists right out of the box. The system includes BLX88 tabletop dual-channel receiver, 2 PG58 handheld transmitters, 2 microphone clips, power supply, 2 AA batteries, and user guide.
Why this product
Key Benefits
-
Power and battery status LED
-
Adjustable gain control
-
Quick and easy frequency matching
-
AA batteries (included) provide up to 14 hours of continuous use
-
100 m (300 ft) operating range (line of sight)
-
Integrated microphone capsule design
-
-10 dB gain attenuation
-
Lightweight, rugged construction
-
Color ID caps (available separately)
-
Superior Audio - Perform with Confidence
-
Reliable Signal - Extend your range
-
Easy Setup – Own the stage
-
Battery Life – 14 hours of power
-
Systems Expansions – Run up to 12 channels per frequency band
-
Versatility Included – You’ve got options
Technical details
Technical Specifications
Microphone
- Dynamic Range
- 100 dBA
- Frequency Response
- 50 Hz to 15 kHz (Dependent on Mic)
- Auto-Level Control
- No
- Gain Range
- -20 to -10 dB
- Microphone Type
- Handheld Capsule
- Sound Field
- Mono
- Capsule
- Dynamic
- Polar Pattern
- Cardioid
- Frequency Range
- 50 Hz to 16 kHz
- Sensitivity
- -55 dBV/Pa at 1 kHz
Wireless
- Wireless Technology
- Analog UHF
- Number of RF Channel Frequencies
- 123
- Diversity
- Antenna Diversity
- RF Frequency Band
- J11(596 to 608 MHz,614 to 616 MHz)
- RF Bandwidth
- 14 MHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band
- 12
- Receiver Type
- Tabletop
- Antenna
- 2 x Internal
- Transmitter Type
- Handheld
- RF Output Power
- 10 mW
- Sync Method
- Manual
- Antenna
- 1 x Internal (Handheld)
Battery
- Battery Type
- 2 x AA (Included)
- Approx. Battery Life
- 14 Hours (Alkaline)
Connectivity
- Number of Audio Channels
- 2
- XLR Outputs
- -27 dBV (Mic Level)
- 1/4" Outputs
- -13 dBV (Instrument Level)
- XLR Outputs
- 200 Ohms
- 1/4" Outputs
- 50 Ohms
- Audio I/O
- None
Power
- Power Requirements
- AC/DC Power Adapter
- AC/DC Power Adapter
- 12 to 15 VDC at 160 mA, Center-Positive (Included)
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz
- Power Requirements
- Battery
Physical
- Mounting Options
- Tabletop
- Housing
- ABS
- Dimensions
- 15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm
- Weight
- 15.1 oz / 429 g
- Dimensions
- 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
- Weight
- 7.7 oz / 218 g (without Batteries)
Included & Optional Accessories
- Included Transmitters
- 2 x Handheld
Shipping & Packaging
- Package Weight
- 4.99 lb
- Box Dimensions (LxWxH)
- 19.3 x 16.2 x 3.5"
General
- Muting
- Off/On Switch
More details
Additional Information
Specifications:
- System:
- Receiver:
- Audio I/O:

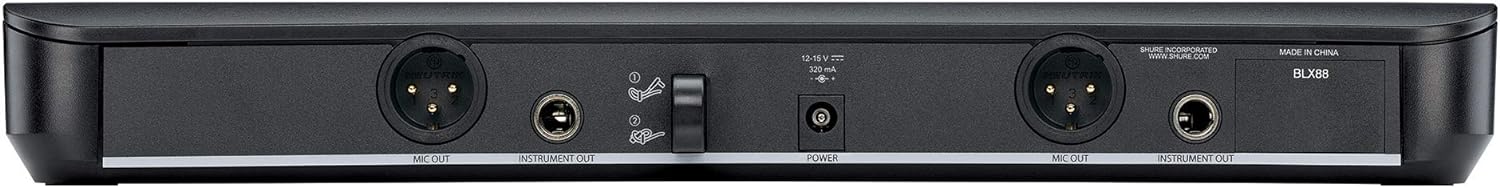

- 2 x XLR 3-Pin Male Balanced Output
- 2 x 1/4" TS Female Unbalanced Output
- Audio Output Level:
- Impedance:
- Display & Indicators:

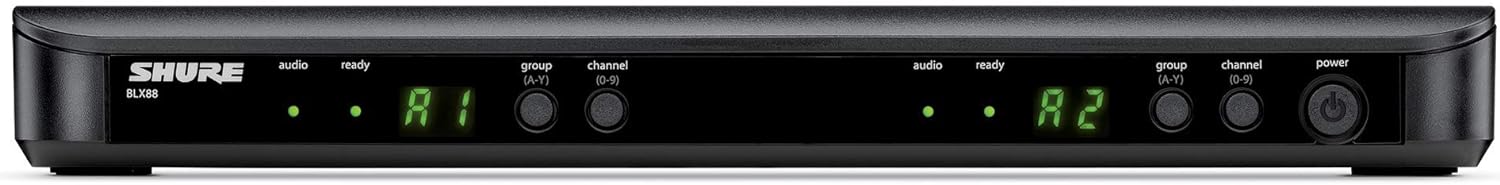

- 2 x Multi-Segment LED (Channel, Group)
- 4 x LED (AF Level, Sync)
- Audio I/O:
- Transmitter:
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Display & Indicators:
- Microphone:
- Packaging Info:
