Shure BLX88 Dual Wireless Receiver for BLX Wireless System - H11 Band
Model BLX88-H11
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

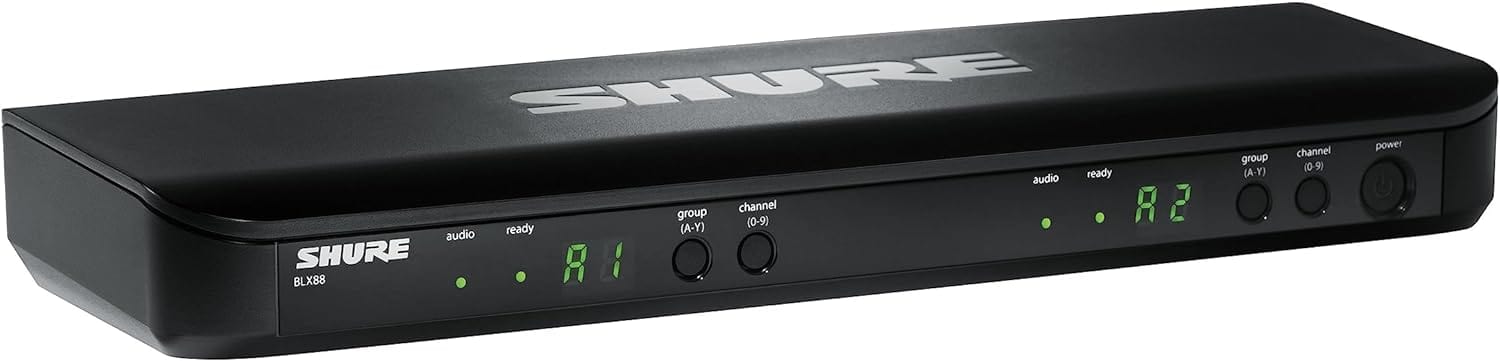

Shure BLX88 Dual Wireless Receiver for BLX Wireless System - H11 Band
Dual analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up. Features include microprocessor internal antenna diversity, frequency QuickScan, and two-color audio status indicator LED.
Why this product
Key Benefits
-
Up to 12 compatible systems (region dependent)
-
Microprocessor-controlled internal antenna diversity
-
One touch QuickScan locates the best open Frequency
-

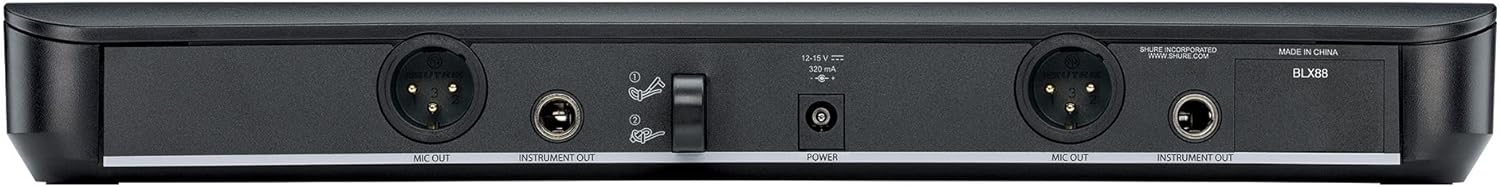

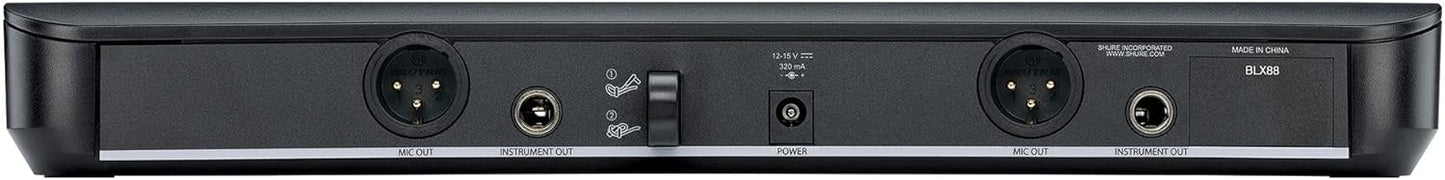

¼" and XLR audio outputs
-

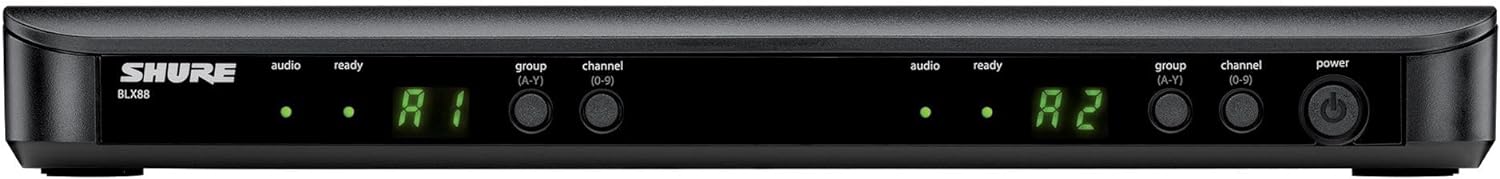

Two color audio status indicator LED
-
Green: Normal audio levels
-
Red: Excessive audio levels (overload/clipping)
Technical details
Technical Specifications
Microphone
- Frequency Response
- 50 Hz to 15 kHz
Wireless
- Number of RF Channel Frequencies
- 123
- Diversity
- Antenna Diversity
- RF Frequency Band
- H11(572-596 MHz))
- RF Bandwidth
- 24 MHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 300' / 91.4 m
- Max Transmitters per Band
- 12
- Receiver Type
- Tabletop
- Antenna
- 2 x Internal, Fixed
- Approximate RF Sensitivity
- -105 dBm
- Adjacent Channel Isolation
- >50 dB
Connectivity
- Number of Audio Channels
- 2
- XLR Outputs
- -27 dBV (Mic Level)
- 1/4" Outputs
- -13 dBV (Instrument Level)
- XLR Outputs
- 200 Ohms
- 1/4" Outputs
- 50 Ohms
Power
- Power Requirements
- AC/DC Power Adapter
- AC/DC Power Adapter
- 12 to 15 VDC at 160 mA, Center-Positive (Included)
Physical
- Housing
- ABS
- Dimensions
- 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm
- Weight
- 15.1 oz / 429 g
Environmental
- Operating Temperature
- 0 to 135°F / -17 to 57°C
Shipping & Packaging
- Package Weight
- 3.85 lb
- Box Dimensions (LxWxH)
- 19.1 x 16.2 x 3.6"
More details
Additional Information
Specifications:
- System:
- Receiver:
- Audio I/O:
- 2 x XLR 3-Pin Male Balanced Output
- 2 x 1/4" TS Female Unbalanced Output
- Audio Output Level:
- Impedance:
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 2 x LED (AF Level, Sync)
- Audio I/O:
- Packaging Info:
