Product details
Overview

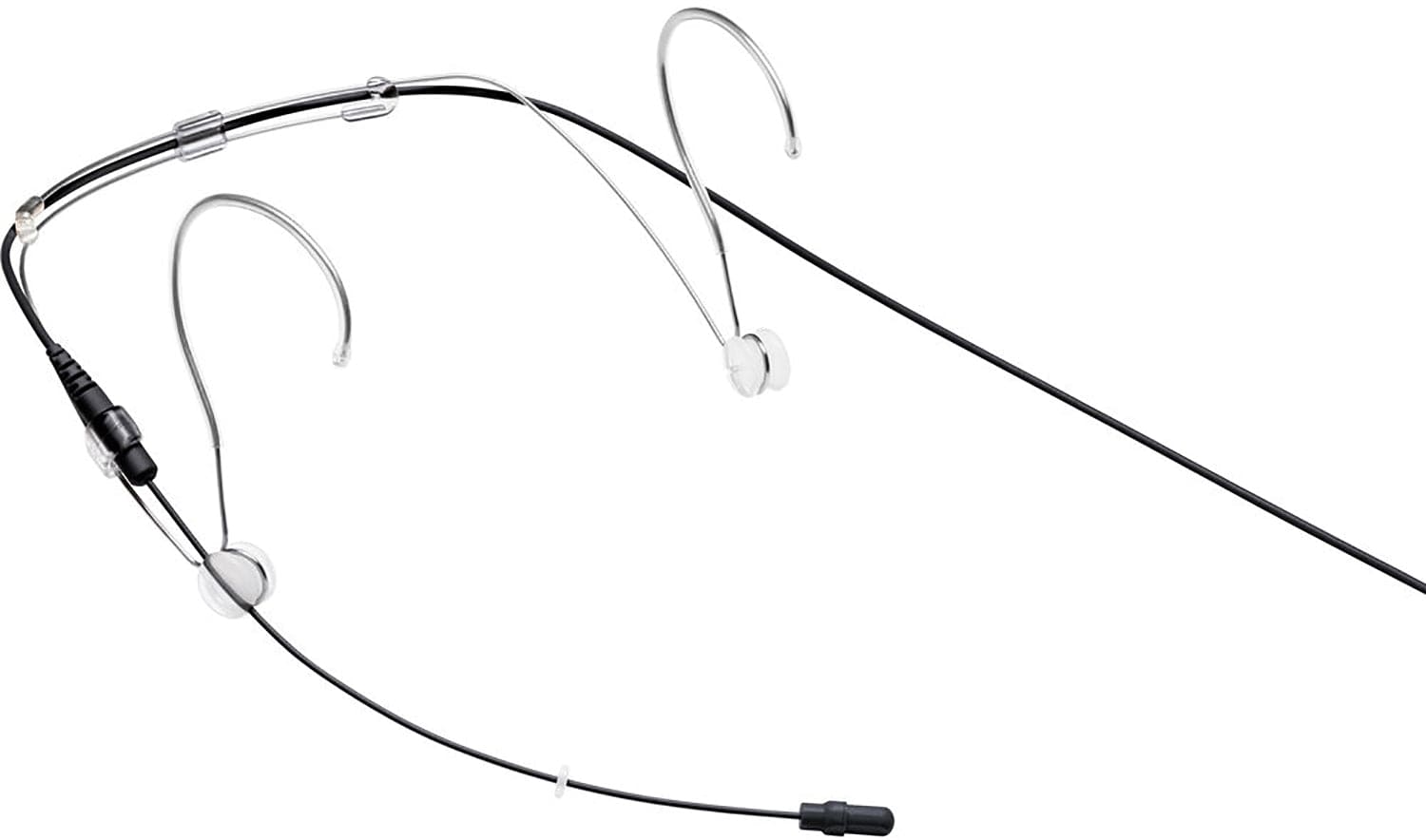

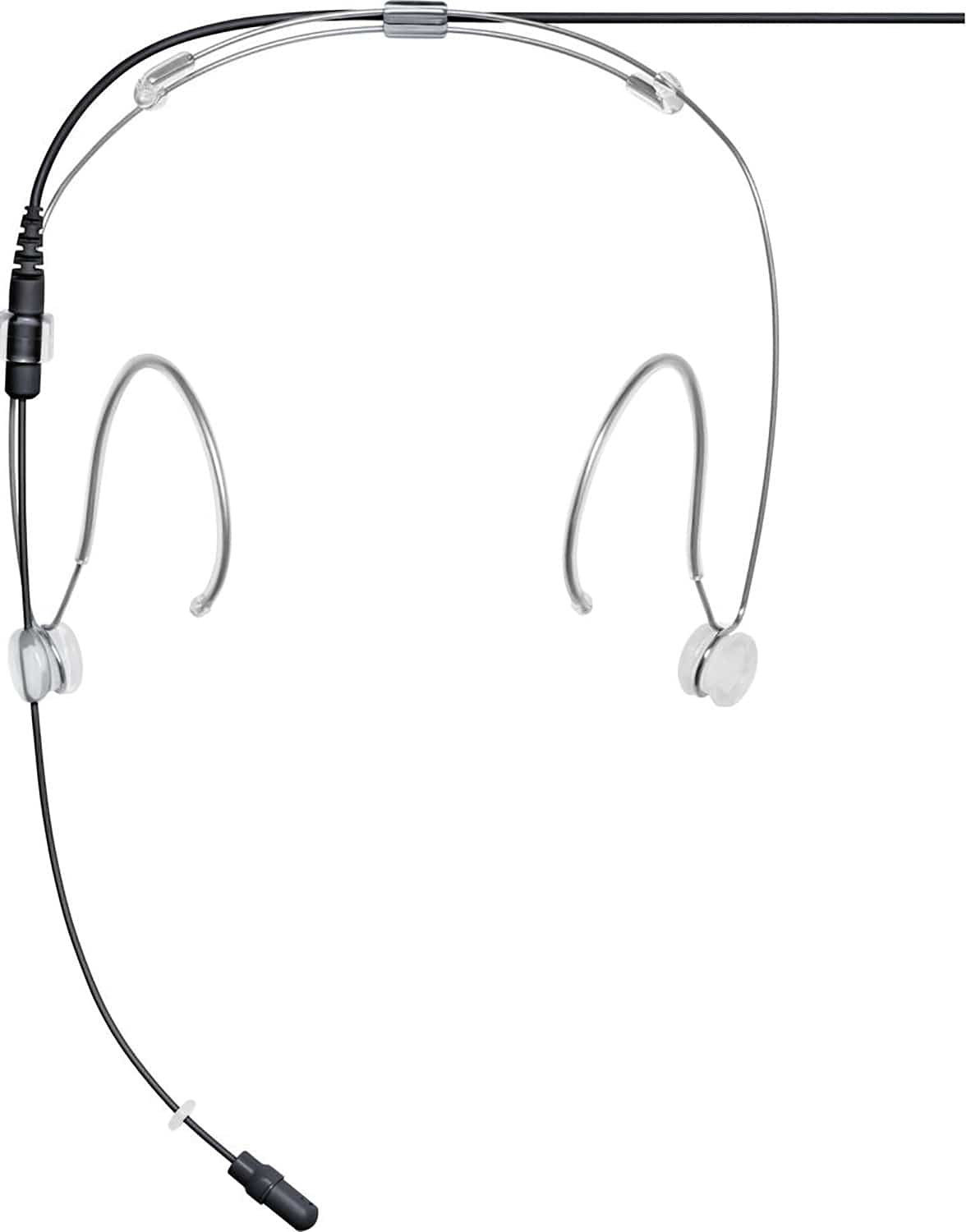

Shure DH5 DuraPlex Omnidirectional Subminiature Headset Microphone
Lightweight and comfortable to wear, the DuraPlex DH5 wireless headset microphone offers a neutral, full sound that will lift your performance, speech, musical, or broadcast. Rely on the DH5 wireless headset microphone in the harshest environments, thanks to its long-lasting Shure Plex cable and a certified IP57 rating, which means you’re protected against water, sweat, moisture, dust, and dirt. Capture every moment with confidence.
The Shure DH5 Headset Microphone is available with LEMO3 or MTQG plugs. Also, it comes in black, white, cocoa or tan.
See it in detail
Product Video
Why this product
Key Benefits
-
5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
-
IP57 dust-resistant, waterproof rated
-
Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
-
Advanced 1.6 mm Shure Plex cable
:
-
Dual redundant ground in cable serves as secondary shield for unprecedented longevity
-
Immune to memory effect and kinks
-
Fully paintable with typical theater paints, pens, and polishes
-
Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
-
Available in three colors: Black
-
Available in two connector types: LEMO
-

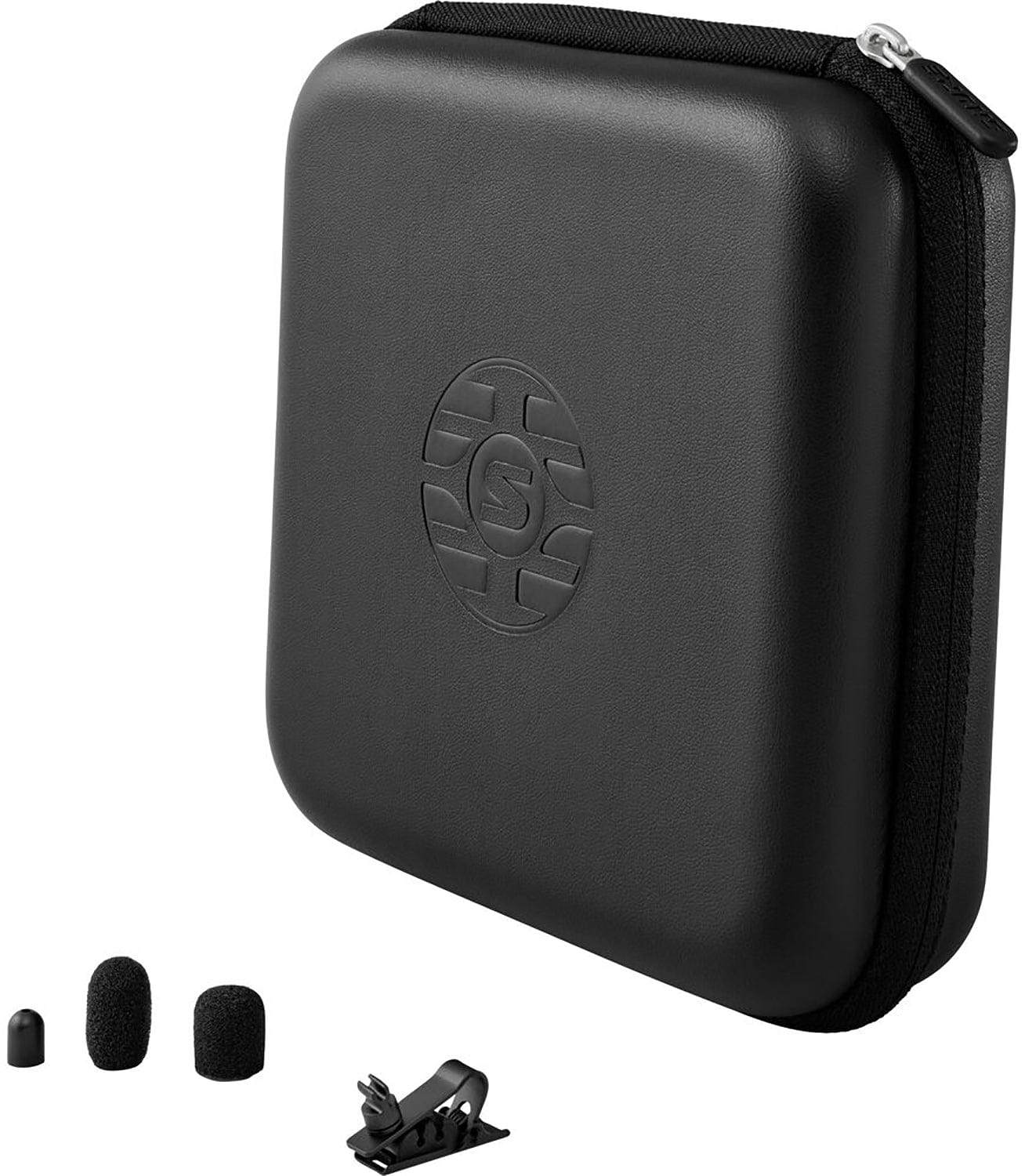

Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)
Technical details
Technical Specifications
Microphone
- Microphone Capsule
- MEMS
- Polar Pattern
- Omnidirectional
- Frequency Response
- 20 Hz to 20 kHz
- Self-Noise
- 31 dB SPL-A A-weighted, Equivalent Acoustical
- Signal-to-Noise Ratio
- 63 dB
- Dynamic Range
- 101.0 dB Typical
Connectivity
- Polarity
- Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
- Cable Diameter
- 1.6 mm
- Cable Length
- 66.0 in (1.67 m)
Power
- Microphone Current Draw
- 220 µA, maximum
Physical
- Housing
- Molded ABS
- Net Weight
- 15.0 g (0.53 oz)
- Capsule Dimensions (L × D)
- 14.5 mm × 5.2 mm
More details
Additional Information
Specifications:
- Sensitivity: –42.5 dBV (7.5 mVRMS) @ 1 kHz
- Maximum SPL: 132.0 dB SPL 1 kHz @ 1% THD, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
