Shure DH5T/O-LM3 DuraPlex Omnidirectional Subminiature Headset Microphone - LEMO3 Plug - Tan
Model DH5T-O-LM3
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

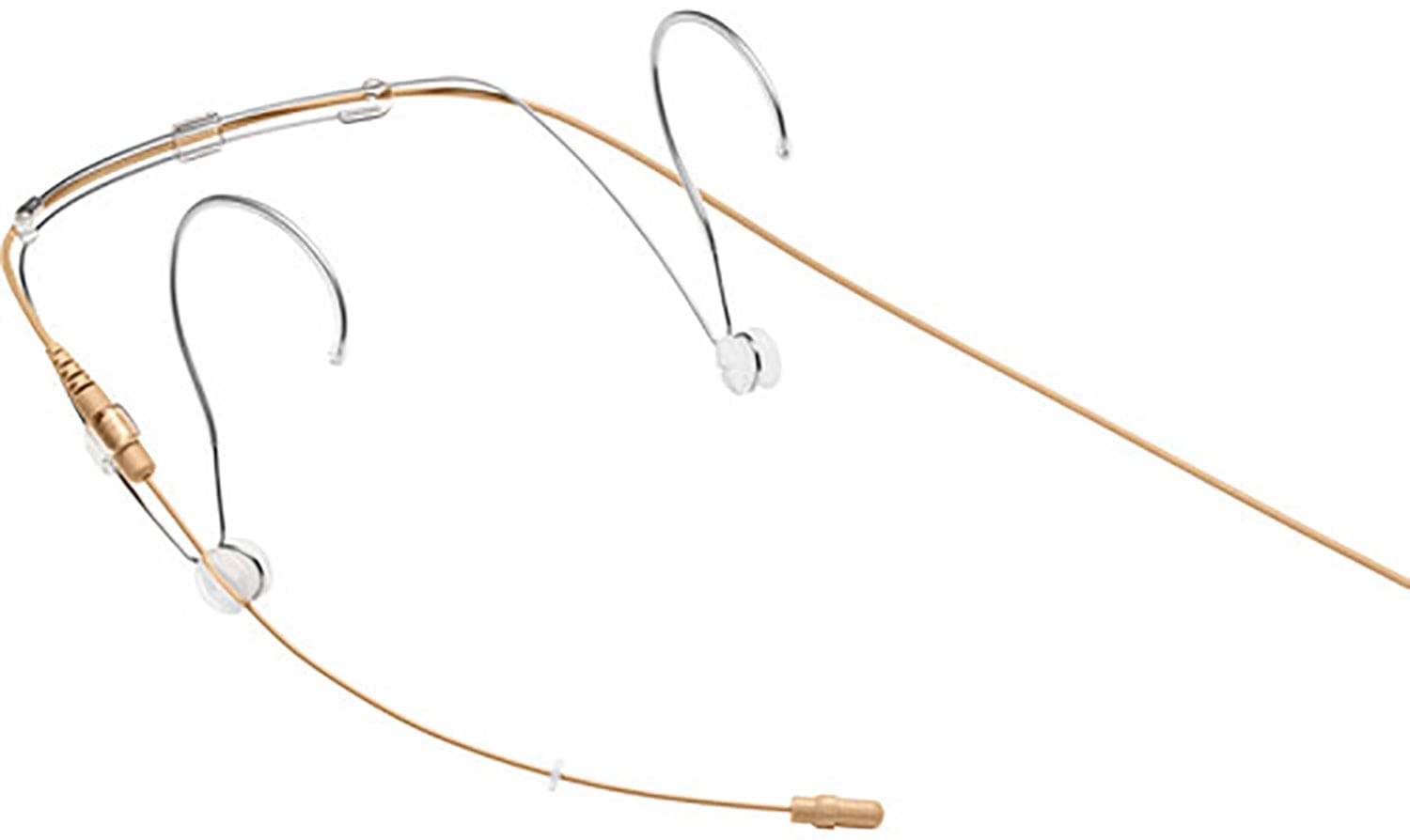

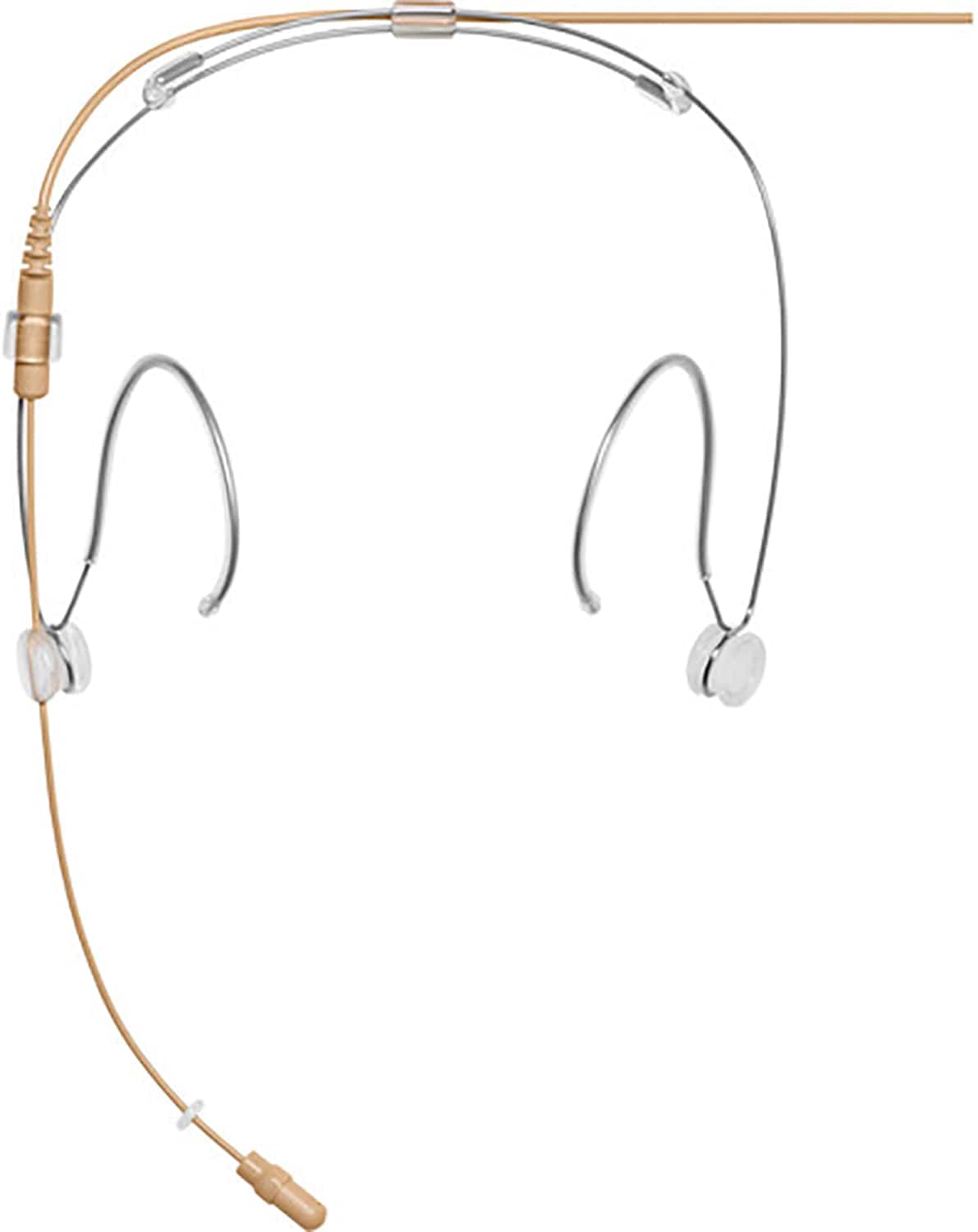

Shure DH5T/O-LM3 DuraPlex Omnidirectional Subminiature Headset Microphone - LEMO3 Plug - Tan
Lightweight and comfortable to wear, the DuraPlex DH5 wireless headset microphone offers a neutral, full sound that will lift your performance, speech, musical, or broadcast. Rely on the DH5 wireless headset microphone in the harshest environments, thanks to its long-lasting Shure Plex cable and a certified IP57 rating, which means you’re protected against water, sweat, moisture, dust, and dirt. Capture every moment with confidence.
Why this product
Key Benefits
-
5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
-
IP57 dust-resistant, waterproof rated
-
Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
-
Advanced 1.6 mm Shure Plex cable
:
-
Dual redundant ground in cable serves as secondary shield for unprecedented longevity
-
Immune to memory effect and kinks
-
Fully paintable with typical theater paints, pens, and polishes
-
Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
-
Available in three colors: Tan
-
Available in two connector types: LEMO
-

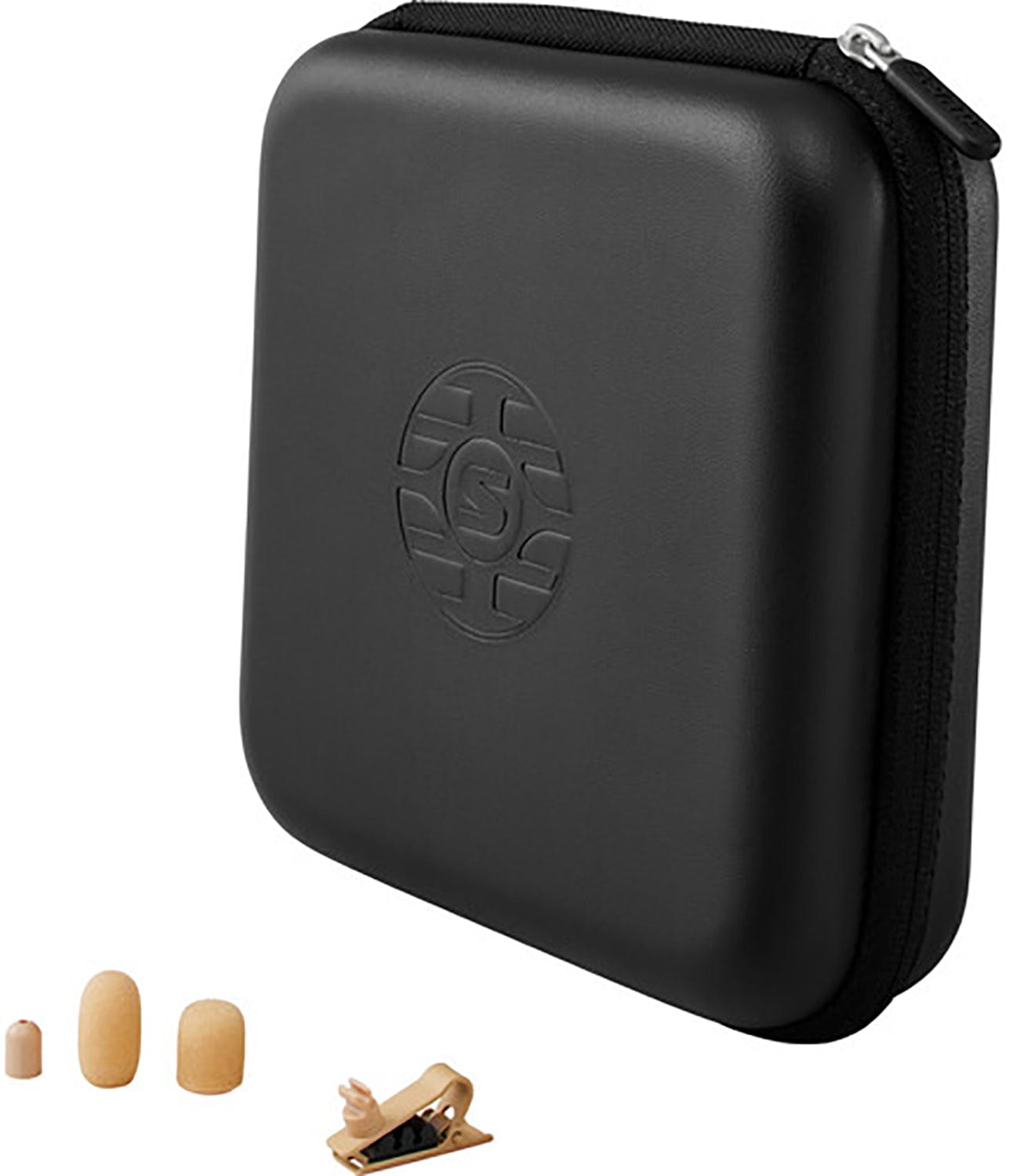

Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)
Technical details
Technical Specifications
Microphone
- Microphone Capsule
- MEMS
- Polar Pattern
- Omnidirectional
- Frequency Response
- 20 Hz to 20 kHz
- Self-Noise
- 31 dB SPL-A A-weighted, Equivalent Acoustical
- Signal-to-Noise Ratio
- 63 dB
- Dynamic Range
- 101.0 dB Typical
Connectivity
- Polarity
- Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
- Cable Diameter
- 1.6 mm
- Cable Length
- 66.0 in (1.67 m)
Power
- Microphone Current Draw
- 220 µA, maximum
Physical
- Housing
- Molded ABS
- Net Weight
- 15.0 g (0.53 oz)
- Capsule Dimensions (L × D)
- 14.5 mm × 5.2 mm
More details
Additional Information
Specifications:
- Sensitivity: –42.5 dBV (7.5 mVRMS) @ 1 kHz
- Maximum SPL: 132.0 dB SPL 1 kHz @ 1% THD, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
